Torque Spec for M6/M8 Titanium Dual Drive Bolts

For titanium dual drive bolts in M6 and M8 size, accurate torque requirements are vital for ensuring structural integrity and optimum performance. The suggested torque for dry M6 Grade 5 titanium bolts is usually 4.5-5.5 Nm, while for M8 bolts it is about 11-13 Nm under the same circumstances. These values are subject to variation based on the surface finish (anodized, PVD, etc.) and the use of anti-seize lubricants. Understanding these differences may help you avoid over-torquing that can damage thread integrity or under-torquing that can risk joint failure in demanding automotive and motorcycle applications.

Understanding Titanium Dual Drive Bolts and Their Properties

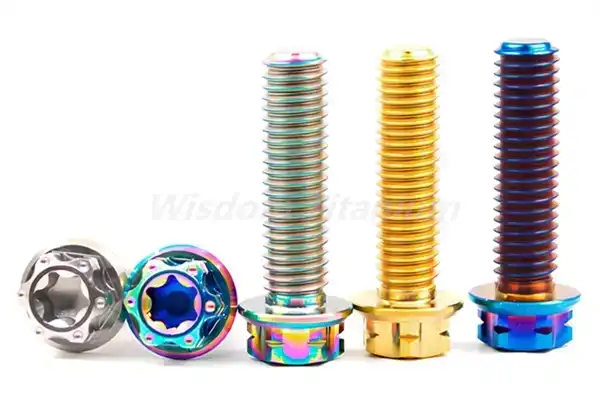

Titanium fasteners have altered the way performance-driven businesses assemble components. The titanium dual drive bolts have both hex and Torx connections to increase power transmission and reduce the chance of stripping the head while installing or removing components. Such a characteristic is especially beneficial in a racing environment where tools must be dependable and versatile for repeated repair rounds.

What Makes Grade 5 Titanium Superior？

Ti-6Al-4V, often known as grade 5 titanium, is the primary material used in the fastener industry. 'Because it offers the greatest ratio of strength to weight. This is an aircraft-grade alloy with 6% aluminum and 4% vanadium. It has tensile strength of over 950 MPa and weighs 45 percent less than the same kind of bolts in steel. This strength-to-weight ratio is particularly essential to racing teams and body shops who do modifications since reducing the rotational mass of wheel assemblies immediately enhances their handling and acceleration. The metal’s corrosion resistance solves the oxidation problems steel bolts have with exposure to brake dust, road salt, and humidity.

Comparing Titanium to Traditional Fastener Materials

Steel nuts are still widely utilized for OEM purposes. They are cheaper but more prone to rusting and heavy. Stainless steel is more resistant to corrosion, but it is still a lot heavier than titanium, and it doesn't take as well to stress during several cycles of loading and unloading. Aluminum bolts are lighter but do not have the shear strength required for use in safety-essential applications such as fixing brake callipers. “We’ve worked with race teams and found that titanium is the best material because it’s as strong as steel but as light as aluminum. It is also able to withstand temperatures up to 500°C without decomposing.

Industry Applications Driving Demand

Engine bays, braking systems, and wheel hub assemblies are commonly equipped with titanium fasteners at high-performance maintenance facilities. These pieces are essential for motorcycle racing teams to grip the sprocket and install the brake disc. Being able to combat shaking and shed weight has a direct impact on lap times. A lot of M6 titanium bolts go into building frames and attaching items at custom bike shops. This will appeal to bike aficionados looking for performance and flair. All these applications have one thing in common: they are employed when normal fasteners fail early or slow down the system.

Torque Specifications for M6 and M8 Titanium Dual Drive Bolts: Best Practices

If you have the correct amount of torque with titanium twin drive bolts, it will either operate as planned or it will fail badly. The properties of titanium, notably the lower modulus of elasticity than steel, need the changing of torque levels and a cautious approach.

Material Characteristics Affecting Torque Requirements

When installing, the surface must be scrutinized carefully, as titanium is prone to galling when it touches anything. Titanium threads need to be clean and free of contaminants before engagement; steel threads may take some minor flaws. A 36 HRC strength indicates that the thread will survive a long period and will yet be supple enough not to break easily. If you use anodized or PVD-coated fasteners, you have to reduce the baseline torque requirements by 10–15%, since these coatings modify the friction coefficients at the thread surfaces.

Recommended Torque Values and Installation Guidelines

We recommend the following torque values for Grade 5 titanium fasteners after industrial and field testing:

M6 Titanium bolt:

• Dry condition: 4.5 - 5.5 Nm
• Lubricated (anti-seize chemical) 3.8–4.5 N·m

Anodized/coated: 4.0-4.8 Nm M8 titanium bolts:

• Dry: 11-13 Nm
• Lubricated (anti-seize compound): 9.5–11 N·m
• Anodized/coated: 9.8-11.5 Nm

These ranges provide thread engagement on aluminum, steel, and composite surfaces typical in motorcycle and vehicle components, including applications using titanium dual drive bolts. Always make sure that materials are suitable before you finalize the installation. This is particularly true when titanium bolts are being torqued into threaded aluminum parts. The differential in thermal expansion between the two materials might impair the retention of the preload.

Tools and Techniques for Accurate Installation

It is crucial that torque wrenches be calibrated and within the operating range. Beam-type or digital devices provide precision with a resolution of 1 Nm. Impact tools may generate micro-cracks in the crystalline structure of titanium because of the shock stresses they impose. Clean all thread surfaces with isopropyl alcohol before fitting the pieces together to remove any manufacturing oils or other contaminants. Use anti-seize chemicals moderately; too much lubrication decreases friction in unforeseen ways, which may lead to over-torquing. Use a cross pattern tightening sequence for secure multi-bolt systems. This will distribute the clamping stresses equally and prevent the mating surfaces from bending.

Maintenance Considerations for Long-Term Performance

Checking the torque often can help maintain joints in excellent condition, particularly where vibrations are expected to occur, such as in motorcycle braking systems. Check the schedule every 500 hours of usage or heat cycle occurrences. Write down the initial torque numbers during installation so that you have a starting point for future comparisons. If you detect distorted threads, darkening from overheating, or any breaks in the fasteners, then you should replace them. Once you yield titanium bolts, their fatigue characteristics change. So you don't want to reuse bolts that have been strained in critical applications.

Comparing Titanium Dual Drive Bolts to Steel and Other Materials for Torque Application

Not only does the choice of material affect titanium dual drive bolt torque specs, but it also affects long-term costs and the reliability of the system. When you know about these trade-offs, you can make better choices about what to buy for bulk sales and custom uses.

Mechanical Strength and Torque Response Analysis

Steel Grade 8.8 bolts have a higher actual tensile strength (about 800 MPa yield), but they weigh 4.5 g/cm³ more than titanium bolts, which is a difference that seems small but adds up over time and in different setups. Even worse, steel's higher stiffness concentrates stress at the thread roots, which raises the risk of fatigue failure when loaded and unloaded over and over again. Titanium spreads out loads more evenly, which makes it last longer in active situations. Stainless steel (Grade A2-70) is somewhat resistant to corrosion, but it hardens during installation, which makes it harder to take apart. Aluminum alloys are very light, but they need bigger bolt sizes to have the same clamping force, which takes away any benefits of packing.

Corrosion Resistance and Environmental Durability

Fasteners used in cars and motorcycles are exposed to acidic substances like brake fluid, salt spray, and humidity. Without protective coats, steel bolts rust within months, and even stainless steel bolts rust in places that don't get enough air, like multi-piece wheel hubs. Titanium makes a solid oxide layer that heals itself when scratched. It can keep its shape at temperatures ranging from -200°C to 500°C. This passive corrosion resistance gets rid of the need for cadmium plating or zinc coatings, which are heavy and can be bad for the environment when they are thrown away.

Lifecycle Cost Analysis for Procurement Decisions

Titanium bolts are more expensive than steel bolts (usually 3–5 times as much), but they have a measurable value over their lifetime. According to racing teams, the time between repairs for these fasteners is 40% longer than for steel ones. By getting rid of corrosion-related problems, modification shops cut down on customer calls back. Weight-driven improvements in fuel economy are good for OEM makers; every kilogram saved in rotating mass leads to measured performance gains. When you figure out the total cost of ownership, you should include things like less work for maintenance, no need for corrosion treatments, and longer component life. These factors usually make the original investment worth it, especially in professional racing and high-end car markets where dependability has a direct effect on results and brand image.

Procurement Guide: Sourcing M6/M8 Titanium Dual Drive Bolts for Bulk and Custom Orders

Choosing a dependable supplier is key to making sure that your titanium dual drive bolts meet requirements and get to you on time. Quality control strictness, certification paperwork, and the ability to provide expert help are what set exceptional makers apart from commodity sellers.

Evaluating Supplier Credentials and Capabilities

ISO 9001 approval sets the standard for quality management, but buying managers should look further. Request chemical composition reports that confirm that the Grade 5 alloy has the right amount of 6% aluminum and 4% vanadium. Tensile test results showing a strength of 950 MPa or more confirm that the material is real; low-quality suppliers may use weaker Grade 2 pure titanium instead. Metallographic inspection reports that show the right grain flow orientation in forged fasteners show that the company can make high-tech products. Thread precision is just as important as Go/No-Go gauge approval, which stops fitting problems caused by differences in size. Suppliers who offer these paperwork packages show that they are honest and know what they're doing.

Managing Lead Times and Volume Pricing

Standard sizes like M6 and M8 usually ship within 2 to 4 weeks from when they are first stocked. Custom lengths or special finishes, on the other hand, can take up to 8 weeks. Price breaks for large orders happen at 500, 1,000, and 5,000 pieces, and at bigger amounts, you can save up to 30% to 20%. Discuss general buy orders for needs that will happen again and again. This will keep prices stable and ensure there is enough production capacity during times of high demand. Make sure you know the minimum order quantity right away. Boutique suppliers may need at least 100 pieces to meet your needs, while high-volume manufacturers can handle smaller test batches.

Customization Options and Technical Support

Thread types that meet metric, UNC, and UNF standards are available on lengths ranging from 5mm to 300mm to meet a wide range of assembly needs. Different types of surface finishes, such as polished, anodized, and PVD coating, are used to meet different aesthetic needs and friction requirements. Changing the head profile to change the weight works well for applications with very strict mass limits. Reputable makers offer technical advice and can figure out the best torque specs for your base materials and clamping force needs. This technical relationship cuts down on development time and mistakes during installation. This is especially helpful when switching from steel to titanium fasteners in current designs.

Troubleshooting and FAQs Related to Titanium Dual Drive Bolts Torque Specs

When working with titanium dual-drive bolts, even skilled techs run into problems. Knowing about common problems and taking steps to stop them protects the integrity of both the parts and the assembly as a whole.

Avoiding Common Installation Errors

The most common mistake is still over-torquing, which happens when force values for steel bolts are applied to titanium screws. The effects range from threads coming off of aluminum substrates to stress buildup that starts cracks spreading. Under-torquing also has important consequences: not putting enough preload on the joint lets it move, which speeds up wear and could cause it to loosen up when it vibrates. When you put together an assembly with both coated and uncoated bolts, the friction coefficients change, which makes the clamping forces uneven. Always sort inventory by surface treatment and clearly label assemblies so that maintenance workers don't get confused about the specifications.

Tool Selection and Calibration Practices

Beam-type torque wrenches are reliable and don't need batteries or complicated processes. Digital types that can log data are better for quality-controlled industrial settings. Calibrate tools once a year through NIST-traceable services, or more often if they get lost or overloaded. If you want to be accurate, don't use extensions or adapters that change the functional length of the lever arm. These can cause calculation mistakes. The quality of the socket is important. Six-point designs spread loads more evenly than twelve-point designs, which lowers the risk of dual drive connections becoming rounded.

Conclusion

Accurate torque specifications for M6 and M8 titanium dual drive bolts directly impact assembly safety, component longevity, and system performance. Grade 5 titanium alloy delivers measurable advantages over steel and aluminum alternatives—combining an exceptional strength-to-weight ratio with corrosion resistance that eliminates maintenance burdens. Proper installation techniques, calibrated tools, and attention to surface conditions ensure these benefits translate to real-world reliability. Procurement decisions should weigh lifecycle value over initial costs, recognizing that quality fasteners reduce total ownership expenses through extended service intervals and eliminated failures. Partnering with manufacturers offering comprehensive quality documentation, technical support, and customization capabilities streamlines sourcing while ensuring specification compliance across production volumes.

FAQ

1. How Do Lubrication Conditions Affect Titanium Bolt Torque Specifications?

Using anti-seize products lowers friction coefficients by about 15–20%, which means that torque needs to be lowered to get the same holding force. The effects of dry installations are the most reliable, but they can be hard to take off. Lubricants made from molybdenum disulfide work well with titanium. On the other hand, compounds made from copper can cause galvanic rusting when used with aluminum. When talking about torque values, you should always include the lubrication state, and the values should be the same across all parts to make sure the preload is spread out evenly.

2. Can Titanium Bolts Be Reused After Initial Installation?

Grade 5 titanium screws can be used more than once in non-critical situations as long as the torque values stay within the ranges allowed when they were first installed. Carefully look at the threads under a microscope to see if they have deformed, galled, or changed colors that could mean they were damaged by heat. For safety-important parts like brake calipers, wheel hubs, and suspension parts, new fasteners need to be used for each assembly cycle because yielded titanium has different fatigue properties. Keep track of the past of installations for inventory management, and keep used nuts separate from new ones so they don't get mixed up.

Partner with a Trusted Titanium Dual Drive Bolts Supplier

Wisdom Titanium makes Grade 5 titanium dual drive bolts that are precisely engineered for use in cars, motorcycles, and performance equipment. We are in the Baoji Titanium Valley in Shaanxi Province, which is China's main titanium production hub. We have full control over the whole supply chain, from getting the raw materials to inspecting the finished product. Our ISO 9001-certified factory makes M4–M14 fasteners in lengths from 5mm to 300mm that can be threaded in metric, UNC, or UNF standards. You can choose from three different surface finishes: polished, anodized, and PVD coating. All of these have been checked for quality through strict protocols.

Since our company started in 2016, we've sold fasteners that meet aerospace-grade standards to race teams, OEM makers, and modification experts. Our technical team can help you figure out the right torque for your specific substrate materials by adapting their help to your assembly needs. Every order comes with full reports on the tracking of raw materials and pre-shipment inspections. These reports give procurement managers the proof they need to make sure they are following the rules.

Our manufacturing capabilities are flexible enough to meet your needs, whether you need a few prototypes to test your design or more than 10,000 pieces to be produced. To talk about your needs, please email our engineering team at sales@wisdomtitanium.com. We give clear quotes with lots of details within 24 hours, technical drawings for special requests within 48 hours, and lead time promises that are backed up by our track record.

References

1. Boyer, R., Welsch, G., & Collings, E.W. (2020). Materials Properties Handbook: Titanium Alloys. ASM International Press.

2. Machinery's Handbook Editorial Staff (2022). Machinery's Handbook, 31st Edition: Guide to Torque Specifications for Titanium Fasteners. Industrial Press.

3. Society of Automotive Engineers (2021). SAE J1701: Torque-Tension Test Procedure for Threaded Fasteners. SAE International Standards.

4. American Society for Testing and Materials (2023). ASTM F467: Standard Specification for Nonferrous Nuts for General Use. ASTM International.

5. Bickford, J.H. (2019). Introduction to the Design and Behavior of Bolted Joints: Non-Gasketed Joints, 5th Edition. CRC Press.

6. Titanium Information Group (2022). Technical Guidelines for Industrial Titanium Fastener Applications in High-Performance Vehicles. Titanium Development Association.
