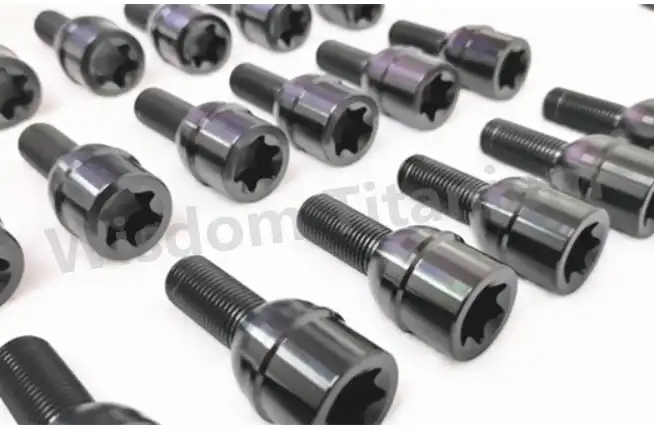

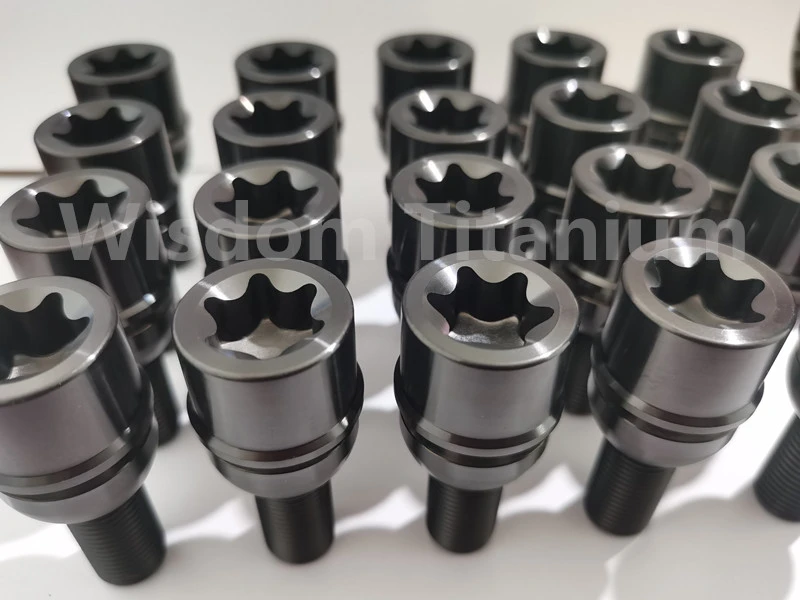

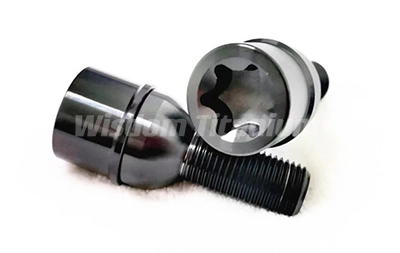

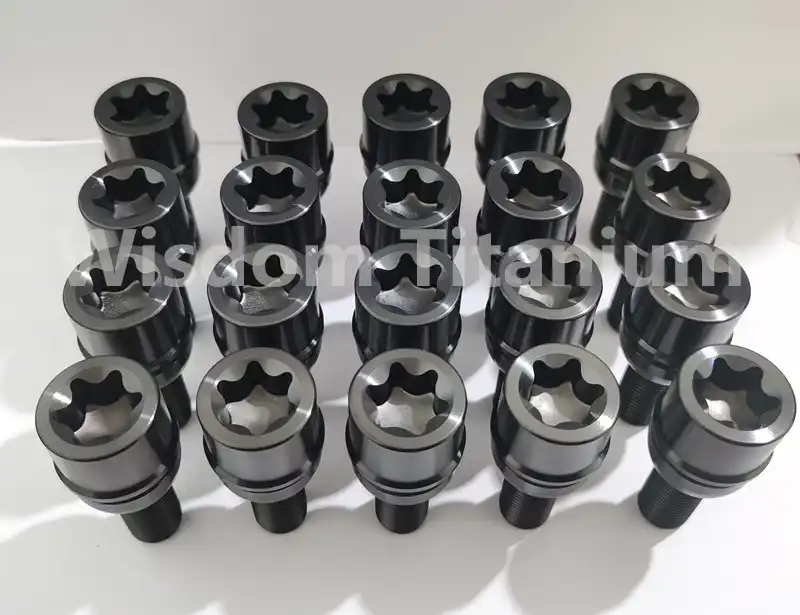

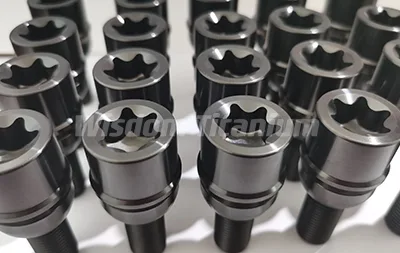

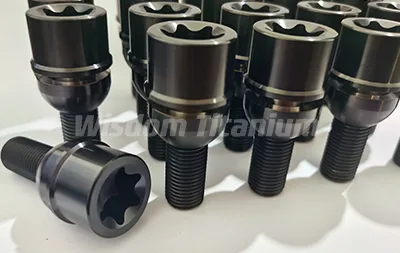

titanium wheel bolts

Titanium Wheel Bolts by Wisdom Titanium

Material: Aerospace Grade 5 Titanium Alloy (Ti-6Al-4V / ASTM B348)

Tensile Strength: 130,000–138,000 psi (min 950 MPa)

Yield Strength: 128,000 psi

Density : 4.43 g/cm³ (vs. 7.85 g/cm³ for steel)

Weight Reduction:  40–50% lighter than steel bolts

Thread Sizes: M12×1.25, M12×1.5, M14×1.25, M14×1.5

Seat Types: 60° Conical Seat / Ball Seat (R13 / R14)

Head Types: Hex (17mm) / Multi-Spline / T70 Torx / T80 Torx / 12pt

Length Options: 27mm, 28mm, 29mm, 32mm, 35mm, 38mm, 43mm, 45mm, 50mm+

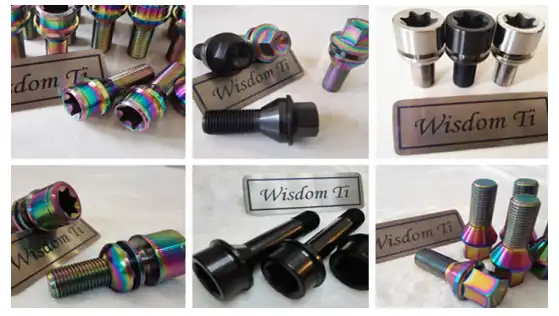

Surface Finishes: Natural Titanium, Burnt Blue, Gold, Black, Rainbow, Red

Key Benefits

• Up to 50% Lighter Than Steel – Dramatically reduces unsprung and rotational weight for sharper handling, quicker acceleration, and improved braking response

• Aerospace-Grade Strength – Forged from Grade 5 Ti-6Al-4V titanium with tensile strength exceeding 950 MPa — stronger than standard OEM steel bolts

• 100% Rust-Proof – Naturally corrosion-resistant; impervious to road salt, harsh weather, and wheel cleaners

• Heat-Stable Performance – Maintains strength through extreme temperature cycles without compromising integrity

• Premium Visual Finish – Available in Natural Titanium, Burnt Blue, Gold, Black, Rainbow etc.

Product Functions:

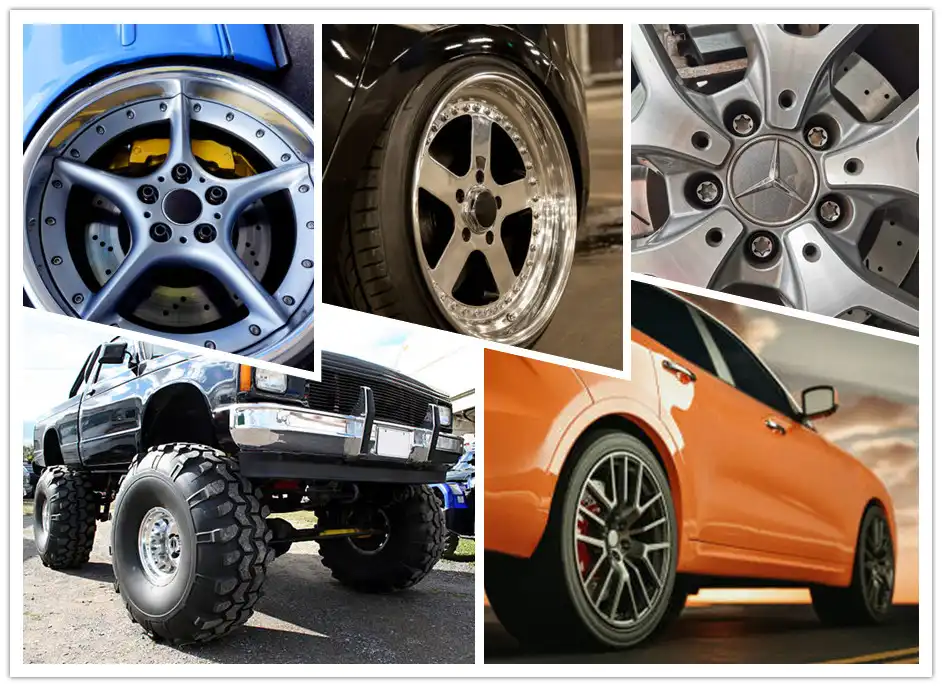

Titanium wheel bolts offer various functions that make them highly advantageous for automotive applications. These functions include secure wheel fastening, weight reduction, corrosion resistance, high-temperature resistance, custom fitment, aesthetics, enhanced performance, reliability, safety, and durability. By utilizing these specialized bolts, vehicle manufacturers can ensure optimal performance, safety, and longevity for their vehicles, especially in high-performance and customized automotive designs.

Fitment & Compatibility:

Our titanium wheel bolts are precision CNC-machined to match OEM thread pitch, seat design, and length specifications for a clean, bolt-on installation with no modification required.

Compatible with leading brands including:

· BMW (M14×1.25 / M12×1.5)

· Porsche (M14×1.5 — Ball Seat R13 / Conical)

· Audi, Volkswagen (M14×1.5)

· Mercedes-Benz

· Ferrari, Lamborghini, McLaren

OEM Services:

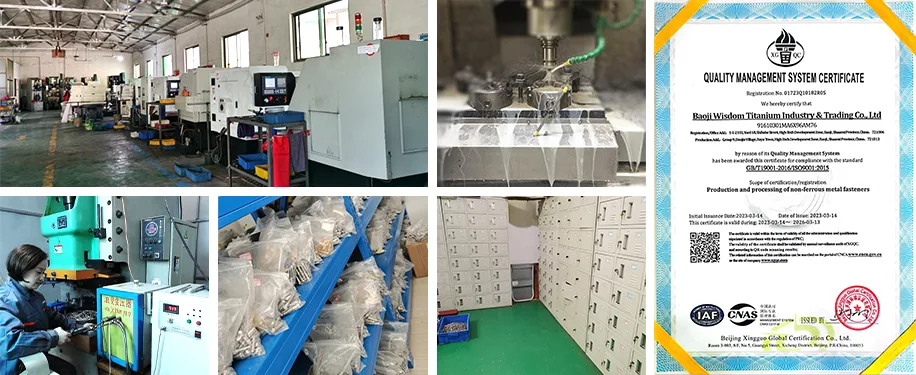

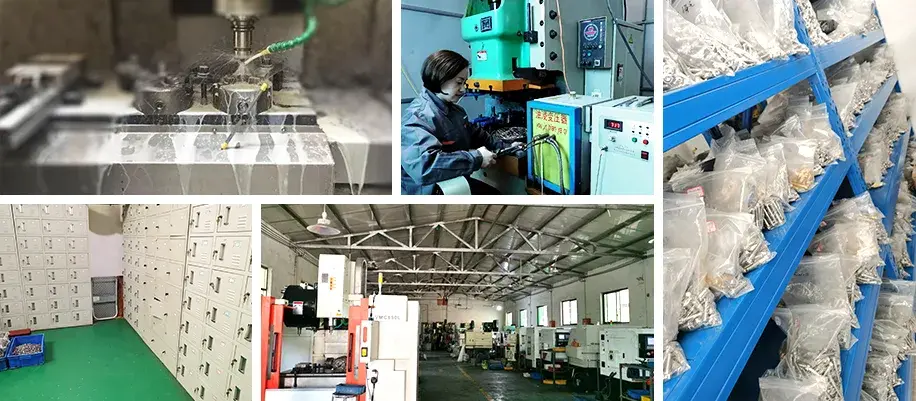

As an ISO 9001 certified manufacturer, Wisdom Titanium proudly offers OEM services. Our experienced team can work closely with clients to develop customized the products tailored to specific requirements.

Certification and Test Reports:

Our commitment to quality is backed by ISO 9001 certification. Additionally, we provide comprehensive test reports, ensuring that each batch of it meets the highest standards.

Fast Delivery and Tight Packaging:

Wisdom Titanium understands the importance of timely delivery. We ensure fast shipping while maintaining the integrity of the product through secure and robust packaging.

Contact US:

Interested in our titanium wheel bolts for your next project? Contact Wisdom Titanium today to discuss your requirements and receive a competitive quote. Our team is ready to assist with custom solutions and bulk orders.
Email: sales@wisdomtitanium.com
