12 point Porsche Titanium Lug Bolt

12 point Porsche Titanium Lug Bolt

• Material : titanium Gr5 (Ti-6Al-4V)


• Tensile Strength: 900~1050Mpa  ( 130,000 – 152,000  psi )

• Technical: hot forged head with rolled threads

• Head type: Hot Forged 12 Point Head

• Finish  : Polished Finish

• Stud/Bolt Pattern/Size :  M14 x 1.5mm x29mm

• Extended Lengths 34mm (+5mm), 39mm (+10mm), 44mm (+15mm), 49mm (+20mm), 52mm (+23mm)

• Seat Type Ball Seat (R14 radius) with floating washer – OEM Porsche specification

• Color avaiable: PVD black, gold, rainbow, burnt blue, red

•


• Application: Porsche Boxster, Cayman, 996, 997, 991

Products introduction

12-Point Porsche Titanium Lug Bolts – precision-engineered for the most discerning Porsche enthusiasts, tuning shops, and race teams. Featuring a distinctive hot-forged 12-point head, these lug bolts deliver the ultimate combination of lightweight construction, exceptional strength, and race-inspired aesthetics.

Crafted from aerospace-grade Grade 5 Titanium (Ti-6Al-4V) , each bolt is hot-forged and thread-rolled to exacting standards. The 12-point head design not only enhances visual appeal but also provides a more secure, reliable fastening solution compared to conventional hex heads.

Whether you're upgrading a 911 GT3 for track duty or adding a motorsport touch to a Cayman weekend cruiser, these bolts deliver performance that matches their stunning appearance.

Performance Benefits

Reduced Unsprung & Rotational Mass – A full set of 20 titanium lug bolts weighs approximately 820g versus 1,500g for steel – a ~45% weight saving. This reduction in rotational mass improves acceleration, braking response, and suspension compliance.

Better Handling – Lighter unsprung weight allows your dampers to react faster to road imperfections, keeping tires planted for superior grip.

Accelerated Performance – Less energy is wasted spinning heavy steel hardware – your engine revs more freely.

Track-Ready Durability – Titanium’s exceptional fatigue resistance makes these bolts ideal for high-stress track-day and racing applications.

Compatibility

Our 12-point titanium lug bolts are direct-fit replacements for a wide range of Porsche models:

Model Model Model

Porsche 911 (996, 997, 991, 992) Porsche 911 GT3 / GT2 Porsche Cayman / Boxster (all generations)

Porsche 718 Cayman / Boxster Porsche Panamera Porsche Macan

Porsche Cayenne Porsche 964 / 930 (Air-Cooled) Porsche 356

Length Selection Guide:

· 29mm – Standard OEM length (no spacers)

· 34mm – For vehicles with factory 5mm spacer (e.g., GT3)

· 39mm, 44mm, 49mm, 52mm – For aftermarket wheels or wheel spacer setups

OEM Services

Wisdom Titanium extends comprehensive OEM services for the Porsche Titanium Lug Bolt, allowing customization based on specific design, size, and material preferences. Our commitment to precision and quality ensures that OEM solutions meet the highest industry and Porsche standards.

Why Choose Us?

Factory Direct – We manufacture in-house, offering competitive wholesale pricing with no middleman markup.

Wholesale Only – We supply exclusively to businesses, tuning shops, distributors, and professional teams. No retail sales.

Minimum Order Quantity: 100 pieces – Built for bulk procurement with consistent quality across every batch.

Full Customization – OEM/ODM services available: custom lengths, finishes, head designs, and laser logo engraving.

Strict Quality Control – Every batch is XRF-scanned and comes with a Mill Test Report (MTR) verifying material composition.

Global Logistics – Reliable shipping to any destination worldwide.

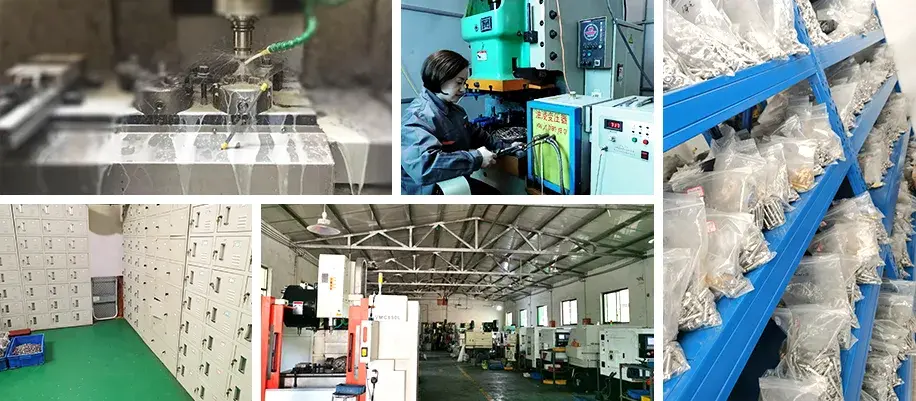

About Us

Wisdom Titanium stands as a professional manufacturer and supplier of titanium wheel lug bolts. We provide various standard and customized titanium bolts nuts for tuning car. Our commitment to fast delivery, secure packaging, and comprehensive testing supports our reputation as a reliable partner in the global market.

For inquiries or to place an order for Porsche Titanium Lug Bolts tailored to your specific needs, contact us at janet@wisdomtitanium.com. Choose Wisdom Titanium for precision, quality, and expertise in titanium fasteners.
