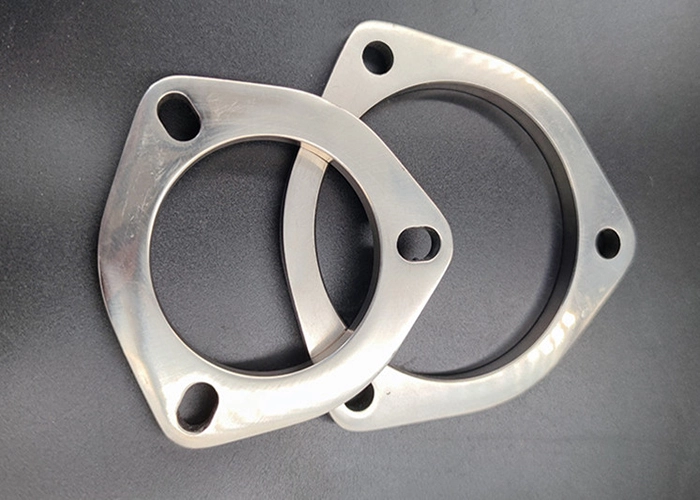

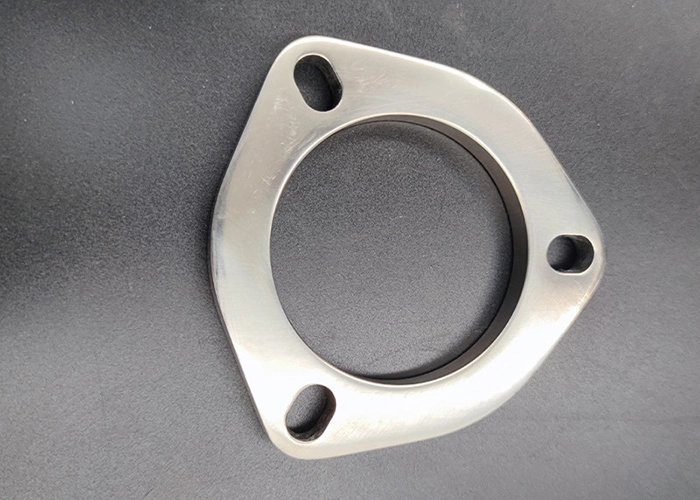

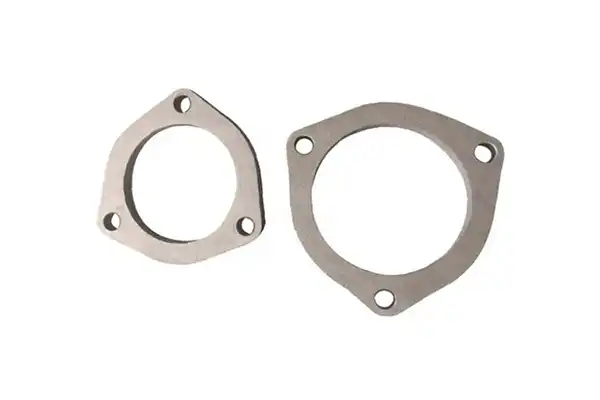

3 bolt titanium exhaust flange
Material Gr5 titanium; three M10 bolt holes; thickness 8 mm
OD 95 mm, ID 63.5 mm; 3-bolt exhaust flange
Bolt circle diameter 86 mm; precision CNC machined
Flatness ≤0.05 mm; leak-free sealing performance
Operating temperature up to 600 °C; high heat resistance
Weight approx. 210 g; lightweight titanium construction
Product Introduction
The 3 Bolt Titanium Exhaust Flange is a precision-machined exhaust connection component designed for high-performance and high-temperature applications. Manufactured by Baoji Wisdom Titanium Industry and Trading Co., Ltd., this flange offers superior strength-to-weight ratio, excellent corrosion resistance, and long-term reliability compared with traditional steel or stainless steel flanges.
It is widely used in automotive, motorcycle, racing, marine, and industrial exhaust systems, ensuring secure connections and stable sealing under extreme operating conditions.
Material Options
Titanium Grade 2 (ASTM B348)
Titanium Grade 5 / Ti-6Al-4V (ASTM B348)
Other grades available upon request
Product Features
Lightweight design for performance exhaust systems
Excellent corrosion resistance in harsh environments
High temperature and oxidation resistance
Strong bolt clamping force with precise hole alignment
Smooth sealing surface to reduce exhaust leakage
Long service life with minimal maintenance
Technical Specifications
| Item | Specification |
|---|---|
| Material | Titanium Gr2 / Gr5 |
| Bolt Pattern | 3 Bolt |
| Manufacturing Method | CNC Machining |
| Thickness | Customized |
| Outer Diameter | Customized |
| Tolerance | ±0.01 mm |
| Surface Finish | Machined / Polished / Sandblasted |
| Standard | DIN / ANSI / Customized |
| Custom Service | OEM & ODM Supported |

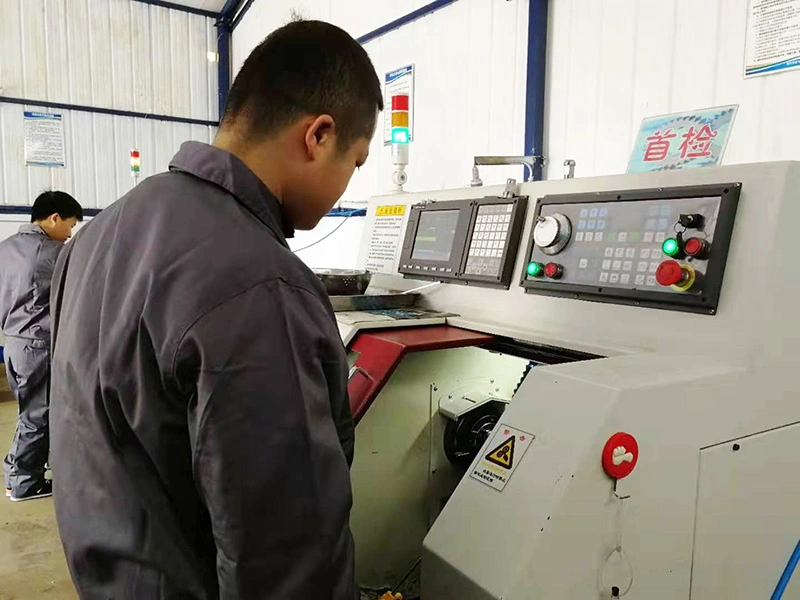

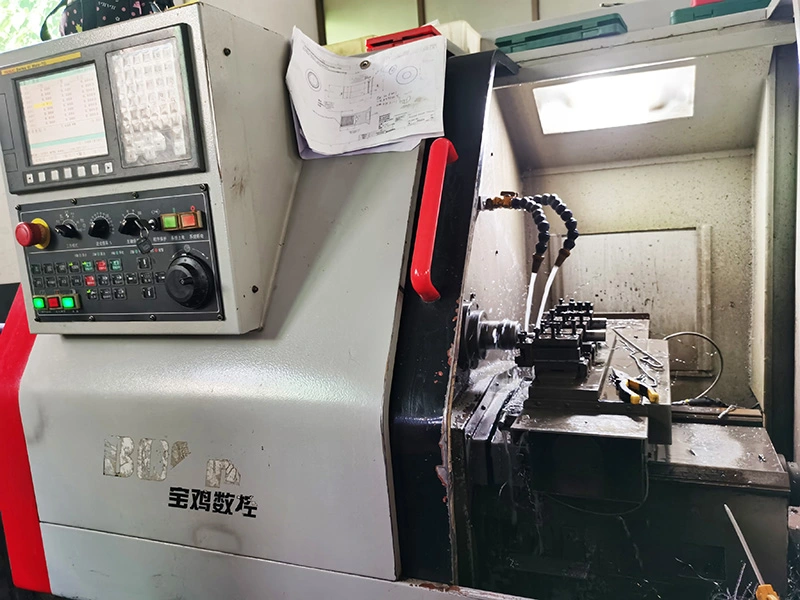

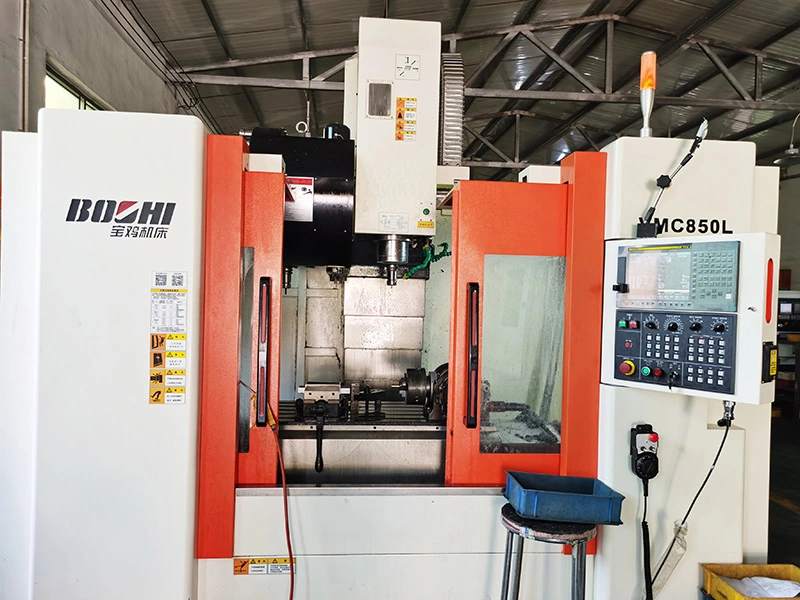

Manufacturing Process
Certified titanium raw material selection
Precision CNC machining
Surface treatment and deburring
Full dimensional inspection
ISO 9001 quality control and final inspection

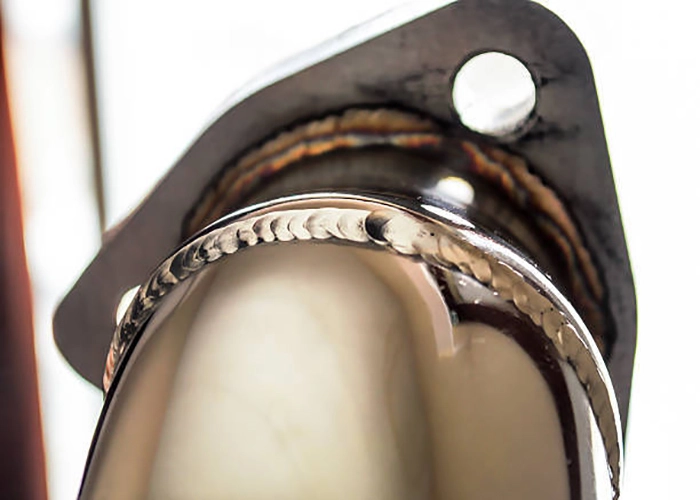

Applications
Automotive exhaust systems
Motorcycle exhaust assemblies
Racing and motorsport exhausts
Turbocharger exhaust connections
Marine exhaust systems
Custom performance exhaust fabrication
Advantages Over Stainless Steel
Significantly lighter weight
Superior corrosion resistance
Better performance in high-temperature environments
Reduced overall exhaust system load

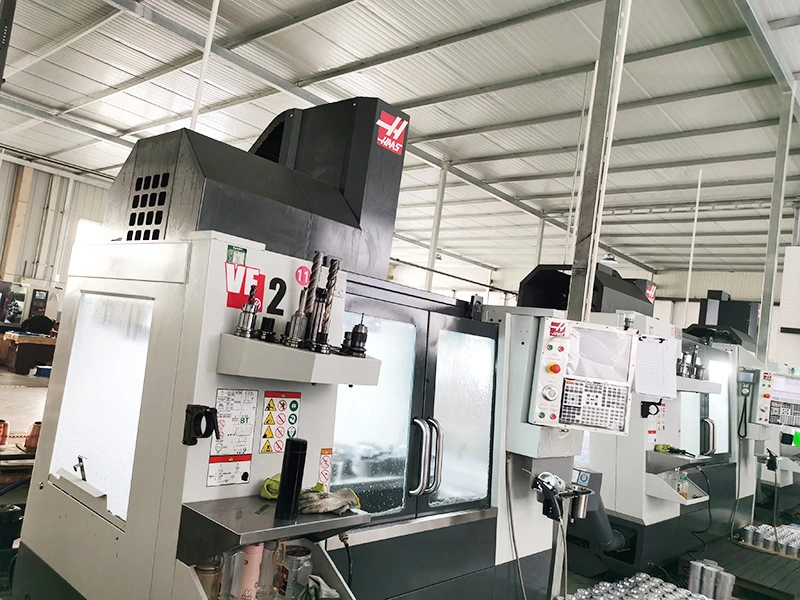

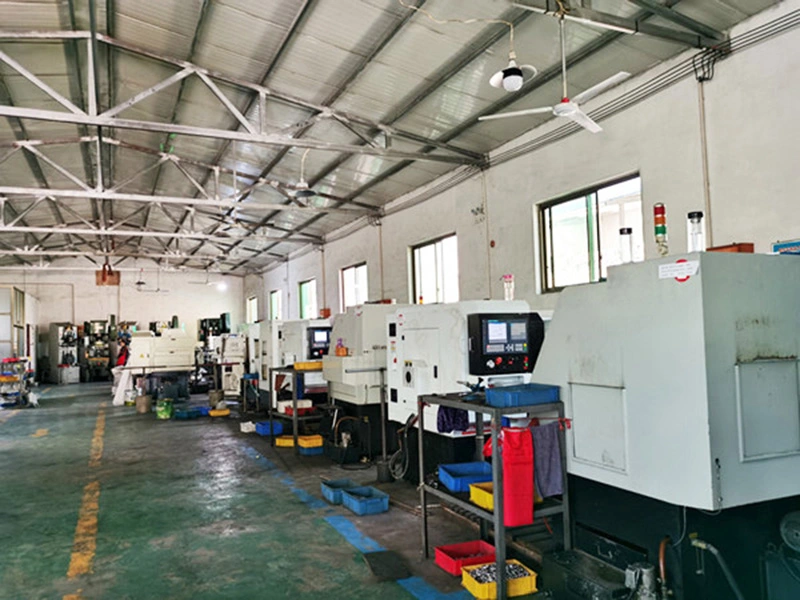

Custom CNC & OEM Services
With an experienced in-house R&D and CNC machining team, Wisdom Titanium provides:
Custom bolt spacing and flange dimensions
Prototype development from drawings or samples
Small batch and mass production
Stable quality with consistent lead time
Quality Assurance
ISO 9001 certified manufacturing system
Raw material and finished product inspection
Continuous improvement based on customer feedback
Reliable after-sales technical support

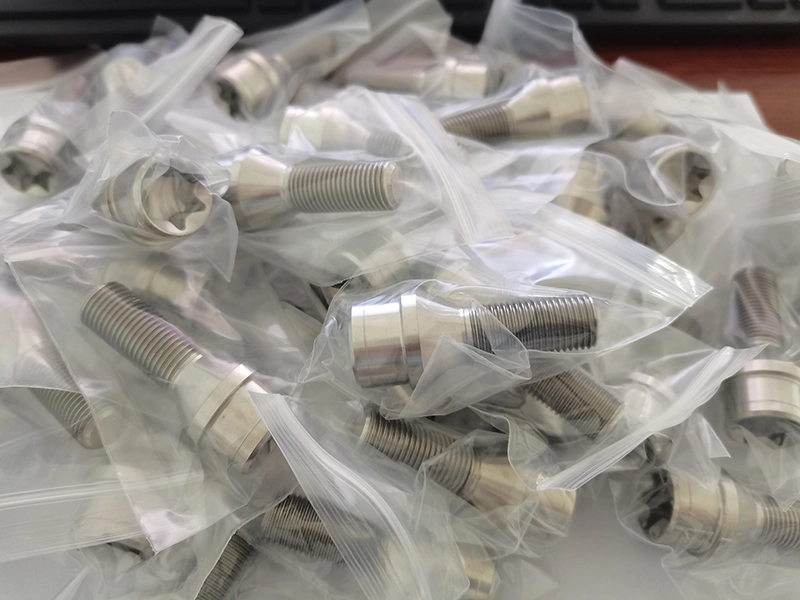

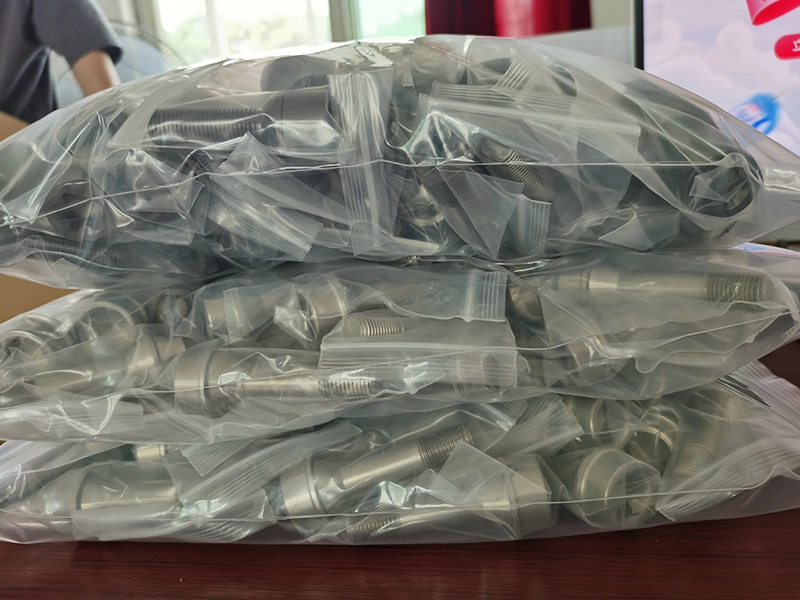

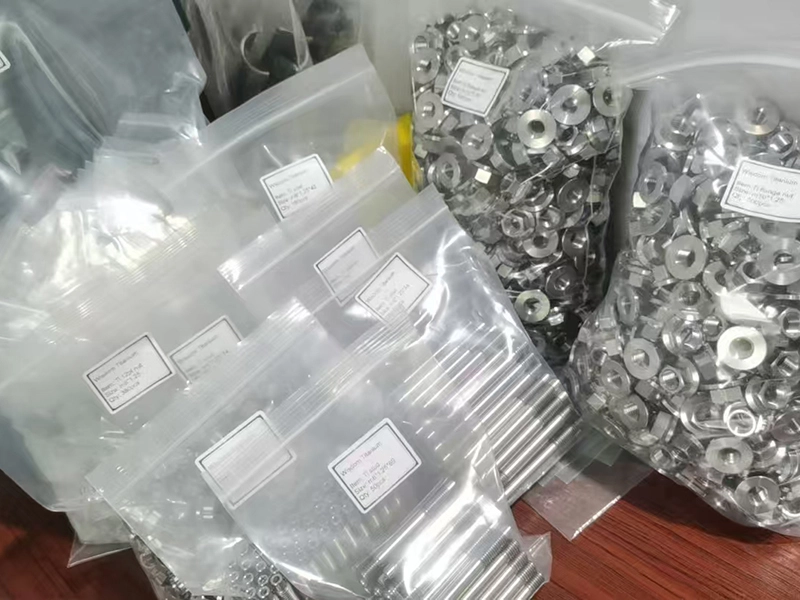

Packaging & Delivery
Individual protective packaging
Export-standard cartons or wooden cases
Stable inventory of raw materials and standard parts
Global shipping support
Why Choose Wisdom Titanium
Specialized in titanium fasteners and CNC parts since 2016
Strong experience in automotive and motorcycle components
Reliable quality, competitive pricing, and responsive service
Focus on safety, quality, and customer satisfaction
