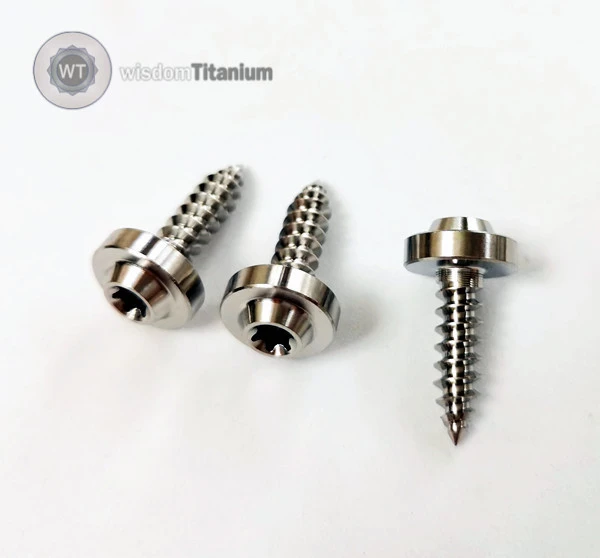

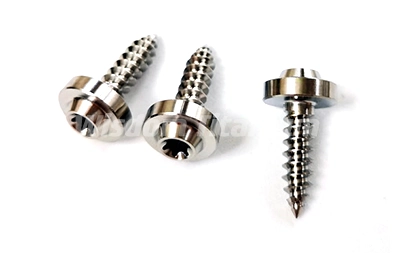

Titanium Self-Tapping Screws

Grade 5 Titanium Self-Tapping Screws – High-Strength, Corrosion-Resistant Fasteners for Demanding Applications

Engineered for superior performance in aerospace, marine, medical, and high-corrosion environments. These titanium self-tapping screws offer exceptional strength-to-weight ratio, fatigue resistance, and reliable thread-forming capability in both metallic and non-metallic substrates.

Key eatures

• Material: Aerospace-grade Titanium (Grade 5 / Ti-6Al-4V) – outstanding strength and biocompatibility

• Thread Type: Sharp self-tapping threads with a pointed tip for fast, chip-free installation

• Head Styles Available: Flat head, pan head, hex washer head, and countersunk options

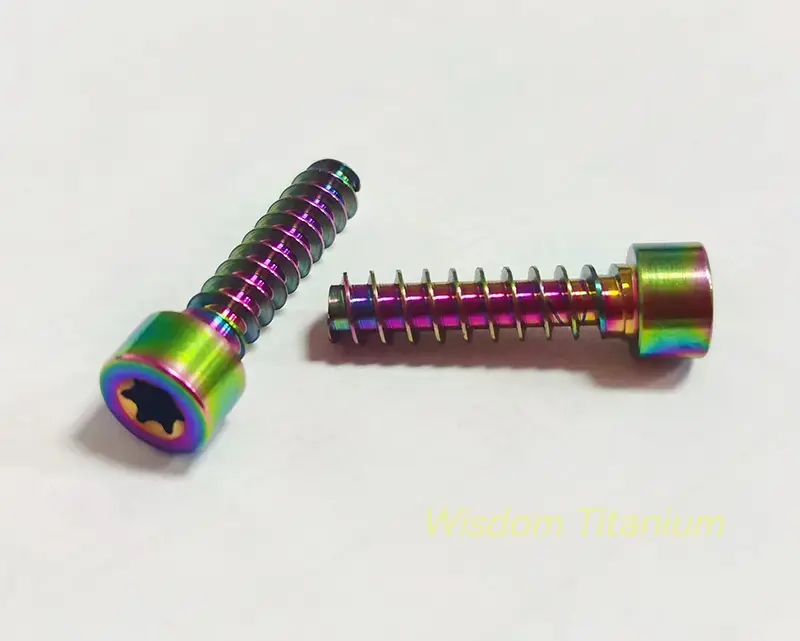

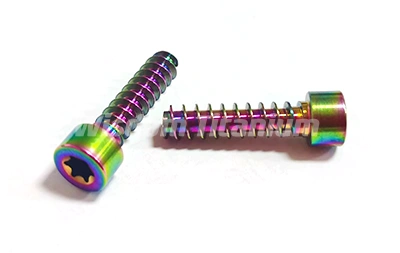

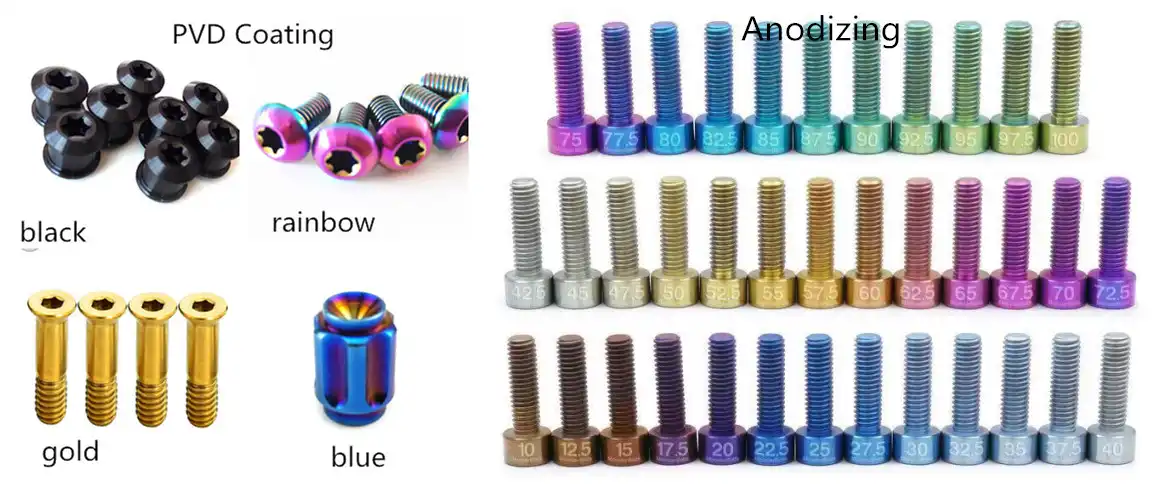

• Surface Finish: Natural titanium or anodized (custom colors available) – no galvanic corrosion with carbon composites or aluminum

• Temperature Range: Stable performance from -269°C to 400°C

• Drive Types of Titanium Self-Tapping Screws: Phillips, Torx®, Hex, or custom drives per request

Why Choose Titanium Self-Tapping Screws?

• Titanium Self-Tapping Screws is 40% lighter than steel, reducing overall assembly weight

• Corrosion-Proof Immune to saltwater, chlorine, and most industrial chemicals

• Non-Magnetic Ideal for sensitive electronic and MRI environments

• High Tensile Strength Withstands heavy loads and vibration without stripping

• Biocompatible Safe for medical implants and food-processing equipment

• No Pre-Drilling Needed Self-tapping design cuts installation time and labor costs

Applications

· ✈️ Aerospace – airframe panels, engine cowlings, interior fixtures

· ⚓ Marine – boat deck hardware, underwater sensors, rigging

· 🏥 Medical – surgical instruments, orthopedic implants, device housings

· 🔧 Automotive Motorsports – exhaust systems, suspension components

· 🏗️ Chemical Processing – pump casings, pipe supports, tank linings

· 📡 Telecom – antenna mounts, outdoor enclosures

Technical Specifications

Parameter Detail

Material Titanium Grade 5 (UNS R56400)

Diameter Range M2.5 – M10 (custom sizes available)

Length Range 6 mm – 100 mm

Thread Pitch Coarse or fine (ISO / UNC / UNF)

Hardness 36 HRC

Tensile Strength ≥ 950 MPa

Yield Strength ≥ 880 MPa

Elongation ≥ 10%

Salt Spray Resistance 2000 hours (no red rust)

Installation Guide

1. Select the correct driver bit to match the screw drive type.

2. No pilot hole required for soft metals or plastics; for harder steels, a small pilot hole is recommended.

3. Apply steady, moderate pressure while driving at recommended RPM (≤ 1500 RPM for Ti).

4. Use a torque-limiting tool to avoid over-torquing and thread galling (lubricant recommended for high-speed runs).

Quality & Certifications

· ✅ ISO 9001:2015 & AS9100D (Aerospace) certified facility

· ✅ Each batch tested for chemical composition and mechanical properties

· ✅ Traceability from raw material to final packaging

· ✅ RoHS and REACH compliant

Packaging & Customization Options

· Standard packaging: 100/500/1000 pcs per box with anti-rust VCI paper

· Custom labeling – your logo, barcode, or part number

· Custom head markings available on request

· Special lengths, diameters, or coatings – MOQ applies, lead time 10–15 working days

Why Buy From Us?

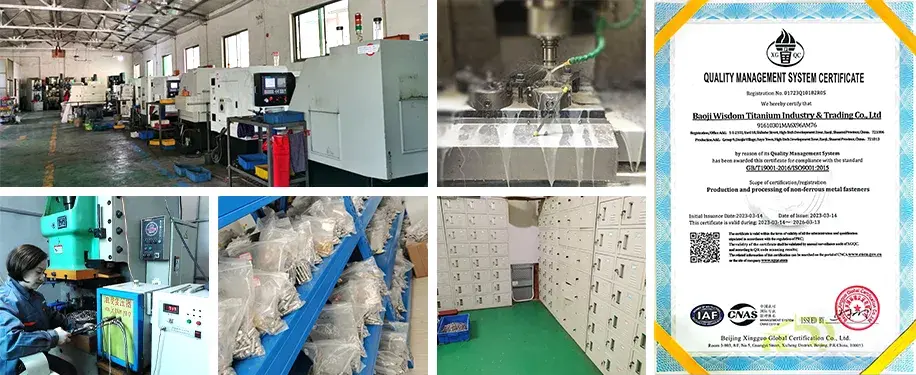

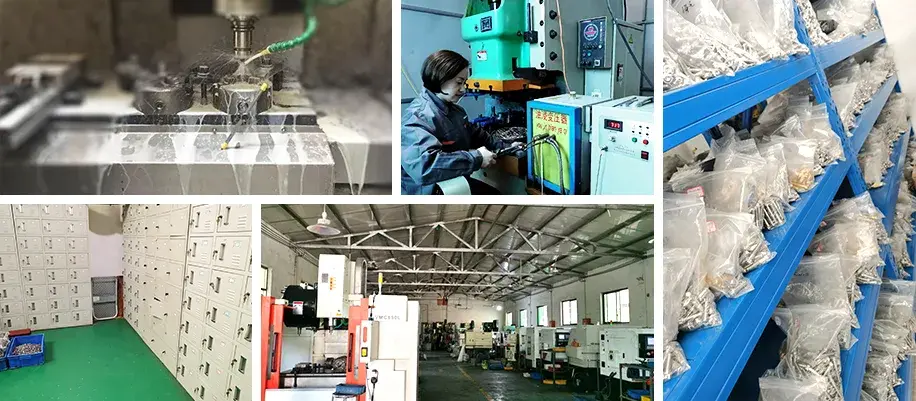

· 🏭 In-house manufacturing – full control over quality and delivery

· 📦 Global shipping – DHL, FedEx, or sea freight options

· 💬 Technical support – engineering team available for application advice

Ready to order or need a sample of our Titanium Self-Tapping Screws?

📧 Email: sales@wisdomtitanium.com
