If you’ve ever torn up an exhaust manifold and discovered broken, rusty studs welded to the cylinder head, you already know the solution. That’s exactly what titanium exhaust manifold stud kits fix. These studs are made of Grade 5 titanium (Ti-6Al-4V) and are about 45% lighter than steel counterparts, while providing tensile strength of 950–1,050 MPa. They are corrosion-resistant, withstand intense heat cycles, and come out clean when removed – even after years of operation. Titanium studs are a realistic, long-term improvement over standard steel for performance brands and procurement teams obtaining high-quality fasteners.
Understanding Titanium Exhaust Manifold Studs

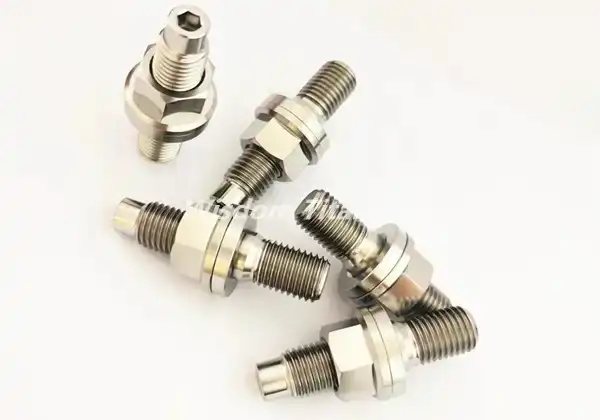

What's Included in a Titanium Stud Kit
A whole titanium exhaust manifold stud set includes the studs themselves, matching nuts, and sometimes washers. Standard kits from Wisdom Titanium are available in M8×1.25×45mm, M10×1.25×45mm, or M10×1.25×54mm thread sizes, so they may be used on many various four-cylinder and six-cylinder engines. Procurement teams may provide for OEM or bespoke fitting requirements with numerous kinds of nuts, including 12-point, hex flange, and lock nuts. The finish is available in scorched blue, black, natural, or gold. All of them are in stock, and the minimum order quantity is 100 sets.
Industries That Rely on These Fasteners
Titanium studs for exhaust manifolds are utilized in racing, high-performance automobile builds, marine engine systems, and motorbikes. In track racing, exhaust gas temperatures may reach over 800 °C, and fasteners must be capable of withstanding repeated heat cycling without breaking loose or seizing. Marine manufacturers choose titanium because carbon steel studs rapidly corrode in seawater, resulting in leaks and costly downtime. Tuning shops and repair companies employ titanium stud kits to future-proof the engine. That way, when the next gasket job or turbo exchange comes along, you won't have damaged hardware left in the head.
Recognizing When to Replace Manifold Studs
If you hear exhaust leaks at the head/manifold junction, detect rust or broken threads, or have difficulty releasing the bolts, the studs require attention. Carbon steel studs rust into aluminum and cast iron blocks and have to be drilled out, which is an expensive solution. By changing to titanium hardware when you do a service interval and catching the wear early, you totally eliminate that danger. It also reduces long-term labor expenses for shops and fleet operators.
Titanium vs. Other Exhaust Manifold Stud Materials
Titanium vs. Carbon Steel
Carbon steel studs are inexpensive, but they'll rust in a lot of exhaust. The metal expands and contracts faster than titanium exhaust manifold stud kits when heated and cooled, which accelerates thread fatigue. Eventually, rust develops between the stud and block, and it's impossible to get out without snapping. Titanium has a lower thermal expansion rate than steel (approximately 8.6 µm/m·°C as opposed to 11-12 µm/m·°C). This implies that less stress is transmitted to the manifold during heat cycles, protecting the stud and the casting surrounding it.
Titanium vs. Stainless Steel
Stainless steel will not rust like carbon steel, but it is still much heavier than titanium and more likely to blister when heated. Stainless studs will cold-weld to stainless nuts in high-temperature exhaust applications; thus, they are tough to remove like rusty steel. Grade 5 titanium threads in and out routinely with the correct anti-seize lubrication, even after a lot of usage. Stainless steel simply doesn’t provide business-to-business firms who sell their products as lightweight and high quality the same marketing bang for their buck.
Titanium vs. Inconel
Inconel alloys are utilized in turbine blades and exhaust sections for aircraft because they operate so well at temperatures exceeding 1,000 °C. But Inconel is far heavier and much more expensive than titanium. Also, most vehicle exhaust manifold applications don’t need Inconel-level heat resistance, since the temperature of the exhaust gases isn’t that high. Grade 5 titanium is more cost-effective and weight-saving and still meets the performance requirements of street, track, and performance marine engines, making it better suited to high-volume production brands.
How to Choose the Right Titanium Exhaust Manifold Stud Kit?
Engine Compatibility and Thread Standards
It is essential to choose the right thread size and pin length. Our M8×1.25 and M10×1.25 sizes are in line with ISO/DIN and JIS standards, and they can fit most Japanese, European, and American motorcycle and passenger car engines. Check the OEM repair instructions for the stud diameter, thread pitch, shank length, and engagement depth before placing your order. Thread gaging with a 6g precision makes sure that the block and the nut fit together smoothly, so there is no cross-threading or loose fitting during installation.
Evaluating Supplier Credentials
When purchasing titanium fasteners, purchasing managers should make sure that the seller uses XRF spectrometry for Positive Material Identification (PMI) to prove that the fasteners are made of Ti-6Al-4V. It should be normal practice to test for tensile strength up to 950 MPa. Wisdom Titanium is certified to ISO 9001 and inspects the whole process, from the raw materials to the finished product. Our factory is in Baoji Titanium Valley, Shaanxi Province, which is China's biggest combined titanium production base. This gives us easy access to high-quality titanium bar stock and stable prices for raw materials.
Cost vs. Lifecycle Value
Titanium exhaust manifold stud kits cost more per unit than steel ones, but the price difference changes when you consider how often they need to be maintained, how much it costs to remove the studs, and how many times they can be used. As long as the titanium exhaust stud set hasn't been over-torqued, it can be taken off and put back on many times without breaking. For production brands that figure out the total cost per SKU over the life of a product, titanium always comes out on top. Our factory price model and large inventory of ready-to-ship items help purchasing teams plan orders without having to worry about supply problems.
Installation and Maintenance Best Practices
Torque Specifications and Anti-Seize Application
Titanium can gall, which is a type of adhesive wear also known as cold welding, when it comes in contact with other titanium or aluminum threads. Before screwing studs into the block, you should always use a high-temperature anti-seize compound that is made of nickel or copper. For M8 studs, the recommended torque is 18–25 Nm, and for M10 studs, it's 35–45 Nm. Always check the engine manual for more information. Because titanium is flexible, over-torquing is the most common reason why it breaks. If you stay within the specs, the studs will last longer than the engine.
Inspection and Reusability
Titanium studs can be used again after the manifold is taken off as long as the threads are clean and without any damage. Every time the manifold is taken off, it should be looked at visually for thread distortion, covering wear on PVD finishes, and any signs of bending. Checking titanium is easy because it doesn't rust, so there's no need to deal with the surface rusting that makes checking steel hardware for studs harder.
Storage and Handling of Coated Studs
PVD-coated studs with burned blue, black, or gold finishes look good at standard exhaust working temperatures. However, if they are exposed to red-hot manifold conditions for a long time, the color tone may change over time. The coating's protective function stays the same even if the way it looks changes. To keep the surface of unused studs from getting scratched before installation, keep them in their original package, away from water and other metal gear.
Why Titanium Exhaust Manifold Stud Kits Are Worth the Investment
Grade 5 titanium exhaust manifold stud sets are lighter, more rust-resistant, and last longer in service. This makes these studs 45% lighter than steel ones, allowing them to stand out and charge more at retail for performance brands. Broken-stud extraction incidents are a thing of the past for procurement engineers who manage fleet or racing inventory, which means less work for maintenance technicians.
Since 2016, Wisdom Titanium has been helping performance aftermarket companies with confirmed Ti-6Al-4V fasteners that provide constant thread tolerance, dependable surface finish quality, and flexible MOQs that allow new SKUs to be tested without being saddled with a lot of inventory. Our blue gradient finish is created by controlled anodizing and then burnished. This ensures that the color is consistent from batch to batch, which is vital to our customer’s brand image.
Conclusion
Steel, titanium exhaust manifold stud kits and heavy metals are used in exhaust manifolds, but titanium studs are superior. They are more tensile, rust less, and are much lighter. It’s simple to remove, lasts longer, and can be reused, so over time the overall cost falls down. Titanium fasteners are also a good method for companies to promote their high-end aftermarket parts. Procurement teams may buy these items from a confirmed Grade 5 titanium producer with confirmation of quality control and not have to worry about the materials being legitimate.
FAQ
1. Does titanium stud installation require anti-seize?
Yes. Titanium is prone to galling against aluminum threads and other titanium hardware. A high-temperature nickel or copper anti-seize compound should always be applied before threading studs into the block.
2. Can titanium exhaust studs be reused?
Yes, provided they haven't been over-torqued beyond their yield point. Titanium retains thread integrity far longer than steel, making reuse practical through multiple service cycles.
3. Why Grade 5 instead of Grade 2 titanium?
Grade 2 is commercially pure titanium with insufficient tensile strength for structural engine fasteners. Grade 5 (Ti-6Al-4V) delivers ≥950 MPa tensile strength — the threshold required for exhaust manifold applications under thermal and vibratory load.
4. Will colored PVD coatings fade with heat?
High-quality PVD coatings are durable under normal exhaust temperatures. Prolonged contact with extremely hot manifold surfaces may gradually alter the color tone, but corrosion protection remains unaffected.
5. What thread pitches are available?
Our standard kits cover M8×1.25 and M10×1.25 configurations, with an M10×1.25×54mm option for deeper engagement requirements. These conform to ISO/DIN/JIS standards for broad engine compatibility.
Get Your Titanium Exhaust Manifold Stud Kits from Wisdom Titanium
Performance brands, distributors, and OEM customers in the US and around the world can buy Grade 5 titanium exhaust manifold stud kits from Wisdom Titanium. Our ISO 9001 certification, factory-direct prices, large amounts of ready-to-ship stock, and low minimum order quantity (MOQ) of just 100 sets make it easy to find what you need. You can use your own colors, have your name engraved, and protect ideas with an NDA. To get samples or prices right away, email our team at sales@wisdomtitanium.com.
References
1. Lütjering, G., & Williams, J. C. — Titanium (2nd ed.), Springer, 2007.
2. Boyer, R. R. — "An overview on the use of titanium in the aerospace industry," Materials Science and Engineering: A, Elsevier, 1996.
3. ASTM International — ASTM B348: Standard Specification for Titanium and Titanium Alloy Bars and Billets, ASTM International, 2019.
4. Donachie, M. J. — Titanium: A Technical Guide (2nd ed.), ASM International, 2000.
5. Schutz, R. W., & Thomas, D. E. — "Corrosion of titanium and titanium alloys," ASM Handbook, Volume 13: Corrosion, ASM International, 1987.
6. Bhadeshia, H. K. D. H., & Honeycombe, R. W. K. — Steels: Microstructure and Properties (4th ed.), Butterworth-Heinemann, 2017.
