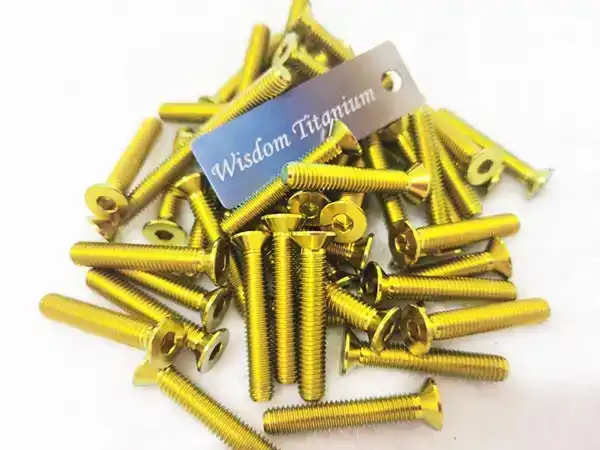

Titanium flat head bolts for bikes represent a breakthrough in fastener technology, delivering a flush-mounted profile that reduces aerodynamic resistance while maintaining structural integrity. Unlike traditional raised-head bolts, these fasteners sit level with component surfaces, creating smoother airflow across handlebars, brake calipers, and frame assemblies. Grade 5 titanium (Ti-6Al-4V) offers 950 MPa tensile strength combined with a 45% weight reduction compared to steel equivalents, making these bolts ideal for racing teams, custom builders, and high-performance manufacturers seeking measurable gains in efficiency and durability.
Understanding Titanium Flat Head Bolts for Bikes
What Makes Flat Head Design Essential for Cycling Applications
The flat head design, which is also called the countersunk design, lets bolts fit into chamfered holes that have already been drilled, so they don't stick out above the mounting surface. This design principle directly addresses three major problems in modern cycling: lowering drag coefficients in competition settings, making rides safer by getting rid of snag dangers, and integrating style for high-end custom builds. The 82-degree countersink angle standard makes sure that all bike parts made to ISO 7046 standards will work with each other.
Material Specifications and Industry Standards
Titanium flat head bolts for bikes made from Grade 5 titanium alloy have the best mix of strength and flexibility thanks to its 6% aluminum and 4% vanadium content. This mix is stronger than Grade 2 commercially pure titanium at supporting weight and is better at resisting rust than 316 stainless steel. When bike companies buy fasteners, they should make sure that they meet ASTM F136 medical-grade standards or ASTM B348 bar specifications. This will make sure that the materials can be tracked and that each batch is the same.
Common Sizing and Thread Configurations
For most bicycle uses, M4, M5, M6, and M8 diameters with metric fine-pitch threading (M6×1.0 or M8×1.25) are used. The M6×35mm bolt, which is commonly used for stem caps and brake mounts, shows how to balance the need for length with the goal of reducing weight. When ordering custom sizes, procurement teams must be clear about the exact grip length requirements. Bolts that are too long can cause problems with thread engagement, while bolts that are too short can make it hard to distribute clamp load.
Performance Advantages of Titanium Flat Head Bolts Over Other Materials
Weight Reduction Impact on Bike Performance
Changing all the steel bolts in a bike build can save 150 to 200 grams, which is about the same as carrying two fewer water bottles. This weight loss is mostly concentrated in important unsprung areas like the brake systems and the handlebars. This directly improves how quickly and easily the bike can turn and accelerate. Racing teams record real gains in performance, especially when climbing, where power-to-weight ratios decide who wins.
The science behind this benefit is a drop in spinning drag. Wheel-mounted bolts, like rotor bolts and hub fasteners, benefit the most from weight savings because moving rotating mass takes a lot more energy than moving static frame-mounted parts. Professional cycling teams have tested bikes and found that removing 100 grams of wheel-mounted hardware saves as much energy as taking 300 grams off the frame.
Superior Mechanical Properties Under Cycling Stress
Titanium flat head bolts for bikes have a fatigue limit, which is the lowest stress level below which they can withstand an infinite number of loads, of about 510 MPa for Grade 5 alloy. Even high-tensile steel fasteners fail after a much lower number of cycles when they are exposed to the repeated vibration loads that are common in mountain bike and gravel rides. This resistance to tiredness means that the bolts won't need to be serviced as often and are less likely to fail completely during critical ride situations.
Stability at room temperature is another important benefit. Titanium doesn't weaken at temperatures between -200°C and 400°C, but aluminum alloys do above 150°C while maintaining their structural integrity. During descents, brake caliper bolts go through a lot of thermal cycling. Titanium's thermal stability is very helpful in preventing stress failures caused by heat.
Corrosion Resistance and Lifecycle Economics
The passive titanium dioxide layer forms naturally on all surfaces that are exposed. This makes a barrier that saltwater, road chemicals, and air moisture can't get through. Titanium is not like stainless steel, which corrodes in places with little oxygen; it stays structurally sound even when submerged or exposed to chloride-rich coastal conditions. This resistance to corrosion gets rid of the costs of replacing parts and fixing fasteners that have seized.
Lifecycle cost research shows that titanium is better for fleet managers and rental services from a business point of view. Even though they cost 300–400% more to buy at first than steel versions, they last 8–10 years without breaking down, which lowers the total cost of ownership by about 40% when you count the cost of labor, new parts, and downtime.
How to Choose the Right Titanium Flat Head Bolts for Your Bicycle?
Matching Bolt Specifications to Bike Type and Application
Aerodynamic efficiency is important for road bikes, so titanium flat head bolts for bikes are needed for stem faceplates, brake calipers, and bottle cage mounts where protrusions get in the way of airflow. Mountain bikes need suspension connection points and wheel mounts that can handle impact, so they need Grade 5 titanium instead of the softer Grade 2 types. In order to handle rotational loads during tricks and landings, BMX grips need to be shorter and have a larger shank thickness.
Before giving the exact measurements, find out how thick the material is that needs to be clamped and add 1.5 times the standard width to get the minimum grip length. The M6×35mm size works well for stem cap applications that need to fasten 25mm of material. It gives the threads enough room to engage without getting stuck in blind holes.
Quality Certifications and Compliance Requirements
ISO 9001 certification checks that the manufacturing process is controlled, but it doesn't guarantee that the materials are real. Procurement managers should request mill test reports (MTRs) recording chemical makeup via spectrometry analysis, along with mechanical property proof through tensile testing. Counterfeit titanium fasteners—often titanium-plated steel—flood aftermarket channels, making source vetting important for safety-critical uses.
European suppliers usually offer EN 10204 3.1 approval, while American sellers use ASTM standards for materials. For both certification systems, it is possible to track back to the batch numbers of the raw materials used, which makes it possible to manage recalls if problems arise during use.
Comparative Analysis: Titanium vs. Alternative Fastener Materials
Stainless steel (A2-70 or A4-80 types) is less expensive and has good corrosion protection, but it weighs a lot more and doesn't hold up as well over time. Aluminum alloy nuts, which are common in low-cost builds, save weight but don't have enough tensile strength for high-stress situations, so they need to be bigger, which takes away the weight savings. Carbon steel with protection coats is strong, but it corrodes quickly if the coatings get damaged.
Independent cycling labs have found that Grade 5 titanium bolts keep 94% of their original tensile strength after 500,000 load cycles, while heat-treated steel bolts only keep 72% of their strength under the same conditions. This difference in performance is why titanium costs more than other metals when failure could cause safety issues or expensive damage to parts.
Where and How to Procure High-Quality Titanium Flat Head Bolts for Bikes
Identifying Reputable Manufacturers and Suppliers
The global titanium fastener supply chain is mostly made up of three areas: aerospace suppliers in the US offer high-quality materials that can be tracked all the way back to their source; precision manufacturers in Europe focus on exact measurements and certification compliance; and Asian producers offer cheaper options with varying quality control standards. When choosing supply partners, procurement teams have to weigh cost goals against quality guarantee needs.
Wisdom Titanium, an ISO 9001-certified producer based in Baoji Titanium Valley, Shaanxi Province—China's biggest titanium industry cluster—exemplifies the integrated production method combining raw material access with precision CNC machining capabilities. This vertical integration makes sure that the materials are real and supports unique requirements that go beyond what is available in catalogues.
Bulk Ordering and Custom Manufacturing Options
Standard fastener stores typically stock M4 through M8 sizes in 5mm length steps, but custom uses frequently require non-standard measurements. A minimum order quantity (MOQ) of 200 pieces is the lowest amount of custom CNC production that can still be affordable for small manufacturers and bike builders who only need a few pieces.
In addition to changing the sizes, custom design services also offer unique ways to treat the surfaces. Anodizing adds almost no thickness and makes color-coded systems possible (Gold for M6, Blue for M5). Physical Vapor Deposition (PVD) coating uses very hard ceramic layers that make the covering even less likely to gall and better at resisting wear in high-cycle uses.
Value-Added Services Supporting Procurement Decisions
Leading suppliers set themselves apart by offering technical support services like helping with load calculations, suggesting replacement materials, and making sure that certain bike models are compatible. This engineering support is especially helpful when changing steel fastener assemblies to titanium ones, since replacing them without first analyzing them can lead to joints that aren't torqued properly or damaged parts.
Full inventory control of raw materials lets sellers keep prices stable even when the price of titanium commodities changes. Modern production technology with quality check points during the process makes sure that the dimensions stay the same from one production run to the next. This is very important for OEM makers who need parts that can be swapped out without having to selectively assemble them.
Conclusion
Titanium flat head bolts for bikes improve performance in measured ways, such as by lowering weight, making parts last longer, and protecting them from rust. Steel and aluminum bolts can't compare. The high strength-to-weight ratio of Grade 5 titanium and the flush-mounted flat head profile make the bike more aerodynamic and reduce the risk of snags in both competition and leisure riding. The best way to get these benefits is to choose the right materials, buy them through certified channels, and install them in a way that meets safety-critical standards. When you think about longer service intervals and not having to repair things over multiple years of ownership, the lifetime cost benefits become very appealing.
FAQ
1. Can titanium flat head bolts replace high-tensile steel fasteners in all bike applications?
Grade 5 titanium has the same tensile strength as Class 10.9 steel, which is about 950 MPa. This means it can be used for most cycling parts, such as brake calipers, stem assemblies, and rotor mounts. But uses that need Class 12.9 steel strength (1200 MPa or more) need careful technical study. Some important load-bearing points, like suspension pivot hardware, may need bigger titanium fasteners or to keep using steel, based on the safety factor and stress estimates.
2. How do surface treatments affect titanium bolt performance?
Anodizing adds colored oxide layers for identification and aesthetic reasons, but it doesn't make the metal thicker or change its mechanical properties. Ceramic materials (titanium nitride or diamond-like carbon) are used in PVD coats to lower friction coefficients and lower the risk of galling during installation. When putting titanium bolts into aluminum parts where galvanic compatibility is an issue, these coats come in very handy. Neither treatment hurts the corrosion resistance or fatigue performance of the material underneath.
3. What causes thread stripping in flat head titanium bolts?
The shallow depth of the hex socket in countersunk designs means that the drive tool engagement surfaces are under more stress than they would be in button head or cap screw designs. When you use old or bad hex keys, the force is concentrated on the corners of the socket instead of being spread out over all six faces. When you over-torque something past its yield strength, the drive recess becomes permanently deformed. To install something correctly, you need torque tools that have been calibrated and high-tolerance hex keys that are the right size for ISO 4762 standards.
Partner with Wisdom Titanium for Premium Cycling Fasteners
Wisdom Titanium sells certified Grade 5 titanium flat head bolts that are designed to work in tough bicycle situations. Our M6×35mm bolts can be anodized or coated with PVD to meet the exact needs of race teams, speed bike builders, and OEM manufacturers. We keep full material tracking from ingot to finished fastener because we are in Baoji Titanium Valley, which is the world's largest titanium production center. This makes sure that every production run is authentic and consistent.
Our experienced research and development (R&D) team can help with custom design needs by turning your specifications into precisely machined parts that fit into existing systems without any problems. We promise reliable delivery times and reasonable prices for orders that meet our 200-piece MOQ for custom configurations. This is because we keep a steady stock of raw materials and have developed our CNC manufacturing processes. Get in touch with our technical sales team at sales@wisdomtitanium.com to talk about your needs for a titanium flat head bolts for bikes supplier and get specific information that fits your needs.
References
1. Boyer, R., Welsch, G., & Collings, E.W. (1994). Materials Properties Handbook: Titanium Alloys. ASM International, Materials Park, Ohio.
2. Donachie, M.J. (2000). Titanium: A Technical Guide, 2nd Edition. ASM International, Materials Park, Ohio.
3. Schutz, R.W. & Watkins, H.B. (1998). Recent developments in titanium alloy application in the energy industry. Materials Science and Engineering A, 243(1-2), 305-315.
4. Lutjering, G. & Williams, J.C. (2007). Titanium, 2nd Edition. Springer-Verlag, Berlin Heidelberg.
5. Peters, M., Kumpfert, J., Ward, C.H., & Leyens, C. (2003). Titanium alloys for aerospace applications. Advanced Engineering Materials, 5(6), 419-427.
6. Veiga, C., Davim, J.P., & Loureiro, A.J.R. (2012). Properties and applications of titanium alloys: A brief review. Reviews on Advanced Materials Science, 32(2), 133-148.
