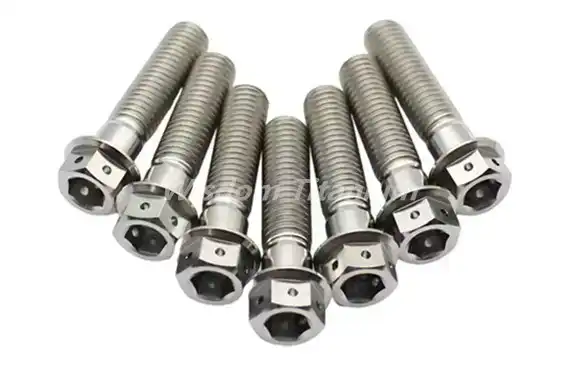

Selecting the right titanium dual drive hex flange bolt for your application can be a critical decision. These specialized fasteners offer unique advantages, but choosing the proper size and thread pitch is essential for optimal performance and reliability. In this comprehensive guide, we'll explore everything you need to know about sizing and thread pitch for titanium hex flange bolts to help you make an informed decision.
Thread Pitch And Its Impact On Performance
Thread pitch refers to the distance between adjacent threads on a bolt or screw. It plays a crucial role in determining how well a fastener will perform under various conditions. For titanium dual drive hex flange bolts, the thread pitch can significantly affect factors like strength, load distribution, and resistance to loosening.
Coarse threads, which have a larger distance between adjacent threads, offer several benefits:
- Easier and quicker assembly
- Better resistance to stripping and cross-threading
- Improved performance in softer materials
- Greater tensile strength due to a larger minor diameter
On the other hand, fine threads provide their own set of advantages:
- Higher clamping force for a given torque
- Better resistance to vibration loosening
- More precise adjustment capabilities
- Thinner nut requirements, which can be beneficial in space-constrained applications
When selecting the thread pitch for your titanium dual drive hex flange bolt, consider the specific requirements of your application. For heavy-duty applications subject to significant vibration, a fine thread pitch might be preferable. However, if ease of assembly is a priority, a coarse thread could be the better choice.
Matching Bolt Size And Pitch To Specific Load Requirements
The size of your titanium dual drive hex flange bolt should be carefully matched to the load requirements of your application. Undersized bolts may fail under stress, while oversized ones can lead to unnecessary weight and cost.
To determine the appropriate bolt size, consider these factors:
- Tensile strength required
- Shear strength needed
- Expected dynamic loads
- Environmental conditions (temperature, corrosion potential, etc.)
- Material properties of the joined components
For example, in aerospace applications where weight is a critical factor, smaller diameter bolts with fine threads might be preferred to achieve the necessary strength while minimizing mass. Conversely, in heavy machinery, larger diameter bolts with coarse threads could be more suitable to withstand high loads and facilitate easier maintenance.
It's worth noting that titanium's high strength-to-weight ratio often allows for the use of smaller diameter bolts compared to steel fasteners in many applications. This can lead to significant weight savings without compromising on strength.
Common Mistakes When Selecting Bolt Size And Thread Pitch
Avoiding common pitfalls in bolt selection can save time, money, and potential safety hazards. Here are some mistakes to watch out for when choosing titanium dual drive hex flange bolts:
1. Overlooking material compatibility: Titanium is known for its excellent corrosion resistance, but it's still crucial to ensure compatibility with the materials it will be in contact with to prevent galvanic corrosion.
2. Ignoring temperature effects: Titanium's properties can change at extreme temperatures. Make sure to account for the operating temperature range in your application when selecting bolt size and thread pitch.
3. Underestimating fatigue considerations: In applications with cyclic loading, fatigue strength becomes critical. Fine threads generally offer better fatigue resistance due to their larger stress area.
4. Neglecting assembly and maintenance needs: Consider how the bolts will be installed and maintained. Coarse threads might be preferable in applications where frequent disassembly is required.
5. Failing to account for thermal expansion: Titanium has a lower coefficient of thermal expansion compared to many other metals. This difference should be considered when joining dissimilar materials to prevent loosening or over-tightening at different temperatures.
By avoiding these common mistakes and carefully considering your application's specific requirements, you can ensure that you select the optimal size and thread pitch for your titanium dual drive hex flange bolts.
FAQ
Q1: What are the standard sizes available for titanium dual drive hex flange bolts?
A: Titanium dual drive hex flange bolts are commonly available in metric sizes ranging from M6 to M10. However, custom sizes can often be manufactured to meet specific requirements. It's best to consult with a reputable supplier like Wisdom Titanium for the most up-to-date information on available sizes and customization options.
Q2: How does the material grade affect the choice of bolt size and thread pitch?
A: The material grade of titanium (e.g., Grade 5 or Ti-6Al-4V) significantly impacts the bolt's strength and performance characteristics. Higher grade titanium alloys generally offer greater strength, allowing for the use of smaller diameter bolts or finer thread pitches in high-stress applications. Always consider the material properties in conjunction with size and thread pitch when selecting the appropriate bolt for your needs.
Q3: Can titanium dual drive hex flange bolts be used in marine environments?
A: Yes, titanium dual drive hex flange bolts are excellent choices for marine applications due to their outstanding corrosion resistance. Their ability to withstand harsh saltwater environments makes them ideal for use in boats, offshore structures, and underwater equipment. However, it's still important to select the appropriate size and thread pitch based on the specific load requirements and environmental conditions of your marine application.
Choosing the right size and thread pitch for your titanium dual drive hex flange bolt is crucial for ensuring optimal performance and longevity in your application. By understanding the impact of these factors and avoiding common mistakes, you can make an informed decision that meets your specific needs.
If you're looking for high-quality titanium dual drive hex flange bolts that are lightweight, strong, and corrosion-resistant, look no further than Wisdom Titanium. Our CNC machined and rolled thread bolts are available in sizes M6, M8, and M10, crafted from premium Grade 5 titanium. We offer a range of finishes including natural, gold, black, purple blue, green, rainbow, and red to suit your aesthetic preferences. With a minimum order quantity of just 200 pieces and factory-direct pricing, we're committed to meeting your needs efficiently and cost-effectively.
Ready to find the perfect titanium dual drive hex flange bolts for your project? Don't hesitate to reach out to our team of experts. We're here to help you select the ideal size, thread pitch, and finish for your specific application. Simply send an enquiry to sales@wisdomtitanium.com and let's work together to explore the full potential of our titanium products. Your perfect fastening solution is just an email away!
References
- Budynas, R. G., & Nisbett, J. K. (2020). Shigley's mechanical engineering design. McGraw-Hill Education.
- ASM International. (2015). ASM Handbook, Volume 1: Properties and Selection: Irons, Steels, and High-Performance Alloys. ASM International.
- Bickford, J. H. (2007). Introduction to the design and behavior of bolted joints: non-gasketed joints. CRC press.
- Campbell, F. C. (2006). Manufacturing technology for aerospace structural materials. Elsevier.
- Boyer, R., Welsch, G., & Collings, E. W. (1994). Materials properties handbook: titanium alloys. ASM international.
