What torque should be used for titanium bicycle fasteners?

The torque range for titanium fasteners for bicycles is dependent on the fastener size, thread type, and lubrication. As a rule of thumb, Grade 5 Ti-6Al-4V bicycle bolts are around 20–30% weaker than their steel counterparts. For example, an M5 stem bolt is usually torqued to 4–6 Nm with anti-seize, against 6–8 Nm for steel. Titanium has an elastic modulus of ~114 GPa, which is nearly half that of steel . So it will stretch differentially under stress. Precision is non-negotiable since doing this incorrectly risks thread galling or frame damage.

Understanding Titanium Bicycle Fasteners and Their Properties

What Makes Titanium Different from Steel and Aluminum

Titanium is distinct from conventional fastening materials. Grade 5 (Ti-6Al-4V) has a mass of 4.43 g/cm3 , which is roughly 43% lighter than steel. But it has a tensile strength of 895-1000 MPa. That means reducing significant weight without compromising the performance of the frame for professional riders and high-end bike manufacturers. Titanium screws are much more fatigue-resistant and rust-resistant than aluminum screws. That makes them the ideal solution for frames, cockpits, and drivetrain connections that get wet from perspiration, rain, and road spray.

Common Types Used in Bicycle Assemblies

When you construct a bike, you use several kinds of fasteners. They all need varying amounts of force. Stem clamps and brake calipers are secured using DIN 912 socket head cap screws. DIN 7991 countersunk bolts are good for portions of an efficient frame. Button head nuts to ISO 7380 may be utilized on extra mounts and seatpost collars. DIN 6921 flange nuts provide the gripping force across a broader region. These models are all available in sizes from M3 to M10, so they will work with just about every road or mountain bike configuration.

Why Titanium Requires Specific Torque Attention

The fracture stiffness of titanium is lower than that of steel; thus, the thread contact pressure will be different for titanium. Another potential concern is galling. Stop up connecting threads without adequate oil. This is when it happens. That’s the major reason titanium bicycle bolts nearly always need an anti-seize compound like Molybdenum Disulfide (MoS₂) or a copper-based paste. If the correct grease is used, the coefficient of friction is changed, which affects the connection between power and clamp force. One of the reasons engineers notice damaged threads during assembly is because individuals don’t perform this step.

Recommended Torque Values for Titanium Bicycle Fasteners

Torque by Fastener Size and Application

The following table shows commonly used starting points for Grade 5 titanium fasteners for bicycles that have been treated with anti-seize. These are just suggestions; you should always check the published specs from the manufacturer of your frame or part first.

• M3 (stem screws, cable clamps): 0.8–1.5 Nm
• M4 (bottle cage bolts, small accessory mounts): 2–3 Nm
• M5 (stem face plates, brake levers, seatpost clamps): 4–6 Nm
• M6 (handlebar clamps, derailleur hangers): 6–10 Nm
• M8 (axle bolts, crank arm bolts): 12–18 Nm
• M10 (bottom bracket, thru-axles): 25–35 Nm

In terms of steel, these numbers are 20–30% less than what they should be. The decrease takes into account how elastic titanium is and how the anti-seize changes the friction factor (K = 0.13–0.15 with MoS₂ vs. 0.18–0.20 dry).

Factors That Shift Torque Requirements

How the surface is treated changes friction, which in turn changes the torque you apply. Anodized titanium screws have a thin oxide layer that can make them slightly more frictional at first before it settles in. There is less surface friction on PVD-coated screws, like those with TiN or DLC films. This means that torque values may be able to be closer to the lower end of the range. Temperature also matters: oils get thicker when it's cold, so it's important to keep an eye on assembly conditions during winter production runs.

Manufacturer and OEM Reference Points

Torque specs for their connections are given in Newton-meters by top component names like Shimano, SRAM, and Campagnolo. Unless the OEM says otherwise, these specs are written for fasteners made of steel. When using titanium screws instead of bicycle bolts in these places, lower the pressure by 20 to 25 percent and always use an anti-seize compound. Some companies that sell titanium fasteners, like those that work with professional race teams, put a thin layer of lubrication on them before they are packed to cut down on mistakes in the field.

Best Practices for Applying Torque on Titanium Fasteners

Choosing the Right Tools

When working with titanium fasteners for bicycles, you have to use a torque wrench that has been measured. When it comes to getting consistent results, digital torque wrenches with an accuracy of ±2% work best, especially for the 2–10 Nm range that is common on bicycle cockpits. Beam-type wrenches are good for jobs that need a lot of torque, like axle bolts. Do not use any impact tools at all, because the quick rotational force is too much for titanium threads to handle without breaking.

Tightening Sequences for Multi-Bolt Assemblies

When tightening four-bolt stem face plates or disc brake mounts, do it in three steps: 30%, 70%, and 100% of the target torque. This stops clamping that isn't even, which could twist a carbon steerer tube or bend a brake mount surface. It is very important to do things one step at a time when putting titanium fasteners into carbon fiber or aluminum frames because galvanic compatibility needs to be checked too.

Maintenance and Re-Torque Schedules

After the first 50–100 km of riding, titanium fasteners may feel a little less torque as the joint surfaces get used to each other. Most problems are caught early with a re-torque check at that time. After that, a regular check every three months is fine. At the top level, race teams check all of their contact-point nuts before every race. Keep a torque log by fastener location and date. This helps engineers find patterns of fastener loosening before they become safety issues.

Procurement Insights: Choosing and Buying Titanium Fasteners

Selecting Fasteners for Road vs. Mountain Bike Applications

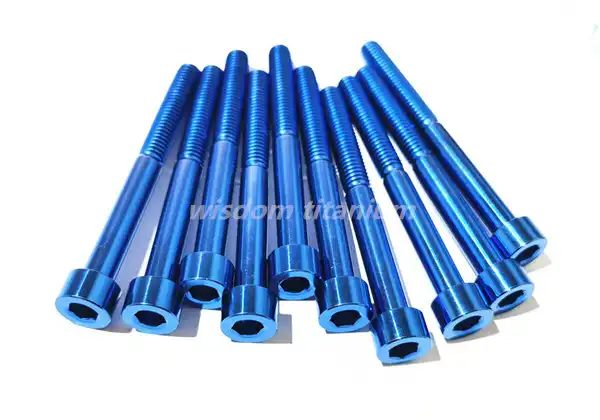

Road bikes try to be as light as possible, so the most-requested titanium bolts are M3–M5 in DIN 912 or ISO 7380 style and have an anodised finish to match other colors. Mountain bikes are more likely to be shaken up and get dirty, so M6–M10 in the DIN 6921 flange style makes the clamping area more stable. Grade 5 material is good for both groups because it has a tensile strength of 950 MPa or more, which is in line with ASTM F136 and ASTM B348 norms. An engineer can check the full Material Test Report (MTR).

What to Ask a Titanium Fasteners Manufacturer

Before you place an order with any company that makes titanium fittings, make sure of the following: Does the supplier give MTRs for each batch that include OES chemical composition data? Can they keep the color of the anodizing the same from batch to batch (ΔE < 1.5 in the CIE Lab system)? What is the smallest amount of custom designs that can be CNC-machined? Can they use a CAD file and get samples to you in three to four weeks? These questions tell the difference between qualified partners and catalog resellers.

Logistics and Lead Time Considerations

As much as price, brands that want to launch a new product care about how predictable the lead time is. Standard sizes (M4–M8, DIN 912, natural or anodized) usually ship two to three weeks after they are stocked. It takes four to six weeks to make the tools and check the first piece of custom CNC designs, like logo bolts with laser engraving or head shapes that aren't the norm. Keeping 500–1,000 extra pieces of sizes that are used a lot on hand lowers the chance that the line will stop working during peak production.

Case Studies & Troubleshooting Torque Issues with Titanium Fasteners

Over-Torquing: The Most Expensive Mistake

A medium-sized European road bike brand once switched from steel stem bolts to titanium ones and stuck to the original 8 Nm specification without making any changes. In just two test rides, the threads on two bolts were clearly deformed. It was easy to figure out what went wrong: no anti-seize was used, and the force number for titanium was not lowered. To fix the problem, the stem threads had to be re-tapped, MoS₂ anti-seize had to be switched to, and a new specification of 5.5 Nm had to be set. It was more expensive to fix than to find the right standard in the first place.

Under-Torquing and Joint Creep

Risks are less obvious when torque is too low. After four rides, a mountain bike suspension linkage with M6 titanium pivot bolts that were torqued to only 7 Nm (below the 10 Nm minimum for that joint) started to creak and move around. The clamping force on the joint wasn't strong enough to hold up against lateral loads. This situation shows that the torque floor is just as important as the torque ceiling. The goal is to stay within the given range, not just stay low.

Quick Reference Checklist

Follow these steps before installing any titanium fasteners:

• Verify fastener grade (Grade 5 Ti-6Al-4V for structural positions)
• Apply MoS₂ or copper-based anti-seize to threads and bearing face
• Set torque wrench to titanium-adjusted value (20–25% below steel spec)
• Use a cross-pattern sequence on multi-bolt interfaces
• Re-torque after the first 50–100 km of use

When installing titanium fasteners, following this order consistently gets rid of most failures that happen in the field.

Conclusion

Titanium fasteners for bicycles truly do boost efficiency since they are lighter, corrosion-resistant, and long-lasting. But this is only possible when they are applied with the proper amount of torque, lubrication, and tools. Cut the steel torque requirements by 20-25 percent. Always apply anti-seize. Check them again after the first ride to break them in. Remember these figures. Procurement teams may remove the uncertainty from their supply chain by sourcing from a provider who delivers MTRs, consistent anodizing color, and adjustable MOQs. The stuff you use and how you put it together has to be right . A nicely made bike is not the same as a risk .

FAQ

1. Why does titanium need lower torque than steel?

Titanium has a lower elastic modulus (~114 GPa vs. ~200 GPa for steel), meaning it generates the required clamp force at a lower applied torque. Using steel torque values risks overloading titanium threads, causing galling or deformation.

2. How often should I check torque on titanium bicycle bolts?

Re-torque after the first 50–100 km following installation, then inspect quarterly under normal use. Race teams typically check all bolts before every event. Keeping a written torque log by position and date helps identify recurring issues.

3. What lubricant should I use on titanium bicycle fasteners?

Molybdenum Disulfide (MoS₂) anti-seize paste or copper-based anti-seize are the standard choices. Both reduce the friction coefficient to 0.13–0.15, which keeps torque-to-clamp-force calculations predictable. Avoid dry installation entirely, as titanium's tendency to gall makes it unreliable without lubrication.

4. Can I use the same titanium bolt in carbon fiber and aluminum threads?

Titanium is more cathodic than aluminum. In wet conditions, the galvanic potential difference can corrode the aluminum receiver. Use a passivating paste or an insulating washer to isolate the contact zone when threading into aluminum.

5. What sizes and styles does Wisdom Titanium supply?

Wisdom Titanium supplies titanium bicycle fasteners in M3, M4, M5, M6, M8, and M10, across DIN 912, DIN 7991, DIN 6921, ISO 7380, and custom CNC designs. Surface treatments include anodizing and PVD coating. MOQ is 200 pcs per specification.

Get a Quote from Wisdom Titanium — Your Trusted Titanium Fasteners Supplier

Since 2016, customers in the US, Europe, and Asia have bought precise titanium fasteners from Wisdom Titanium for their bikes. We are an ISO 9001-certified company that makes titanium fasteners for bicycles. Our factory is in Baoji Titanium Valley, Shaanxi Province, which is the world's biggest combined titanium production base. We offer MTRs, consistent anodizing, NDA-protected custom designs, and flexible MOQs starting at 200 pieces. To get examples or a bulk price, email our engineering team at sales@wisdomtitanium.com.

References

1. ASTM International. ASTM F136: Standard Specification for Wrought Titanium-6Aluminum-4Vanadium ELI Alloy for Surgical Implant Applications. ASTM International, 2013.

2. Bickford, John H. An Introduction to the Design and Behavior of Bolted Joints. 4th ed. CRC Press, 2007.

3. Donachie, Matthew J. Titanium: A Technical Guide. 2nd ed. ASM International, 2000.

4. ISO. ISO 4762: Hexagon Socket Head Cap Screws — Product Grade A. International Organization for Standardization, 2004.

5. VDI. VDI 2230: Systematic Calculation of Highly Stressed Bolted Joints. Verein Deutscher Ingenieure, 2015.

6. Jennings, Paul, and Mark Cossins. Bicycle Technology: Understanding the Modern Bicycle and Its Components. 3rd ed. Motorbooks International, 2012.
