What temperature can titanium washers withstand?

Titanium countersunk washers, particularly those manufactured from Grade 5 titanium alloy (Ti-6Al-4V), can reliably withstand continuous operating temperatures ranging from cryogenic conditions up to 400°C (752°F), with short-term exposure tolerance extending to approximately 540°C (1004°F). This exceptional thermal resilience stems from titanium's inherent metallurgical stability, low thermal expansion coefficient, and the formation of a protective oxide layer that resists degradation even under sustained heat. Unlike conventional steel or aluminum washers that may experience creep deformation or accelerated corrosion at elevated temperatures, titanium washers maintain dimensional integrity and load distribution capabilities across demanding thermal environments.

Titanium Countersunk Washers Temperature Resistance

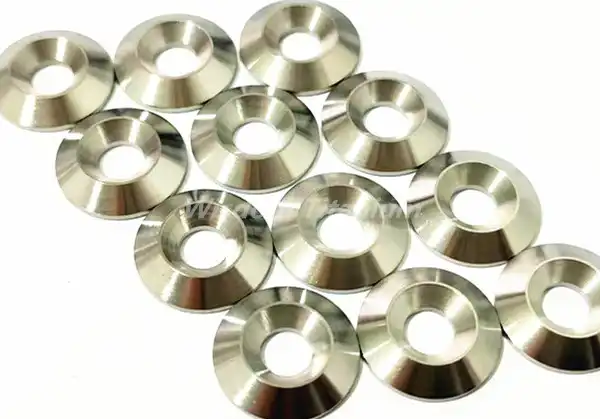

What Defines a Titanium Countersunk Washer

The exact cone form of a titanium countersunk washer makes it fit flush with screws or bolts that have countersunk holes in them. Most of the time, this form is made to meet standards for angles of 90° or 100°. In contrast to flat washers, this form spreads the load out over a bigger bearing area while keeping the profile of the surface smooth. The design doesn't have any protrusions that could get in the way of water flow in boats, air flow in race cars, or moving parts in high-precision machines.

The washers we make at Wisdom Titanium are made from Grade 5 titanium (Ti-6Al-4V), which is the standard in the business for high-stress structural uses. This metal is mostly titanium, with 6% aluminium and 4% vanadium making it up. It can be stretched to 895 to 1000 MPa and weighs only 4.43 g/cm³, which is 45% less than the same weight of 316 stainless steel.

Material Properties Governing Temperature Performance

Titanium has very good heating properties in a number of areas. The material doesn't change size much when it gets hot or cold (about 8.6 × 10⁻⁶/°C). Such as in wheel hub systems or brake calliper mountings, where exact torque needs to be met and bolts can't come loose when temperatures change. This feature is very useful in these cases.

The alloy's thermal conductivity stays the same at a lot of different temperatures. This means that heat can easily leave without changing the way it works. There is a passive titanium dioxide (TiO₂) layer on titanium when it is heated up. When this layer gets broken, it fixes itself. Over time, this keeps the titanium from oxidising and corroding. The way this metal acts is very different from aluminium, which softens a lot above 150°C, or carbon steel, which oxidises quickly above 300°C.

Comparison to Alternative Materials

It may seem like steel washers are harder at first, but they are heavier and more likely to rust, especially in places that are salty or have harsh chemicals. Aluminium washers are light, but they don't do well against creep above 200°C, so they can't be used in situations where the temperature will stay high for a long time. Brass can sometimes stop rusting, but it doesn't have the strength-to-weight ratio or temperature stability that cars and planes that need to perform well need.

Temperature Thresholds: How Hot Can Titanium Countersunk Washers Get

Continuous Operating Temperature Limits

Grade 5 titanium countersunk washers can withstand temperatures of up to 400°C (752°F) for a long time without losing their strength or ability to hold weight. It still has about 85% of its tensile strength at room temperature at this point. This means that it can be used to securely attach things in places that are often exposed to high temperatures for long periods of time, like brake systems, exhaust parts, and power generation equipment.

It is possible for titanium countersunk washers to handle short-term temperature spikes of 400°C to 540°C (752°F to 1004°F). These spikes happen a lot when racing cars need to stop quickly or when industrial gear gets too hot for a short time. Over 400°C for a long time, on the other hand, may change the material's microstructure in ways that make it less resistant to fatigue and more likely to crack from stress corrosion.

Effects of Sustained Heat on Mechanical Properties

When it comes to mechanics, temperature has a direct effect on titanium metals. The elastic strength goes down with rising temperature. Like, Grade 5 titanium is about 690 MPa strong when it's 400°C and 930 MPa strong when it's at room temperature. The pattern for yield strength is the same, but the alloy stays tough even when it's heated because it is very flexible.

You can see that the hardness is decreasing above 300°C, but not as quickly as it does in aluminium or low-alloy steels. Because of this, titanium washers don't bend or fret when they are exposed to high temperatures and vibrations. In racing, where brake disc bolts and calliper mountings are put under both heat and mechanical loads, this is a very important trait.

Oxidation and Corrosion Behavior at Elevated Temperatures

Titanium doesn't rust because when it's heated up and exposed to air, it forms a stable TiO₂ layer very quickly. This protective film slowly and evenly spreads out, stopping oxygen from getting into the base material any further. Even when the air is cooler than 500°C, oxidation rates are still very low. It's not the material breaking down that can be seen, but the surface changing colour (heat tinting).

In places with a lot of salt or chloride, stainless steel screws often break because of crevice corrosion. On the other hand, this problem doesn't happen as much with titanium, even when it's very hot. These titanium countersunk washers work great in places where heat and corrosion would quickly break down other materials, like ship exhaust systems, desalination plants, and equipment used overseas.

Practical Applications Requiring High-Temperature Resistance

Aerospace and Aviation Systems

Heat from the air keeps things hot for a long time in places like engine nacelles, exhaust systems, and fuselage panels. To keep things from breaking, these areas need titanium countersunk washers. When air flows over solid surfaces, the countersunk form keeps it smooth, which lowers drag. The material is thermally stable, which means that the clamping force stays the same even when temperatures change during flight.

Carbon fibre composite panels, which are being used in more and more modern aeroplanes, need titanium washers to stop galvanic rusting. Titanium is electrochemically compatible with carbon fibre, but not with aluminium or steel. That's why galvanic cells don't form, because those would break down faster at high service temperatures.

Performance Automotive and Motorsport Applications

If you want bolts to last a long time, you should put them in race brake systems. During races, brake discs can get hotter than 600°C, and the parts that hold the discs in place can also get hot from the sun. Putting titanium countersunk washers on the mounting points for the brake discs and callipers makes them stronger against these conditions. It also lowers the unsprung mass, which is an important part of how well the suspension responds and how exactly the car moves.

Wheel hub parts are also useful in this way. Because it is lighter, the design lowers spinning friction, which makes it easier to speed up and slow down. Since the material is thermally stable, it also doesn't come apart when heated and cooled. Custom titanium washers in sizes M3 through M14 are made by Wisdom Titanium. Both OEM production lines and shops that make changes to cars after the fact to make them run better can use them.

Motorcycle and High-Performance Bicycle Industries

In motorbike exhaust systems and sprocket parts, fasteners are put in places where temperatures stay high for a long time, between 250°C and 400°C. Titanium banjo bolt washers and sprocket mounting washers keep the force in place and the seal strong, while steel or metal parts would rust or creep and come loose.

When it comes to high-end bike frames, especially those made of carbon fibre or titanium tubes, titanium countersunk washers keep the parts smooth. The frames look good and don't rust because of these. These parts are being used by more and more high-end bike shops because they are lighter and last longer.

Industrial and Chemical Processing Equipment

For heat exchanges, chemical labs, and power plants, fasteners need to be able to handle both high temperatures and rough process conditions. Titanium washers that can work continuously at 400°C and don't rust in acidic or basic conditions save money over the course of their life than stainless steel parts that need to be replaced more often.

Conclusion

If you need something that is light, doesn't rust, and stays stable at high temperatures, titanium countersunk washers are the best engineering choice. Up to 400°C for long periods of time and up to 540°C for short periods of time, grade 5 titanium has been shown to work well. It is a safe choice for buying managers and engineers who have to work in dirty places. Because this material has a protective oxide layer, low thermal expansion, and a high strength-to-weight ratio, it is better than other options in many fields, such as the automotive, aerospace, motorcycle, and industrial. The right installation and upkeep methods can make these parts last longer and cost less over their whole life. This means they are worth using in temperature-critical systems.

FAQ

1. What is the maximum continuous operating temperature for titanium countersunk washers?

For long periods of time, Grade 5 titanium countersunk washers can work well at temperatures up to 400°C (752°F). At room temperature, they don't lose more than 85% of their tensile strength. During thermal spikes, 540°C (1004°F) for a short time is fine, but using something at this high of a temperature for a long time may weaken its toughness over time. It lasts longer, even when it is heated for a long time, because of the oxide layer that protects it.

2. How do titanium washers compare to stainless steel in high-temperature automotive applications?

Titanium countersunk washers fight rust better in cracks and crevices and are 45% lighter than 316 stainless steel washers. They are also better at stopping corrosion in harsh settings. Above 300°C, they keep their strength better, and when used with carbon fibre parts, they don't cause galvanic rusting. It costs more at first, but titanium is worth it because it lasts longer and works better in race and performance uses.

3. Can Wisdom Titanium provide custom titanium countersunk washers for specialized temperature requirements?

Of course. Our Baoji Titanium Valley plant can help you with custom designs, and our MOQs, or minimum order quantities, range from 100 to 200 pieces, depending on what you need. We offer different surface processes, such as polishing, anodising, and PVD coating, to make things better at handling heat and prevent rust. Our engineering team works directly with clients to find solutions that meet strict limitations on temperature, size, and certification standards for use in cars, planes, and factories.

Titanium Countersunk Washer Manufacturer — Partner with Wisdom Titanium

Wisdom Titanium delivers precision-engineered titanium countersunk washers designed to excel in the most demanding thermal environments. As an ISO 9001-certified manufacturer located in Baoji Titanium Valley—China's premier titanium production hub and one of the world's most comprehensive titanium industry clusters—we combine advanced CNC machining capabilities with rigorous quality control to serve automotive OEMs, racing teams, motorcycle manufacturers, and industrial equipment builders globally.

Our Grade 5 titanium countersunk washers, available in sizes M3 through M14 with polished, anodized, or PVD coating options, meet the exacting standards required for high-temperature applications while supporting custom designs tailored to your specific assembly requirements. Complete material traceability, stable raw material inventory, and experienced R&D support ensure your procurement needs are met with consistent quality and reliable lead times.

Whether you're sourcing standardized components for production lines or developing custom solutions for specialized temperature-critical assemblies, our team at Wisdom Titanium provides the technical expertise and manufacturing capability to support your success. Contact us at sales@wisdomtitanium.com to discuss your titanium countersunk washer requirements, request material certifications, or obtain custom quotes that deliver exceptional value without compromising performance.

References

1. Donachie, M.J. (2000). Titanium: A Technical Guide, 2nd Edition. ASM International, Materials Park, Ohio.

2. Boyer, R., Welsch, G., and Collings, E.W. (1994). Materials Properties Handbook: Titanium Alloys. ASM International, Materials Park, Ohio.

3. Schutz, R.W. and Watkins, H.B. (1998). "Recent Developments in Titanium Alloy Applications in the Energy Industry." Materials Science and Engineering: A, Volume 243, Issues 1-2, Pages 305-315.

4. Lutjering, G. and Williams, J.C. (2007). Titanium, 2nd Edition. Springer-Verlag, Berlin Heidelberg.

5. Peters, M., Kumpfert, J., Bird, C.H., and Leyens, C. (2003). "Titanium Alloys for Aerospace Applications." Advanced Engineering Materials, Volume 5, Issue 6, Pages 419-427.

6. Veiga, C., Davim, J.P., and Loureiro, A.J.R. (2012). "Properties and Applications of Titanium Alloys: A Brief Review." Reviews on Advanced Materials Science, Volume 32, Pages 133-148.
