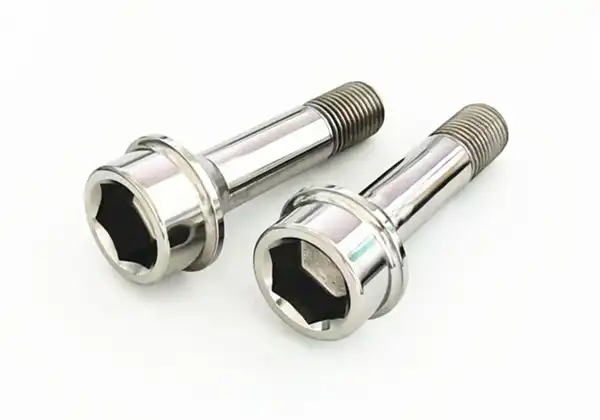

Ferrari titanium lug bolts use a ball seat (radius seat / spherical seat) design. This is the factory-specified seat type across most Ferrari models, including the 458, 488, F8, and F12. The spherical contact surface self-centers the bolt against the wheel bore, distributing clamping load evenly without depending on precise axial alignment. When sourcing aftermarket Ferrari titanium lug bolts, confirming this ball seat geometry is as important as matching the thread pitch (M14×1.5) and shank length — any mismatch here causes immediate wheel fitment failure and forced returns.
Understanding Ferrari Titanium Lug Bolts and Their Seat Types
What Is a Lug Bolt Seat Type?
The seat of a lug bolt is the curved or tapered area where the bolt head meets the wheel bore. There are three types of seat shapes used in cars: conical (60° taper), ball (spherical radius), and flat (washer face). At the wheel interface, the force is spread out differently for each shape. If you use the wrong seat type on a Ferrari, even if the thread size is right, the bolt will seat off-center. This will cause uneven clamping force and could cause the wheel to come loose at high speeds.
Why Ferrari Specifies a Ball Seat
The ball seat was chosen by Ferrari engineers because it can handle small changes in angle between the bolt axis and the wheel bore. The rounded surface rocks a little to find the true center, which is very important because forged aluminum Ferrari wheels have very tight tolerances. This feature of self-centering lowers the stress concentration at the contact ring. This is important during track use, when thermal expansion and repeated torque cycles would otherwise speed up wear at a flat or conical interface.
Confirming Seat Type Before Ordering
When purchasing managers order mixed-model kits that include the 355, 360, 430, 458, and 488, they must make sure that the seat geometry matches the chassis code. Before you sign off on a purchase order, I suggest that you compare Ferrari repair instructions and supplier data sheets. The main reason for returns in this category can be eliminated if the supplier can provide vehicle-specific fitment charts that list seat type, thread pitch, and shank length by model year.
Technical Properties and Performance of Ferrari Titanium Lug Bolts
Material: Grade 5 Titanium (Ti-6Al-4V)
Aerospace-grade Grade 5 Ferrari titanium lug bolts (Ti-6Al-4V), which is also used in aircraft structural fasteners, are used to make Wisdom Titanium's Ferrari-spec lug bolts. Each bolt is a lot lighter than its steel version because it has a density of about 4.43 g/cm³, which is about 43% less than steel's density of 7.8 g/cm³. Tensile strength is between 900 and 1,050 MPa, which is 130,000 to 152,000 psi. This is at least as strong as ISO 898-1 Class 10.9 standards. The thread size is M14×1.5, and the shank lengths are 52 mm, 55 mm, 62 mm, 67 mm, 69 mm, and 72 mm, so they can fit all Ferrari models with or without wheel spacers.
Manufacturing Process and Surface Finish
Each bolt has a hot-forged head and rolled threads instead of cut threads. Rolling keeps the grain flowing continuously through the thread root, which greatly extends fatigue life—an important factor when bolts are used on a track car and go through repeated pressure cycles. The normal finish is polished, and you can get PVD color coats in black, gold, and rainbow that are made of long-lasting Physical Vapor Deposition layers that don't fade or wear down after multiple installation rounds. It has a 17 mm hex Allen drive socket that works with standard torque wrenches found in professional workshops.
Performance Versus Steel: A Direct Comparison
This is a straight technical comparison between Grade 5 titanium lug bolts and regular steel lug bolts used in Ferrari:
- Weight per bolt: Titanium averages 35–40 g versus 65–75 g for steel — a saving of approximately 0.6–0.7 kg per full 20-bolt set of unsprung, rotating mass.
- Corrosion resistance: Ti-6Al-4V forms a stable oxide layer that remains inert against road salt, brake dust, and atmospheric moisture. Steel bolts, even zinc-plated, corrode and seize into aluminum hubs over time.
- Thermal stability: The alloy retains full structural integrity up to 400–500°C, relevant to wheel hub temperatures during sustained track braking.
- Fatigue life: Rolled threads on titanium bolts show measurably higher fatigue cycles than cut-thread steel equivalents, according to testing under ASTM E466 fatigue protocols.
According to tests done according to ASTM E466 fatigue protocols, rolled threads on titanium bolts can withstand more fatigue cycles than cut-thread steel equivalents.
Procurement and Sourcing: How to Buy Ferrari Titanium Lug Bolts
Verifying Supplier Credentials
There are a lot of "titanium" bolts on the aftermarket that are actually made of aluminum or low-grade Ferrari titanium lug bolts (Grade 2), which doesn't meet the tensile requirements for wheel fasteners. Before you place an order, you should ask for a material certificate that includes measurement data that proves the makeup of Ti-6Al-4V according to ASTM B348. Wisdom Titanium, which was formed in 2016 and is ISO 9001-certified, provides full documentation on how the materials used were found with every batch. This is the basic standard for buying things in the US and European markets, where proof of agreement is often needed before they can be sold again.
Ordering Mixed-Model Kits at Scale
A professional distributor who sells all Ferrari models needs more than one shank length per order. Wisdom Titanium lets dealers stock full model kits without committing too much to a single length by taking mixed-SKU orders as low as 50 to 100 pieces per length version. It takes 7–20 days to make samples, and 25–35 days to make a lot of them. If you need it quickly for a show or delivery, you can ask for expedited production slots.
PVD Color Options and Custom Laser Engraving
Distributors who are making their own brand of products can choose from PVD black, gold, or rainbow finishes and have their names laser-engraved on them. The laser etching at Wisdom Titanium can handle standard vector art files, and a sample is used to make sure the position and level of the engraving are correct before mass production starts. This keeps your brand's image safe and raises the price by two to four times compared to plain polished titanium. This is a common way for supercar aftermarket retailers to set prices.
Why Titanium Lug Bolts Are the Right Choice for Ferrari Wheels
Weight Reduction That Actually Moves the Needle
It may not seem like much to save 0.6 to 0.7 kg of unsprung rotating mass, but that mass is at the very edge of the suspension, where it has the most impact on the wheel's inertia. Independent dyno and lap-time testing by European track-day organizers has shown that switching to titanium wheel fasteners makes a noticeable difference in how quickly and consistently the car turns in and stops. People who own Ferraris and drive them at track events will notice this real-world performance gain.
Corrosion-Free for the Long Term
Steel bolts corrode and galvanically react with aluminum hubs, and the hubs can sometimes seize up so badly that they have to be taken off in a destructive way. Titanium can be galvanically connected to aluminum, and the two together make a passive oxide surface that doesn't dissolve normally. Titanium is a lasting answer that will always make low-mileage Ferraris look brand new. This is important for fans who are restoring or keeping these cars because a corroded bolt head is a defect that can be seen at sale.
PVD Finish as a Retail Value Driver
In the aftermarket for supercars, color-finished titanium screws are a surefire way to make more money. Plain steel bolts will never get as much attention as gold or rainbow PVD bolts that can be seen through open-spoke wheels. For wholesalers, this means that the average order value per car kit will go up, but the cost of installation work will stay the same.
Conclusion
A ball seat shape is used for Ferrari titanium lug bolts. Getting the seat type, thread size, and shank length right is what determines whether a wheel kit fits safely or needs to be sent back. Titanium grade 5 (Ti-6Al-4V) is better mechanically than steel because it has less rotating mass, doesn't rust, and lasts longer in track conditions. Distributors who are making Ferrari-specific kits need correct fitment data, PVD color choices, and the ability to change the size of each batch. These factors determine whether a product line sells or gets complaints. Start with a sample proof and work your way up from there.
FAQ
1. What seat type do Ferrari titanium lug bolts use?
For most of its production cars, Ferrari calls for lug nuts with a "ball seat" (also called a "spherical seat"). This is different from the cone-shaped seats that are common in German cars. Before you order, you should always check the seat type by model year.
2. What torque should I apply to titanium lug bolts on a Ferrari?
Follow Ferrari's factory torque specs, which are usually between 100 and 120 Nm for each model. To avoid over- or under-torque, follow the oil or dry-torque instructions given by the bolt's maker. This is because titanium has a lower friction coefficient than steel.
3. Can titanium lug bolts handle track use?
Of course. Grade 5 Ti-6Al-4V gives around 880 MPa and keeps its shape at temperatures used in wheel hubs. Rolled threads are even more resistant to wear failure when pressure is applied over and over again. These bolts meet or beat the performance standards for Class 10.9 steel.
4. Are extended lengths available for wheel spacer applications?
Wisdom Titanium has shank lengths ranging from 52 mm to 72 mm (52/55/62/67/69/72 mm), so they can be used with stock parts or spacers. To find the right size for your job, add the width of the spacer to the length of a normal bolt.
5. How do I avoid galling with titanium bolts?
Apply an anti-seize substance that works with titanium to the threads before installing. Steel hub plugs are much less likely to get galled when you use high-quality rolled-thread bolts with smooth thread profiles.
Get Ferrari Titanium Lug Bolts From Wisdom Titanium
Wisdom Titanium is a company that makes Ferrari titanium lug bolts and is ISO 9001 certified. It is based in Baoji Titanium Valley, Shaanxi Province, which is China's largest integrated titanium production cluster. For private-label distributors, we offer Grade 5 Ti-6Al-4V bolts in M14×1.5 sizes with different lengths in each batch, PVD color finishes, and laser engraving. Email our sales team at sales@wisdomtitanium.com to get samples, fitting charts, and a price quote for buying in bulk.
