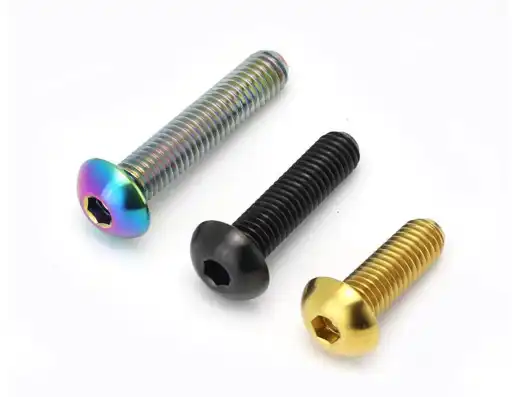

When it comes to high-performance cycling, every gram counts. Cyclists are constantly seeking ways to reduce weight without compromising strength and safety. This is where titanium bike bolts, or ti bike bolts, come into play. These components offer an excellent balance between weight reduction and structural integrity, making them a popular choice among cycling enthusiasts and professionals alike. In this article, we'll explore the intricate relationship between weight and strength in bike bolts, delving into the factors that influence this balance and why it matters for your cycling experience.
Material Grade Determines The Starting Point Of Basic Strength And Density
The foundation of a ti bike bolt's performance lies in its material composition. Titanium alloys used in bike components are typically classified into grades, with each grade offering a unique set of properties. The most common grades used for ti bike bolts are Grade 2 (commercially pure titanium) and Grade 5 (Ti-6Al-4V).
Grade 2 titanium is known for its excellent corrosion resistance and formability. It's lighter than Grade 5 but offers lower strength. On the other hand, Grade 5 titanium is an alloy containing 6% aluminum and 4% vanadium. This composition results in a higher strength-to-weight ratio, making it the preferred choice for high-stress applications in cycling.
The relationship between weight and strength starts at the molecular level. Grade 5 titanium has a density of about 4.43 g/cm³, which is slightly higher than Grade 2 (4.51 g/cm³). However, Grade 5 offers nearly twice the tensile strength of Grade 2. This means that for a given volume, a Grade 5 ti bike bolt will be marginally heavier but significantly stronger than its Grade 2 counterpart.
Understanding these material properties is crucial for both manufacturers and cyclists. It allows for informed decisions when balancing the need for weight reduction against the requirements for strength and durability. For instance, a lightweight racing bike might prioritize Grade 5 ti bolts in critical stress areas while using Grade 2 in less demanding locations to optimize overall weight without compromising safety.
It's worth noting that advancements in metallurgy continue to push the boundaries of what's possible with titanium alloys. Some manufacturers are experimenting with beta titanium alloys that offer even higher strength-to-weight ratios, potentially revolutionizing the world of ti bike bolts in the future.
Bolt Design
While the material grade sets the baseline for weight and strength, the design of the ti bike bolt plays a crucial role in optimizing these properties. Bolt design encompasses several factors, including head style, thread pitch, and overall geometry.
The head of the bolt is a critical area where designers can significantly influence the weight-strength relationship. Traditional hex heads, while strong, add unnecessary weight. Many ti bike bolts now feature low-profile designs that reduce weight without compromising the bolt's ability to withstand torque during installation or use. Some manufacturers have developed proprietary head designs that offer an optimal balance between weight reduction and tool interface.
Thread pitch is another design element that affects both weight and strength. A finer thread pitch increases the surface area of thread engagement, potentially allowing for shorter bolt length and reduced weight while maintaining or even improving strength. However, this must be balanced against the risk of cross-threading and the practicality of installation in field conditions.
The overall geometry of the bolt, including its length and diameter, is carefully calculated to provide the necessary strength for its intended application while minimizing weight. Advanced computer modeling and finite element analysis allow designers to optimize these parameters, sometimes resulting in non-traditional shapes that maximize strength in high-stress areas while reducing material in less critical zones.
Some innovative designs incorporate hollow sections in the bolt shaft, significantly reducing weight without substantially affecting the bolt's tensile strength. This approach requires precise manufacturing techniques but can result in weight savings of up to 30% compared to solid bolts of the same strength.
It's important to note that while these design optimizations can greatly enhance the weight-to-strength ratio of titanium bike bolts, they often come at a higher cost due to more complex manufacturing processes. This is why you'll often find the most advanced designs in high-end or professional-grade cycling equipment.
Application Determines Weight-Strength Priority
The specific application of ti bike bolts is perhaps the most critical factor in determining the ideal weight-strength balance. Different areas of a bicycle are subject to varying levels of stress and have different safety implications, which directly influence the design priorities for the bolts used in each location.
For example, bolts used in the bike's drivetrain, such as those securing the chainring or attaching the rear derailleur, are subjected to significant dynamic loads and vibrations. In these applications, strength takes precedence over weight reduction. Manufacturers might opt for slightly heavier Grade 5 titanium bolts with robust designs to ensure reliability and longevity.
Conversely, bolts used in less critical areas, such as water bottle cage mounts or certain accessory attachments, may prioritize weight savings. Here, lighter Grade 2 titanium or weight-optimized Grade 5 designs might be employed, as the stresses involved are relatively low and the consequences of failure less severe.
The type of cycling also plays a role in determining the appropriate weight-strength balance. Road racing bikes, where every gram can affect performance, might use the lightest possible ti bolts that meet safety standards. Mountain bikes, on the other hand, may require stronger, slightly heavier bolts to withstand the shocks and vibrations associated with off-road riding.
It's crucial for cyclists and bike manufacturers to consider the long-term implications of their choices. While a super-lightweight bolt might offer marginal performance gains in the short term, it could lead to increased maintenance, reduced lifespan, or even safety risks if not appropriately matched to its application.
Some high-end bike manufacturers are taking a holistic approach to this issue, developing complete titanium fastener sets optimized for specific bike models or riding styles. These sets ensure that each bolt is ideally suited for its particular location and expected stresses, providing an optimal balance of weight savings and structural integrity across the entire bicycle.
As cycling technology continues to evolve, we're seeing an increasing integration of ti bike bolts with other lightweight materials such as carbon fiber. This combination allows for even further optimization of the weight-strength relationship, with titanium providing localized strength and durability where needed, while carbon fiber structures handle broader load distribution.
Contact Wisdom Titanium
The relationship between weight and strength in ti bike bolts is a complex interplay of material science, engineering design, and practical application. While the goal is always to achieve the lightest possible component that can safely perform its function, the reality involves careful consideration of material grades, bolt design, and specific use cases.
As technology advances, we can expect to see even more innovative approaches to optimizing this balance. From new titanium alloys to revolutionary design techniques and manufacturing processes, the future of ti bike bolts looks promising for cyclists seeking that perfect blend of light weight and robust strength.
