When it comes to securing components in various industries, from aerospace to automotive, the importance of proper bolt tightening cannot be overstated. DIN 7991 titanium bolts, known for their exceptional strength-to-weight ratio and corrosion resistance, require particular attention to achieve optimal performance. In this comprehensive guide, we'll explore the factors influencing tightening torque, methods for determining the correct torque, and recommended values for different titanium grades of DIN 7991 bolts.
What Factors Influence the Tightening Torque of DIN 7991 Titanium Bolts?
Several factors play a crucial role in determining the appropriate tightening torque for DIN 7991 titanium bolts. Understanding these factors is essential for ensuring proper installation and optimal performance of the bolted joint.
1. Material Properties: Titanium's unique properties, including its high strength and relatively low elastic modulus, significantly influence the required torque. The specific grade of titanium used in the bolt (e.g., Grade 2 or Grade 5) will have different mechanical properties, affecting the optimal tightening torque.
2. Bolt Size and Thread Pitch: The dimensions of the bolt, including its diameter and thread pitch, directly impact the required torque. Larger diameter bolts generally require higher torque values to achieve the same clamping force as smaller bolts.
3. Friction Coefficient: The friction between the bolt threads, nut threads, and bearing surfaces affects the relationship between applied torque and resulting clamping force. Factors such as surface finish, lubrication, and plating can alter the friction coefficient and, consequently, the required torque.
4. Joint Stiffness: The stiffness of the clamped components and the bolt itself influences the distribution of forces within the joint. Stiffer joints may require higher torque values to achieve the desired clamping force.
5. Operating Conditions: The intended application and environmental factors, such as temperature fluctuations, vibration, and exposure to chemicals, can affect the optimal tightening torque. These conditions may necessitate adjustments to ensure long-term joint integrity.
6. Safety Factor: Engineers often incorporate a safety factor when specifying torque values to account for variations in assembly processes and potential relaxation of the joint over time.
How to Determine the Correct Torque for DIN 7991 Titanium Bolts?
Determining the correct torque for DIN 7991 titanium bolts involves a combination of theoretical calculations, empirical testing, and consideration of industry standards. Here are some key methods and considerations:
1. Theoretical Calculations: Engineers can use formulas that take into account the bolt's tensile strength, friction coefficients, and desired preload to calculate an initial torque value. These calculations typically involve the bolt's diameter, thread pitch, and material properties.
2. Torque-Tension Testing: This empirical method involves applying various torque levels to a sample bolt and measuring the resulting tension or clamping force. This helps establish a more accurate relationship between applied torque and achieved preload for the specific bolt and joint configuration.
3. Ultrasonic Measurement: Advanced ultrasonic techniques can be used to measure the actual elongation of the bolt during tightening, providing a direct indication of the achieved preload. This method is particularly useful for critical applications where precise control of bolt tension is essential.
4. Manufacturer Recommendations: Reputable manufacturers of DIN 7991 titanium bolts often provide torque recommendations based on their extensive testing and experience. These guidelines can serve as a valuable starting point for many applications.
5. Industry Standards: Various industry standards and specifications provide torque recommendations for different bolt sizes and materials. While these may not be specific to titanium bolts, they can offer useful reference points.
6. Finite Element Analysis (FEA): For complex or critical joints, FEA can be employed to simulate the behavior of the bolted connection under various loading conditions. This can help refine torque specifications for optimal joint performance.
7. Iterative Testing: In some cases, it may be necessary to conduct iterative testing, gradually increasing torque levels and monitoring joint performance to determine the optimal value for a specific application.
What are the Recommended Torque Values for Different Titanium Grades of DIN 7991 Bolts?
While specific torque values can vary depending on the application and factors discussed earlier, here are some general guidelines for DIN 7991 titanium bolts of different grades and sizes:
Grade 2 Titanium (Commercially Pure):
- M3: 0.5 - 0.7 Nm
- M4: 1.0 - 1.5 Nm
- M5: 2.0 - 3.0 Nm
- M6: 3.5 - 5.0 Nm
- M8: 8.0 - 12.0 Nm
- M10: 16.0 - 24.0 Nm
Grade 5 Titanium (Ti-6Al-4V):
- M3: 0.9 - 1.3 Nm
- M4: 2.0 - 3.0 Nm
- M5: 4.0 - 6.0 Nm
- M6: 7.0 - 10.0 Nm
- M8: 17.0 - 25.0 Nm
- M10: 33.0 - 50.0 Nm
It's important to note that these values are approximate and should be verified for specific applications. Factors such as joint material, lubrication, and operating conditions can significantly affect the optimal torque.
When tightening DIN 7991 titanium bolts, it's crucial to follow proper tightening procedures:
1. Clean and inspect the bolt, nut, and joint surfaces to ensure they are free from debris and damage.
2. Apply appropriate lubrication if recommended for the application.
3. Use a calibrated torque wrench to apply the specified torque in a controlled manner.
4. Tighten bolts in a sequence that ensures even load distribution across the joint.
5. Consider using a two-stage tightening process for critical applications, first applying a percentage of the final torque, then completing to the full specified value.
Regular inspection and maintenance of bolted joints are essential to ensure long-term performance and safety. This may include periodic torque checks and retightening as necessary, especially in applications subject to vibration or thermal cycling.

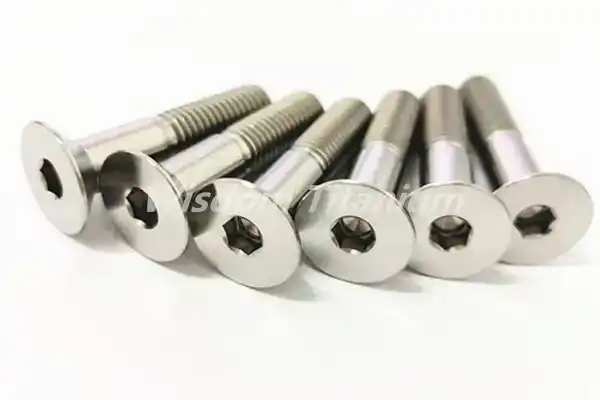

China DIN 7991 Titanium Bolts
Looking for top-quality titanium bolts that offer superior strength and corrosion resistance? Baoji Wisdom Titanium has got you covered! Our DIN 7991 titanium bolts are crafted from Grade 2 and Grade 5 titanium, ensuring exceptional durability and performance. With screw diameters ranging from M3 to M20 and lengths from 6mm to 250mm, we provide a wide variety of options to meet your specific needs. Whether you're working in marine, chemical, or other demanding environments, our bolts' excellent corrosion resistance guarantees long-lasting reliability. Plus, we offer polished, anodized, and customized coatings to suit your unique requirements. Don't settle for anything less—contact us today at sales@wisdomtitanium.com to learn more and get your hands on these high-performance titanium bolts!
References:
- ASM International. (2015). Titanium: Physical Metallurgy, Processing, and Applications.
- Bickford, J. H. (1995). An Introduction to the Design and Behavior of Bolted Joints.
- Budynas, R. G., & Nisbett, J. K. (2020). Shigley's Mechanical Engineering Design.
- VDI 2230 Part 1. (2015). Systematic calculation of high duty bolted joints.
- Eccles, W. (2017). Fasteners and Bolted Joints in Engineering Design.
- Bickford, J. H. (2007). Introduction to the Design and Behavior of Bolted Joints: Non-Gasketed Joints.
