What is the tensile strength of titanium torx bolts?

When it comes to high-performance fasteners, titanium torx bolts stand out for their exceptional strength-to-weight ratio and corrosion resistance. But what exactly is the tensile strength of these remarkable fasteners? Let's delve into the world of titanium alloys and explore the tensile strengths of different types of titanium bolts, including those with torx heads.

Titanium For Industrial Pure Titanium Rivets

Before we discuss the tensile strength of titanium torx bolts specifically, it's important to understand the broader context of titanium fasteners. Industrial pure titanium, often used in rivets, provides a baseline for comparison.

Pure titanium, also known as commercially pure (CP) titanium, comes in different grades. The tensile strength of these grades varies:

• Grade 1 CP Titanium: 240 MPa (35 ksi)
• Grade 2 CP Titanium: 345 MPa (50 ksi)
• Grade 3 CP Titanium: 450 MPa (65 ksi)
• Grade 4 CP Titanium: 550 MPa (80 ksi)

While these values are impressive compared to many other metals, they pale in comparison to titanium alloys used in high-strength applications like torx head bolts.

Titanium For (α+β) Type Titanium Alloy Rivets

Moving up the strength ladder, we encounter (α+β) type titanium alloys. These alloys combine the strength of alpha (α) titanium with the formability of beta (β) titanium, resulting in materials with superior mechanical properties.

The most common (α+β) titanium alloy used in fasteners is Ti-6Al-4V, also known as Grade 5 titanium. This alloy is frequently used for titanium alloy bolts, including those with torx heads. The tensile strength of Ti-6Al-4V typically ranges from 895 to 1000 MPa (130 to 145 ksi).

However, the tensile strength can be further increased through heat treatment. Solution-treated and aged Ti-6Al-4V can achieve tensile strengths up to 1100 MPa (160 ksi).

It's worth noting that while these values represent the material's tensile strength, the actual strength of a bolt also depends on factors like manufacturing process, heat treatment, and design.

Titanium For β Type Titanium Alloy Bolts

For applications requiring even higher strength, β type titanium alloys come into play. These alloys can achieve remarkable tensile strengths, making them ideal for high-performance titanium torx bolts.

Some examples of β type titanium alloys and their tensile strengths include:

• Ti-10V-2Fe-3Al: Up to 1240 MPa (180 ksi)
• Ti-15V-3Cr-3Al-3Sn: Up to 1170 MPa (170 ksi)
• Ti-3Al-8V-6Cr-4Mo-4Zr (Beta C): Up to 1380 MPa (200 ksi)

These alloys can provide exceptional strength for titanium bolts, including those with torx heads. However, it's important to note that with increased strength often comes decreased ductility, which must be considered in the bolt's design and application.

The choice of alloy for titanium torx bolts depends on the specific requirements of the application. Factors to consider include not only tensile strength but also fatigue resistance, corrosion resistance, and operating temperature range.

For instance, while a β type alloy might offer the highest tensile strength, an (α+β) alloy like Ti-6Al-4V might be preferred in many cases due to its excellent balance of strength, toughness, and corrosion resistance.

It's also worth mentioning that the torx head design itself contributes to the bolt's performance. The six-pointed star shape of the torx drive allows for higher torque transfer compared to other drive types, reducing the risk of cam-out and allowing for more precise torque control.

When considering the tensile strength of titanium torx bolts, it's crucial to look beyond just the raw numbers. The overall performance of the bolt in its intended application depends on a multitude of factors, including:

• The specific alloy composition
• Heat treatment and manufacturing processes
• Bolt design (including thread profile and head design)
• Surface treatment or coatings
• Environmental conditions in the application

For example, a titanium torx bolt made from Ti-6Al-4V might have a tensile strength of 1000 MPa, but its actual load-bearing capacity in a specific application could be lower due to factors like stress concentration at the threads or environmental effects like temperature or corrosive media.

Moreover, while tensile strength is an important property, other mechanical characteristics are equally crucial for the performance of titanium torx bolts:

• Yield strength: The stress at which the bolt begins to deform plastically
• Fatigue strength: The ability to withstand repeated cycling loads
• Fracture toughness: Resistance to crack propagation
• Creep resistance: Ability to maintain strength at elevated temperatures

These properties, along with tensile strength, determine the overall performance and reliability of titanium torx bolts in various applications.

It's also worth noting that while titanium alloys offer exceptional strength-to-weight ratios, they are generally more expensive than steel fasteners. Therefore, the use of titanium torx bolts is typically reserved for applications where their unique properties justify the higher cost, such as:

• Aerospace and aviation
• High-performance automotive
• Marine environments
• Medical implants
• Chemical processing equipment

In these applications, the combination of high strength, low weight, and excellent corrosion resistance offered by titanium torx bolts can provide significant benefits that outweigh the initial cost.

To put the tensile strength of titanium torx bolts into perspective, let's compare them with some other common fastener materials:

• Stainless Steel (Grade 304): 500-700 MPa
• Alloy Steel (Grade 8.8): 800-830 MPa
• Inconel 718: 1240-1380 MPa

As we can see, high-strength titanium alloys used in torx bolts can match or exceed the tensile strength of many other high-performance fastener materials, while offering additional benefits like lower weight and superior corrosion resistance.

It's also worth mentioning that ongoing research and development in titanium alloys continue to push the boundaries of what's possible. New alloys and processing techniques are being developed that may offer even higher strengths or improved combinations of properties in the future.

For instance, some experimental titanium alloys have achieved tensile strengths exceeding 1500 MPa, although these are not yet widely used in commercial fasteners. As these advanced materials become more accessible, we may see titanium torx bolts with even more impressive mechanical properties in the coming years.

Titanium Torx Bolts Supplier

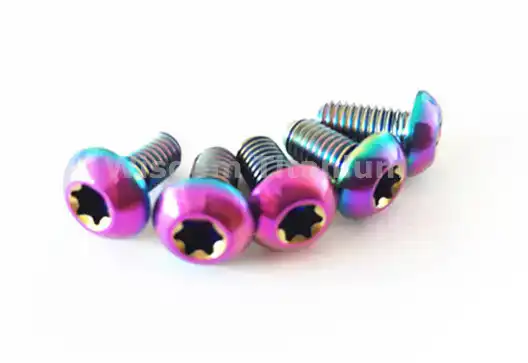

Wisdom Titanium offers high-quality titanium Torx bolts, which are made from Titanium Grade 5. These bolts feature a thread size range of M4 to M30, with head types specifically designed in Torx. They are available in lengths from 6mm to 150mm and diameters from 2mm to 12mm. These bolts have a strength above 1000 MPa and excellent corrosion resistance. They come in natural or anodized finishes and can operate within a temperature range of -250°C to 400°C. For more information or inquiries, please contact us at sales@wisdomtitanium.com.
