Thread Diameter: 8 mm
When we talk about M8 titanium nuts, the "8" in the designation directly refers to the nominal thread diameter of 8 millimeters. This measurement is crucial as it determines the size of the bolt or screw that the nut can be paired with. The thread diameter is measured from the crest of one thread to the crest of the opposite thread, across the central axis of the nut.
It's important to note that while the nominal diameter is 8 mm, the actual measured diameter might be slightly different due to manufacturing tolerances. These tolerances are typically very small, usually within a range of ±0.1 mm, to ensure proper fit and function. The precise tolerances are defined by international standards such as ISO (International Organization for Standardization) to maintain consistency across different manufacturers and applications.
The 8 mm thread diameter of M8 titanium nuts makes them versatile for a wide range of applications. They are commonly used in automotive, aerospace, marine, and general engineering fields where a balance of strength and lightweight properties is crucial. The choice of titanium as the material for these nuts further enhances their performance characteristics, offering excellent strength-to-weight ratio and corrosion resistance.
When selecting M8 titanium nuts, it's essential to ensure that they are paired with M8 bolts or screws to guarantee proper fit and optimal performance. Mismatching thread sizes can lead to inadequate fastening, potential damage to the threads, and compromised structural integrity of the assembly.
Thread Pitch
The thread pitch is another critical specification of M8 titanium nuts. For standard M8 nuts, including those made of titanium, the most common thread pitch is 1.25 mm. This measurement refers to the distance between adjacent thread crests, essentially defining how "coarse" or "fine" the threading is.
The 1.25 mm pitch is considered a coarse thread for M8 nuts. Coarse threads are preferred in many applications due to their ease of assembly, resistance to cross-threading, and better performance in applications subject to vibration. They also allow for faster tightening and loosening, which can be advantageous in certain situations.
However, it's worth noting that M8 titanium nuts are also available with a finer thread pitch of 1.0 mm. These fine-threaded nuts offer some distinct advantages in specific applications. Fine threads provide a larger surface area for engagement, which can result in higher clamping forces and better resistance to loosening under certain conditions. They are often preferred in precision engineering applications or where frequent adjustments might be necessary.
The choice between coarse (1.25 mm) and fine (1.0 mm) thread pitch depends on the specific requirements of the application. Factors to consider include the level of precision needed, the expected loads and stresses, and the environment in which the fastener will be used. It's crucial to match the thread pitch of the nut with that of the corresponding bolt or screw to ensure proper engagement and optimal performance.
Height
The height of an M8 titanium nut is an important dimension that can influence its suitability for different applications. For standard M8 hex nuts, the height is typically around 6.4 mm. However, it's crucial to understand that this dimension can vary depending on the specific design and type of nut.
The 6.4 mm height is common for full-height hex nuts, which are the most widely used type. These nuts provide a good balance between strength and size, suitable for a wide range of applications. The height of the nut contributes to its overall strength and load-bearing capacity, with taller nuts generally offering more thread engagement and thus potentially higher clamping forces.
However, various other designs of M8 titanium nuts exist, each with its own height specifications:
- Thin nuts: These have a reduced height, typically around 4 mm, making them suitable for applications where space is limited.
- Lock nuts: These may be slightly taller than standard nuts, often around 7 mm, to accommodate the locking mechanism.
- Cap nuts: These can be significantly taller, sometimes up to 12 mm or more, due to their domed top design.
- Flange nuts: The height can vary, but they often have a similar height to standard hex nuts, with the flange adding to the overall dimensions.
When selecting M8 titanium nuts, it's important to consider the height in relation to the specific application requirements. Factors such as available space, required thread engagement, and the need for additional features (like locking mechanisms) should all be taken into account.
Width Across Flats (AF)
The Width Across Flats (AF), also known as the spanner size or wrench size, is a critical dimension for M8 titanium nuts, particularly for hex nuts. For standard M8 hex nuts, including those made of titanium, the AF measurement is typically 13 mm.
This dimension refers to the distance between two parallel flat sides of the hexagonal nut. It's a crucial measurement as it determines the size of the tool (wrench or spanner) needed to tighten or loosen the nut. The standardization of this dimension ensures compatibility with common tool sizes, making installation and maintenance more convenient.
The 13 mm AF size for M8 nuts is part of the standardized sizing system used in metric fasteners. This standardization is essential for ensuring interchangeability and ease of use across different manufacturers and applications. It allows for consistent tooling and helps prevent issues that could arise from mismatched sizes.

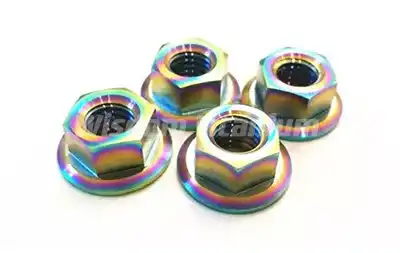

M8 Titanium Nuts For Sale
For those in need of high-quality M8 titanium nuts, Wisdom Titanium company offers a range of options to meet various industrial and engineering needs. Their M8 titanium nuts, with a thread specification of M8*1.25, are designed to provide the perfect balance of strength, lightweight properties, and corrosion resistance that titanium is known for.
Wisdom Titanium's M8 nuts are manufactured to precise specifications, ensuring they meet international standards for dimensional accuracy and performance. The M8*1.25 thread specification indicates a standard coarse thread, which is suitable for a wide range of applications, offering ease of assembly and good resistance to vibration loosening.
Wisdom Titanium's commitment to quality ensures that each M8 titanium nut meets or exceeds industry standards. Their manufacturing processes are tightly controlled to maintain consistent quality and performance across their product range.
Conclusion
To explore Wisdom Titanium's range of M8 titanium nuts or to discuss custom titanium fastener solutions, interested parties are encouraged to reach out to their sales team at sales@wisdomtitanium.com. Their specialists can offer personalized assistance, provide quotations, and answer any technical questions to ensure customers find the perfect titanium fastening solution for their needs.
References
1. International Organization for Standardization. (2018). ISO 68-1:2018 ISO general purpose screw threads — Basic profile — Part 1: Metric screw threads.
2. Deutsches Institut für Normung. (2021). DIN 934 Hexagon nuts.
3. American Society of Mechanical Engineers. (2020). ASME B18.2.4.1M Metric Hex Nuts.
