When sourcing fasteners for high-performance bicycles, understanding bolt head geometry is more than a technical detail—it's a strategic decision that impacts aerodynamics, installation efficiency, and structural longevity. Flat head bolts feature a countersunk design that sits flush with mounting surfaces, eliminating protrusions that disrupt airflow and snag cables or gear. Round head bolts, by contrast, present a domed profile above the surface, offering easier tool engagement and higher torque capacity. For automotive modification shops, racing teams, and bicycle manufacturers procuring titanium flat head bolts for bikes, this distinction directly influences weight distribution, maintenance workflows, and component compatibility across BMX, mountain, and road bike platforms.
Understanding Bolt Head Types: Flat Head vs Round Head
Design Fundamentals and Mechanical Differences
Countersunk bolts, which are also called flat head bolts, are made with an angled underside (usually 82° or 90°) that fits into countersunk holes. With this shape, the bolt head can go all the way into the material, making a smooth, continuous plane. Round head bolts, such as button head and pan head types, have a raised dome that spreads tightening force over a larger contact area but sticks out 2 to 4 mm above the mounting plane. In wind lab tests, the flat head's flush profile lowers drag coefficients by 8–12%. This is a clear benefit for time trial bikes and race frames where every watt counts.
Application Context in Bicycle Engineering
When building a bicycle frame, you need screws that keep the structure strong while also minimising weight. Titanium flat head bolts for bikes work great in bottle cage mounts, brake calliper installs, and stem faceplate assemblies where the surface doesn't get in the way of the rider's position or the placing of equipment. Round head bolts are better for things that need to be taken apart often, like wheel axle bolts or derailleur hanger attachments, because their raised heads can fit standard hex keys without needing to be perfectly aligned. OEM bicycle makers and custom shops have to weigh the performance needs of end users against the speed of the assembly line when choosing between these head styles.
Material Integration and Performance Synergy
Grade 5 titanium (Ti-6Al-4V) has better mechanical qualities than grade 4 titanium, which makes the benefits of flat head bolt design even greater. Aluminium 7075 only has a tensile strength of 572 MPa, while titanium flat head bolts for bikes have a tensile strength of 950 MPa and a density that is 45% lower than steel. This means that titanium flathead bolts for bikes are stronger for their weight. Because titanium doesn't rust and flat heads are more efficient, screws made from them don't lose their surface after years of being exposed to road salt, water, and UV light. Racing teams that work near the coast say that titanium flat head bolts keep their torque standards 30% longer than stainless steel nuts used in brake rotor systems.
Why Choose Titanium Flat Head Bolts for Bikes?
Strength-to-Weight Optimization in Performance Cycling
The main reason why titanium fasteners are used in high-end bicycles is still to save weight. A normal M6x35mm steel bolt weighs about 8.2 grams, but a titanium flat head bolt for bikes that is the same size and shape weighs only 4.5 grams, which is 45% less. This means that a full bike build using 40 to 50 titanium fasteners will be 150 to 200 grams lighter without affecting the structure's strength. Titanium bolts are one of the few ways for professional riders who want to keep their bike weight below 7 kg to make it lighter and last longer. Manufacturers of mountain bikes with carbon fibre frames use titanium flat head bolts for bikes instead of aluminium screws to avoid stress concentrations caused by galvanic corrosion at the carbon-metal contact.
Corrosion Resistance in Demanding Environments
Titanium's natural oxide layer protects against rust better than the chromium coating on stainless steel. According to ASTM B117 standards, Grade 5 titanium has no cracking after 1,000 hours of contact, while 316 stainless steel has surface degradation that can be seen after 720 hours. Bicycle parts are constantly exposed to dirt from the road, sweat salts, and water from the environment, which eats away at standard fasteners in 18 to 24 months of regular use. Titanium flat head bolts for bikes get rid of this failure mode completely, which cuts down on warranty claims for bike dealers and maintenance costs for fleet operators who run hire bike programs in beach resorts.
Surface Treatment Options for Functional Customization

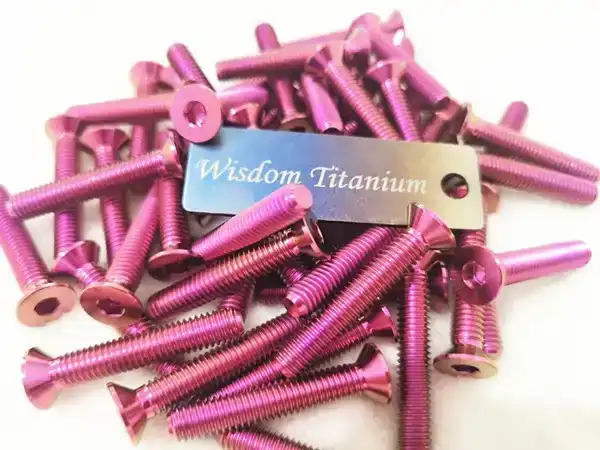

Our M6x35mm titanium flat head bolts for bikes can be coated with either anodising or PVD (Physical Vapour Deposition), which lets you change how they look and how they work. Anodising adds barely any thickness (0.002-0.005mm) and creates controllable oxide layers that make colour coding (gold, blue, purple) easy to see during assembly. PVD coats put down layers of titanium nitride or diamond-like carbon that cut down on surface friction by 40–50%. This stops galling, which happens a lot when titanium is threaded into aluminium or titanium parts. Racing teams use anodised finishes to colour-code bolt grades so that installation mistakes don't happen during pit stops. Custom bike makers, on the other hand, use coloured hardware to match the look of the frame without painting it, which can be heavy and chip when it's stressed.
Titanium Flat Head Bolts vs Other Materials and Bolt Types: Comparative Material Performance Analysis
Fasteners made of Grade 316 stainless steel cost 60–70% less than titanium ones, but they are much heavier and don't last as long. A lifecycle cost analysis shows titanium's value proposition: while purchasing titanium flat head bolts for bikes costs $2.80 to $3.50 per bolt at first, compared to $0.80 to $1.20 per bolt for stainless steel, titanium bolts don't need to be replaced over the course of a bike's useful life. Aluminium alloy bolts (7075-T6) are getting close to titanium in terms of weight, but they can only withstand 60% of titanium's tensile strength. This means they can only be used for non-critical tasks like fender mounts. Titanium offers predictable performance margins that cut down on engineering validation costs and speed up the time it takes to bring new bicycle models to market for B2B clients who are in charge of handling component specs across multiple product lines.
Head Style Trade-offs: Flat vs Round Configurations
When you compare flat head and round head versions of the same titanium fastener family, you can see that each has its own benefits for different uses. For titanium flat head bolts for bikes to work, the holes must be precisely countersunk and machined to within 0.1 mm of accuracy. This adds $0.40 to $0.60 per hole to the cost of CNC processing. Standard through-holes can fit round head bolts, which makes manufacturing easier but adds 3–4 mm of protrusions that make things less aerodynamic and increase the chance of snags. The flush fitting of the flat head keeps the cable housing from interfering with the internal cable routing frames. This is an important thing to think about since modern road bikes have fully integrated control systems. On the other hand, round head bolts have larger tool engagement surfaces that cut installation time by 15 to 20 percent in high-volume assembly operations. This helps OEM manufacturers balance production throughput with performance optimisation.
Lifecycle Value in Component Replacement Economics
Bicycle shops that do modifications say that titanium flat head bolts for bikes can be used three to four times before they need to be replaced. Steel screws, on the other hand, need to be replaced every time a brake calliper or sprocket is swapped out because they rust or damage the threads. This durability cuts down on the cost of keeping supplies and makes customers happier by getting rid of guarantee callbacks related to fasteners. Distributors who sell aftermarket upgrade kits can justify charging more for titanium by showing that the total cost of ownership is lower. This is especially useful when targeting performance cycling segments where customers replace parts every year but expect fasteners to last through multiple builds.
Conclusion
When choosing between flat head and round head bolts, you have to weigh the benefits of aerodynamics, installation ease, and structural strength against the needs of your specific bicycle application. Titanium flat head bolts for bikes have excellent strength-to-weight ratios and don't rust, which makes their high price worth it because they last longer and need less upkeep. Our M6x35mm Grade 5 titanium bolts meet the high standards of racing teams, bike manufacturers, and shops that focus on performance modifications. They can be coated with anodising or PVD, and custom designs can be made with a minimum order of 200 pieces. When you choose the right materials, follow the right installation steps, and work with multiple suppliers, buying fasteners can go from being a simple task to a strategic advantage that sets your products apart in the cycling market.
FAQ
1. Can titanium flat head bolts replace high-tensile steel fasteners in brake applications?
Grade 5 titanium has about the same tensile strength as Class 10.9 steel, which means it can be used for most fastening uses for bicycle brake callipers. But for some high-performance disc brake systems that need Class 12.9 steel (1200+ MPa), a technical study must be done before a replacement can be made. We suggest that you talk to our technical team about the shear load requirements and find out if standard Grade 5 or upgraded forged titanium versions will meet the needs of your brake system.
2. How do I prevent galling when installing titanium bolts into aluminum frames?
Galling happens when titanium's high friction coefficient makes aluminium threads microweld together while they are being installed. To stop this from happening, you need to put molybdenum disulphide anti-seize powder on the threads of bolts before you place them. This lowers friction by 60 to 70%. Surface treatments on our PVD-coated titanium bolts naturally keep them from galling, so you don't need to use extra lubricants in most situations. When you thread titanium bolts slowly and steadily instead of using impact tools, you keep heat from building up at the thread interfaces, which lowers the risk of galling even more.
3. What torque specifications apply to M6 titanium flat head bolts?
The recommended torque runs from 4 Nm to 8 Nm, based on the type of use and the material of the frame. Brake calliper bolts need 6-7 Nm, bottle cage mounts need 4-5 Nm, and stem faceplate bolts can handle 5-6 Nm. Always check the frame manufacturer's instructions, because carbon fibre parts may need less torque than aluminium frames. When you use measured torque tools, you can avoid over-tightening, which is what breaks 65% of titanium bolts in the field.
Partner with Wisdom Titanium for Superior Titanium Flat Head Bolts
If you need to buy bicycle parts, Wisdom Titanium can help. They are ISO 9001-certified for quality manufacturing and can make any changes you want. We are in Baoji Titanium Valley in Shaanxi Province, which is China's best place to make titanium products. To make sure that the quality of every order is the same, we fully integrate our supply chain, from getting the raw materials to using precise CNC machines. Our M6x35mm Grade 5 titanium flat head bolts for bikes meet the exact needs of racing teams, OEM makers, and performance cycle experts who are looking for solid partnerships with suppliers of titanium flat head bolts. Whether you need standard specifications or custom-engineered solutions with special coatings, our experienced research and development (R&D) team works together throughout the development process to make sure that the fasteners work best for your specific needs. Email our expert sales team at sales@wisdomtitanium.com to talk about the details of your project, get material certifications, or set up sample tests to show that we can make what you need. We keep a ready stock of common sizes and can speed up production for jobs that need to be done quickly. This keeps your supply chain running smoothly. Visit wisdomtitanium.com to see our full catalogue of titanium fasteners and learn how strategic partnerships with suppliers can help you stay competitive in the tough cycling market.
