Most Ferrari models utilize 5x108mm bolt pattern, which means five lug bolts on a 108mm pitch circle diameter (PCD). This is true for popular vehicles like the 488 GTB, the F8 Tributo, and the 458 Italia. However, certain earlier Ferrari series have various combinations; thus, it’s a must to check the specific standard for each model year. Many shops now source wheel hardware that combines this fitment data with Ferrari titanium lug bolts. These M14x1.5mm Grade 5 titanium fasteners replace hefty steel OEM bolts, while offering a precise, corrosion-free finish.
Understanding Ferrari Wheel Bolt Patterns
What a Bolt Pattern Actually Means
A bolt pattern is made up of a pair of numbers . The number of wheel studs or bolts, and the PCD ( Pitch Circle Diameter), or the diameter of the circle they are on. Something like 5x108mm means five bolts on a 108mm circle. If you do this improperly, the wheel will either not mount properly or, worse, will not sit securely. In a high-performance automobile such as a Ferrari, a tiny imbalance of just a few millimeters may generate vibrations at high speeds.
Common Ferrari Bolt Patterns by Model
The 5x108mm design matches many of the newer Ferraris. These include the 458, 488, F8 Tributo, Roma and SF90. It is vitally important to be sure you know the precise year and trim of any older GT-series vehicles or racing variants before making an order. Dealers and workshop personnel frequently have a model-specific fitting chart on hand to prevent errors. This is particularly true when mixed orders for various generations of automobiles are involved.
How to Measure a Ferrari Bolt Pattern
A 5-bolt pattern needs to be measured in a slightly different way than an even-numbered bolt design. Here is a method that works:
- Measure from the center of one bolt hole to the outer edge of the bolt hole two positions away.
- Multiply that measurement by 1.051 to get the PCD.
- Cross-check the result against the manufacturer's specification sheet.
To begin, measure from the middle of one bolt hole to the edge of the next bolt hole, which is two places away.

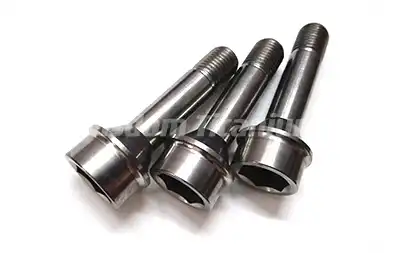

Ferrari Titanium Lug Bolts: Specifications and Benefits
Technical Specifications at a Glance
Ferrari titanium lug bolts are made by Wisdom Titanium using military-grade 5 titanium (Ti-6Al-4V), which has a tensile strength of 900 to 1050 MPa (130,000 to 152,000 psi). The thread size is M14 x 1.5mm and is available in lengths of 52, 55, 62, 67, 69, and 72mm to match a variety of Ferrari model years and spacers. Each bolt features a hot-forged head and rolled threads. It is finished in a polished finish, and each bolt has a 17mm Allen Socket drive. PVD is available in black, gold, and rainbow hues.
Weight Savings and Performance Impact
It is around 4.43 grams per cubic centimeter in density. Normal steel is 7.8 grams per cubic centimeter; therefore, it is about 43 % less dense. A Ferrari lug bolt manufactured from steel weighs roughly 65- 75 g, whereas one made from titanium weighs about 35- 40 g. For a whole set of 20 bolts, this reduction equals the loss of around 0.6 to 0.7 kg of unsprung spinning mass. Less unsprung weight means the suspension can react more quickly to road inputs and reduces the distance to stop on a track or high-performance road.
Safety, Compatibility, and Corrosion Resistance
Conversely, titanium bolts grow a persistent natural oxide coating that is inherently resistant to salt, water, and road debris; thus, no surface treatment is necessary. Rolled threads maintain the grain running constantly; hence, they have a far greater fatigue life than cut threads. These bolts hold the structure together at temperatures of 400–500°C, which is within the temperature range formed at the wheel hub while the vehicle is braking hard on the track. The dependability makes it less likely for businesses who do a lot of Ferraris to have repeat calls for seized or rusted bolts.
Comparison: Ferrari Titanium Lug Bolts vs. Steel Lug Bolts
Weight and Handling Differences
Rotational inertia is the resistance an object has to changes in speed. Steel bolts make things heavier and add to this resistance. Titanium wheel bolts cut that inertia down a lot, which makes the throttle response and steering feel better. The change is most clear when entering a corner or slowing down on the road. This speed edge is a real selling point for a school that wants to get customers for track days or concours prep.
Strength and Long-Term Fatigue Life
These are the main ways that the two materials are mechanically different:
- Tensile strength: Grade 5 titanium reaches 950–1050 MPa, meeting or exceeding ISO 898-1 Class 10.9 steel standards used in Ferrari OEM fasteners.
- Fatigue resistance: Rolled-thread titanium bolts resist thread stripping and micro-crack propagation better than cut-thread steel equivalents under repeated loading cycles.
- Thermal stability: Steel bolts can lose clamping force when exposed to repeated heat cycles; titanium holds its mechanical properties steadily up to 400°C+.
Because of these qualities, titanium is a reliable long-term choice for shops where customer cars are used a lot.
Cost and Market Positioning
Steel Ferrari titanium lug bolts cost less at first, but titanium bolts last longer, don't rust, and don't need to be replaced as often. Titanium's higher price compared to standard screws allows 2–4 times the retail markup for B2B wholesalers who are after wealthy Ferrari titanium lug bolt owners. This is especially true when PVD color finishes are added, and branding is laser-engraved. In places like Dubai, Los Angeles, and London, people buy things just because they look good.
How to Install Ferrari Titanium Lug Bolts Correctly?
Pre-Installation Checks
Before putting on titanium lug bolts, make sure three things: the bolt's length is the right length for the wheel and hub; the thread pitch is M14x1.5mm; and the seat type (conical or radius) fits the wheel's hole shape. A common reason why fitting fails is using the wrong type of seat. Thoroughly clean the hub threads; any dirt or old locking compound can make the force numbers wrong.
Tools and Tightening Sequence
You will need a 17mm Allen socket (hex key drive), a measured torque wrench, and an anti-seize powder that works with titanium. Copper-based anti-seize should not be used because it can react with titanium. Do these things in order:
- Hand-thread each bolt until finger-tight.
- Tighten in a star pattern to 50% of final torque.
- Complete the star pattern to Ferrari's specified torque — typically 100–120 Nm depending on the model year.
Post-Installation and Maintenance Protocol
Once you've driven 50 to 100 km, check the torque again. Titanium screws settle a little when they are first used, but a quick re-torque keeps them from coming free. Check the threads visually every time you turn the tire. It's necessary to apply anti-seize after every fitting because titanium can stick to steel hubs if they aren't properly oiled. This saves both the bolt and the hub bore over time.
Procuring Ferrari Titanium Lug Bolts: What B2B Clients Should Know
Supplier Certification and Data Accuracy
The most crucial thing when you are shopping for Ferrari lug bolts to sell is to have the right measurement knowledge. A mismatch in any of the length, thread pitch, or seat type leads to 100% returns and damaged connections with customers. Buy only from vendors that provide model-specific, checked fitment plans for all 246, 308, 328, 348, 355, 360, 430, 458, 488, F8, 550, 599, and other Ferraris. Base criteria include ISO 9001 certification and recorded material testing, including spectrometry for Ti-6Al-4V, dimensional gaging, and tensile testing.
Bulk Order Flexibility and Lead Times
Suppliers need to be able to accept orders for various SKUs at low quantities per SKU for distributors who carry a range of Ferrari inventory. Most transactions are for 100 up to 1,000 pieces in various lengths and colors. A reliable Ferrari titanium lug bolts vendor should be able to provide samples in 7-20 days and complete production batches in 25-35 days. During times of high demand, such as SEMA, track days, and regional auto events, suppliers need to maintain a large inventory of raw materials and be ready to promptly fulfill urgent demands.
Customization and Retail Packaging Support
One of the main points of quality control is to ensure that PVD colors are consistent from batch to batch. This is particularly true for black, gold, and rainbow finishes. Customers are complaining and sending back products since colors are not matching across shipments. Besides the color, the laser-engraved names on the bolt heads provide dealers the opportunity to construct branded kits to sell for extra money. Retail-ready packaging with torque instruction cards and barcodes means retailers can prepare faster and sell straight to consumers.
Conclusion
You should know Ferrari titanium lug bolts have a 5x108 mm bolt pattern if you want the proper wheel fit. But the hardware is as crucial. Titanium lug bolts of Ti-6Al-4V outperform steel in function. They are lighter, more fatigue-resistant, and will not corrode over time. The financial rationale is also evident for B2B distributors: greater selling margins, the opportunity to brand kits, and retaining customers since the quality lasts with repeated usage. Reliable inventory and errors that cost a lot of money are what is made by getting the information correct from the start. The kind of material and the lengths required for each model.
FAQ
1. What torque should I use for Ferrari titanium lug bolts?
Follow Ferrari's factory torque specification, generally 100–120 Nm depending on the model. Because titanium has a different friction coefficient than steel, always apply a titanium-compatible anti-seize compound and torque to the manufacturer's dry or lubricated spec as specified.
2. Can I use these bolts with wheel spacers?
Yes. When installing wheel spacers, the bolt length must increase by the spacer thickness to maintain safe thread engagement — a minimum of 7–8 full turns into the hub is required. Select the appropriate length from the available sizes: 52, 55, 62, 67, 69, or 72mm.
3. Is Grade 5 titanium strong enough for track use?
Grade 5 titanium (Ti-6Al-4V) has a yield strength of approximately 880 MPa and tensile strength of 950–1050 MPa, meeting ISO 898-1 Class 10.9 standards. With rolled threads and a forged head, these bolts handle the stress of track driving without issue.
4. How much weight do titanium lug bolts actually save?
A steel Ferrari lug bolt weighs 65–75g; a titanium equivalent weighs 35–40g. A full set of 20 bolts saves roughly 0.6–0.7 kg of rotating, unsprung mass — mechanically significant for suspension response and braking performance.
Source Ferrari Titanium Lug Bolts from Wisdom Titanium
Wisdom Titanium sells precise Ferrari titanium lug bolts in M14x1.5mm sizes that range in length from 52mm to 72mm and come in black, gold, and rainbow PVD finishes. As a Ferrari titanium lug bolts manufacturer with ISO 9001 certification based in Baoji Titanium Valley, Shaanxi Province, China's largest titanium production base, we can handle mixed orders with multiple SKUs, laser logo customization, and quick sample turnaround. To get details or a price, email us at sales@wisdomtitanium.com.
