When it comes to selecting the right fasteners for your project, titanium bolts are often a top choice due to their exceptional strength-to-weight ratio, corrosion resistance, and durability. However, not all titanium bolts are created equal. The grade of titanium used plays a crucial role in determining the bolt's performance and suitability for specific applications. In this comprehensive guide, we'll explore the various grades of titanium used for bolts, with a particular focus on the popular titanium grade 5 bolt, and help you make an informed decision for your next project.
Grades of Titanium for Bolts and Their Applications
Titanium is available in several grades, each with its unique properties and applications. When it comes to bolts, the most commonly used grades are:
1. Grade 2 Titanium
Grade 2 titanium, classified as commercially pure (CP) titanium, adheres to ASTM F67 (for surgical implants) and ASTM F468 (for fasteners), with a UNS designation of R50400. Composed of ≥99% titanium, it contains trace alloying elements: iron (≤0.30%), oxygen (≤0.25%), carbon (≤0.10%), and nitrogen (≤0.03%). Strict control of these impurities ensures excellent ductility and weldability, while retaining pure titanium's core advantages—a density of 4.5g/cm³ (57% of steel) and non-magnetic properties.
Its core strengths lie in "balanced performance":
- Corrosion Resistance: Exhibits noble-metal-level resistance in seawater, wet chlorine, most organic acids (e.g., formic, acetic), and chloride environments, far surpassing stainless steel and aluminum. A self-healing titanium dioxide film (5–10nm thick) naturally forms on the surface.
- Processability: Suitable for cold/hot forming and machining, with better machinability than high-alloy titanium (e.g., Grade 5), making it ideal for mass-producing standard fasteners like bolts and nuts.
- Biocompatibility: The only FDA-approved metallic substrate for medical use, directly contacting human tissues. Commonly used for non-load-bearing orthopedic implant components (e.g., bone plate fixation bolts).
2. Grade 5 Titanium
Grade 5 titanium is an α+β titanium alloy containing 6% aluminum and 4% vanadium (UNS R56400). Aluminum improves high-temperature strength (retaining ≥80% strength at 315°C) and elastic modulus, while vanadium enhances β-phase toughness, avoiding the brittleness of pure α alloys. Accounting for over 50% of global titanium processing materials, it is the most widely used titanium alloy.
Exceptional Mechanical Properties & Strengthening Mechanisms
- High Strength: Through solution strengthening and aging treatment, tensile strength reaches 900–1100MPa (2.5x that of Grade 2 titanium), approaching high-strength steel (e.g., Grade 8 bolts), but with only 60% of steel's density.
- Fatigue Resistance: Fatigue limit of ~550MPa at 10⁷ cycles, superior to most aluminum and stainless steel alloys, making it suitable for vibration environments (e.g., aircraft engines).
- High-Temperature Performance: Maintains good creep resistance at 300–350°C, far exceeding Grade 2 titanium and magnesium alloys.
3. Grade 7 Titanium
Grade 7 titanium is a modified alloy adding 0.12–0.25% palladium (Pd) to Grade 2 pure titanium (UNS R52400), following ASTM F1264 standards. Palladium improves corrosion resistance in reducing acids (e.g., hydrochloric, sulfuric) through a "cathodic poisoning" mechanism, while maintaining Grade 2's excellent ductility and weldability.
Corrosion Performance Breakthrough & Principles
- Performance in Hydrochloric Acid: In 20% concentration at 60°C, corrosion rate is only 0.05mm/year (Grade 2 titanium: 0.5mm/year; 316 stainless steel: >5mm/year).
- Mechanism: As a noble metal, palladium lowers the cathodic reaction overpotential on the titanium surface, inhibiting hydrogen evolution corrosion—ideal for harsh environments with coexisting Cl⁻ and H⁺ (e.g., hydrometallurgy, acidic oil and gas fields).
- Oxide Film Properties: Palladium-containing oxide films are 30% more dense (lower porosity) and repair 50% faster after damage.
How to Choose the Right Grade?
Selecting the appropriate titanium grade for your bolts depends on several factors. Here are some key considerations to keep in mind:
1. Application Requirements
Consider the specific needs of your application. For many projects, a titanium grade 2 bolt will suffice. These bolts offer an excellent combination of strength, corrosion resistance, and cost-effectiveness. They're suitable for a wide range of applications, from marine environments to medical devices. However, if your project requires higher strength or enhanced corrosion resistance, you might need to consider grade 5 or grade 7 titanium bolts.
2. Environmental Factors
The environment in which the bolts will be used plays a crucial role in grade selection. If the bolts will be exposed to saltwater or other corrosive substances, grade 2 or grade 7 titanium bolts would be excellent choices due to their superior corrosion resistance. For less demanding environments, grade 2 titanium bolts often provide the perfect balance of performance and cost-effectiveness.
3. Mechanical Properties
Consider the stress and load the bolts will be subjected to. While titanium grade 2 bolts offer impressive strength for many applications, high-stress scenarios might require the enhanced strength of grade 5 titanium. It's essential to review the specific mechanical properties of each grade and compare them to your project requirements.

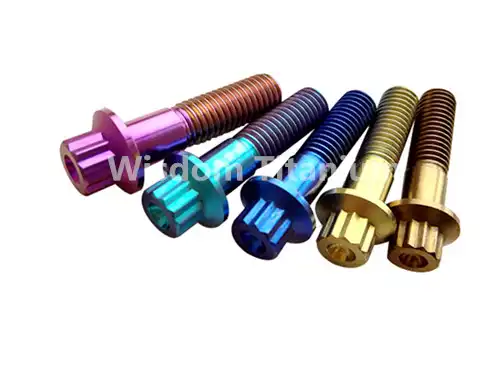

At Wisdom Titanium, we specialize in titanium grade 5 bolts, offering a wide range of sizes (M1.6-M48), thread types (UNC, UNF, Metric, or Custom), and head types (Hexagonal, Socket, or Custom). Our bolts are ASTM certified (ASTM B348, ASTM F67), ensuring top-tier quality and reliability. Whether you need standard or custom bolts, our team is ready to assist you in finding the perfect solution for your project.
Titanium Grade 2 Bolt And Grade 5 Bolt: Available At Wisdom Titanium
Choosing the right grade of titanium for your bolts is crucial for ensuring the success and longevity of your project. While there are several grades available, titanium grade 5 bolts often emerge as the go-to choice for many applications due to their excellent light weight and high strength performance. However, the best grade for your specific needs will depend on your unique project requirements, environmental conditions, and mechanical demands.
Remember, when in doubt, it's always best to consult with experts in the field. At Wisdom Titanium, our team of specialists is always ready to help you make the right choice. Whether you need assistance in selecting the appropriate grade, require custom solutions, or simply want to learn more about our grade 2 bolts and grade 5 bolts, don't hesitate to reach out to us at sales@wisdomtitanium.com. We're here to ensure your project succeeds with the perfect titanium fasteners.
References
- ASTM International. (2020). ASTM B348 - Standard Specification for Titanium and Titanium Alloy Bars and Billets.
- Boyer, R., Welsch, G., & Collings, E. W. (1994). Materials Properties Handbook: Titanium Alloys. ASM International.
- Schutz, R. W., & Thomas, D. E. (1987). Corrosion of titanium and titanium alloys. ASM Handbook, 13, 669-706.
- Lutjering, G., & Williams, J. C. (2007). Titanium (Engineering Materials and Processes). Springer.
- Donachie, M. J. (2000). Titanium: A Technical Guide. ASM International.
