Titanium socket cap screws are a crucial component in many high-performance applications, from aerospace to medical devices. Understanding the different grades of titanium used in these fasteners is essential for selecting the right screw for your specific needs. In this comprehensive guide, we'll explore the various grades of titanium socket cap screws, the standards that govern them, and how to identify them.

What Are the Common Grades of Titanium Used in Socket Cap Screws?

Titanium alloys are categorized into different grades based on their composition and properties. When it comes to titanium socket cap screws, several grades are commonly used:

Grade 2 Titanium

Grade 2 titanium, also known as commercially pure (CP) titanium, is the most widely used grade for general-purpose applications. It offers excellent corrosion resistance and moderate strength. Grade 2 titanium socket cap screws are often used in:

Marine environments
Chemical processing equipment
Desalination plants

While Grade 2 titanium is not as strong as some other grades, its malleability and resistance to corrosion make it a popular choice for many applications.

Grade 5 Titanium (Ti-6Al-4V)

Grade 5 titanium, also known as Ti-6Al-4V, is the workhorse of the titanium industry. This alpha-beta alloy contains 6% aluminum and 4% vanadium, offering an excellent balance of strength, toughness, and corrosion resistance. Grade 5 titanium socket cap screws are frequently used in:

Aerospace applications
Medical implants
Automotive components
High-performance sporting goods

The superior strength-to-weight ratio of Grade 5 titanium makes it an ideal choice for applications where weight reduction is critical.

Grade 23 Titanium (Ti-6Al-4V ELI)

Grade 23 titanium, also known as Ti-6Al-4V ELI (Extra Low Interstitial), is a higher purity version of Grade 5. It offers improved ductility and fracture toughness, making it particularly suitable for:

Biomedical implants
Cryogenic applications
Aerospace components requiring high fracture toughness

The enhanced purity of Grade 23 titanium results in better fatigue strength and crack resistance, making it an excellent choice for critical applications.

Grade 7 Titanium

Grade 7 titanium is similar to Grade 2 but with the addition of 0.2% palladium. This addition significantly enhances its corrosion resistance, particularly in reducing environments. Grade 7 titanium socket cap screws are often used in:

Chemical processing equipment
Offshore oil and gas applications
Environments with high chloride content

The superior corrosion resistance of Grade 7 titanium makes it ideal for applications where exposure to aggressive chemicals is a concern.

What Standards Govern the Grading of Titanium Socket Cap Screws?

Several international standards organizations have established guidelines for the grading and specification of titanium and its alloys. These standards ensure consistency in the production and performance of titanium socket cap screws:

ASTM International

The American Society for Testing and Materials (ASTM) provides several standards relevant to titanium fasteners:

ASTM F467: Standard Specification for Nonferrous Nuts for General Use
ASTM F468: Standard Specification for Nonferrous Bolts, Hex Cap Screws, Socket Head Cap Screws, and Studs for General Use
ASTM B348: Standard Specification for Titanium and Titanium Alloy Bars and Billets

These standards define the mechanical properties, chemical composition, and testing methods for titanium fasteners.

ISO Standards

The International Organization for Standardization (ISO) also provides relevant standards:

ISO 3506: Mechanical properties of corrosion-resistant stainless steel fasteners
ISO 9327: Specifications for titanium and titanium alloy bars

While these standards are not specific to titanium, they provide guidelines that are often applied to titanium fasteners.

AMS Specifications

The Aerospace Material Specifications (AMS) are particularly relevant for titanium socket cap screws used in aerospace applications:

AMS 4967: Titanium Alloy Bars, Wire, Forgings, and Rings 6Al-4V Annealed
AMS 4928: Titanium Alloy Bars, Wire, Forgings, and Rings 6Al-4V STA

These specifications ensure that titanium fasteners meet the rigorous requirements of the aerospace industry.

How to Identify the Grade of a Titanium Socket Cap Screw?

Identifying the grade of a titanium socket cap screw is crucial for ensuring its suitability for your application. Here are several methods to determine the grade:

Markings and Labeling

Many titanium socket cap screws are marked with their grade or alloy designation. Common markings include:

Gr2 or CP2 for Grade 2 titanium
Gr5 or Ti-6Al-4V for Grade 5 titanium
Gr23 or Ti-6Al-4V ELI for Grade 23 titanium
Gr7 for Grade 7 titanium

These markings are typically found on the head of the screw or on the packaging.

Color Coding

Some manufacturers use color coding to differentiate between titanium grades:

Yellow: Grade 2
Blue: Grade 5
Green: Grade 7
Purple: Grade 23

However, it's important to note that color coding is not standardized across all manufacturers, so it should not be relied upon as the sole method of identification.

Material Certification

For critical applications, it's recommended to request a material certification or mill test report from the supplier. This document provides detailed information about the chemical composition and mechanical properties of the titanium used in the screws.

Spectrographic Analysis

In cases where the grade cannot be determined through markings or documentation, a spectrographic analysis can be performed. This non-destructive test uses X-ray fluorescence or optical emission spectroscopy to determine the elemental composition of the titanium alloy.

Mechanical Testing

For the most critical applications, mechanical testing can be performed to verify the properties of the titanium socket cap screws. This may include tensile testing, hardness testing, and impact testing to ensure the screws meet the required specifications.

Consultation with Experts

When in doubt, it's always advisable to consult with titanium experts or the manufacturer. They can provide guidance on identifying the grade and selecting the most appropriate titanium socket cap screws for your specific application.

Understanding the grade of titanium used in socket cap screws is essential for ensuring optimal performance and longevity in your applications. By considering factors such as strength requirements, corrosion resistance, and environmental conditions, you can select the most appropriate grade for your needs.

China Titanium Socket Cap Screws

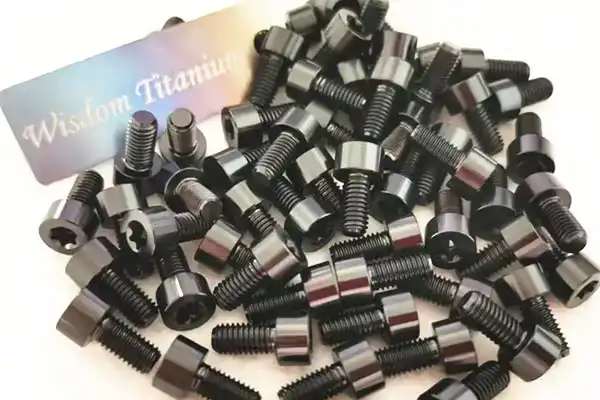

We are Wisdom Titanium, a company specializing in manufacturing high-quality titanium socket cap screws in various sizes, including M5, M6, M8, and M10. We also accept custom orders for unique applications such as custom bikes and motorcycle racing/tuning. Our minimum order quantity is 200 pieces. If you are interested in our products or have any inquiries, please feel free to contact us at sales@wisdomtitanium.com.
