M6 on a titanium bolt refers to a metric fastener specification where 'M' indicates it uses the metric measurement system, and '6' denotes the nominal outer diameter of the bolt thread is 6 millimeters. This standardized designation is part of the ISO metric screw thread system, which provides precise specifications for threaded fasteners. The M6 specification ensures compatibility and interchangeability across different manufacturers and applications globally. Understanding this designation is crucial for selecting the correct bolt size for specific applications, as using incorrectly sized fasteners can compromise joint integrity and safety. Titanium M6 bolts combine the convenience of standardized metric sizing with titanium's exceptional strength-to-weight ratio, corrosion resistance, and biocompatibility.
Understanding The 'M6' Designation In Metric Bolts
The Titanium M6 bolt designation represents a fundamental aspect of the metric fastener system, which has become the global standard for bolt specifications. The 'M' prefix distinguishes metric threads from other threading systems, particularly the imperial or unified thread standard. In metric fasteners, the number following 'M' always indicates the nominal major diameter of the external thread in millimeters. This straightforward naming convention makes it simple to identify bolt sizes without additional reference materials.
When comparing metric and imperial bolt systems, several key differences emerge. Imperial bolts typically use fractional inches for size designation, such as 1/4" or 5/16", and often include additional descriptors like UNC (Unified National Coarse) or UNF (Unified National Fine) to indicate the thread pitch. This can be somewhat cumbersome for users who are not familiar with the conversion between fractions and decimals. On the other hand, the metric system's simpler numerical designation represents a more streamlined approach to size identification, which is generally more intuitive for international use. For example, while an M6 bolt corresponds roughly to a 1/4" bolt (6.35mm), the metric system eliminates the need for fraction-to-decimal conversions, offering a straightforward method for sizing and standardization across various industries. Additionally, the metric system's use of millimeters for measurements provides a consistent unit of measurement, which can simplify calculations and reduce errors in manufacturing and assembly processes. This uniformity is particularly beneficial in environments where precision is critical, such as in aerospace or automotive engineering. Furthermore, the metric system's standardized approach to bolt manufacturing and specification can lead to more efficient inventory management and easier international trade, as components are more readily interchangeable across different countries and systems.
The metric system also standardizes thread pitch measurements in millimeters, unlike the imperial system which measures threads per inch. This standardization has contributed to the metric system's widespread adoption in manufacturing and engineering applications worldwide. The consistency and clarity of metric designations like M6 have made them particularly valuable in international trade and global manufacturing operations.
Details Of M6 Bolt Dimensions And Specifications
M6 titanium bolts adhere to precise dimensional specifications that ensure consistency across manufacturers. The nominal thread diameter of 6mm represents the major diameter of the external thread. Standard M6 bolts typically use a 1mm thread pitch, though fine-pitch variants with 0.75mm spacing exist for specialized applications. The thread angle maintains a constant 60 degrees, which optimizes load distribution and resistance to stripping.
Length options for M6 bolts typically range from 10mm to 100mm, with common increments of 5mm or 10mm. The head style affects overall dimensions, with hexagonal heads measuring 10mm across flats and socket heads featuring a 5mm internal hexagon. Thread length varies with overall bolt length, typically following standardized proportions defined by ISO specifications.
Different applications demand specific M6 bolt configurations. Standard 1mm pitch threads excel in general-purpose applications where rapid assembly is desired. Fine-pitch variants (0.75mm) provide enhanced tension control and resistance to vibration loosening, making them suitable for precision equipment and high-vibration environments. The choice between fully and partially threaded versions depends on joint design and loading requirements.
Comparison Between M6 Titanium Bolts And Other Sizes
M6 titanium bolts occupy a sweet spot in fastener applications, offering an optimal balance between strength and size for many common uses. Compared to M5 bolts (5mm diameter), M6 variants provide approximately 44% more thread engagement area, resulting in higher load-bearing capacity. M8 bolts, while stronger, may be oversized for many applications where M6 bolts suffice, leading to unnecessary weight and material costs.
The selection between different bolt sizes involves careful consideration of several factors. Load requirements represent the primary consideration, with M6 titanium bolts typically offering tensile strengths exceeding 950 MPa. The application's space constraints, weight sensitivity, and cost considerations also influence size selection. M6 bolts prove particularly popular in automotive, aerospace, and medical applications where their strength-to-weight ratio provides optimal performance.
Material properties of titanium enhance the performance characteristics of M6 bolts. Titanium's superior strength-to-weight ratio allows M6 bolts to handle loads comparable to larger steel fasteners while maintaining minimal weight. The material's excellent corrosion resistance makes these bolts ideal for marine environments and medical implants where material degradation must be minimized.

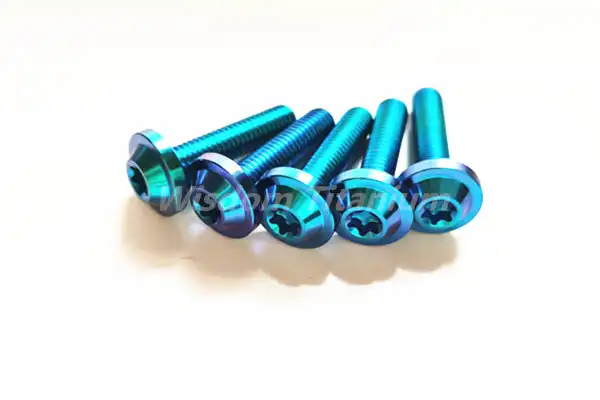

Titanium Bolt M6 For Sale
Wisdom Titanium manufactures high-quality M6 titanium bolts meeting stringent ISO 9001 certification requirements. These fasteners feature exceptional surface finish options, including polished or customized treatments to meet specific application needs. The minimum tensile strength exceeding 950 MPa ensures reliable performance in demanding applications. Superior corrosion resistance makes these bolts suitable for challenging environments where traditional fasteners might fail.
All M6 titanium bolts undergo rigorous quality control processes to ensure dimensional accuracy and material consistency. Standard quality assurance procedures include material certification, dimensional verification, and surface finish inspection. Each batch receives thorough documentation to maintain traceability and ensure compliance with relevant industry standards.
Potential customers seeking reliable titanium M6 bolt suppliers can contact Wisdom Titanium's sales team at sales@wisdomtitanium.com for detailed product information, technical specifications, and pricing details. The company's commitment to quality and customer service ensures products meet or exceed application requirements while providing excellent value.
References
1. International Organization for Standardization. (2023). ISO 261:1998 ISO general purpose metric screw threads — General plan.
2. American Society of Mechanical Engineers. (2024). ASME B1.13M-2020 Metric Screw Threads.
3. Deutsche Institut für Normung. (2023). DIN 931 - Hexagon head bolts with shaft.
4. Japanese Industrial Standards Committee. (2023). JIS B 1180:2014 Hexagon head bolts and hexagon head screws.
5. British Standards Institution. (2024). BS 3643-1:2007 ISO metric screw threads.
