What does a rotor bolt to?

When it comes to vehicle maintenance and performance, understanding the intricacies of brake systems is crucial. One common question that arises is: "What does a rotor bolt to?" This article will delve into the world of rotor mounting, exploring the various attachment methods and the importance of proper installation. We'll also discuss the rising popularity of titanium rotor bolts and their benefits in high-performance applications.

Rotor Mounting Points

Brake rotors, also known as brake discs, are essential components of a vehicle's braking system. They work in conjunction with brake pads to slow down or stop a vehicle. But where exactly do these rotors attach?

Typically, brake rotors bolt directly to the wheel hub or, in some cases, to the wheel bearing assembly. The specific mounting method can vary depending on the vehicle make and model. In most cars and trucks, the rotor is secured to the hub using lug nuts or bolts, which also hold the wheel in place.

However, in high-performance vehicles and motorcycles, separate rotor bolts are often used. Titanium rotor bolts pass through holes in the rotor and thread into the wheel hub or carrier. This design allows for easier rotor replacement and can provide better heat dissipation.

Common Rotor Attachment Methods Explained

Let's explore some of the most common methods used to attach brake rotors:

1. Hub-Centric Mounting

In this method, the rotor is centered on the hub using a raised center section that fits precisely into the rotor's center hole. This ensures proper alignment and reduces the likelihood of vibration. The rotor is then secured using lug nuts or bolts that pass through both the wheel and the rotor.

2. Floating Rotor Design

Often found in high-performance applications, floating rotors are not rigidly mounted to the hub. Instead, they're attached to a separate carrier using special hardware that allows slight lateral movement. This design helps compensate for heat expansion and can improve brake performance.

3. Direct Bolt-On Method

Some vehicles use a direct bolt-on method where the rotor is secured to the hub using dedicated rotor bolts. These bolts are separate from the wheel lug nuts and allow for independent rotor replacement. This is where titanium rotor bolts often come into play, offering significant weight savings and increased durability.

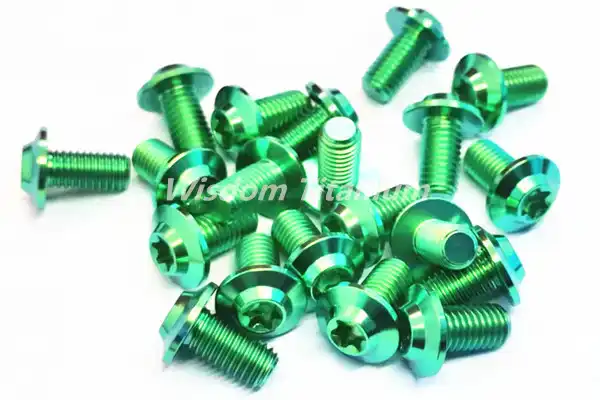

Speaking of titanium rotor bolts, their use has been gaining traction in recent years. These specialized fasteners offer a unique combination of strength, light weight, and corrosion resistance. Made from Grade 5 titanium alloy, they boast impressive specifications:

• Tensile Strength: Above 950 MPa
• Yield Strength: 880 MPa
• Elongation: 16%
• Weight: 45% lighter than steel
• Temperature Range: -200°C to 400°C

These properties make titanium rotor bolts an excellent choice for high-performance vehicles, racing applications, and even motorcycles where every gram counts.

Ensuring Proper Fit for Safe Rotor Installation

Regardless of the attachment method, ensuring proper fit and installation is crucial for safe and effective braking. Here are some key points to consider:

Proper Torque Specifications

Always follow the manufacturer's torque specifications when tightening rotor bolts or lug nuts. Over-tightening can lead to warped rotors or damaged threads, while under-tightening can result in loose rotors and unsafe driving conditions.

Clean Mounting Surfaces

Before installation, ensure that all mounting surfaces are clean and free from rust, debris, or old brake pad material. Any foreign matter can prevent the rotor from sitting flush, leading to vibration and uneven wear.

Check for Runout

After installation, it's important to check for rotor runout - the amount of wobble or deviation from true rotation. Excessive runout can cause brake pulsation and uneven pad wear. A dial indicator can be used to measure runout, and in some cases, the rotor may need to be resurfaced or replaced.

Consider Upgrading to Titanium Rotor Bolts

For those looking to enhance their vehicle's performance, upgrading to titanium rotor bolts can offer several benefits. Not only do they reduce unsprung weight, but they also provide superior strength and corrosion resistance. This can be particularly advantageous in high-stress applications or environments where traditional steel bolts might be prone to corrosion.

When selecting titanium rotor bolts, it's crucial to choose a reputable supplier. Companies like Wisdom Titanium, an ISO 9001-certified manufacturer, offer high-quality titanium fasteners designed to meet the rigorous demands of various industries, including automotive and motorcycle applications.

FAQ

Q1: How often should rotor bolts be replaced?

A: Rotor bolts typically don't have a set replacement interval. However, they should be inspected during brake service and replaced if there are signs of wear, corrosion, or damage. In high-performance applications, some enthusiasts replace them preventatively every time the rotors are changed.

Q2: Can I reuse rotor bolts after removing them?

A: It's generally not recommended to reuse rotor bolts, especially in critical applications. The torquing process can stretch the bolts, potentially weakening them. For safety and optimal performance, it's best to use new bolts when reinstalling or replacing rotors.

Q3: Are titanium rotor bolts worth the investment?

A: For most daily drivers, standard steel bolts are sufficient. However, for high-performance vehicles, race cars, or motorcycles where weight savings and durability are crucial, titanium rotor bolts can be a worthwhile upgrade. They offer significant weight reduction and superior corrosion resistance, which can contribute to overall vehicle performance and longevity.

Understanding how rotors are mounted and the importance of proper installation is crucial for maintaining a safe and effective braking system. Whether you're working on a daily driver or a high-performance vehicle, paying attention to these details can make a significant difference in brake performance and longevity.

For those seeking to optimize their vehicle's performance, consider upgrading to high-strength titanium rotor bolts. With their superior strength-to-weight ratio and corrosion resistance, they offer a notable improvement over standard steel bolts. If you're interested in exploring titanium rotor bolts or other high-performance fasteners, don't hesitate to reach out to experts in the field. Companies like Wisdom Titanium specialize in custom titanium solutions and can provide guidance on selecting the right components for your specific needs. To learn more or request a quote, simply send an inquiry to sales@wisdomtitanium.com. Elevate your vehicle's performance with the power of titanium!
