Titanium 1/8 NPT bolts are essential components in various industries, known for their exceptional strength-to-weight ratio and corrosion resistance. However, to enhance their performance and longevity, various surface treatment technologies are employed. In this article, we'll explore three key categories of surface treatment for titanium 1/8 NPT bolts: corrosion and wear resistance enhancement, lubrication and friction reduction, and surface modification and strengthening.
Corrosion And Wear Resistance Enhancement Technology
While titanium is naturally corrosion-resistant, certain applications may require additional protection. For titanium 1/8 NPT bolts, several surface treatment technologies can further enhance their corrosion and wear resistance:
1. Anodizing: This electrochemical process creates a protective oxide layer on the titanium surface. Anodizing not only improves corrosion resistance but also enhances the bolt's aesthetic appeal by allowing for various color options. The anodized layer also increases the surface hardness, improving wear resistance.
2. Plasma electrolytic oxidation (PEO): Also known as micro-arc oxidation, PEO is an advanced surface treatment that creates a ceramic-like coating on the titanium 1/8 NPT bolt. This coating significantly improves corrosion resistance, wear resistance, and hardness. PEO-treated bolts can withstand harsh chemical environments and high temperatures.
3. Thermal oxidation: This process involves heating the titanium 1/8 NPT bolt in an oxygen-rich environment, forming a dense oxide layer. Thermal oxidation enhances corrosion resistance and creates a hard, wear-resistant surface. It's particularly effective for bolts used in high-temperature applications.
4. Chemical conversion coatings: These treatments involve immersing the titanium 1/8 NPT bolt in chemical solutions to form a protective layer. For example, phosphate coatings can improve corrosion resistance and provide a good base for subsequent treatments or coatings.
Lubrication And Friction Reduction Technology
Reducing friction and enhancing lubrication are essential for the optimal performance of titanium 1/8 NPT bolts, particularly in applications that require frequent assembly and disassembly. Effective lubrication not only prolongs the lifespan of the bolts but also ensures reliable performance under varying conditions.
Several innovative surface treatment technologies have been developed to address these lubrication and friction reduction needs:
1. PTFE Coating: Applying a thin layer of polytetrafluoroethylene (PTFE) to titanium 1/8 NPT bolts significantly minimizes friction and provides outstanding non-stick properties. This coating is especially beneficial in situations where the bolts need to be frequently loosened and tightened. The smooth surface created by the PTFE coating allows for easier adjustments and helps maintain torque values over time.
2. Dry Film Lubricants: Coatings such as molybdenum disulfide (MoS2) or tungsten disulfide (WS2) can be effectively applied to titanium 1/8 NPT bolts to further reduce friction and prevent galling. These lubricants are particularly advantageous in high-temperature or vacuum environments, where traditional wet lubricants may fail. Their solid-state nature provides reliable lubrication without the drawbacks of liquid alternatives.
3. Nitriding: Primarily recognized for its surface hardening capabilities, nitriding can also enhance the lubricity of titanium 1/8 NPT bolts. This process involves creating a thin, nitrogen-rich layer on the surface of the bolts, which helps to reduce friction and improve wear resistance. As a result, nitrided bolts exhibit enhanced performance in demanding applications.
4. Electroless Nickel Plating with PTFE: This advanced composite coating combines the hardness and corrosion resistance of electroless nickel with the superior lubricity of PTFE. By integrating these two materials, the coating not only offers excellent friction reduction properties but also significantly enhances the overall durability of the bolts.
Through the utilization of these sophisticated methods, producers can guarantee that titanium 1/8 NPT bolts perform at the highest level under the most demanding conditions.
Surface Modification And Strengthening Technology
To further enhance the performance of titanium 1/8 NPT bolts, various surface modification and strengthening technologies can be employed:
1. Shot peening: This process involves bombarding the bolt surface with small, spherical media at high velocities. Shot peening induces compressive residual stresses in the surface layer, improving fatigue strength and resistance to stress corrosion cracking. For titanium 1/8 NPT bolts, this can significantly extend their service life in high-stress applications.
2. Laser surface hardening: By rapidly heating and cooling the surface of the titanium 1/8 NPT bolt using a laser, this process creates a thin, hardened layer. Laser surface hardening can improve wear resistance and fatigue strength without affecting the bolt's core properties.
3. Ion implantation: This advanced technique involves bombarding the titanium 1/8 NPT bolt surface with high-energy ions to modify its composition and structure. Ion implantation can enhance hardness, wear resistance, and corrosion resistance without changing the bolt's dimensions.
4. Plasma nitriding: Similar to traditional nitriding, plasma nitriding creates a nitrogen-rich layer on the bolt surface. However, the plasma process allows for better control of the treatment parameters, resulting in improved surface properties and potentially shorter processing times.

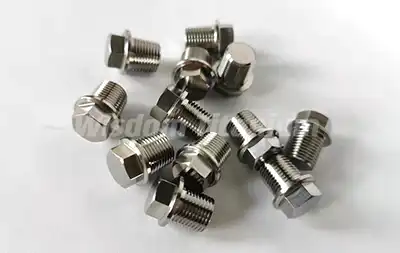

High-Quality Titanium 1/8 NPT Bolts
Titanium 1/8 NPT bolts can benefit from a wide range of surface treatment technologies to enhance their performance in various applications. Whether the goal is to improve corrosion resistance, reduce friction, or strengthen the surface, there are numerous options available. When selecting a surface treatment for titanium 1/8 NPT bolts, it's essential to consider the specific requirements of the application, such as operating environment, load conditions, and desired service life.
For high-quality titanium 1/8 NPT bolts with customized surface treatments, consider contacting Wisdom Titanium at sales@wisdomtitanium.com. As an ISO 9001-certified manufacturer with extensive experience since 2013, Wisdom Titanium can provide expert guidance on selecting the most appropriate surface treatment technology for your specific needs.
References
1.Liu, X., et al. (2015). Corrosion Behavior of Titanium and Its Alloys in Different Surface States. Materials Science Forum, 815, 672-677.
2.Rokosz, K., et al. (2016). Plasma Electrolytic Oxidation as a Tool for Surface Modification of Titanium Alloys. Materials Science Forum, 862, 86-95.
3.Kumar, S., et al. (2010). Thermal oxidation of Ti6Al4V alloy: Microstructural and electrochemical characterization. Materials Chemistry and Physics, 119(1-2), 337-346.
4.Guo, L., et al. (2017). Phosphate conversion coating on titanium surface for improving biocompatibility. Surface and Coatings Technology, 315, 439-445.
5.Bhushan, B., et al. (2020). Handbook of Tribology: Materials, Coatings, and Surface Treatments. McGraw-Hill Education.
