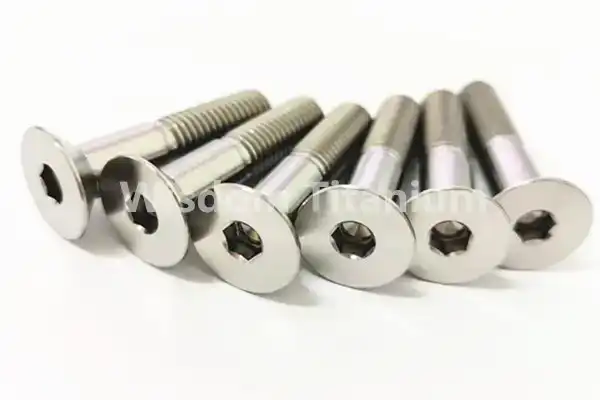

What are the different effects of thread rolling and cutting processes on the thread quality and performance of titanium countersunk head bolts?

When it comes to manufacturing titanium countersunk head bolts, the thread formation process plays a crucial role in determining the final quality and performance of the fasteners. Two primary methods are used in the industry: thread rolling and thread cutting. Each technique has its own set of advantages and disadvantages, particularly when working with titanium, a material known for its unique properties. In this comprehensive guide, we'll explore the differences between these processes and their effects on titanium bolt performance.

What is the difference between thread rolling and thread cutting?

Thread rolling and thread cutting are two distinct methods of creating threads on bolts, each with its own characteristics and impacts on the final product.

Thread rolling is a cold-forming process where the bolt blank is pressed between hardened steel dies with the desired thread form. As the blank rotates between these dies, the thread is formed by displacing the material, rather than removing it. This process results in a continuous grain flow that follows the contour of the thread, enhancing the bolt's strength.

Key features of thread rolling:

• No material is removed during the process
• Threads are formed by plastic deformation of the metal
• Results in work hardening of the surface
• Typically faster and more economical for large-scale production

On the other hand, thread cutting is a subtractive manufacturing process where threads are created by removing material from the bolt blank using a cutting tool. This method is often used for custom or low-volume production runs and can accommodate a wider range of thread profiles.

Key features of thread cutting:

• Material is removed to form the threads
• Can create both internal and external threads
• Allows for more precise control over thread dimensions
• Often used for prototyping or small batch production

When it comes to titanium countersunk head bolts, the choice between these two processes can significantly impact the final product's characteristics, including strength, durability, and overall performance.

How does thread rolling affect the strength and durability of titanium bolts?

Thread rolling has several notable effects on the strength and durability of titanium bolts, particularly those with countersunk heads:

1. Increased tensile strength: The cold-working process of thread rolling causes work hardening of the titanium surface. This results in a higher tensile strength compared to cut threads, as the grain structure is compressed and elongated rather than severed.

2. Improved fatigue resistance: The continuous grain flow achieved through rolling enhances the bolt's ability to withstand cyclic loading. This is particularly beneficial for titanium countersunk head bolts used in aerospace or high-stress applications where fatigue failure is a concern.

3. Enhanced surface finish: Rolled threads typically have a smoother surface finish compared to cut threads. This can lead to better load distribution and reduced stress concentrations, further improving the bolt's performance under load.

4. Increased thread strength: The cold-forming process compresses the material at the thread roots, creating a denser structure that is more resistant to cracking and failure.

5. Improved corrosion resistance: The smoother surface of rolled threads provides fewer sites for corrosion initiation, which is particularly advantageous for titanium bolts used in corrosive environments.

However, it's important to note that thread rolling titanium can be challenging due to the material's high strength and low ductility. Specialized equipment and expertise are often required to achieve optimal results without damaging the bolt or compromising its properties.

What are the advantages and disadvantages of thread cutting for titanium bolts?

While thread rolling is often preferred for high-volume production of titanium countersunk head bolts, thread cutting offers its own set of advantages and disadvantages:

Advantages of thread cutting for titanium bolts:

1. Flexibility in thread profiles: Thread cutting allows for the creation of a wide range of thread profiles, including non-standard or custom designs. This is particularly useful for specialized applications or prototyping.

2. Precision control: The cutting process enables tighter control over thread dimensions and tolerances, which can be crucial for certain high-precision applications.

3. Suitability for small batches: Thread cutting is more economical for small production runs or one-off custom bolts, as it doesn't require the specialized tooling associated with thread rolling.

4. Ability to create internal threads: While not typically used for titanium countersunk head bolts, thread cutting can be used to create internal threads in titanium components, offering versatility in fastener design.

5. Less residual stress: The cutting process doesn't induce the same level of residual stress in the material as rolling, which can be advantageous in certain applications where stress-free components are required.

Disadvantages of thread cutting for titanium bolts:

1. Reduced strength: Cut threads generally have lower tensile and fatigue strength compared to rolled threads due to the interruption of the grain structure.

2. Potential for microcracking: The cutting process can sometimes introduce microscopic cracks or notches in the thread roots, which may serve as stress concentration points and potential failure sites.

3. Material waste: Unlike thread rolling, the cutting process removes material, resulting in waste and potentially higher material costs.

4. Slower production rate: Thread cutting is typically slower than rolling, especially for large-scale production, which can impact manufacturing efficiency and costs.

5. Tool wear: Titanium's properties make it challenging to machine, often leading to rapid tool wear and the need for frequent tool replacement, increasing production costs.

For high-volume production where maximum strength and fatigue resistance are paramount, thread rolling is often the preferred choice. However, for small batches, prototypes, or applications requiring unique thread profiles, thread cutting remains a valuable option.

At Baoji Wisdom Titanium, we understand the nuances of both processes and their effects on titanium bolt performance. Our team of experts can guide you in selecting the most appropriate manufacturing method for your specific needs. Whether you require rolled or cut threads, we ensure that our titanium countersunk head bolts meet the highest standards of quality and performance.

Ready to elevate your project with superior titanium fasteners? Contact us now at ​​​​​ sales@wisdomtitanium.com and let's discuss how our expertise in titanium bolt manufacturing can benefit your application.
