What are the advantages of titanium 12 point bolts?

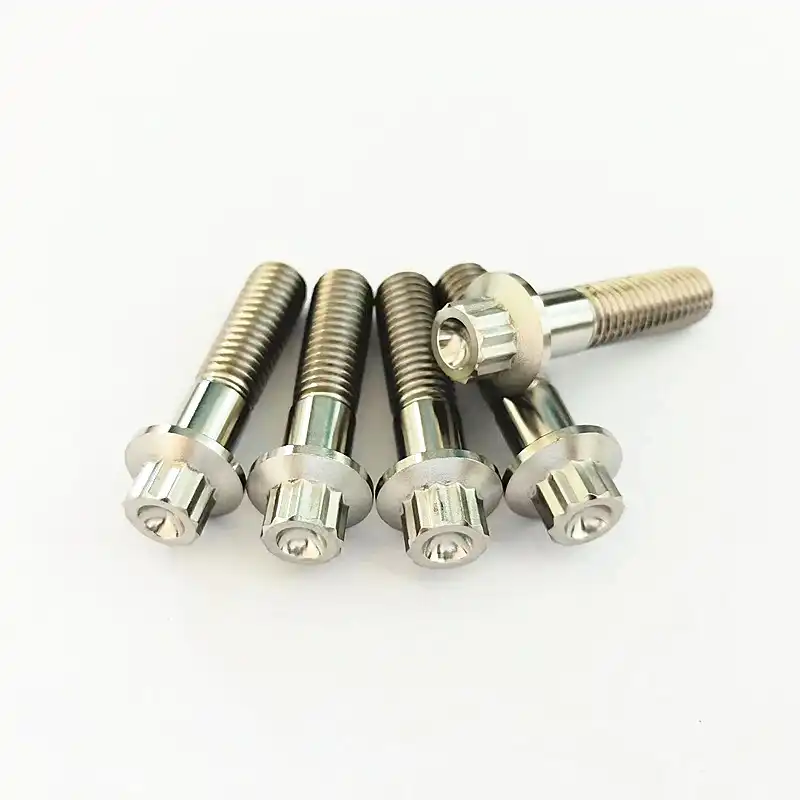

Titanium 12 point bolts deliver unmatched performance through their unique head design, featuring twelve engagement points instead of the standard six found on conventional hex fasteners. Crafted from Grade 5 Ti-6Al-4V titanium alloy, these bolts provide superior torque transfer, enhanced grip security, and exceptional resistance to slippage during installation. The 12-point configuration allows technicians to position tools at finer increments, particularly valuable when working within confined spaces or tight clearances common in automotive brake assemblies and motorcycle engine components. Beyond their geometric advantages, these fasteners combine titanium's natural corrosion immunity with strength exceeding 950 MPa, making them indispensable across high-performance applications from racing modifications to aerospace assemblies where reliability cannot be compromised.

Understanding Titanium 12 Point Bolts: Properties and Applications

Material Composition and Manufacturing Standards

The purity of the material is what makes a clip great. Our titanium 12 point bolts are made from Grade 5 titanium alloy (Ti-6Al-4V), which is the standard in the industry for tough structural uses. About 6% of this alloy is aluminum and 4% is vanadium. These are elements that greatly improve the mechanical properties of the base titanium while keeping its excellent rust resistance. The process of making something starts with approved titanium rod stock that goes through strict checking procedures before it is machined.

Each bolt has a minimum tensile strength of over 950 MPa and a yield strength of 880 MPa, which are stronger than most stainless steel options and come at a weight of only about 45% of steel. The material's 36 HRC hardness grade makes it very resistant to wear without being brittle, and its 18% elongation at break makes it flexible enough to handle shock loads without breaking completely. These mechanical qualities stay the same at an amazing range of temperatures, from -200°C to 400°C. This makes them useful for a wide range of uses, from cryogenic systems to high-temperature exhaust assemblies for cars.

Geometric Design Advantages

The unique 12-point head geometry changes the way force moves from the tool to the fastener in a basic way. The 12-point setup lets the tool be moved every 30 degrees, while the six-point hex designs need to be rotated 60 degrees between engagement points. This small difference becomes very important when you need to get to screws that are surrounded by frame members, body panels, or other parts that make it hard for the wrench to move fully.

Because there are more contact points, the torque is spread out more evenly across the head shape. This lowers stress clusters that can cause fasteners to round off or tools to slip. When exact torque requirements must be met without damaging the fastener or other parts nearby, this design feature comes in very handy. For example, when installing a wheel hub or putting a brake caliper, this feature is very useful. Different assembly needs are met by thread sizes range from M5 to M14, which can be used for everything from attaching small bicycle parts to mounting big motorbike axles.

Industry Applications Across Transportation Sectors

Automotive performance experts always recommend these screws for jobs that need to be light, like three-piece wheel assemblies, brake system updates, and frame reinforcements. They are especially good for racing applications where milliseconds matter and component failure could have disastrous results because they have a low spinning mass and are very strong. Manufacturers of new energy vehicles are becoming more aware of how useful titanium screws are for balancing out the weight of the battery system while keeping the structure of the vehicle intact.

12-point titanium screws are used by motorcycle makers and repair shops for fixing brake discs, keeping sprockets in place, and putting together suspension linkage systems. These are areas that are exposed to high vibration loads and the environment. The material's resistance to fatigue means that it will keep working well for a long time between repairs, even in harsh conditions like those found in professional racing or active street riding. When custom bike makers make high-end frames and component assemblies, they use these fasteners because they don't rust and save weight, which improves the ride experience and helps the product stand out in competitive markets.

Key Advantages of Titanium 12 Point Bolts Over Other Materials

Superior Strength-to-Weight Performance

The strength-to-weight ratio is a way that engineers measure how efficient a material is, and titanium alloys always do better than other options on this metric. Grade 5 titanium has about twice the specific strength of high-grade stainless steel. This means that builders can get the same level of structural performance while reducing the weight of parts by a large amount. This benefit spreads to all parts of the vehicle, lowering unsprung weight in the suspension, lowering spinning inertia in the wheel units, and lowering the mass of the whole vehicle, which makes it faster, more fuel-efficient, and easier to stop.

Racing teams value this trait a lot when rules say they have to meet certain weight standards. Engineers can carefully transfer saved mass with titanium 12 point bolts, lowering the center of gravity or adding parts that improve performance. When conventional fasteners are replaced throughout an entire car assembly, the weight can be cut by more than several kilograms. This is a big deal in racing, where fractions of a second can decide the winner of a race.

Exceptional Corrosion Immunity

When titanium is exposed to oxygen in the air, an inactive oxide layer forms on its own. This layer acts as a barrier and repairs itself if it gets destroyed. This natural resistance to corrosion works in a wide range of situations, such as marine settings, exposure to road salt, touch with industrial chemicals, and high humidity. In chloride-rich settings, stainless steel screws may crack or crevice corrosion occur. Titanium, on the other hand, keeps its structure intact without protective coatings or regular upkeep.

When the noble material comes in touch with carbon fiber composites, metal alloys, and most other structural materials used in modern vehicles, it stops galvanic corrosion. This flexibility gets rid of the worries about different metals touching each other that come up with mixed-material systems that use steel fasteners. Surface finish choices like polished, anodized, and PVD coating improve the way something looks and also make it more useful by lowering friction coefficients and making it easier to see what needs to be fixed during regular upkeep.

Extended Service Life and Reduced Lifecycle Costs

Titanium fasteners are more expensive to buy at first than steel options, but a full lifecycle cost study shows that they are much more cost-effective in the long run. Corrosion resistance, fatigue resistance, and constant mechanical qualities across a wide range of temperatures make service times much longer and replacement frequency much lower. Upgrading to titanium standards can make parts that might need to be inspected and replaced every year with steel screws last for many years.

When maintenance companies use the same titanium screws for all of their different jobs, they can simplify their supplies and save time. Because the material is chemically stable, there are no worries about hydrogen embrittlement, a type of failure that can happen to high-strength steel bolts in certain environments. Titanium is biocompatible and chemically neutral, so these screws can be used in places where contamination worries rule out ferrous materials, like on food processing equipment, medical device parts, and chemical processing systems.

Enhanced Safety Through Predictable Performance

One of the biggest problems with upkeep in both transportation and industry is that fasteners often break. Titanium's good wear properties make it work reliably under repeated loading conditions that would cause cracks to start and spread in other materials. Because the metal is naturally flexible, if it is overloaded, the failure modes will be predicted rather than sudden and terrible.

The 12-point head design adds to the safety by reducing the chance of fitting mistakes. The more contact options make it less likely that the tool will slip, which could damage the heads of the fasteners, cause joints to be torqued incorrectly, or hurt the expert. When you calibrate the torque you apply, it becomes more uniform and predictable. This makes sure that key assemblies reach the required clamping forces that keep the joint intact during the repair interval. This dependability is very important in places like brake system assemblies, suspension mounting points, and structural links where a broken fastener could make it harder to control the car or keep people safe.

Procurement Considerations for Titanium 12 Point Bolts

Supplier Qualification and Certification Requirements

Finding manufacturers with the right quality control systems and industry certifications is the first step to successful buying of titanium 12 point bolts. ISO 9001 certification is a basic way to make sure that sellers follow written procedures for tracking materials, checking measurements, and making sure quality standards are met. Applications in aircraft, automobile, or other regulated fields might need extra approvals that show they meet standards specific to those fields.

Each shipment should come with material approval paperwork that includes test results that prove the chemical makeup, mechanical properties, and, if necessary, heat treatment records. This tracking is very important if parts need to be approved for use in safety-critical applications or if a customer makes a guarantee claim about how well a product worked. Well-known companies keep in touch with authorized titanium smelters and can give mill test records that show where the materials came from and how they were processed.

Understanding Price Factors and Value Optimization

The price of titanium fasteners depends on many things, such as the cost of the raw materials, how hard they are to make, how many are ordered, and how they need to be customized. Grade 5 titanium alloy is the least expensive type of titanium that can be used for structure fasteners, and it also has great mechanical qualities. When you buy in bulk, the cost per unit goes down by a lot. This means that getting in touch with suppliers early on is helpful when planning production plans or repair inventories.

The price depends on the thread size you choose. Common sizes (M8, M10, M12) are usually cheaper than custom sizes that need special tools or small production runs. The standards for surface finish also have an effect on cost. For example, polished finishes need more steps of processing than machined surfaces, and PVD finishing adds functionality at an extra cost. OEM partnerships and volume buy deals make it possible to cut costs while also keeping the supply chain stable for ongoing production needs.

Customization Capabilities and Technical Support

Standard specs for fasteners cover a lot of uses, but special assembly needs might call for custom solutions. Manufacturers of titanium fasteners with a lot of experience can help engineers figure out the best bolt length, thread size, head style, and drive setup for each application. This way of working together makes sure that new parts fit in perfectly with old ones, while also getting the most out of performance benefits and cutting costs.

Getting technical help during the design phase can help find ways to standardize fastener types for use in a variety of situations. This makes the inventory simpler and lowers the cost of buying them. With their own CNC machining facilities, manufacturers can make specific parts like step-shank bolts, reduced-head designs, or screws with built-in locking features. This adaptability comes in handy when making new products or improving old ones by adding titanium parts in key places throughout the assembly.

Conclusion

Titanium 12 point bolts are a smart engineering answer where choosing the right parts based on performance, longevity, and weight is important. When you combine the Grade 5 titanium alloy's excellent mechanical qualities, resistance to corrosion, and fatigue resistance with the 12-point head's superior tool engagement, you get screws that work better in a wide range of difficult situations than standard options. Even though it costs more up front than steel or aluminum options, a full lifecycle study shows that it is well worth the money because it means longer service intervals, less upkeep, and more reliable systems. By specifying these advanced fasteners, procurement professionals who work with automakers, racing teams, motorcycle builders, and precision equipment assemblers can gain a competitive edge. Their unique properties deliver measurable performance improvements and long-term cost savings that strengthen product differentiation and customer satisfaction.

Partner With Wisdom Titanium for Your Titanium 12 Point Bolt Requirements

Wisdom Titanium provides carefully designed titanium 12 point bolts that are made to strict standards in Baoji Titanium Valley, which is China's most important titanium production hub. Our ISO 9001-certified facility keeps a large stock of popular thread sizes from M5 to M14. The surfaces can be cleaned, anodized, or coated with PVD to meet a variety of application needs. As a seller of titanium 12 point bolts with a lot of experience, we offer full material traceability documents, customized CNC machining for unique uses, and quick expert help throughout the whole purchase process. Racing teams, experts in making changes to cars, companies that make motorcycles, and people who build precision tools depend on our steady quality and on-time delivery. Email our engineering team at sales@wisdomtitanium.com to talk about the fasteners you need, get more information, or get a quote for a large order for your next high-performance project. Competitive pricing and reliable lead times are made possible by stable inventories of raw materials and well-honed production methods. These factors support your production plans and inventory management goals.

FAQs

How do titanium 12 point bolts compare with stainless steel in marine environments?

Titanium offers superior saltwater corrosion resistance, avoiding crevice and stress corrosion issues common in stainless steel. It also reduces galvanic corrosion with aluminum. Higher upfront cost, but longer lifespan and lower maintenance.

Which titanium grades work best for automotive brake system applications?

Grade 5 (Ti-6Al-4V) is preferred: high strength (≥950 MPa), wide temperature range (-200°C to 400°C), and good cost-performance. Grade 23 offers minor improvements but is significantly more expensive.

Can titanium multi-point fasteners be reused after disassembly?

Yes, if properly installed/removed with anti-seize. Inspect threads and heads before reuse. For critical safety parts (e.g., brakes), replacement is recommended as a precaution.

References

1. Boyer, R., Welsch, G., & Collings, E.W. (1994). Materials Properties Handbook: Titanium Alloys. ASM International, Materials Park, Ohio.
2. Donachie, M.J. (2000). Titanium: A Technical Guide, 2nd Edition. ASM International, Materials Park, Ohio.
3. Bickford, J.H. (2008). Introduction to the Design and Behavior of Bolted Joints: Non-Gasketed Joints, 4th Edition. CRC Press, Boca Raton, Florida.
4. Schutz, R.W. & Watkins, H.B. (1998). "Recent developments in titanium alloy application in the energy industry." Materials Science and Engineering A, Volume 243, Issues 1-2, Pages 305-315.
5. Peters, M., Kumpfert, J., Ward, C.H., & Leyens, C. (2003). "Titanium alloys for aerospace applications." Advanced Engineering Materials, Volume 5, Issue 6, Pages 419-427.
6. Campbell, F.C. (2008). Elements of Metallurgy and Engineering Alloys. ASM International, Materials Park, Ohio.
