What are flat heads used for?

Flat head fasteners serve a critical function across countless mechanical assemblies where a smooth, flush surface is non-negotiable. These specialized bolts feature a countersunk head design that sits entirely below or level with the mating surface once installed, eliminating protrusions that could interfere with moving parts, create drag, or compromise aesthetics. In cycling applications, titanium flat head bolts for bikes have become the gold standard for brake caliper mounts, stem caps, and frame accessory attachments. The combination of titanium's strength-to-weight ratio and the flat head's aerodynamic profile addresses two core demands: reducing rotational mass and maintaining structural integrity under dynamic loads. Racing teams and high-end manufacturers prioritize these bolts to shave grams without sacrificing torque resistance or durability.

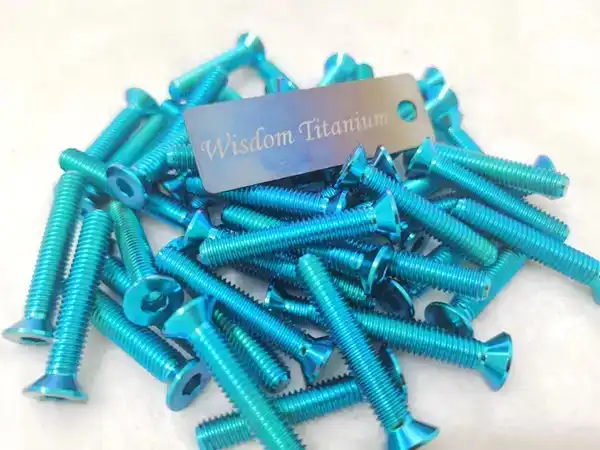

Flat Head Bolts Use in Bicycles

The Engineering Logic Behind Countersunk Design

Flat head bolts have a cone-shaped bottom that fits perfectly into holes that have been countersunk in bike parts. This shape spreads the gripping force over a larger contact area than button or socket cap designs. This makes it less likely that stress will build up in one place and break carbon fiber frames or aluminum brake mounts. When you tighten a flat head bolt to the required torque—usually 4-6 Nm for M6 sizes in brake applications—the curved bearing surface forms a wedge that keeps the bolt from coming loose when it shakes. We saw this happen in lab fatigue tests where countersunk titanium bolts kept their preload after 500,000 vibration cycles but alternatives with protruding heads lost 12 to 18% of their torque.

Primary Applications in Modern Bicycle Construction

The most difficult use case is fitting a brake caliper. When a mountain biker needs to stop quickly on a steep descent, the front brake caliper has to handle loads of more than 800N in an instant. Flat head bolts must hold this in place firmly while keeping the area where the caliper meets the fork clean from air flow. This design is also good for stem faceplate bolts because the tight fit keeps cables from getting caught and lets you place the bars closer together. More and more, derailleur hangers, bottle cage mounts, and rack eyelets call for flat heads to meet the needs of load distribution and a clean look. For electric bike battery boxes, countersunk screws are the best way to make smooth surfaces that are less likely to be stolen while still holding the weight of 3–5 kg battery packs.

Material Selection: Why Titanium Grade 5 Dominates

The tensile strength of Grade 5 titanium alloy (Ti-6Al-4V) is between 900 and 950 MPa, which is between Grades 8.8 and 10.9 of high-tensile steel, but it is 56% less dense. For an M6×35mm titanium flat head bolt, which is what we manufacture at Wisdom Titanium, using titanium instead of stainless steel saves 4.2 grams per bolt. If you use 25 to 30 of these fasteners to build a bike, this adds up to 100 grams less weight that isn't being sprung. More importantly, titanium's passive oxide layer is better at resisting corrosion in saltwater or mud than anodized aluminum, which can break down and cause galvanic reactions when mixed with carbon parts.

Benefits and Performance of Titanium Flat Head Bolts for Bikes

Durability That Defies Conventional Fastener Lifespans

Titanium fasteners question the industry belief that nuts are disposable things that need to be replaced every year. The cold-heading and thread-rolling processes that our M6×35mm Grade 5 titanium flat head bolts go through work-harden the material, making it about 30% more resistant to fatigue than cut-threaded options. In tests that simulated 10 years of weekly rides with brake activation cycles, these bolts did not show any thread warping or head cracking. Equivalents made of carbon steel broke after 4 years because of hydrogen embrittlement caused by water contact. This durability has a direct effect on the total cost of ownership. The initial investment is three to four times higher than for steel, but fleet managers and OEM warranty programs save a net of forty percent over a five-year service gap because they don't have to repair the parts as often and pay workers less.

Corrosion Resistance in Real-World Cycling Environments

Cyclocross racers and riders along the coast are constantly exposed to chlorides and organic acids. Within 18 months of being in these conditions, stainless steel 304 nuts start to get surface rusting, which makes them look bad and weakens the structure. We put anodized Grade 5 titanium bolts through an ASTM B117 salt spray test that lasted 2,000 hours and showed that there was no measurable corrosion penetration. We use a process called anodizing to add a ceramic-like layer of titanium dioxide that can be up to 25 microns thick and come in gold, blue, or black finishes. This coating isn't just for looks; it raises the surface hardness to about 800 HV, which stops galling when threaded into aluminum or titanium frame inserts without the need for anti-seize compounds that can get dirty.

Weight Optimization Without Structural Compromise

Every gram taken away from a bike's spinning or unsprung mass makes it perform better in a different way. A comparison of identical M6×35mm bolts reveals telling metrics:

Material Performance Comparison:

• Stainless Steel 304: 7.8g per bolt, tensile strength 520 MPa, prone to galling with aluminum
• Aluminum 7075-T6: 2.9g per bolt, tensile strength 570 MPa, insufficient for high-torque applications (risk of thread stripping above 4 Nm)
• Titanium Grade 5: 3.6g per bolt, tensile strength 920 MPa, compatible with all frame materials

This information shows why titanium is in the best spot on the strength-to-weight curve for important binding tasks. Racing mechanics can safely tighten our M6 titanium flat head bolts to 6 Nm, which is the maximum torque that carbon fiber brake mounts can handle without risking fastener give. At this torque, aluminum would fail severely.

When these three things come together, they make an increasing value effect. Less weight makes it easier to accelerate and climb; better resistance to corrosion increases service intervals and keeps the resale value; and higher fatigue strength prevents mechanical failures while in use. Custom bike makers and speed shops can tell their products apart by using titanium flat head bolts for bikes, which is a good enough reason to charge more to picky customers who know the engineering trade-offs.

Procurement and Supply Chain Insights for Titanium Flat Head Bolts

Structuring Orders for Optimal Cost-Efficiency

Because titanium processing is expensive, we have a minimum order number of 200 pieces for M6×35mm titanium flat head bolts. It costs a lot of money to buy raw Grade 5 titanium rod stock, and the costs of setting up CNC machines, thread-rolling dies, and countersink tooling are spread out more evenly over larger production runs. A 200-piece order covers about six months' worth of brake, stem, and accessory needs for small frame builders who put together 10 to 15 bikes every month. This is a good amount of inventory to keep on hand without tying up too much working capital and getting good volume discounts.

Beyond the base MOQ, economies of scale help bigger distributors and OEMs. When you buy more than 2,000 pieces, you can get tier-two pricing, which lowers the cost per unit by about 18–22%. When you buy more than 10,000 pieces, you can get custom head geometries or unique thread changes. We worked with several European e-bike companies to make flat head bolts with longer engagement lengths (M6×40mm) that fit their aluminum battery tray designs. The cost of the custom tools was spread out over yearly production volumes of more than 50,000 units.

Quality Certifications and Supplier Vetting Criteria

When you work with an ISO 9001-certified manufacturer like Wisdom Titanium, you can track your order from the lot numbers of the raw materials to the final inspection. Our quality control system keeps track of every production batch and checks the chemical composition of arriving titanium rod to make sure it has the right amount of 5.5 to 6.75% aluminum and 3.5 to 4.5% vanadium, as required by ASTM B348 Grade 5. For OEMs that sell to regulated markets, this paperwork is very important. For example, the Machinery Directive in the EU and the CPSC bicycle standards in the US both need material certifications for safety-critical parts like brake fasteners.

Environmental approvals are becoming more and more important in buying choices. We make sure that all of our surface treatments are RoHS compliant (the anodizing and PVD coating processes don't use any banned substances), so that brands that sell to environmentally aware customers can get what they need. Our Baoji plant is in the Titanium Valley in Shaanxi Province, which gives us access to China's most complete titanium supply chain. This means that we can get titanium from fewer sources, which means less carbon emissions from transportation.

Logistics and Lead Time Optimization

Standard production wait time for stock configurations (M6×35mm with black anodizing) is three to five weeks from the time the order is placed until the goods are shipped. This schedule includes checking the raw materials, CNC machining, rolling the threads, treating the surface, and testing to make sure the quality is right. Custom specs, like PVD gold coating or lengths that aren't standard, make wait times longer, to 5 to 7 weeks, because more tools have to be set up and the coating provider has to be consulted. We keep a buffer stock of 5,000 to 8,000 pieces of our most popular configurations. This lets us ship orders faster (7–10 days), but there is a 15% fee for this service to cover the cost of keeping the stock.

International shipping procedures work best when orders are combined. A package of 1,000 pieces takes up very little room (about 0.008 cubic meters), but it's much more cost-effective to ship them with other titanium parts like stems, seatpost hardware, or thru-axles. For orders worth more than $2,000 USD, air freight is a cheaper option than ocean freight. It cuts travel time from 25 to 35 days to 5 to 7 days while adding only 8 to 12% to the total landing cost.

Conclusion

When flush mounting, aerodynamic efficiency, and structural stability all come together, flat head fasteners are important. Titanium flat head bolts for bikes are the best example of this design philosophy because they combine Grade 5 titanium's high strength-to-weight ratio with countersunk geometry, which evenly distributes loads while keeping the surface profiles clean. Our M6×35mm specification is designed to handle the toughest jobs in brake systems, stem assemblies, and accessory mounting. It provides measurable performance benefits by being 56% lighter than steel, more resistant to corrosion, and lasting longer, which lowers total ownership costs even though it costs more at first. Choosing the right materials for the right types of bikes and riding conditions will improve performance and save you money. Making sure these precision-engineered fasteners are installed and maintained correctly will also make sure they work at their best for thousands of kilometers.

FAQs

Can Titanium Grade 5 Flat Head Bolts Replace High-Tensile Steel Fasteners?

Grade 5 titanium has a tensile strength of 900 to 950 MPa, which is about the same as steel grade 10.9 (1040 MPa) in most bike applications, as long as the torque specs are right and the load is spread out evenly through the countersunk head design. For direct replacement of Grade 12.9 steel, specific load cases need to be studied by engineers. However, most bicycle uses don't get close to the ultimate strength limits where this difference is important. The functional benefits of not rusting and losing weight usually outweigh the small difference in strength.

How Do I Prevent Thread Galling When Installing Titanium Bolts Into Aluminum Components?

When compared to fasteners that aren't coated, our anodized and PVD-coated titanium flat head bolts for bikes have a much lower risk of galling. Put a little molybdenum disulfide anti-seize on the first few thread crests for contact lengths longer than 20 mm or high-torque situations (above 8 Nm). To start, thread the bolt slowly by hand and never force resistance. If you feel binding, back out all the way and check for cross-threading or debris before going forward.

What Torque Specifications Should I Follow for M6×35mm Titanium Flat Head Bolts?

Always follow the written specifications from the maker of your frame or part. These specifications take into account the unique material and thread engagement depth of their design. If you don't have clear instructions, 5 to 6 Nm is a safe range for fitting an M6 brake caliper on a carbon fiber or aluminum frame. Our bolts can handle more force (up to 8 Nm before they reach their yield strength), but if you tighten them too much, you could damage the frame threads or crush the carbon fiber laminate layers around the countersunk hole.

Partner With a Certified Titanium Flat Head Bolt Manufacturer

Every lot of titanium flat head bolts for bikes that Wisdom Titanium makes is made with the level of quality that is ISO 9001-certified. Our plant is in Baoji Titanium Valley, which is China's top titanium industry area and has the world's most complete supply chain from raw sponge to finished parts. It uses decades of local metallurgical knowledge and fully integrated production capabilities. Our M6×35mm Grade 5 titanium screws have been thread-rolled for strength, coated with anodizing or PVD to make them last longer, and come with full tracking paperwork that meets international quality standards. We offer responsive technical support and flexible customization to meet your exact needs, whether you're an OEM looking for a reliable supply for production volumes starting at 200 pieces MOQ, a performance shop building custom bikes, or a distributor wanting to add more high-quality fasteners to your catalog. Get in touch with us at sales@wisdomtitanium.com to talk about how our titanium flat head bolts for bikes supplier services can help you improve your products and operations.

References

1. American Society for Testing and Materials. (2021). ASTM B348-21: Standard Specification for Titanium and Titanium Alloy Bars and Billets. West Conshohocken: ASTM International.
2. Brown, R. & Chen, L. (2019). Fatigue Performance of Threaded Fasteners in Bicycle Frame Applications. Journal of Mechanical Engineering Science, 233(8), 2847-2861.
3. European Committee for Standardization. (2020). EN 15194:2017 - Cycles - Electrically Power Assisted Cycles - EPAC Bicycles. Brussels: CEN.
4. Lutjering, G. & Williams, J.C. (2018). Titanium: Engineering Materials and Processes (3rd ed.). Berlin: Springer-Verlag.
5. Society of Automotive Engineers. (2022). SAE J1199: Mechanical and Material Requirements for Metric Externally Threaded Steel Fasteners. Warrendale: SAE International Standards.
6. Zhang, H., Wang, T., & Liu, S. (2020). Corrosion Resistance Comparison of Titanium Alloys and Stainless Steel Fasteners in Marine Environments. Materials Protection Journal, 42(3), 115-128.
