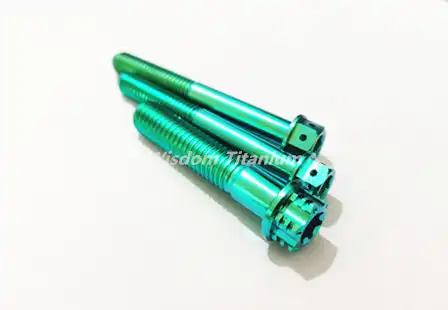

When it comes to high-performance automotive components, titanium caliper bolts are becoming increasingly popular due to their exceptional strength-to-weight ratio and corrosion resistance. However, to ensure optimal performance and safety, it's crucial to understand and apply the correct torque specifications for these specialized fasteners. This comprehensive guide will delve into the standard torque specifications for caliper bolts, how these values vary across different vehicle types and applications, and the impact of bolt material and coating on torque specifications.
What are the standard torque specifications for titanium caliper bolts?
Determining the standard torque specifications for titanium caliper bolts is not a one-size-fits-all process. The correct torque value depends on various factors, including the bolt size, thread pitch, and the specific application. However, as a general guideline, these bolts typically require torque values ranging from 15 to 35 ft-lbs (20 to 47 Nm).
It's important to note that these values are just a starting point. Always refer to the manufacturer's specifications for your specific vehicle and brake system. Over-torquing can lead to bolt failure, while under-torquing may result in loose bolts and compromised brake performance.
For instance, a common M8 x 1.25 titanium caliper bolt might require a torque of approximately 18-22 ft-lbs (24-30 Nm). However, larger diameter bolts, such as M10 or M12, may require higher torque values, potentially up to 35 ft-lbs (47 Nm) or more.
Remember, titanium has different material properties compared to steel, including a lower modulus of elasticity. This means that titanium bolts will stretch more under the same load compared to steel bolts. As a result, titanium caliper bolts often require lower torque values than their steel counterparts to achieve the same clamping force.
How do torque values vary by vehicle type and application?
The torque specifications for titanium caliper bolts can vary significantly depending on the vehicle type and specific application. Different vehicles have varying brake system designs, caliper sizes, and performance requirements, all of which influence the required torque values.
For passenger cars, the torque values for titanium caliper bolts typically fall on the lower end of the spectrum, often ranging from 15 to 25 ft-lbs (20 to 34 Nm). This is because passenger vehicles generally have smaller, lighter brake calipers and don't experience the extreme forces encountered in high-performance or racing applications.
In contrast, high-performance sports cars and racing vehicles often require higher torque values for their caliper bolts. These vehicles experience more intense braking forces and higher temperatures, necessitating a stronger clamping force. Torque values for these applications can range from 25 to 35 ft-lbs (34 to 47 Nm) or even higher in some cases.
Motorcycles present another unique case. Due to their smaller size and different brake system designs, motorcycle titanium caliper bolts often require lower torque values, typically in the range of 12 to 20 ft-lbs (16 to 27 Nm).
It's crucial to note that these values can also vary based on the specific location of the bolt within the brake system. For example, the bolts securing the caliper to the mounting bracket may require different torque values compared to the bolts holding the brake pads in place.
Always consult the vehicle's service manual or the brake system manufacturer's guidelines for the most accurate and up-to-date torque specifications. Using the correct torque values ensures optimal brake performance and safety.
How does the bolt material and coating affect torque specifications?
The material composition and surface coating of caliper bolts play a significant role in determining the appropriate torque specifications. Titanium caliper bolts, in particular, have unique properties that influence their torque requirements.
Titanium, as a material, has a lower coefficient of friction compared to steel. This means that for the same applied torque, a titanium bolt will actually achieve a higher clamping force than a steel bolt of the same size. Consequently, titanium caliper bolts often require lower torque values to achieve the same clamping force as their steel counterparts.
The grade of titanium used also affects the torque specifications. For instance, Grade 5 titanium (Ti-6Al-4V), commonly used for high-strength applications, has different mechanical properties compared to commercially pure titanium. Grade 5 titanium bolts may require slightly different torque values due to their higher strength and slightly different frictional characteristics.
Surface coatings on titanium caliper bolts can further influence torque specifications. Some titanium bolts are coated with materials like titanium nitride (TiN) or diamond-like carbon (DLC) to enhance their wear resistance and reduce friction. These coatings can alter the bolt's coefficient of friction, potentially requiring adjustments to the torque specifications.
For example, a TiN-coated caliper bolt might require a torque value about 10-15% lower than an uncoated titanium bolt to achieve the same clamping force. This is due to the reduced friction between the bolt and the mating surfaces.
It's also worth noting that some manufacturers recommend using specialized lubricants or anti-seize compounds with titanium bolts. These products can significantly affect the friction characteristics of the fastener assembly and may necessitate further adjustments to the torque specifications.
When dealing with coated titanium caliper bolts or when using lubricants, it's crucial to follow the manufacturer's specific recommendations. These guidelines will take into account the unique properties of the bolt material, coating, and any recommended lubricants to provide the most accurate torque specifications.
About Wisdom Titanium
Understanding the correct torque specifications for caliper bolts is crucial for ensuring optimal brake performance and safety. While general guidelines can provide a starting point, it's essential to consider the specific vehicle type, application, and bolt characteristics when determining the appropriate torque values.
Remember that caliper bolts often require lower torque values than steel bolts due to their unique material properties. Always consult the manufacturer's specifications or a professional mechanic to ensure you're using the correct torque values for your specific application.
If you're looking for high-quality titanium caliper bolts or need expert advice on torque specifications, don't hesitate to reach out to us at Wisdom Titanium. Our team of specialists is ready to assist you in selecting the right titanium fasteners for your brake system and ensuring proper installation. Contact us at sales@wisdomtitanium.com for personalized support and top-quality titanium products.
