Titanium Dual Drive Bolts: Biocompatibility for Medical Implants

Titanium dual drive bolts are revolutionizing the medical implant industry with their unique design and exceptional biocompatibility. These innovative fasteners combine the strength and corrosion resistance of titanium with a dual-drive head that allows for precise torque application during implantation procedures. The biocompatible nature of titanium makes these bolts ideal for use in various medical implants, from orthopedic devices to dental prosthetics.

Mechanisms of Titanium's Biocompatibility

Titanium's Unique Surface Oxide Layer Formation

The remarkable biocompatibility of titanium dual drive bolts stems from the material's inherent properties, particularly its ability to form a protective oxide layer. When exposed to oxygen, titanium spontaneously develops a thin, stable oxide film on its surface. This layer, primarily composed of titanium dioxide (TiO2), acts as a barrier between the implant and the surrounding biological environment.

The oxide layer's formation is a dynamic process that occurs within milliseconds of exposure to air or bodily fluids. It's this rapid oxidation that gives titanium its exceptional resistance to corrosion in the harsh environment of the human body. The stability of this layer is crucial for preventing the release of metal ions, which could potentially trigger adverse reactions in the surrounding tissues.

Protein Adsorption and Cell Adhesion on Titanium

The biocompatibility of titanium extends beyond its corrosion resistance. The surface characteristics of titanium dual drive bolts play a crucial role in how they interact with the body at a cellular level. When a titanium implant is introduced into the body, proteins from the surrounding fluids immediately begin to adhere to its surface. This process, known as protein adsorption, is the first step in the body's response to the implant.

The adsorbed protein layer serves as a mediator between the implant surface and the cells of the surrounding tissue. The composition and conformation of this protein layer significantly influence subsequent cellular responses, including cell adhesion, proliferation, and differentiation. Titanium's surface properties, including its hydrophilicity and surface charge, are particularly conducive to the adsorption of cell-adhesive proteins like fibronectin and vitronectin.

These adsorbed proteins provide binding sites for cells, promoting their attachment to the implant surface. This cellular adhesion is crucial for the integration of the implant with the surrounding tissue and the long-term success of the medical device. The surface of titanium dual drive bolts can be further optimized through various surface treatments to enhance protein adsorption and cell adhesion, leading to improved biocompatibility and implant performance.

Osseointegration: Titanium's Bond with Bone Tissue

Perhaps the most remarkable aspect of titanium's biocompatibility is its ability to achieve osseointegration – the direct structural and functional connection between living bone tissue and the surface of an implant. This property is particularly crucial for orthopedic and dental implants, where titanium dual drive bolts play a vital role in securing prosthetic components to bone.

The process of osseointegration begins with the initial inflammatory response to the implant. As this response subsides, osteoblasts (bone-forming cells) migrate to the implant surface and begin depositing new bone matrix. Over time, this new bone grows directly onto and into the microscopic irregularities of the titanium surface, creating a strong mechanical interlock.

The surface properties of titanium dual drive bolts can be optimized to enhance osseointegration. Techniques such as sandblasting, acid etching, or plasma spraying can create micro- and nano-scale surface textures that increase the surface area available for bone contact and promote the adhesion and differentiation of osteoblasts. These surface modifications can significantly improve the speed and strength of the bond between the implant and bone, leading to better long-term outcomes for patients.

Dual-Drive Design Enhances Medical Implant Utility

Building upon the exceptional biocompatibility of titanium, the dual-drive design of these specialized bolts brings additional benefits to the field of medical implants. This innovative feature addresses several challenges faced in implant procedures, enhancing both the surgical process and long-term implant performance.

Improved Torque Distribution in Titanium Dual Drive Bolts

The dual-drive design of titanium bolts represents a significant advancement in fastener technology for medical implants. This unique configuration typically features two different drive types on a single bolt head, such as a combination of hexagonal and Torx drives. This design allows for more precise and evenly distributed torque application during implantation.

When tightening a conventional single-drive bolt, the force is concentrated on a limited area of the bolt head. This concentration can lead to potential issues such as stripping of the bolt head or uneven stress distribution. In contrast, the dual-drive design of titanium bolts enables the surgical tool to engage with a larger surface area of the bolt head. This expanded contact area results in a more uniform distribution of forces during tightening.

The improved torque distribution offered by titanium dual drive bolts is particularly beneficial in medical implant procedures where precise tightening is crucial. For instance, in orthopedic surgeries involving bone plates or joint replacements, the ability to apply consistent and controlled torque ensures that the implant components are secured firmly without risking damage to the surrounding bone tissue or the implant itself.

Minimizing Stress Shielding with Dual Drive Technology

Stress shielding is a significant concern in orthopedic implants, particularly those used in load-bearing applications. This phenomenon occurs when an implant takes on a disproportionate amount of the mechanical load, leading to a reduction in the natural stress stimuli on the surrounding bone. Over time, this can result in bone resorption and potential implant loosening.

The dual-drive design of titanium bolts contributes to minimizing stress shielding in several ways. Firstly, the more precise torque control allowed by the dual-drive system enables surgeons to achieve optimal implant fixation without over-tightening. This balanced fixation helps to distribute loads more evenly between the implant and the bone.

Dual Drive Bolts: Easier Implant Placement and Removal

The dual-drive design of titanium bolts significantly enhances the ease of both implant placement and removal, a factor that can greatly impact surgical outcomes and patient recovery. During initial implantation, the dual-drive system provides surgeons with greater flexibility in tool selection and positioning. This can be particularly advantageous in procedures where access is limited or the surgical site is deep within the body.

The ability to engage the bolt with two different types of drivers reduces the risk of slippage during tightening, which is crucial for maintaining the sterility of the surgical field and preventing damage to surrounding tissues. Moreover, if one drive type becomes damaged or stripped during the procedure, the secondary drive option serves as a backup, potentially avoiding the need for bolt replacement mid-surgery.

In cases where implant removal is necessary, such as in revision surgeries or temporary implant scenarios, the dual-drive design proves invaluable. Over time, tissue ingrowth or corrosion can make implant removal challenging. The dual-drive system provides surgeons with alternative engagement points, increasing the likelihood of successful removal without resorting to more invasive techniques.

Medical Standards Ensuring Biocompatibility

As we transition from discussing the design advantages of titanium dual drive bolts, it's crucial to understand the rigorous standards and regulations that govern their use in medical implants. These standards are the backbone of ensuring patient safety and product efficacy in the medical device industry.

ISO 10993: Evaluating Titanium's Biological Safety

While ASTM F67 focuses on the material properties, ISO 10993 is a comprehensive set of standards for evaluating the biocompatibility of medical devices, including titanium dual drive bolts. This standard is crucial in assessing how these implants interact with living tissues and ensuring their safety for long-term use in the human body.

ISO 10993 comprises multiple parts, each addressing different aspects of biological evaluation. For titanium dual drive bolts, key sections include tests for cytotoxicity, sensitization, irritation, and systemic toxicity. These tests help determine whether the implant material releases any substances that could harm cells or tissues, or trigger allergic reactions.

The standard also includes guidelines for assessing the potential for chronic toxicity and carcinogenicity, which are crucial considerations for long-term implants. For titanium dual drive bolts, these evaluations typically demonstrate the material's excellent biocompatibility profile, with minimal risk of adverse long-term effects.

FDA Regulations for Titanium Medical Device Approval

In the United States, the Food and Drug Administration (FDA) plays a pivotal role in regulating medical devices, including titanium dual drive bolts used in implants. The FDA's approval process ensures that these devices meet stringent safety and efficacy standards before they can be marketed and used in medical procedures.

For titanium dual drive bolts, the FDA classification typically falls under Class II medical devices. This classification requires manufacturers to submit a 510(k) premarket notification, demonstrating that their device is substantially equivalent to a legally marketed predicate device in terms of safety and effectiveness.

The FDA review process for these devices includes an evaluation of the manufacturing processes, quality control measures, and biocompatibility data. Manufacturers must provide comprehensive documentation, including results from mechanical testing, biocompatibility studies (often referencing ISO 10993 standards), and clinical data if available.

Titanium dual drive bolts represent a remarkable fusion of material science and medical engineering. Their unique combination of biocompatibility, strength, and innovative design makes them invaluable in the field of medical implants. From their ability to form a protective oxide layer to their osseointegrative properties, these fasteners exemplify the cutting-edge of implant technology. The dual-drive design further enhances their utility, offering improved torque distribution and easier handling during surgical procedures.

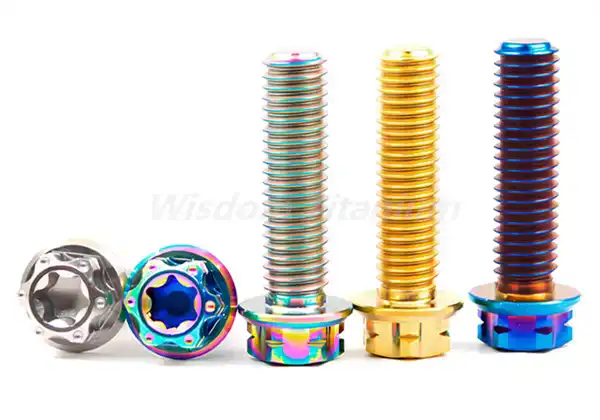

Titanium Dual Drive Bolts For Sale

At Baoji Wisdom Titanium Industry and Trading Co., Ltd., we specialize in manufacturing high-quality titanium bolts for medical implants. Our experienced R&D team provides customized solutions to meet your specific requirements. We maintain a comprehensive inventory of raw materials and standard parts, ensuring stable prices and reliable supply. Our mature production technology, coupled with rigorous quality control throughout the manufacturing process, guarantees product excellence and timely delivery.

We offer titanium dual drive bolts in Grade 5 titanium, with sizes ranging from M4 to M14 and lengths from 5mm to 300mm. Our bolts feature metric, UNC, or UNF thread types and can be finished with polishing, anodizing, or PVD coating. With a tensile strength exceeding 950 MPa and a hardness of 36 HRC, our bolts are designed to withstand temperatures up to 500°C. For more information or to discuss your specific needs, contact us at sales@wisdomtitanium.com.

References

1. Brunette, D. M., Tengvall, P., Textor, M., & Thomsen, P. (Eds.). (2012). Titanium in medicine: Material science, surface science, engineering, biological responses and medical applications. Springer Science & Business Media.
2. Williams, D. F. (2008). On the mechanisms of biocompatibility. Biomaterials, 29(20), 2941-2953.
3. Rack, H. J., & Qazi, J. I. (2006). Titanium alloys for biomedical applications. Materials Science and Engineering: C, 26(8), 1269-1277.
4. Elias, C. N., Lima, J. H. C., Valiev, R., & Meyers, M. A. (2008). Biomedical applications of titanium and its alloys. Jom, 60(3), 46-49.
5. Bauer, S., Schmuki, P., von der Mark, K., & Park, J. (2013). Engineering biocompatible implant surfaces: Part I: Materials and surfaces. Progress in Materials Science, 58(3), 261-326.
6. Hanawa, T. (2019). Titanium–tissue interface reaction and its control with surface treatment. Frontiers in Bioengineering and Biotechnology, 7, 170.
