From automotive to aerospace, titanium dual drive bolts meet stringent requirements for material composition, biocompatibility, and dimensional precision. Understanding these standards is crucial for manufacturers, engineers, and end-users to harness the full potential of these innovative fasteners.
Material & Biocompatibility Standards
ASTM F136: Titanium Alloy for Surgical Implants
ASTM F136 sets the gold standard for titanium alloys used in medical implants, including specialized dual drive bolts. This standard outlines strict requirements for the chemical composition and mechanical properties of Ti-6Al-4V ELI (Extra Low Interstitial) alloy. For dual drive bolts used in medical applications, compliance with ASTM F136 ensures exceptional biocompatibility and resistance to corrosion in the human body.
Key requirements of ASTM F136 include:
- Precise control of alloying elements
- Minimal impurities to reduce adverse tissue reactions
- Specific tensile strength and elongation properties
ISO 5832-3: Implant-Grade Titanium Requirements
ISO 5832-3 complements ASTM F136, providing an international standard for implant-grade titanium alloys. This standard is crucial for dual drive bolts used in orthopedic and dental implants. It specifies requirements for chemical composition, microstructure, and mechanical properties, ensuring consistent quality across global markets.
ISO 5832-3 emphasizes:
- Tight control of oxygen and nitrogen content
- Specific hardness ranges for optimal implant performance
- Fatigue strength requirements for long-term implant stability
Biocompatibility Testing for Titanium Dual Drive Bolts
Beyond material standards, titanium dual drive bolts undergo rigorous biocompatibility testing as per ISO 10993 series. These tests evaluate the biological safety of materials and devices in contact with living tissues. For dual drive bolts used in medical devices, this testing is critical to ensure patient safety and regulatory compliance.
Key biocompatibility tests include:
- Cytotoxicity assessment to ensure cell viability
- Sensitization and irritation studies
- Systemic toxicity evaluation for long-term safety
Aerospace & Industrial Alloys
Ti-6Al-4V: The Go-To Alloy for Dual Drive Bolts
Transitioning from medical to aerospace applications, Ti-6Al-4V remains the preferred alloy for titanium dual drive bolts. This versatile alloy combines high strength, low weight, and excellent corrosion resistance, making it ideal for demanding aerospace environments. The aerospace industry relies on standards like AMS 4928 and AMS 4967 to ensure consistent quality and performance of Ti-6Al-4V fasteners.
Key properties of Ti-6Al-4V for dual drive bolts include:
- Ultimate tensile strength exceeding 900 MPa
- Excellent fatigue resistance under cyclic loading
- Superior strength-to-weight ratio compared to steel fasteners
High-Temperature Titanium Alloys for Aerospace
For applications involving extreme temperatures, such as jet engine components, specialized titanium alloys are used in dual drive bolts. Alloys like Ti-6Al-2Sn-4Zr-2Mo (Ti-6242) and Ti-5Al-5Sn-2Zr-2Mo-0.25Si offer enhanced creep resistance and maintain strength at elevated temperatures. These alloys adhere to standards like AMS 4975 and AMS 4976, ensuring reliability in high-stress, high-temperature environments.
Advanced properties of high-temperature titanium alloys include:
- Creep resistance at temperatures up to 540°C (1000°F)
- Improved oxidation resistance for prolonged service life
- Retention of mechanical properties at elevated temperatures
Corrosion-Resistant Titanium Grades for Marine Use
In marine and offshore applications, titanium dual drive bolts often utilize grades with enhanced corrosion resistance. Alloys like Grade 2 (commercially pure titanium) and Grade 7 (Ti-0.15Pd) offer exceptional resistance to saltwater and marine environments. These grades comply with ASTM B265 and ASTM B381 standards, ensuring long-term reliability in harsh conditions.
Benefits of corrosion-resistant titanium grades include:
- Virtual immunity to pitting and crevice corrosion in seawater
- Resistance to stress corrosion cracking
- Extended service life in offshore and marine structures
Design & Dimensional Standards
ISO 4014: Hexagon Head Bolts - Product Grades A and B
While ISO 4014 primarily addresses hexagon head bolts, its principles apply to the design of titanium dual drive bolts. This standard defines dimensional requirements, tolerances, and mechanical properties for bolts. Manufacturers of dual drive bolts often reference ISO 4014 to ensure compatibility with standard tooling and assembly processes.
Key aspects of ISO 4014 relevant to dual drive bolts include:
- Thread pitch and tolerance classes
- Head dimensions and bearing surface requirements
- Tensile strength classes for different bolt grades
AS 3635: Titanium Fastener Standards for Aerospace
AS 3635 is a crucial standard for titanium fasteners in aerospace applications, including dual drive bolts. This standard provides detailed specifications for the design, manufacture, and testing of titanium alloy bolts used in aircraft structures. Compliance with AS 3635 ensures that titanium dual drive bolts meet the stringent safety and performance requirements of the aerospace industry.
AS 3635 covers important aspects such as:
- Material composition and heat treatment requirements
- Mechanical property specifications for different bolt sizes
- Non-destructive testing methods for quality assurance
Dual Drive Head Design: Torque and Installation Specs
The unique dual drive head design of these bolts requires specific torque and installation specifications. While no universal standard exists for dual drive heads, manufacturers often develop proprietary specifications based on engineering principles and industry best practices. These specifications ensure optimal performance and prevent issues like over-torquing or bolt failure.
Typical considerations for dual drive bolt installation include:
- Torque ranges for different bolt sizes and materials
- Recommended installation tools and techniques
- Lubrication requirements to achieve proper preload
Titanium dual drive bolts represent a pinnacle of fastener technology, combining the strength and lightweight properties of titanium with innovative dual drive head designs. Adherence to industry standards ensures these fasteners meet the exacting requirements of medical, aerospace, and industrial applications. As technology advances, ongoing refinement of standards will continue to drive innovation in titanium fastener design and performance, opening new possibilities for engineers and manufacturers across diverse industries.
Titanium Dual Drive Bolts For Sale

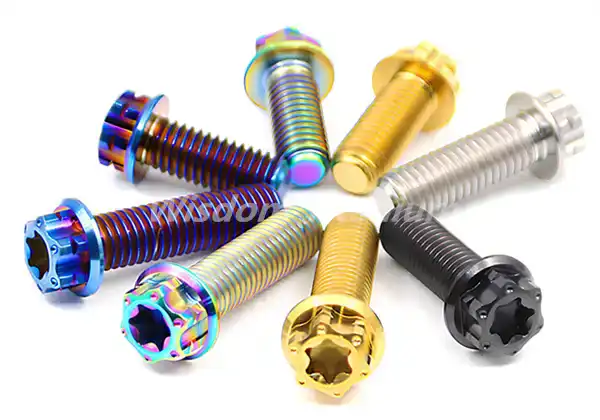

Baoji Wisdom Titanium Industry and Trading Co., Ltd offers premium fastening solutions tailored to your specific needs. Our titanium dual drive bolts are crafted from Grade 5 titanium, available in sizes ranging from M4 to M14, with lengths from 5mm to 300mm. We offer various thread types, including Metric, UNC, and UNF, with surface finishes like polished, anodized, and PVD coating options. Our bolts boast a tensile strength above 950 MPa and a hardness of 36 HRC, capable of withstanding temperatures up to 500°C. With our experienced R&D team, we provide customized services, ensuring stable prices and quality. Our ISO 9001-certified processes guarantee product excellence and timely delivery. For top-tier titanium fasteners that meet your exact specifications, contact us at sales@wisdomtitanium.com.
References
- ASTM International. (2021). Standard Specification for Wrought Titanium-6Aluminum-4Vanadium ELI (Extra Low Interstitial) Alloy for Surgical Implant Applications (UNS R56401).
- International Organization for Standardization. (2020). Implants for surgery — Metallic materials — Part 3: Wrought titanium 6-aluminium 4-vanadium alloy.
- SAE International. (2019). Titanium Alloy, Sheet, Strip, and Plate, 6Al - 4V, Annealed.
- American Society of Mechanical Engineers. (2018). Dimensioning and Tolerancing.
- Federal Aviation Administration. (2022). Metallic Materials Properties Development and Standardization (MMPDS).
- Aerospace Material Specifications. (2020). Titanium Alloy Bars, Wire, Forgings, and Rings 6Al - 2Sn - 4Zr - 2Mo Solution and Precipitation Heat Treated.
