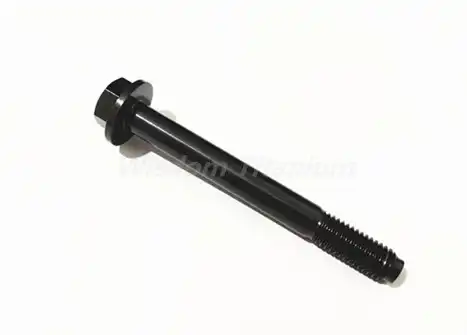

Performance fans and racing teams are always looking for screws that are both reliable and light. When looking closely at a titanium racing flange bolt, one question often comes up: does this fastener really have an integrated flange design? The answer shows why these special bolts are so important in racing competitions and why you need to know how they're put together for your next high-performance project.
Flange nuts are a special kind of fastener that is made to make links safely and reliably in a wide range of mechanical and industrial settings. The heads of these bolts are octagonal, and they have a threaded screw and an inserted lip that works like a nut. By making these screws out of Grade 5 titanium, makers can turn ordinary gear into race-proven parts that can survive harsh conditions while losing a lot of weight.
The Integrated Flange Structure Explained
To understand what makes a titanium racing flange bolt different from other parts, you need to look at how it is put together. The flange is built into the bolt head instead of being a different part. This means that there are no risks of the washer moving during installation or use. With traditional bolt-and-washer combinations, you can't get the same benefits as with this single-piece design.
What Makes the Flange "Integrated"?
With this design, both a bolt and a nut are built into one part, which makes assembly easier and improves the performance of the fitting. The flange that is built into flange bolts is what makes them unique. They don't need a separate washer under the bolt head because the lip sticks out and is permanently attached to the fastener. This bearing surface is made during the initial production step of the manufacturing process. This makes sure that every bolt is perfectly centered and has the same dimensions.
To really understand the difference, picture this: a normal hex bolt rests against the fastening surface, and only its head touches the material. When you add a washer, you add a second part that can move, spin, or get out of place during installation. The form of the combined titanium flange bolt spreads the load out widely, so a separate nut is often not needed. Titanium hex bolts are race-proven to be reliable, look great, and give you the utmost peace of mind. They are also very resistant to rust and stopping.
A bigger bearing surface is made by the circle lip under the hexagonal head. This flange has a nut built right in, so the tightening force is spread out over a bigger area than with regular bolts. This bigger bearing surface helps keep the material being attached from getting damaged, especially when the surface is soft or fragile. This softer load distribution is good for cast aluminum engine cases, carbon fiber panels, and machining parts.
Structural Advantages Over Separate Components
The best thing about a flanged nut is that it basically combines a flanged nut and a screw into one part. This cuts down on the number of parts that need to be designed and put together for machines. This idea works just as well for titanium racing flange bolts. Fewer parts mean fewer places where something could go wrong, which is very important when every screw in a race application is constantly being tested by vibration and temperature cycle.
The fundamental benefits go beyond making things easier to understand. For example, flanged nuts have gripping force, closing features, and fewer parts than flanged nuts. The same is true for flanged screws. By preventing corrosive mediums from getting stuck between the screw and the joint material, the flanged screw may also lower the joint's rust risk. This is because separate screw and washer parts can be harmed by corrosion. This resistance to crevice rust is very useful in racing settings with water spray, road debris, and high temperatures.
The built-in lip increases the bearing area, which lowers the risk of embedment in soft materials and cuts down on the need for separate washers. This is especially helpful on automated lines where fewer parts mean higher output. Racing teams that have to be on the go between rounds like that they can put their cars together faster and with less hassle.
Load Distribution and Vibration Resistance Characteristics
The built-in flange structure has a direct effect on how well titanium racing flange nuts perform in harsh race settings. This design makes it easier to spread out the load and makes it more resistant to vibration by reducing the amount of stress and small movements that can cause things to come free when they are vibrated. When you understand these physics, you can see why flange bolts work better in race situations than normal ones.
How the Integrated Flange Distributes Load
A wide, flat flange extends from the base of the bolt head and works as a built-in washer. This is what makes flange bolts unique. This design has a lot of important benefits. For example, the flange spreads the load over a bigger surface area, which lowers stress densities that can cause materials to warp or break. Because they reduce localized pressure, flange nuts work especially well in high-stress situations.
Imagine how different it is to stand on hardwood floors in high heels versus sneakers. Your whole body weight is concentrated on a small area of touch with the floor because of the heel. The same amount of weight is spread out over a lot more ground with athletic shoes. When compared to regular bolts, flange bolts have a flanged head that gives them a bigger gripping area. This design spreads the weight out properly, which lowers the stress and distortion.
Pull-Through Prevention: The flange gives the bolt a larger contact area, which keeps it from slipping through the material when it's under pressure. This makes sure that the link stays strong even in tough situations. Better Torque Application: The flange design makes it possible for more holding force, which makes flange bolts very reliable in places where tight and long-lasting fixing is needed. This spread-out pressure is especially good for thin-wall molds and composite materials.
Superior Vibration Resistance for Motorsport
Flange bolts: The flange that's built into them gives them a bigger contact area, so you don't need as many nuts to keep things stable and stop them from coming loose. shaking Resistance: When there is a lot of shaking, flange bolts work better. When racing cars' engines work, rough surfaces, and mechanical forces cause them to vibrate a lot. When these things happen to standard nuts, they slowly come loose, which could lead to catastrophic breakdowns.
Because of the way they are built, flange bolts are designed to work very well in places with a lot of stress. The built-in lip under the bolt head gives the bearing area more room, which is important for spreading the load out evenly. This feature lowers micro-movements and localized stress that can cause parts to come loose when they vibrate.
For extra safety, many titanium racing flange bolts have rims that are sharpened. The main benefit is that they are more resistant to shaking and can lock better. The bottom of the flange has serrations that dig into the matching surface. This makes a mechanical lock that keeps the parts from coming away from movement and shaking. This trait is very important in places with a lot of shaking, like car engines and industry machines.
Assembly Efficiency and Weight Savings Benefits
Racing teams are always under a lot of time pressure. The titanium racing flange bolt has many useful benefits that go beyond its mechanical performance. With flange bolts, you don't need a separate washer either. This reduction affects every part of managing parts and putting them together.
Faster Installation and Reduced Part Counts
Flange Bolts: These have a flange built into the head that works as a washer and gives the load more surface area to spread out. Torque Needed: Flange bolts usually need less torque than hex bolts with different nuts, which makes them less likely to come loose when the system vibrates. When workers are working between sessions, they value every second that can be saved for fixes or setting changes.
When it comes to binding force, flange bolts usually need less torque than regular bolts with different nuts. The ring increases friction and load distribution, which lowers the risk of the bolt coming loose. It also makes fitting easier and safer, and it keeps you from over-tightening. Less pressure is needed to secure things, which helps keep the materials from getting damaged by too much force.
The one-piece form of serrated flange bolts makes assembly easier because you don't need separate screws or locking nuts. This cuts down on the number of parts and steps needed for installation, which saves time and money. The total gain from this time savings is big when you think about how many dozens or hundreds of screws are on a race car. Keeping track of just one part number makes inventory management a lot easier than matching nuts to the right washers.
Critical Weight Reduction for Performance
Flange nuts are lighter than a separate nut and washer, which is useful in aircraft, racing, and other places where weight is important. This helps get the best speed and gas mileage. Minimum weights are tightly regulated in modern race series, which makes reducing unsprung mass very valuable. Better acceleration, stopping, and driving are all helped by lighter bolts.
Titanium hardware is usually 45 percent lighter than steel hardware, but it is just as strong. Titanium hardware is usually 45 percent lighter than steel hardware, but it is just as strong. Even if you only replace a small number of steel screws with titanium racing flange bolts, you will notice a difference in the weight. When these savings are put in key places like suspension attachment points, engine bolts, or brake parts, they make a big difference in how well the vehicle moves.
It is 50% denser than nickel-based metals and stainless steels (Grade 5). Because of this, it is widely used in many situations because it is very strong for its weight. Every part is optimized by championship-level race teams, and titanium screws are one of the most cost-effective ways to lose weight.
Why Baoji Wisdom Titanium Delivers Titanium Racing Flange Bolts?
When choosing a titanium fastener provider, you need to look at their producing skills, quality processes, and knowledge in the field. People who want to buy high-quality titanium racing flange bolts can get special benefits from Baoji Wisdom Titanium Industry and Trading Co., Ltd.
Strategic Location in China's Titanium Valley
The Baoji Titanium Valley in Shaanxi Province is home to China's biggest and most complete titanium industry center. It is also one of the most important places in the world to make titanium. Baoji has created a fully integrated environment that is unmatched by most companies around the world. It includes titanium powder, ingots, bars, plates, tubes, forgings, and high-performance titanium alloys.
This area is home to hundreds of companies that make titanium and titanium alloys. It is China's most concentrated titanium production hub. This focus gives Baoji Wisdom Titanium access to high-quality raw materials, handling skills, and a lot of knowledge about the business. Strong innovation capacity, backed by research institutes, government labs, and major businesses, makes sure that product quality and industrial efficiency keep getting better.
With growing exports to North America, Europe, Southeast Asia, and the Middle East, Baoji Titanium Valley has become known as a major worldwide producer of high-quality titanium goods. Large international titanium workshops and trade shows are held in the area, which increases its exposure and impact in the world titanium market.
ISO-Certified Manufacturing Excellence
Baoji Wisdom Titanium Industry and Trading Co., Ltd was established in 2016 and is an ISO 9001-certified company that makes and sells standard and special CNC parts. We work with many businesses that need high-quality fasteners, including aircraft, energy, oil and gas, medical, electronics, chemicals, marine, automobile, motorbike, bicycle, and many more.
Our major goods are titanium screws and CNC parts that are made to order. We offer linked custom design parts made of titanium and have a lot of experience making new products from models or ideas given by customers. Our titanium racing flange nuts are made from Grade 5 titanium and are designed to be as light as possible. With a minimum order number of 200 pieces, we can make special orders to meet the needs of specific race applications.
All of our bolts and nuts come from high-quality titanium pieces that are carefully checked before they are sent out. We value all questions and comments from customers and take them very carefully. We keep making our goods better so that they meet the wants of users and markets through this process of communication.
Comprehensive Service and Support
We offer personalized services that are made to fit your needs because we have a skilled research and development service system in-house. Having a full stock of raw materials and standard parts keeps prices fixed and supplies available all the time. The quality of the product and the dependability of the lead time are guaranteed by advanced production technology, whole process follow-up detection, and stable staff.
All of our methods are in line with ISO 9001 standards, which means that you can be sure of quality and good service after the sale. Our engineering team is ready to help you with your project from the first idea to the final delivery, whether you need standard titanium racing flange bolts or unique custom designs.
Secure Your Performance Advantage Today
When aerospace-grade materials are combined with an integrated flange design, the titanium racing flange bolt is the pinnacle of engineering. Everything about it, from the load-distributing plate structure to the unique qualities of Grade 5 titanium, makes it perform better in competitive racing uses.
Baoji Wisdom Titanium is strategically located in China's best titanium-making area and has quality systems that are ISO 9001 approved as well as a lot of experience in the field. Our titanium racing flange bolts are made from high-quality Grade 5 titanium and are designed to be lightweight. They are ready to make your racing program more competitive.
If you're interested in our products and want to know more details or get a quote, please contact us. Simply send an enquiry to sales@wisdomtitanium.com. Our team responds promptly to all inquiries, providing the technical guidance and competitive pricing your project demands.
FAQ
Q1: Is the flange on a titanium racing flange bolt truly integrated, or is it welded separately?
A: The flange is manufactured as part of the bolt head rather than being a separate component, eliminating washer displacement risks during installation or operation. Quality titanium racing flange bolts are machined or forged from a single piece of Grade 5 titanium, ensuring the flange and head form one continuous structure without welds or joints that could create weak points.
Q2: Do I still need to use washers with titanium racing flange bolts?
A: Usually not, since the flange acts as a washer surface. However, in some cases using an additional thin lower washer can help compensate for an uneven fastening surface. The integrated flange design eliminates the need for separate washers in most racing applications, though extremely uneven surfaces or oversized holes may benefit from additional washers.
Q3: How much weight can I save by switching to titanium racing flange bolts?
A: Titanium hardware averages 45 percent lighter than steel while retaining the same strength. The exact savings depend on how many fasteners you replace and their sizes. Racing teams often prioritize weight savings in specific areas like suspension, brakes, and engine components where reduced unsprung mass delivers the greatest performance benefits.
Q4: Are titanium racing flange bolts as strong as steel Grade 8 fasteners?
A: Titanium Grade 5 (6AL4V) fasteners are equivalent strength to SAE Grade 8 or Metric 10.9 steel hardware. Grade 5 titanium delivers comparable tensile strength to high-grade steel fasteners while weighing significantly less. Proper material certification ensures the titanium meets these performance specifications.
Q5: What makes Grade 5 titanium ideal for racing flange bolt applications?
A: High Strength: Ti-6Al-4V is known for its high strength-to-weight ratio, making it ideal for applications where strength is critical but weight needs to be minimized. Lightweight: Despite its strength, it is much lighter than steel and other high-strength materials. Corrosion Resistance: Excellent resistance to corrosion in various environments. This combination of properties makes Grade 5 titanium the preferred choice for competitive motorsport applications.
