The short answer is: no, the T80 drive is not compatible with standard OEM Porsche wheel tools. OEM Porsche wheel tools are designed around a 17mm hex or 19mm hex socket interface, while the T80 Torx-style drive requires a dedicated T80 bit or socket. If you are running Porsche titanium wheel bolts with a T80 head, you need the matching T80 tool—period. This deliberate mismatch is actually a feature, not a flaw. It adds a security layer that deters wheel theft while also protecting the bolt seat during installation.
Understanding Porsche Titanium Wheel Bolts and Their Unique Characteristics
Material: Grade 5 Titanium (Ti-6Al-4V)
Our Porsche titanium wheel bolts are made from Grade 5 titanium, which is also known as the alloy Ti-6Al-4V. This type of titanium is used in about half of all aerospace and motorsport applications around the world. With a specific gravity of 4.43 g/cm³ compared to 7.85 g/cm³ for steel, a full set of Porsche titanium wheel bolts can lower unsprung mass by 1.0–1.5 kg across all four wheels. This can be seen in the way the suspension responds and the time it takes to complete a lap.
Hot-Forged Head and Rolled Threads
The heads of all the bolts I buy from Wisdom Titanium are hot-forged, and the threads are rolled. When you press the titanium block, it lines up the grain structure along the thread form instead of cutting it. This makes rolled threads. A study in the Journal of Materials Engineering and Performance shows that rolled threads are 30–40% more resistant to wear than cut threads. This is important when you have to torque and retorque bolts all race season.
Tensile Strength and Specifications
The mechanical profile of these Porsche titanium wheel bolts is clear and easy to follow:
- Tensile strength: 900 to 1,050 MPa (130,000 to 152,000 psi), which meets or beats the standards for Property Class 10.9 steel
- Thread and size: M14 × 1.5 mm, available in shank lengths of 29 mm, 34 mm, and 43 mm
- Seat geometry: Drifting ball seat with slots, 13.5 mm height, matching the OEM Porsche hub geometry

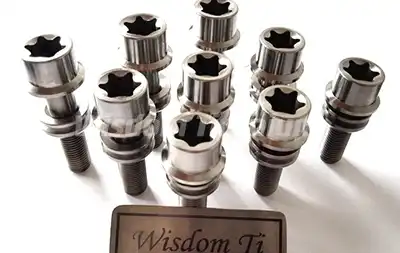

- Head drive: T80
- Finish: Polished finish, with PVD black, gold, and rainbow color options
These specs are not marketing language. They are the baseline for any serious track-day or club-race procurement decision.
Compatibility Analysis: Is the T80 Drive Suitable for OEM Porsche Wheel Tools?
OEM Porsche Tool Interface
OEM Porsche wheel tools, like the socket and torque wrench that come with the car, are made to fit a 17mm or 19mm hex bolt head. A T80 Torx profile can't fit in them. If you try to use a normal hex socket on a T80 bolt, you could damage the drive groove by rounding it off, which would cost a lot of money and take a lot of time in the pit lane.
What the T80 Drive Actually Requires
A Torx external drive with a 10-point star shape and a nominal size that matches a standard T80 bit socket is called a T80 drive. You need a special T80 socket, which Wisdom Titanium sells as an add-on that goes with the bolt set. Small and compact, this tool fits a normal ½-inch drive torque wrench and works correctly with the Porsche titanium wheel bolts' floating ball seat shape.
Why the Incompatibility Is Intentional
The T80 head is a choice made by engineers. In a track or club setting, it does three things: it stops thieves from stealing wheels (since most roadside tools are hex-based), it makes sure that only trained professionals change the wheels, and it keeps the floating ball seat from getting damaged by torque from an improperly matched tool. Purchasing teams should ask for T80 socket kits with every large order so that there aren't any tool shortages during a race weekend.
Installation and Maintenance of Porsche Titanium Wheel Bolts
Torque Specification and Anti-Seize Protocol
OEM Porsche specs say that the right torque for Porsche titanium wheel bolts on a 997 base is 130 Nm (96 ft-lbs). But for titanium-to-steel or titanium-to-aluminum contact, a copper- or ceramic-based paste anti-seize compound must be applied to the thread and seat before installation. Galling can happen without it, which will permanently connect the bolt to the hub. For easy tracking, I suggest writing down the name of the paste and the torque number in your service log.
Step-by-Step Installation Checklist
Before you torque any Porsche titanium wheel bolts, you have to make sure that the hub face and wheel bore are clean. Here is the sequence I follow:
- Use a thread chaser to clean the hub threads and get rid of any rust scale or other junk
- Rub a little anti-seize on the thread shank and the face of the ball seat
- Tighten the bolt by hand until it feels finger-tight, confirming the moving washer fits properly
- Use a calibrated T80 socket and torque wrench to apply torque in a cross pattern up to 130 Nm
- After the first 50 km of use, check the torque again
These steps reduce the risk of false torque readings caused by seat friction and protect the wheel bolt pocket finish.
Inspection and Replacement Intervals
Every three to five track practices, I check the Porsche titanium wheel bolts for high-frequency use. A visual check looks at the state of the threads, the surface of the ball seat, and any signs of fretting at the washer contact. Because being able to track back to a specific production batch is important in motorsport, Wisdom Titanium sends material test certificates (MTC) and heat lot records with every order, so any bolt showing strange wear can be immediately linked to its production batch.
Comparing Titanium Wheel Bolts with Steel and Aluminum Alternatives
Weight and Strength Trade-Off
Property Class 10.9 steel bolts have about the same tensile strength as Porsche titanium wheel bolts, but they weigh about 75% more. Even though aluminum bolts are lighter than steel ones, they are not strong enough (900 MPa at the very least) to keep up with race-load cycling. Grade 5 titanium is the only material that meets both the strength floor and the weight goal at the same time—a fact backed by decades of data on aircraft fasteners.
Corrosion Resistance in Aggressive Environments
Titanium is inherently neutral. It does not rust and can handle salt, brake dust, and cleaning agents without being treated on the outside. In coastal or winter environments, steel bolts can seize to the hub within one season, requiring heat or pressure for extraction, which can damage the hub. The corrosion resistance of Porsche titanium wheel bolts means that service work costs will go down for people who run cars all year long at track days.
Verifying Authenticity Before Purchase
In the aftermarket, fake titanium fasteners are common. To make sure your Porsche titanium wheel bolts are real, ask for a spectrographic chemical analysis report that confirms the presence of 6% aluminum and 4% vanadium, as well as a tension and proof load test certificate and a Go/No-Go thread gage record. Wisdom Titanium includes all three documents with every shipment.
Procuring Porsche Titanium Wheel Bolts: Best Practices for B2B Buyers
Getting Porsche titanium wheel bolts for a club or team's fleet is an example of project procurement, not stock procurement. The relationship you choose with your supplier affects how easy it is to track your items, get technical help, and make sure they arrive on time during multiple race seasons. Wisdom Titanium was founded in 2016 and is based in Baoji Titanium Valley in Shaanxi Province—China's largest integrated titanium production cluster—and the whole process of making their products is certified by ISO 9001.
The right provider gives you what you need in three ways. First, technical records like MTC, tensile reports, and physical inspection records must be ready before the first order. Second, being able to change the minimum order size is important for club group purchases; Wisdom Titanium can handle orders from 200 pieces upward with full tracking. Third, T80 tool kits should come as bundled accessories so that your technicians never have to go to a race event without the right socket.
Conclusion
The T80 drive is designed not to work with OEM Porsche hex-socket wheel tools. This is an engineering decision that is meant to be helpful, not a problem. It keeps the wheel in place, protects the seat surface, and only lets trained technicians install it. With their Grade 5 titanium construction, 13.5 mm floating ball seat, and rolled threads rated to 900–1,050 MPa, these Porsche titanium wheel bolts are a good choice for any club fleet or track-day operation. Connect the bolt to the right T80 tool, tighten to 130 Nm with anti-seize, and document everything.
FAQ
1. Can I use my existing OEM Porsche torque wrench with T80 bolts?
As long as you use a matched T80 socket adapter, your OEM Porsche torque wrench body will work. The drive profile does not care about the torque wrench mechanism itself; only the socket head does. When you place your order, make sure the T80 socket is rated for at least 150 Nm.
2. What anti-seize paste should I use with titanium wheel bolts?
Use an anti-seize paste made of copper or ceramic that can handle temperatures above 900°C. Molybdenum-sulfide (MoS₂) products should not be used because they can change the effective torque coefficient and cause Porsche titanium wheel bolts to have the wrong preload.
3. Are 29 mm bolts long enough with wheel spacers?
Not at all. To keep at least seven to nine full thread turns of engagement in the hub, order the 34 mm or 43 mm shank length for spacers that are 5 mm thick or more. Never compromise on the thread engagement depth; it is the most important measurement for load bearing.
4. How do I confirm batch traceability?
Before you ship, ask your seller for the heat lot number and MTC. These files come with Wisdom Titanium as normal. Keep the MTC with your service records so that any problems that happen while the Porsche titanium wheel bolts are in use can be checked against the original material data.
Request a Technical Quote from Wisdom Titanium
Wisdom Titanium sells Porsche titanium wheel bolts that are ISO 9001-certified. These bolts are made from Ti-6Al-4V and have hot-forged heads, rolled threads, and a T80 drive. They also come with full MTC paperwork and matched T80 tool kits. As a company based in Baoji Titanium Valley that makes and sells Porsche titanium wheel bolts, we can handle club group purchases from 200 pieces with consistent lead times. Please send your drawing or spec sheet to sales@wisdomtitanium.com to get a technical quote right away.
References
1. Journal of Materials Engineering and Performance — ASM International, 2018
2. Titanium: A Technical Guide — Matthew J. Donachie, ASM International, 2000
3. Fastener Technology International — Initial Publications, 2020
4. SAE International Journal of Materials and Manufacturing — SAE International, 2019
5. Porsche Workshop Manual: 997 Series (2005–2012) — Porsche AG, 2006
6. Metals Handbook, Volume 2: Properties and Selection — Nonferrous Alloys — ASM International, 1990
