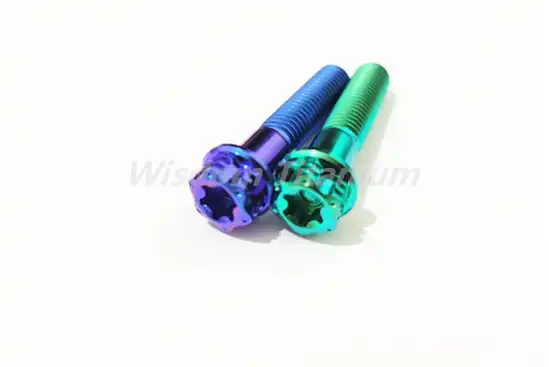

When it comes to high-performance fasteners, titanium Grade 5 bolts are often at the forefront of discussions in engineering and manufacturing circles. These bolts, known for their exceptional strength-to-weight ratio and corrosion resistance, play a crucial role in various industries, from aerospace to medical implants. But a common question that arises is: Is a Grade 5 bolt hardened?
Does Titanium Grade 5 Require Additional Hardening?
To answer this question, we first need to understand what titanium Grade 5 is. Also known as Ti-6Al-4V, this alloy contains 6% aluminum and 4% vanadium, along with titanium. This composition gives the material its remarkable properties without the need for additional hardening processes typically used for steel bolts.
Titanium Grade 5 bolts are naturally strong and hard due to their alloy composition. The presence of aluminum and vanadium in the titanium matrix creates a unique microstructure that provides excellent mechanical properties. These bolts exhibit high tensile strength, typically ranging from 895 to 1000 MPa (130,000 to 145,000 psi), which is comparable to many hardened steel alloys.
Unlike some steel bolts that require post-manufacturing hardening treatments, titanium Grade 5 bolts achieve their strength and hardness through the careful control of the alloy composition and the manufacturing process itself. The heat treatment applied during production, known as solution treating and aging (STA), optimizes the microstructure to achieve the desired mechanical properties.
This inherent strength and hardness mean that titanium Grade 5 bolts don't typically require additional hardening processes. They come out of the manufacturing process ready to perform in demanding applications, offering a combination of strength, lightweight, and corrosion resistance that makes them ideal for critical fastening needs.
Mechanical Strength vs. Hardness in Grade 5 Titanium Bolts
When discussing the properties of titanium Grade 5 bolts, it's essential to differentiate between mechanical strength and hardness. While these properties are related, they are not identical, and understanding the distinction is crucial for selecting the right fastener for a specific application.
Mechanical strength, particularly tensile strength, refers to the bolt's ability to withstand loads without breaking. Titanium Grade 5 bolts excel in this area, offering high tensile strength that allows them to bear significant loads relative to their weight. This strength makes them ideal for applications where weight savings are critical, such as in aerospace or high-performance automotive design.
Hardness, on the other hand, relates to the material's resistance to deformation and wear. Titanium Grade 5 bolts typically have a hardness ranging from 33 to 36 on the Rockwell C scale (HRC). This hardness level is sufficient for most applications, providing good wear resistance without being brittle.
The balance between strength and hardness in Grade 5 bolts is carefully engineered to provide optimal performance across a wide range of applications. While they may not be as hard as some specialized steel bolts, their combination of properties often makes them the superior choice, especially in environments where corrosion resistance and weight savings are priorities.
It's worth noting that while titanium Grade 5 bolts don't require additional hardening, their surface can be treated to enhance specific properties. For instance, nitriding or oxidizing processes can be applied to increase surface hardness and wear resistance without significantly altering the bolt's core properties.
Standards and Certifications for Hardened Titanium Grade 5 Bolts
The performance and reliability of titanium Grade 5 bolts are ensured through adherence to various international standards and certifications. These standards provide guidelines for manufacturing processes, material composition, and mechanical properties, ensuring that bolts meet the rigorous demands of critical applications.
One of the primary standards is ASTM F136, which specifies the requirements for wrought titanium-6 aluminum-4 vanadium ELI (Extra Low Interstitial) alloy for surgical implant applications. While this standard is specific to medical implants, it sets a high bar for material purity and performance that is often applied to Grade 5 bolts used in other industries.
For aerospace applications, standards such as AMS 4928 and AMS 4967 provide specifications for titanium alloy bars, wire, forgings, and rings. These standards ensure that titanium Grade 5 bolts used in aircraft construction meet the stringent requirements for strength, fatigue resistance, and reliability essential in aviation.
In addition to material standards, there are specific standards for fasteners made from titanium alloys. For example, ISO 8140 provides specifications for hexagon head bolts made from titanium alloys, including Grade 5. This standard covers dimensions, mechanical properties, and testing methods to ensure consistent quality and performance.
It's important to note that while these standards ensure the quality and performance of titanium Grade 5 bolts, they don't typically require additional hardening processes beyond the standard heat treatment applied during manufacturing. The natural properties of the alloy, when properly processed, meet or exceed the requirements for most applications without the need for further hardening.
When sourcing titanium Grade 5 bolts, look for certifications that demonstrate compliance with these standards. Reputable manufacturers like Wisdom Titanium provide comprehensive documentation, including material certifications and test reports, to verify that their bolts meet or exceed the required specifications.
About Wisdom Titanium
In conclusion, while titanium Grade 5 bolts are not typically "hardened" in the same way as some steel bolts, they possess inherent strength and hardness that make them suitable for a wide range of demanding applications. Their unique alloy composition and carefully controlled manufacturing process result in fasteners that offer an exceptional balance of strength, weight, and corrosion resistance.
The question "Is a Grade 5 bolt hardened?" can be answered with a nuanced "yes" – not through post-manufacturing hardening processes, but through the intrinsic properties of the titanium Grade 5 alloy. These bolts meet stringent industry standards and certifications, ensuring their reliability in critical applications across various sectors.
Wisdom Titanium, a leading manufacturer in the non-ferrous metal sector, invites industry professionals to explore our factory-direct offering of Ti-6Al-4V bolts, engineered to meet exacting specifications. With a broad size range (M1.6–M48), versatile threading options (UNC, UNF, Metric), and customizable surface finishes, these high-strength fasteners comply with stringent standards (DIN 933, ISO 7380, etc.). Leverage our competitive pricing, abundant stock, and minimum order quantities of 100 pcs to optimize cost-efficiency and reliability in critical applications. Contact sales@wisdomtitanium.com today.
References
- ASM International. (2015). Titanium: A Technical Guide, 2nd Edition.
- Leyens, C., & Peters, M. (Eds.). (2003). Titanium and Titanium Alloys: Fundamentals and Applications.
- Boyer, R., Welsch, G., & Collings, E. W. (1994). Materials Properties Handbook: Titanium Alloys.
- ASTM International. (2013). ASTM F136 - Standard Specification for Wrought Titanium-6Aluminum-4Vanadium ELI (Extra Low Interstitial) Alloy for Surgical Implant Applications.
- Donachie, M. J. (2000). Titanium: A Technical Guide, 2nd Edition.
