How to measure socket head cap screw length?

Socket head cap screws are essential fasteners in various industries, known for their strength and versatility. When it comes to precision engineering, particularly with materials like titanium, understanding how to measure these screws correctly is crucial. This guide will walk you through the process of measuring socket head cap screw length, with a special focus on titanium socket head screws.

Standard Length Definition

Before diving into the measurement process, it's crucial to have a clear understanding of what constitutes the "length" of a socket head cap screw. The standard length of a socket head cap screw is precisely defined as the distance from the underside of the head to the extreme end of the screw. This specific measurement explicitly excludes the head itself, focusing solely on the portion of the screw that protrudes beyond the head to engage with the mating threaded component.

For titanium socket head screws, this definition takes on even greater significance. Titanium is renowned for its exceptional combination of properties that make it an ideal material for a wide range of demanding applications. Its high strength-to-weight ratio allows for the design of lightweight yet robust components, which is particularly advantageous in aerospace, medical, and high-performance industries where weight reduction and superior mechanical performance are critical considerations. Additionally, titanium exhibits excellent corrosion resistance, biocompatibility, and the ability to withstand extreme temperatures and environments. These unique attributes have propelled titanium socket head screws to the forefront of choice in sectors such as aircraft manufacturing, where they are used to secure critical components in airframes and engines; in medical device fabrication, where they serve as implants or fasteners in surgical instruments; and in high-performance automotive and sporting equipment, where their reliability and performance under stress are indispensable.

It's worth noting that while the general principle remains the same, there can be slight variations in measurement standards between different manufacturers or industries. Always refer to the specific standards relevant to your application.

Step-by-Step Measurement Process

Measuring a socket head cap screw, including a titanium socket head screw, involves a few simple steps. Here's how to do it accurately:

1. Gather Your Tools: You'll need a precise measuring instrument. For most applications, a digital caliper is ideal. It provides accurate measurements and can easily measure both internal and external dimensions.
2. Clean the Screw: Ensure the screw is clean and free from any debris or coatings that might affect the measurement.
3. Position the Screw: Place the screw on a flat, stable surface with the head facing down. This position ensures that the screw lies straight and prevents it from rolling, which could introduce errors into your measurement. If the screw tends to shift or wobble, you can use a small, soft pad, such as a piece of foam or a microfiber cloth, to stabilize it without compressing or distorting the screw's body. Avoid using hard materials for stabilization, as they might scratch the screw or alter its natural resting position.
4. Measure from Base to Tip: Using your caliper, carefully position the measuring jaws. Align the bottom jaw of the caliper with the underside of the screw head—this is the point where the screw would make contact with a surface when installed. Ensure the caliper is perpendicular to the screw's axis to avoid skewed measurements. Then, extend the upper jaw to the very tip of the screw. Apply consistent, gentle pressure to keep the caliper steady without compressing the screw. For optimal accuracy, take the measurement at multiple points around the screw's circumference, especially if the screw shows any signs of wear or deformation. In the case of titanium screws, their hardness might cause increased wear on the measuring tool's jaws over time. To mitigate this, regularly inspect your caliper for signs of wear or damage, and replace the jaws if necessary. Also, consider using a protective coating or insert on the caliper's jaws to minimize scratches on both the tool and the screw.
5. Record the Measurement: Note down the measurement, typically in millimeters or inches, depending on your preferred system.
6. Repeat for Accuracy: For the most precise results, take multiple measurements and average them.

When dealing with titanium socket head screws, it's crucial to be extra careful during measurement. Titanium's hardness can sometimes lead to wear on measuring tools, so ensure your instruments are in good condition.

Key Notes and Common Pitfalls

While measuring socket head cap screws might seem straightforward, there are several key points to keep in mind and common mistakes to avoid:

• Don't Include the Head: Remember, the length doesn't include the head of the screw. This is a common mistake that can lead to incorrect measurements.
• Be Aware of Partial Thread Lengths: Some socket head cap screws, including titanium ones, may have partially threaded shafts. The total length includes both the threaded and unthreaded portions.
• Consider Tolerance: All manufacturing processes have tolerances. For titanium socket head screws, these tolerances are often tighter due to the material's properties and typical high-precision applications.
• Check for Wear: If you're measuring a used screw, be aware that wear might have slightly altered its dimensions.
• Use the Right Tools: While a ruler might seem sufficient, for precise measurements, especially with titanium screws, use a caliper or micrometer.
• Account for Coatings: Some titanium socket head screws may have special coatings. These can affect the measurement, so be sure to account for them if necessary.

It's also worth noting that titanium socket head screws often come with specific certifications or material composition details. While these don't directly affect length measurement, they're crucial for ensuring the screw meets the required specifications for your application.

Understanding how to accurately measure socket head cap screws is vital for ensuring proper fit and function in any application. This is especially true for titanium socket head screws, which are often used in critical, high-performance scenarios where precision is paramount.

By following these guidelines and being aware of potential pitfalls, you can ensure accurate measurements and selection of the right screws for your needs. Remember, when in doubt, it's always best to consult with a professional or the manufacturer directly, particularly when dealing with specialized materials like titanium.

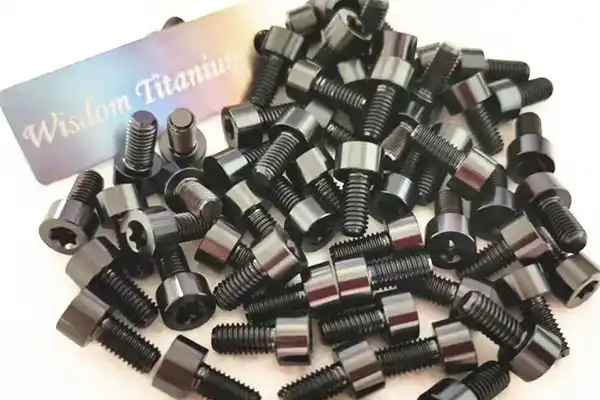

At Wisdom Titanium, we are your trusted partner in the non-ferrous metal industry. Our titanium parallel socket head screw DIN 912 titanium grade 5 is of top quality. We offer various sizes to meet different needs. And the colors are diverse, including Rainbow, blue, gold, black, purple, burnt, red, and green. If you're interested in our products and want to know more details or get a quote, please don't hesitate to contact us. Simply send an enquiry to sales@wisdomtitanium.com. Let's work together and explore the potential of titanium products!
