When it comes to precision engineering and high-performance applications, titanium countersunk head bolts are often the fastener of choice. These specialized bolts offer a unique combination of strength, lightweight properties, and corrosion resistance that make them invaluable in industries such as aerospace, automotive, and marine engineering. However, to ensure optimal performance and safety, it's crucial to select the right size for your specific application. In this comprehensive guide, we'll walk you through the process of determining the size of titanium countersunk head bolts, providing you with the knowledge you need to make informed decisions for your projects.
What are the key parameters for determining the size of titanium countersunk head bolts?
Before delving into the measurement process, it's essential to understand the key parameters that define the size of a titanium countersunk head bolt. These parameters not only affect the bolt's fit and function but also its load-bearing capacity and overall performance. Let's explore these critical dimensions:
1. Overall Length
The overall length of a titanium countersunk head bolt is measured from the tip of the threaded portion to the top of the head. This dimension is crucial as it determines how far the bolt will protrude through the material being fastened. Selecting a bolt with the correct length ensures a secure fit without excessive protrusion or insufficient engagement.
2. Thread Diameter
The thread diameter, often referred to as the nominal size, is the outer diameter of the threaded portion of the bolt. This dimension is typically expressed in millimeters for metric bolts (e.g., M6, M8) or inches for imperial bolts (e.g., 1/4", 3/8"). The thread diameter must match the tapped hole or nut it will be paired with for proper engagement and load distribution.
3. Thread Pitch
Thread pitch refers to the distance between adjacent threads, measured in millimeters for metric bolts or threads per inch (TPI) for imperial bolts. This parameter is crucial for ensuring compatibility with mating threads and affecting the bolt's tensile strength and resistance to loosening.
4. Head Diameter
The head diameter of a countersunk bolt is the widest part of the conical head. This dimension is important for ensuring the bolt head fits properly into the countersunk hole and sits flush with the surface of the material being fastened.
5. Head Angle
The head angle is the angle of the conical surface of the bolt head, typically 82° or 90° for most countersunk bolts. This angle must match the countersink in the material to ensure a proper fit and load distribution.
6. Drive Size
For titanium countersunk head bolts with internal drive mechanisms (such as hex or Torx), the drive size refers to the dimensions of the recess in the bolt head. This parameter is crucial for selecting the appropriate tool for installation and removal.
Understanding these key parameters is the first step in determining the correct size for your titanium countersunk head bolts. With this knowledge, you can move on to the precise measurement techniques required for accurate sizing.
How to measure the length, diameter, and head dimensions accurately?
Accurate measurement is paramount when determining the size of titanium countersunk head bolts. Even small discrepancies can lead to improper fit, reduced performance, or potential failure. Here's a step-by-step guide to measuring the critical dimensions of your bolts:
Measuring Overall Length
1. Use a digital caliper or micrometer for the most accurate results.
2. Place the bolt flat on a surface with the head facing up.
3. Measure from the tip of the threads to the top of the head.
4. For bolts with a partially threaded shank, measure both the total length and the length of the threaded portion separately.
Measuring Thread Diameter
1. Use a thread pitch gauge to determine the thread pitch first.
2. Once you know the pitch, use a digital caliper to measure the outer diameter of the threads.
3. Take multiple measurements along the threaded portion and average the results for accuracy.
Measuring Head Diameter and Angle
1. Use a digital caliper to measure the widest part of the bolt head.
2. For the head angle, use a protractor or angle gauge to measure the conical surface of the head.
3. Alternatively, consult manufacturer specifications for standardized head angles (typically 82° or 90°).
Measuring Drive Size
1. For hex drive bolts, use a set of hex keys to determine the correct size that fits snugly in the recess.
2. For Torx or other drive types, use the corresponding driver set to identify the correct size.
Pro Tip: When measuring titanium countersunk head bolts, always use calibrated measuring tools and take multiple measurements to ensure accuracy. Remember that titanium's unique properties, such as its lower thermal expansion coefficient compared to steel, can affect measurements in extreme temperature conditions.
By following these measurement techniques, you'll be able to accurately determine the size of your titanium countersunk head bolts, ensuring you select the right fasteners for your application. However, it's also important to be aware of standard size specifications to streamline your selection process.
What are the standard size specifications for titanium countersunk head bolts?
While custom sizes are available for specialized applications, most titanium countersunk head bolts adhere to standardized specifications. Familiarizing yourself with these standards can significantly simplify the selection process and ensure compatibility across different manufacturers and applications. Let's explore the most common standards and size ranges:
Metric Standards (ISO)
Metric titanium countersunk head bolts typically follow ISO (International Organization for Standardization) standards, such as ISO 10642 for hexagon socket countersunk head screws. Common metric sizes include:
- Thread Diameters: M3, M4, M5, M6, M8, M10, M12, M16, M20
- Lengths: Ranging from 6mm to 100mm, with increments varying based on the thread diameter
- Thread Pitches: Coarse and fine threads available, e.g., M8x1.25 (coarse) or M8x1.0 (fine)
Imperial Standards (ANSI/ASME)
For applications using imperial measurements, titanium countersunk head bolts often adhere to ANSI (American National Standards Institute) or ASME (American Society of Mechanical Engineers) standards. Common imperial sizes include:
- Thread Diameters: 1/4", 5/16", 3/8", 1/2", 5/8", 3/4"
- Lengths: Ranging from 1/4" to 4", with various increments
- Thread Counts: Expressed in threads per inch (TPI), e.g., 1/4"-20 or 3/8"-16
Head Styles and Drive Types
Titanium countersunk head bolts are available in various head styles and drive types to suit different applications:
- 82° Countersunk: The most common angle for general-purpose applications
- 90° Countersunk: Often used in aerospace and high-performance applications
- Hex Socket (Allen): Popular for its ease of use and low-profile head
- Torx: Offers higher torque transfer and reduced cam-out compared to hex sockets
- Phillips: Less common in titanium bolts but available for specific applications
Material Grades
Titanium countersunk head bolts are typically available in two main grades:
- Grade 2 (Commercially Pure Titanium): Offers excellent corrosion resistance and moderate strength
- Grade 5 (Ti-6Al-4V): Provides higher strength and is commonly used in aerospace and high-performance applications
When selecting titanium countersunk head bolts, it's crucial to consider not only the size specifications but also the material grade and head style that best suit your application's requirements. Factors such as load-bearing capacity, corrosion resistance, and ease of installation should all play a role in your decision-making process.
Remember that while standardized sizes cover a wide range of applications, custom sizes and specifications are available for unique or specialized projects. When in doubt, consult with a reputable manufacturer or distributor of titanium fasteners to ensure you're selecting the optimal bolt for your specific needs.

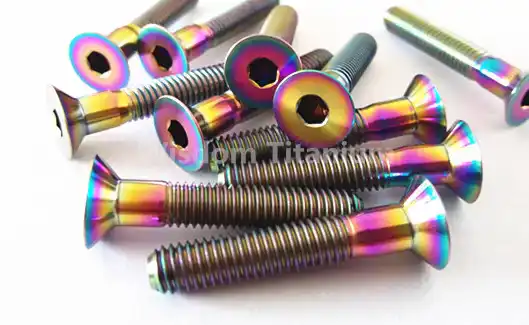

China Titanium Countersunk Head Bolts
Determining the size of titanium countersunk head bolts is a critical step in ensuring the success and safety of your engineering projects. By understanding the key parameters, mastering accurate measurement techniques, and familiarizing yourself with standard size specifications, you'll be well-equipped to make informed decisions when selecting these high-performance fasteners.
Whether you're working on aerospace components, marine equipment, or cutting-edge automotive designs, the right titanium countersunk head bolts can make all the difference in your project's performance and longevity. Remember to always prioritize accuracy in your measurements and consult with experts when dealing with specialized applications.
At Baoji Wisdom Titanium, we specialize in providing top-quality titanium fasteners for a wide range of industries. Our team of experts is always ready to assist you in selecting the perfect titanium countersunk head bolts for your specific needs. Don't leave your project's success to chance – reach out to us today at sales@wisdomtitanium.com and let us help you secure your next breakthrough with precision-engineered titanium fasteners.
