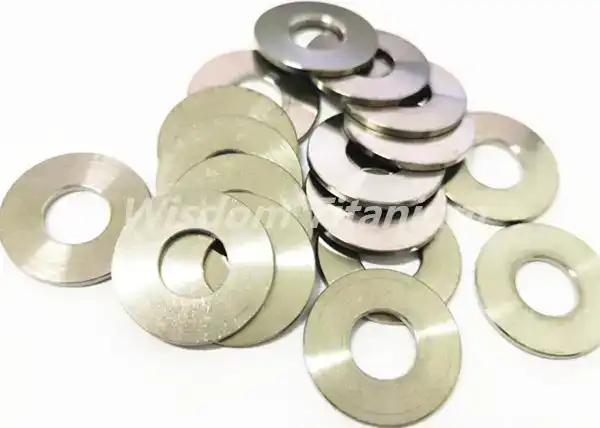

When working with precision components like titanium flat washers, understanding how to accurately check their size is crucial. Whether you're a seasoned engineer or a DIY enthusiast, knowing the correct dimensions of your washers can make a significant difference in the success of your project. In this comprehensive guide, we'll walk you through the process of checking titanium flat washer sizes, ensuring you have the right components for your assembly.
Steps to Measure Washer Dimensions Accurately
Accurately measuring the dimensions of a titanium flat washer is a meticulous process that requires attention to detail. Here's a step-by-step guide to help you achieve precise measurements:
1. Gather the Necessary Tools
Before you begin, make sure you have the following tools at hand:
- Digital caliper or micrometer
- Clean, flat surface
- Magnifying glass (optional, for small washers)
- Cleaning cloth
2. Clean the Washer
Use a clean, lint-free cloth to remove any dirt, debris, or oil from the washer. This step is crucial as even small particles can affect your measurements.
3. Measure the Outer Diameter
Place the washer on a flat surface and use your digital caliper to measure the outer diameter. Take multiple measurements at different points around the circumference to ensure consistency.
4. Measure the Inner Diameter
Next, measure the inner diameter of the washer. This is the size of the hole in the center. Again, take multiple measurements for accuracy.
5. Measure the Thickness
Use your caliper or micrometer to measure the thickness of the washer. Take measurements at several points around the washer to account for any variations.
6. Record Your Measurements
Note down all your measurements, including any variations you observed. It's a good practice to take an average of multiple measurements for each dimension.
7. Compare with Specifications
Compare your measurements with the manufacturer's specifications or the requirements of your project. Remember that titanium flat washers are often manufactured to tight tolerances, so even small discrepancies can be significant.
By following these steps, you can ensure that you're working with accurate measurements of your titanium flat washers. This precision is essential for maintaining the integrity of your assemblies and ensuring optimal performance.
Importance of Verifying Size Before Installation
Verifying the size of your titanium flat washers before installation is a critical step that should never be overlooked. Here's why it's so important:
Ensuring Proper Fit
The primary reason for checking washer size is to ensure a proper fit in your assembly. A washer that's too small may not provide adequate load distribution, while one that's too large could interfere with other components or fail to sit flush against surfaces.
Maintaining Structural Integrity
Titanium washers are often used in high-stress applications where structural integrity is paramount. Using a washer of the incorrect size can compromise the strength of the joint, potentially leading to failure under load.
Preventing Assembly Issues
Incorrect washer sizes can lead to a host of assembly issues, including:
- Difficulty in tightening fasteners
- Misalignment of components
- Gaps in the assembly that can lead to corrosion or fluid leaks
- Increased wear on mating surfaces
Ensuring Compliance with Specifications
Many projects, especially in industries like aerospace or medical devices, have strict specifications for component sizes. Verifying washer size ensures compliance with these specifications and maintains the quality and safety of the final product.
Cost Savings
While it might seem like a small detail, using the correct size washer can lead to significant cost savings in the long run. It reduces the likelihood of assembly failures, minimizes the need for rework, and extends the lifespan of your components.
Optimizing Performance
In applications where precision is key, such as in high-performance machinery or scientific instruments, using the correct size washer can have a direct impact on the performance of the entire system.
By taking the time to verify the size of your titanium flat washers before installation, you're not just ensuring a smoother assembly process – you're safeguarding the quality, safety, and performance of your entire project.
Tips for Ensuring Correct Fit in Assemblies
Once you've accurately measured your titanium flat washers, the next step is ensuring they fit correctly in your assembly. Here are some practical tips to help you achieve the perfect fit:
1. Consider the Application
Different applications require different washer fits. For example:
- In high-vibration environments, a slightly tighter fit may be necessary to prevent loosening.
- For applications involving thermal expansion, a bit more clearance might be needed.
- In corrosive environments, ensure the washer material is compatible with other components.
2. Check Mating Components
Verify that the washer is compatible with the bolt or screw it will be paired with. The inner diameter of the washer should be slightly larger than the fastener's outer diameter, but not so large that it allows excessive movement.
3. Use Proper Installation Techniques
When installing titanium flat washers:
- Ensure surfaces are clean and free from debris.
- Align the washer properly before tightening the fastener.
- Use appropriate torque specifications to avoid over-tightening.
4. Consider Stack-up Tolerances
In assemblies with multiple components, consider the cumulative effect of tolerances. Even if each individual component is within spec, the combined tolerances could lead to fitment issues.
5. Use Specialized Tools When Necessary
For precise installations, consider using tools like torque wrenches or specialized alignment fixtures to ensure consistent and accurate assembly.
6. Perform Test Fits
Before final assembly, perform a test fit to ensure all components align correctly and the washers are providing the intended function.
7. Document Your Process
Keep detailed records of the washers used, including their dimensions and any specific installation notes. This can be invaluable for future maintenance or replication of the assembly.
8. Consider Environmental Factors
Take into account the environment in which the assembly will operate. Factors like temperature fluctuations, exposure to chemicals, or high-pressure conditions can affect the performance of titanium flat washers over time.
9. Consult with Experts
If you're working on a critical application or are unsure about the best fit for your needs, don't hesitate to consult with fastener specialists or engineers. Their expertise can help you avoid potential issues and optimize your assembly.
10. Regular Inspection and Maintenance
Even with perfect initial fit, regular inspection and maintenance of assemblies using titanium flat washers is crucial. This can help identify any issues early and ensure long-term performance.
By following these tips, you can ensure that your titanium flat washers not only fit correctly but also contribute to the overall success and longevity of your assembly. Remember, the small details often make the biggest difference in engineering and construction projects.
