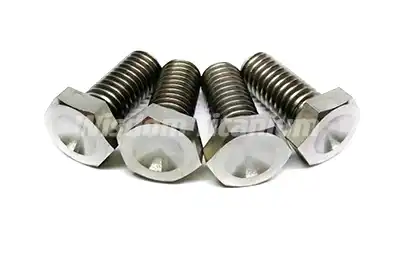

When it comes to choosing the right fastener for your project, understanding the load capacity is crucial. Titanium Grade 2 bolts are known for their exceptional strength-to-weight ratio, corrosion resistance, and biocompatibility. But how much can these versatile fasteners actually hold? In this article, we'll dive into the tensile and shear load capacities of Grade 2 titanium bolts, as well as some important considerations for their use.
Tensile Load Capacity
The tensile load capacity of a titanium Grade 2 bolt is of paramount importance as it signifies the bolt's capability to resist forces that act to pull it apart in a lengthwise direction. This characteristic plays a crucial role in a multitude of applications, particularly in scenarios where suspended loads are involved or where the structural integrity of a system is paramount. Titanium Grade 2, which is also commonly referred to as commercially pure titanium, boasts a minimum tensile strength of 50,000 psi (345 MPa).
When it comes to determining the actual load capacity of a specific titanium Grade 2 bolt, a comprehensive consideration of its size and thread pitch is essential. Take a 1/2 - inch diameter Grade 2 titanium bolt with a coarse thread (UNC) as an illustrative example. Through rigorous testing and precise calculations, it has been established that such a bolt possesses a tensile load capacity of roughly 12,800 lbs (5,800 kg). This load-bearing ability opens up a broad spectrum of possibilities for these bolts. They are frequently employed in highly demanding fields such as the aerospace industry, where the safety and reliability of aircraft components are of utmost importance, and the marine environment, where bolts are constantly exposed to harsh conditions like saltwater corrosion and fluctuating loads.
However, it is crucial to recognize that the load capacity of titanium Grade 2 bolts is not a fixed value. It can exhibit variation due to a variety of factors. The length of the bolt, for instance, has a significant impact. A longer bolt may distribute stress differently compared to a shorter one, thereby influencing its load capacity. The type of threading is another critical factor. Different threading standards, such as UNC (Unified National Coarse) and UNF (Unified National Fine), have varying thread profiles and pitch diameters, which in turn affect the load-bearing characteristics of the bolt. Moreover, the specific manufacturing process also plays a pivotal role. The way the bolt is machined, heat-treated, and finished can introduce subtle differences in its mechanical properties, including tensile strength.
Shear Load Capacity
Shear load capacity is another vital aspect of a titanium Grade 2 bolt's performance. While tensile strength is crucial for resisting forces that pull the bolt apart lengthwise, shear load capacity determines the bolt's ability to withstand forces acting perpendicular to its axis. These shear forces can cause the bolt to fail by sliding past itself along a plane, which is a common failure mode in many mechanical applications.
The shear strength of Grade 2 titanium is typically about 60% of its tensile strength. Given that the minimum tensile strength of Grade 2 titanium is 50,000 psi (345 MPa), this translates to a shear strength of approximately 30,000 psi (207 MPa). This substantial shear strength makes titanium Grade 2 bolts highly effective in applications where lateral forces are a primary concern.
To illustrate this capability, let's revisit our previous example of a 1/2 - inch diameter Grade 2 titanium bolt. Using established engineering formulas and considering the bolt's cross-sectional area, the shear load capacity of this bolt would be around 7,680 lbs (3,480 kg). This impressive value underscores why titanium Grade 2 bolts are widely used in demanding fields. In automotive suspensions, they can reliably handle the side - to - side forces experienced during vehicle operation. In aircraft structural components, they contribute to the overall safety and durability of the aircraft by withstanding the various lateral stresses encountered during flight.
However, it's crucial to emphasize that the values mentioned above are theoretical maximums. In practical applications, engineers never design systems to operate at these extreme limits. Instead, they apply a safety factor to ensure the bolt operates well within its limits.
Important Notes
While titanium Grade 2 bolts offer impressive strength and corrosion resistance, there are several important factors to consider when using them:
- Galling: Titanium has a tendency to gall or cold-weld when in contact with itself or certain other metals. This can be mitigated by using appropriate lubricants or coatings, or by pairing titanium bolts with nuts made from different materials.
- Torque specifications: Due to titanium's unique properties, standard torque values for steel bolts may not apply. It's crucial to follow manufacturer-specific guidelines or consult with a specialist to ensure proper tightening without risking damage to the bolt or the joined materials.
- Temperature considerations: While Grade 2 titanium performs well in a wide range of temperatures, extreme heat or cold can affect its properties. For applications involving temperature extremes, it's essential to consider these factors in your load calculations.
- Cost: Titanium Grade 2 bolts are generally more expensive than their steel counterparts. However, their superior corrosion resistance and strength-to-weight ratio often make them a cost-effective choice in the long run, especially in harsh environments or weight-sensitive applications.
- Proper installation: To achieve the full load capacity of titanium Grade 2 bolts, proper installation is crucial. This includes using the correct tools, following torque specifications, and ensuring that mating surfaces are clean and properly prepared.
In conclusion, titanium Grade 2 bolts offer exceptional load-bearing capabilities, making them suitable for a wide range of demanding applications. Their combination of high strength, low weight, and excellent corrosion resistance makes them a preferred choice in industries such as aerospace, marine, and medical technology. However, to fully leverage their capabilities, it's essential to consider factors such as galling, proper installation, and specific application requirements.
At Wisdom Titanium, we specialize in providing high-quality titanium Grade 2 bolts in various sizes and thread types, all ASTM certified to ensure reliability and performance. Whether you need standard sizes or custom solutions, our team is ready to assist you in finding the perfect fasteners for your project. Contact us at sales@wisdomtitanium.com to discuss your specific requirements and learn more about how our Grade 2 bolts can benefit your application.
References
- ASTM B348 - Standard Specification for Titanium and Titanium Alloy Bars and Billets
- ASTM F67 - Standard Specification for Unalloyed Titanium, for Surgical Implant Applications
- ASM International. (2015). Titanium: A Technical Guide, 2nd Edition.
- Donachie, M. J. (2000). Titanium: A Technical Guide, 2nd Edition. ASM International.
