When it comes to high-performance fasteners, titanium grade 5 bolts are often the go-to choice for engineers and manufacturers across various industries. These bolts, made from the Ti-6Al-4V alloy, offer an exceptional combination of strength, lightweight properties, and corrosion resistance. However, with the prevalence of counterfeit materials in the market, it's crucial to know how to identify genuine grade 5 bolts. In this comprehensive guide, we'll explore the visual and physical characteristics, markings, standards, and testing methods that can help you determine if your bolt is indeed titanium grade 5.

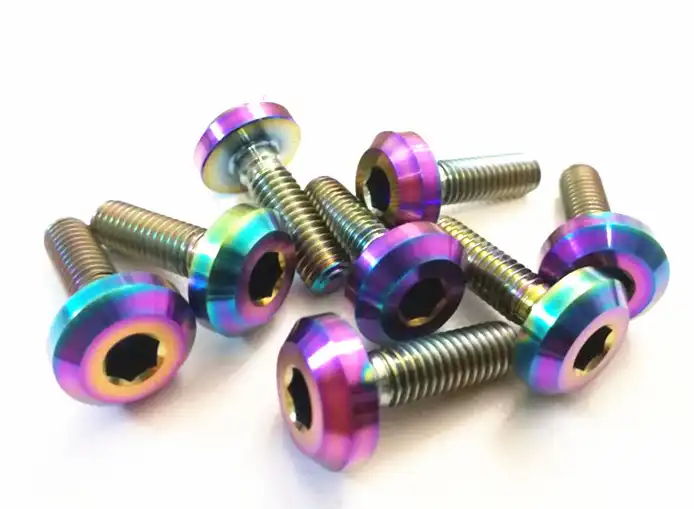

Visual and Physical Characteristics of Grade 5 Titanium Bolts
Titanium grade 5 bolts have distinct visual and physical properties that set them apart from other materials. One of the most noticeable characteristics is their color. These bolts typically have a dark gray or slightly bluish-gray appearance, which is quite different from the shiny silver look of stainless steel or the duller appearance of aluminum.
The surface of titanium grade 5 bolts often has a matte finish, which can be attributed to the natural oxide layer that forms on titanium when exposed to air. This oxide layer is what gives titanium its excellent corrosion resistance. However, it's important to note that the exact appearance can vary depending on the manufacturing process and any surface treatments applied.
Another physical characteristic to look out for is the weight. Grade 5 bolts are significantly lighter than their steel counterparts of the same size. If you're familiar with handling different types of bolts, you might notice this difference immediately. The density of titanium grade 5 is approximately 4.43 g/cm³, which is about 40% less dense than steel.
Titanium grade 5 bolts also have a unique feel when handled. They often feel "warm" to the touch compared to steel bolts, which tend to feel cooler. This is due to titanium's lower thermal conductivity. While this characteristic alone isn't definitive proof, it can be a useful indicator when combined with other identifying factors.
It's worth mentioning that these visual and physical characteristics, while helpful, should not be relied upon exclusively to determine if a bolt is titanium grade 5. Experienced professionals might be able to make educated guesses based on these properties, but for definitive identification, additional methods are necessary.
How to Identify Grade 5 Titanium Bolts by Markings or Standards?
One of the most reliable ways to identify titanium grade 5 bolts is through their markings and adherence to specific standards. Reputable manufacturers often include markings on their bolts to indicate the material grade and other important information.
For titanium grade 5 bolts, you might find markings such as "Ti-6Al-4V" or simply "Gr5" stamped on the bolt head. These markings directly indicate that the bolt is made from the titanium grade 5 alloy. Some manufacturers might also include their company logo or name alongside these grade markings.
In addition to material grade, grade 5 bolts often conform to specific industry standards. For instance, aerospace-grade titanium fasteners might comply with standards such as AMS 4928 or AMS 4967. In the metric system, titanium grade 5 bolts often adhere to ISO 3506-1 for mechanical properties.
It's important to note that different industries might use different standards. For example, medical-grade titanium fasteners might comply with ASTM F136, which is specific to the implant-grade version of Ti-6Al-4V. Understanding the relevant standards for your specific application can help you identify the correct grade of titanium bolt.
Another aspect to consider is the bolt's head marking. In the case of imperial-sized bolts, grade 5 titanium bolts often have three radial lines on their heads, similar to SAE grade 5 steel bolts. However, it's crucial to remember that this marking alone doesn't guarantee the bolt is titanium; it merely indicates the strength grade.
When sourcing grade 5 bolts, always request material certifications from your supplier. These documents should provide detailed information about the bolt's composition, mechanical properties, and conformance to relevant standards. Reputable suppliers like Wisdom Titanium provide comprehensive documentation to verify the authenticity and quality of their products.
Testing Methods for Verifying Titanium Grade and Purity
While visual inspection and markings can provide initial indications, definitive identification of titanium grade 5 bolts often requires more advanced testing methods. These tests can verify both the grade and purity of the titanium alloy used in the bolt.
One of the most common and reliable methods is X-ray fluorescence (XRF) spectroscopy. This non-destructive technique can quickly determine the elemental composition of the bolt. For titanium grade 5, you would expect to see approximately 90% titanium, 6% aluminum, and 4% vanadium, along with trace amounts of other elements. XRF analysis can be performed on-site with portable devices, making it a convenient option for many industries.
Another effective method is optical emission spectroscopy (OES). This technique involves vaporizing a small sample of the material and analyzing the light emitted to determine its composition. While more complex than XRF, OES can provide highly accurate results and detect a wider range of elements.
For applications where the highest level of certainty is required, destructive testing methods might be employed. These could include tensile testing to verify mechanical properties, or chemical analysis techniques like inductively coupled plasma mass spectrometry (ICP-MS) for precise elemental analysis.
Hardness testing can also provide valuable information. Titanium grade 5 typically has a Rockwell C hardness of about 36 HRC. While this test alone cannot confirm the grade, it can be a useful complementary method when combined with other tests.
It's worth noting that these advanced testing methods often require specialized equipment and expertise. In many cases, it may be necessary to send samples to a certified materials testing laboratory for analysis. However, for critical applications where material authenticity is paramount, these tests provide the most reliable confirmation of titanium grade and purity.
When dealing with titanium grade 5 bolts, it's always best to source from reputable suppliers who can provide full traceability and material certifications. Companies like Wisdom Titanium not only offer high-quality titanium fasteners but also provide the necessary documentation to verify their products' authenticity and compliance with relevant standards.
Wisdom Titanium, a leading manufacturer in the non-ferrous metal sector, invites industry professionals to explore our factory-direct offering of Titanium Grade 5 Bolts (Ti-6Al-4V), engineered to meet exacting specifications. Contact sales@wisdomtitanium.com today.
