Choosing the correct stud length for your exhaust manifold starts with measuring the manifold thickness, gasket stack height, and required thread engagement depth — then adding a small allowance for the nut. As a general rule, your stud must engage the cylinder head by at least 1.5× the bolt diameter for solid mechanical retention. For high-performance builds, switching to titanium exhaust manifold stud kits is a smart move: Grade 5 titanium (Ti-6Al-4V) delivers tensile strength ≥950 MPa at roughly 45% less weight than steel, while resisting corrosion and thermal fatigue across repeated heat cycles.
Why Stud Length Actually Matters on an Exhaust Manifold
It costs real money to get this wrong. If the stud is too short, the threads will come off when the metal expands, and if it's too long, the nut won't fit flush, which will lead to uneven clamping and gasket leaks. Exhaust manifold studs are different from regular bolts because they spread the clamp load more evenly across the flange. This lets the manifold expand and contract without pulling the fastener loose.
Consequences of the Wrong Length
Most of the time, thread stripping happens because the engagement is too short. When using M8 studs, the smallest hole that they can go through in an aluminum head is 12 mm (1.5 inches). If you don't do that, the threads will come loose when the engine shakes, especially in turbocharged cars where the exhaust gas temperature often goes over 700 °C.
Why Studs Outperform Bolts Here
When you thread in a bolt, it turns, which scores the aluminum threads over time. A screw stays in place while the nut is tightened, keeping the head threads safe. OEM engineers and race teams use studs instead of cap bolts on manifold joints because of this. This is especially true when the engine goes through a lot of heat soak cycles.
Titanium vs. Steel in a Thermal Environment
Steel bolts expand at about 12 µm/m·°C, while Ti-6Al-4V expands at about 8.6 µm/m·°C, which is closer to the rate of expansion for cast iron cylinder heads. This means that there is less differential thermal stress at the joint. Because of how it is made, titanium exhaust manifold stud kits are the better long-term choice for any high-speed engine.
Key Factors That Determine the Right Stud Length
There isn't a single number that works for everything. The right stud length for your setup depends on four factors working together.
Manifold Flange Thickness
Use tools to measure the base where it is thickest. OEM manifolds made of cast iron are usually 8–12 mm thick. Racing manifolds made of stainless steel or Inconel can be 6–8 mm thick. When you figure out the length, you should start with this measurement and take into account any differences across the flange face.
Gasket Stack Height
A normal exhaust pipe cover adds between 1.2 and 2.5 mm. In high-boost builds, multi-layer steel (MLS) seals are used. These are thinner but contract in a different way. To keep the stud from being over-tensiled, always use the width of the gasket when it is not compressed in your calculations and then check the compressed number on the manufacturer's datasheet.
Thread Engagement Depth
No matter what, thread engagement is a must. Aim for at least 12 mm of contact for M8 × 1.25 mm studs that are threaded into a metal head. Aim for at least 15 mm for M10 × 1.25 mm. Thread pullout happens when there isn't enough engagement in softer aluminum, and bottoming the stud before clamping force is reached happens when there is too much depth in shallow bosses.
Engine Application and Nut Type
OEM street engines, turbocharged track cars, and supercharged drag builds all put different amounts of thermal and mechanical stress on the car. The length of the visible stud that is needed depends on the type of nut that is used. A standard hex nut needs about 8–10 mm of contact, while a hex flange nut or 12-point nut may need a little less. Lock nuts also allow for a small amount of length.
Step-by-Step: Measuring and Calculating Stud Length
A methodical process gets rid of guesswork and stops mistakes that cost a lot of money. This is the method I use:
Needed stud length = Thread engagement depth + Manifold flange thickness + Gasket thickness + Nut engagement + 2 mm clearance
This is how you can use it in real life:
- Step 1 — Measure the cylinder head boss depth using a depth gauge. Record to the nearest 0.5 mm.
- Step 2 — Measure manifold flange thickness with digital calipers at three points across the flange face.
- Step 3 — Record uncompressed gasket thickness from the gasket datasheet or measure directly.
- Step 4 — Determine nut engagement length based on the nut style (12-point, hex flange, or lock nut).
- Step 5 — Sum all values and add 2 mm clearance. Cross-check against the stud kit size chart.
We can use this formula to find the minimum size for an M8 × 1.25 mm application with a 10 mm flange, a 1.5 mm gasket, a 12 mm head engagement, and a hex flange nut (8 mm engagement): 12 + 10 + 1.5 + 8 + 2 = 33.5 mm. A 45 mm stud gives you a safe space, which is why M8 × 1.25 × 45 mm is one of the most common sizes for speed exhaust kits.

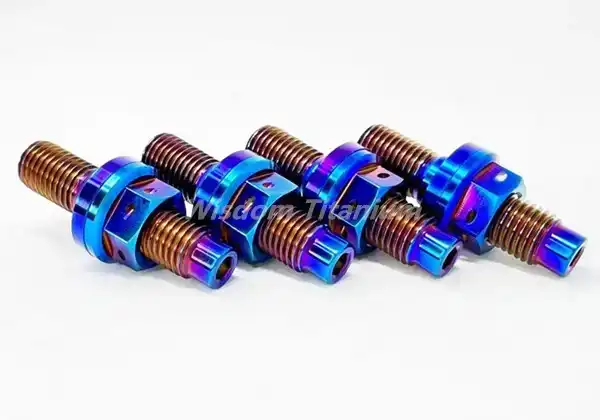

Titanium Exhaust Manifold Stud Kits vs. Other Materials
The choice of material affects how well replacement parts work over time, how much they cost to maintain, and how well-known the name is.
It is better for stainless steel studs than carbon steel because they don't rust, but they tend to gall up in aluminum heads and are heavier. Inconel 625 is better at withstanding high temps than titanium, but it costs a lot more and is hard to find in custom forms. This grade of titanium exhaust manifold stud kits is a good compromise because it can handle long-term exhaust heat, doesn't corrode when exposed to galvanic current, and is 45% lighter than steel without the higher cost of rare superalloys.
There are a few main benefits of this material that performance brands care about:
- Tensile strength ≥950 MPa (ASTM B348 Grade 5), exceeding Grade 8.8 steel fasteners
- 45% lighter than steel — measurable weight savings on multi-cylinder engines
- No rust, no seizure — removes easily even after years of heat cycling
- Thread fatigue resistance — rolled threads preserve grain structure for longer service life
- Visual differentiation — burnt blue, black, gold, and natural finishes add premium shelf appeal
Because of these features, Grade 5 titanium stud kits are really competitive for brands that want to be in the high-performance aftermarket, not just as a luxury upgrade.
Procurement and Maintenance Tips for Titanium Stud Kits
Material fraud is a real problem in the aftermarket fastener space, where Grade 2 pure titanium is sold as Grade 5. Getting your titanium exhaust manifold stud kits from a verified manufacturer will protect your brand from this. Before you place a large order, ask the supplier for XRF (X-Ray Fluorescence) material verification reports and thread gage certificates.
Installation Best Practices
Before fitting, you should always use a high-temperature anti-seize solution made of nickel or copper. When titanium is run dry against other metal threads, it can gall, which means it will join together cold. Follow the instructions that came with your engine to torque M8 studs to 18–25 Nm and M10 studs to 35–45 Nm. Remember not to go over the yield torque. Because titanium is pliable, going over the yield torque will permanently damage it instead of stretching it out as you see with steel.
Inspection and Reuse Guidelines
Titanium studs can be used again after the manifold is taken off as long as they haven't been over-torqued past their breaking point. Before using the thread again, look at the sides of it and see if there is any spinning resistance. That stud should be replaced if it spins in an oddly loose or tight way. Vehicles that are driven on tracks should have regular checks every 15,000 to 20,000 km.
Evaluating Supplier Reliability
When looking for a seller, three things stand out for business-to-business buyers: ISO 9001 certification (which proves process control), sample lead time of less than 15 days (which helps with product development cycles), and the ability to mix multiple SKUs into one batch. When a new product line comes out, inventory risk is greatly reduced when the supplier can ship M8 and M10 kits in different finishes from a single MOQ of 100 sets.
Conclusion
It is an exact scientific choice, not an educated guess, to choose the right stud length. Use the formula to find the thickness of your manifold, the height of your gasket, and the required thread engagement. Then, check your results against a reliable size chart. Grade 5 titanium exhaust manifold stud kits, which come in two sizes (M8 × 1.25 × 45 mm and M10 × 1.25 × 45/54 mm), can be used in most exhaust manifolds and are better in terms of performance and weight than steel. A good titanium stud kit will last longer than the manifold itself if it is installed with the right nut style and anti-seize.
FAQ
1. Does a titanium stud require anti-seize during installation?
Yes. Titanium is resistant to rust, but when it runs dry, it can gall up on other metal threads. Before installation, use a high-temperature nickel- or copper-based anti-seize to stop cold welding and make sure that it will be easy to remove for future maintenance.
2. What torque should I use for M8 and M10 titanium studs?
Tighten to 18–25 Nm for M8 × 1.25 mm studs. To get 35–45 Nm of torque on M10 × 1.25 mm screws, tighten them to that value. Always check the manual that came with your engine. Because titanium is so flexible, over-torquing it causes permanent deformation instead of stretching that can be seen.
3. Will burnt blue or PVD color fade over time?
When used at normal temperatures, high-quality PVD finishes last a very long time. Long-term contact with very high temperatures (manifolds burning red-hot) may change the color tone over time. But corrosion resistance stays the same no matter what color the surface changes to.
4. Can I reuse titanium studs after removing the manifold?
Yes, as long as they haven't been torqued too much. Visually check the state of the thread and look for resistance that doesn't seem normal when sewing by hand. Normal use doesn't change the fact that titanium screws stay strong much longer than steel ones.
