Choosing the correct countersunk washer size begins with matching the washer's inner diameter to your fastener's bolt size while ensuring the outer diameter provides adequate load distribution across your substrate. For titanium countersunk washers, you must also account for the countersink angle—typically 90° or 100°—to achieve a flush finish with your countersunk bolt head. Material thickness, load requirements, and environmental factors like corrosion exposure further refine your selection, making precise dimensional matching critical to avoid assembly failure or premature wear in high-performance applications.
Understanding Titanium Countersunk Washers and Their Dimensions

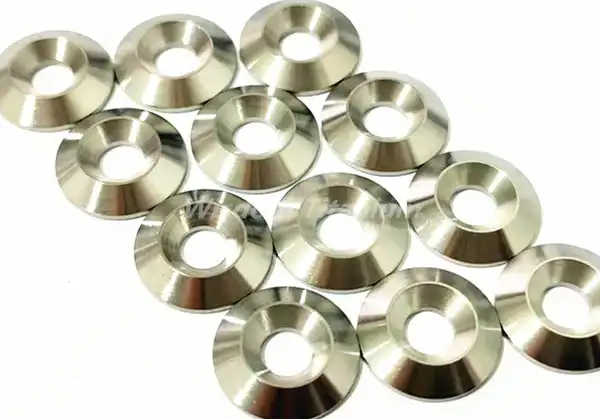

A titanium countersunk washer is a special kind of fastener that is made with a cone-shaped gripping surface that fits the bottom of countersunk screw heads. With this design, the washer can properly spread compressive loads while keeping a smooth surface profile. The conical shape—usually machined to 90° or 100° angles to meet flight standards—ensures accurate fitting and keeps the bolt head from sticking out above the base, which is important in situations where the smoothness of the surface affects performance.
Key Dimensional Parameters
Compatibility and efficiency are guaranteed by knowing the key dimensions. The inner diameter (ID) must be the same size as your bolt and leave just enough space (usually 0.1 to 0.3 mm) for the bolt not to move laterally. The load-bearing area is based on the outer diameter (OD). Larger diameters spread stress better, but they need enough room on the substrate. Thickness changes how rigid a structure is and how well it works with countersink depth. To keep air gaps from putting stress in one place, the angle of the countersink must exactly match the angle of the bolt head.
Standard sizes run from M3 to M14, which is big enough for most industry fastening needs. The tensile strength of grade 5 titanium (Ti-6Al-4V) is between 895 and 1000 MPa, which lets thinner profiles be used without lowering the load capacity. This means that it can be up to 45% lighter than equivalents made of 316 stainless steel while still performing as well as or better than those made of 316 stainless steel.
Material Advantages Over Alternatives
Titanium's density of about 4.43 g/cm³ makes it possible to reduce weight by a large amount, which is very important in weight-sensitive uses like race cars, aeroplanes, and high-end bicycles. Its passive oxide layer forms right away when it comes into contact with air, making a self-healing barrier against chloride attack. This makes it perfect for marine settings where crevice rust is a problem for stainless steel. The thermal stability stays the same from very low temperatures all the way up to 400°C to 500°C, which is better than aluminium, which softens at high temperatures.
The non-magnetic signature keeps interference out of medical devices and sensitive electrical systems. Titanium stops galvanic rusting, which happens when aluminium or steel touches carbon while it is wet, when it is mixed with carbon fibre composites. Surface treatments like anodising and PVD coating raise the hardness to about 36 HRC for Grade 5, which makes it more resistant to wear in places with a lot of vibration.
Criteria for Choosing the Correct Countersunk Washer Size: F-1 Screening Approach
To choose the best washer size, you need to carefully consider things that are specific to the purpose. The F-1 Criteria Screening Approach sorts functional requirements in order of importance, which makes it easier for buying teams to understand technical specs.
Fastener Compatibility Analysis
The inside diameter of your washer needs to be just the right size to fit the bolt shank. Too much clearance lets the part move side to side when it vibrates, which speeds up wear and loosening. Not enough space makes fitting hard and could damage the threads. If you mix a 90° nut with a 100° bolt head, you'll get a line contact instead of a full surface contact, which will put more stress on the joint and increase the chance of it breaking early.
Load Distribution Requirements
The choice of outer diameter for a titanium countersunk washer relies on the qualities of the substrate material and the amount of load that is predicted. To keep soft materials like carbon fibre composites from getting crushed in one place, washers with a bigger width are needed. Metal surfaces can handle smaller diameters, but choices that are too big and won't frette in race situations with a lot of vibration are better. Divide the applied force by the washer contact area to get the bearing stress. Make sure the values are less than the compressive yield strength of the substrate, and add safety factors as needed.
Environmental Resistance Considerations
For marine uses that need the best corrosion protection in saltwater that doesn't move, Grade 2 commercially pure titanium is needed. Grade 5 is preferred in aerospace and racing because it is stronger under cyclic loads. Extreme temperatures affect the choice of material. Titanium stays flexible in cryogenic settings, but thermal expansion coefficients must be taken into account for high-heat uses close to exhaust systems to keep the material from coming loose during heat cycles.
How well the structure works and how deep the washer is installed are both affected by its thickness. Although thicker washers are more rigid and spread loads over bigger contact areas, they need deeper countersink holes. Check these things against the thickness of your panel and the depth of the machine you have access to. In situations involving composite materials, bigger washers that spread loads out avoid delamination are especially helpful.
Installation and Verification: Ensuring Optimal Washer Performance
The performance benefits of precision-engineered titanium countersunk washers are at their best when they are installed correctly. Assembly mistakes make it harder to spread out the load, speed up wear, and increase the chance of catastrophic failure in important situations.
Step-by-Step Installation Protocol
Clean all contact surfaces very well to get rid of any dirt or dust that might be stopping them from sitting flush. Make sure that the washer's cone-shaped side faces the bolt head so that the surfaces touch completely. Because titanium has a high friction coefficient, anti-seize additives are needed to keep it from galling during installation. Molybdenum disulphide is the best choice. Instead of tightening all at once, apply torque gradually over a number of stages. Tightening all at once could cause stress to be distributed unevenly.
The torque requirements for Grade 2 and Grade 5 materials are very different. Higher torque values are okay for Grade 5, but countersunk head configurations limit torque before drive stripping happens. Check with the manufacturer for torque charts that are made for your bolt size and head style. Over-torquing causes localised giving, while under-torquing lets the part open when it vibrates. Calibrated torque tools make sure that setup is always the same.
Verification and Quality Control
ASTM guidelines set the rules for tests to make sure that measurements are correct and that the load capacity is correct. Use precision callipers to check that the margins are within 0.05mm for both the inner and outer sizes. Use specialised gauge pins or visual comparators to check the countersink angle. Load testing confirms the bearing capacity. Gradual loads should be applied while cracks or deformation are being watched.
Common installation mistakes include countersinks that aren't lined up right, which causes eccentric loading and forces washers out of plane. When you mix angles that don't go together, you get line contact instead of full surface bearing. Using magnetic bit holds with titanium screws that aren't magnetic causes parts to fall off and slows down the assembly process. This problem can be solved with vacuum-assist tools or screw-holding sleeves. Before finishing the installation, check the parts visually and by touching them to make sure they fit flush.
Conclusion
To choose the right titanium countersunk washer size, you need to carefully look at how the sizes fit together, how much load you need, the surroundings, and the material's qualities. Titanium Grade 5 washers work better than any other material in high-stress, weight-sensitive, and corrosive environments in the aerospace, automotive, marine, and industrial sectors. Knowing important measurements like inner diameter, outer diameter, thickness, and countersink angle helps make sure that fasteners work well together and that the load is spread out evenly.
The F-1 Criteria Screening Approach helps procurement teams choose the right materials for each job, and testing titanium against other materials shows that it has a better cost-benefit ratio for tough environments. The most reliable performance is achieved by using the right installation methods and verification protocols, which also stops common assembly mistakes that weaken structures. Strategic buying from certified makers guarantees consistent quality, a stable supply chain, and the ability to make changes that meet the specific needs of each application.
FAQ
1. What countersink angle should I specify for automotive applications?
Standard ISO 10642 and DIN 7991 countersunk bolt specifications call for 90° countersink angles, which are what most automotive and racing uses use. This angle gives the best head-to-washer contact area for spreading load in places with a lot of vibration. For some specialised bolts used in racing, 100° angles are required, but 90° angles are still the industry standard for most car systems, such as brake units, suspension parts, and bodywork mounting.
2. Can titanium countersunk washers be used with stainless steel bolts?
Titanium and stainless steel work well together because they are close to each other in the electrochemical series. Mixing different metals, like aluminium and steel, can speed up rust. This pairing stops that from happening. The combination works especially well in marine environments because neither material can be damaged by chloride. During assembly, use anti-seize compound to stop galling because both materials have high friction coefficients that can lead to cold-welding when torque is applied.
3. How do I determine the minimum outer diameter for my application?
Divide the highest load by the allowed bearing stress of your substrate to get the minimum outer diameter. This gives you the smallest contact area, which you can use to figure out the outer width of the washer. For settings with dynamic loading or shaking, add a safety factor of 1.5 to 2.0. Because they aren't as strong when compressed, composite surfaces need bigger widths than metals. There are practical limitations such as the diameter of the countersink recess that can be used and the distance between the sides of the base and the outer diameter that must be kept at least 1.5 times that distance to avoid shear-out.
Partner with Wisdom Titanium for Premium Countersunk Washer Solutions
We at Wisdom Titanium have a large stock of approved Grade 5 titanium countersunk washers in sizes M3 through M14 to meet all of your fastening needs. Our factory in Baoji Titanium Valley is ISO 9001-certified and takes advantage of China's most complete titanium industrial ecosystem to offer high quality at reasonable prices. Our skilled engineers can make solutions that are exactly what you need, whether you want normal polished finishes, anodised colours for identification coding, or PVD-coated surfaces for better wear resistance.
We know the problems that automakers, race teams, aerospace providers, and builders of precision machinery face when they need to buy things. Our minimum order quantities of 100 to 200 pieces per size are flexible enough to allow for both making prototypes and increasing production. We guarantee stable prices and reliable lead times that help you reach your supply chain optimisation goals because we keep a full inventory of raw materials and have developed our production processes.
Get in touch with our technical experts at sales@wisdomtitanium.com to talk about your unique application needs, ask for material approvals, or get quotes on buying in bulk. As a reliable titanium countersunk washer provider with full CNC capabilities, we provide the precise parts, quick service, and quality assurance that your mission-critical apps need. You can look through our full catalogue of fasteners at wisdomtitanium.com and learn how our vertically integrated manufacturing creates value for your product throughout its entire lifecycle.
References
1. Boyer, R., Welsch, G., & Collings, E.W. (1994). Materials Properties Handbook: Titanium Alloys. ASM International.
2. Donachie, M.J. (2000). Titanium: A Technical Guide, 2nd Edition. ASM International.
3. International Organization for Standardization. (2012). ISO 7090: Plain Washers for Countersunk Screws.
4. Deutsches Institut für Normung. (2016). DIN 6319: Spherical Washers for Bolted Connections.
5. ASTM International. (2021). ASTM B348: Standard Specification for Titanium and Titanium Alloy Bars and Billets.
6. Lutjering, G., & Williams, J.C. (2007). Engineering Materials and Processes: Titanium, 2nd Edition. Springer-Verlag Berlin Heidelberg.
