How do different head designs affect the functionality of titanium bicycle screws?

When it comes to bicycle maintenance and customization, the importance of screws often goes overlooked. However, these small components play a crucial role in keeping your bike together and functioning smoothly. Among the various materials used for bicycle screws, titanium stands out for its exceptional strength-to-weight ratio and corrosion resistance. But beyond the material itself, the head design of these screws significantly impacts their functionality and application. In this comprehensive guide, we'll explore how different head designs affect the functionality of titanium bicycle screws, helping you make informed decisions for your next bike upgrade or repair.

Basic Types Of Head Design

Before delving into the functional impacts, it's essential to understand the basic types of head designs commonly used in titanium bicycle screws. Each design has its unique characteristics and applications:

1. Hex Head

Hex head screws, also known as six-sided or hexagonal head screws, are one of the most common types used in bicycle components. They feature a six-sided external drive that can be tightened or loosened using a wrench or socket. Hex heads are popular due to their simplicity and the ability to apply high torque.

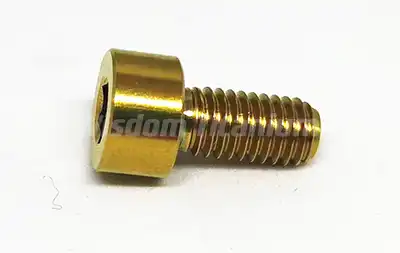

2. Allen Head

Allen head screws, also called socket head cap screws, have a cylindrical head with a hexagonal socket. They require an Allen key or hex key for installation and removal. These screws are widely used in bicycles due to their low profile and the ability to be tightened in confined spaces.

3. Button Head

Titanium button head screws feature a smooth, rounded top with a hexagonal socket. They offer a sleek, low-profile appearance while still providing enough surface area for tightening. Button heads are often used in areas where aesthetics are important or where a protruding screw head might catch on clothing or equipment.

4. Flat Head

Flat head screws have a conical head that sits flush with the surface when installed. They require a countersunk hole for proper fitting. While less common in bicycles, flat heads are used in applications where a completely smooth surface is necessary.

5. Torx Head

Torx head screws feature a star-shaped recess in the head, requiring a special Torx driver for installation and removal. These screws are becoming increasingly popular in high-end bicycle components due to their resistance to cam-out and ability to transmit high torque.

Functional Impact

The head design of titanium bicycle screws significantly influences their functionality, affecting aspects such as torque transmission, ease of installation, and overall performance. Let's examine how different head designs impact these factors:

Torque Transmission

The ability to apply and withstand torque is crucial for bicycle screws, especially in high-stress areas. Different head designs offer varying levels of torque transmission:

• Hex Head: Provides excellent torque transmission due to its large external drive surface. This makes hex heads ideal for applications requiring high tightening forces.
• Allen Head: Offers good torque transmission, especially in larger sizes. The deep socket allows for efficient transfer of force from the tool to the screw.
• Button Head: While not as strong as hex or Allen heads in torque transmission, button heads still provide adequate performance for most bicycle applications.
• Flat Head: The countersunk design limits the amount of torque that can be applied, making flat heads less suitable for high-stress applications.
• Torx Head: Excels in torque transmission due to its star-shaped design, which distributes force evenly and reduces the risk of cam-out.

Ease of Installation and Removal

The ease with which a screw can be installed or removed affects maintenance efficiency and user experience:

• Hex Head: Generally easy to install and remove, especially in accessible areas. However, they may require more clearance than other designs.
• Allen Head: Highly convenient for installation in tight spaces. The recessed socket allows for easy access without protruding tools.
• Button Head: Similar to Allen heads in terms of ease of installation, with the added benefit of a lower profile.
• Flat Head: Can be more challenging to install properly, as they require precise countersinking. However, once installed, they provide a smooth surface.
• Torx Head: While requiring a special tool, Torx heads are designed for easy engagement and reduced likelihood of slippage during installation or removal.

Which head type is most commonly used in bicycle components (such as frames, wheels, or seatposts)?

While various head types are used across different bicycle components, some designs are more prevalent in specific areas:

Frames

In bicycle frames, Allen head and Torx head screws are most commonly used. These designs allow for easy access in tight spaces and provide good torque transmission. For example, titanium button head screws are often used in frame areas where a low profile is desired, such as bottle cage mounts or cable guide attachments.

Wheels

Wheel components typically use a mix of Allen head and hex head screws. Allen heads are common in hub adjustments and disc brake rotor attachments, while hex heads might be found in some quick-release skewer designs. The choice often depends on the specific wheel design and manufacturer preferences.

Seatposts

Seatpost adjustments and clamps frequently use Allen head screws due to their low profile and ease of access. Some high-end seatposts may incorporate Torx head screws for increased torque capabilities and reduced risk of stripping.

Stems and Handlebars

Stem bolts and handlebar clamps predominantly use Allen head screws. The recessed design allows for easy adjustment without protruding tools that could interfere with the rider's grip or movement.

Derailleurs and Brakes

These components often use a combination of Allen head and Torx head screws. The choice depends on the specific brand and model, with high-end components increasingly favoring Torx heads for their superior torque transmission and resistance to stripping.

Pedals

Pedal axles typically feature hex head designs for easy installation and removal using a pedal wrench. However, some pedals may incorporate Allen head sockets on the inboard end of the axle for alternative installation methods.

It's worth noting that while these are general trends, the bicycle industry is constantly evolving. Manufacturers may choose different screw head designs based on their specific engineering requirements, weight considerations, and aesthetic preferences. Additionally, the use of titanium bicycle screws is becoming more prevalent in high-end and custom bicycles, where weight savings and corrosion resistance are paramount.

When selecting or replacing screws for your bicycle, it's crucial to consider the specific component requirements, torque specifications, and compatibility with your tools. Using the correct screw type and material not only ensures proper functionality but also contributes to the overall performance and longevity of your bicycle.

In conclusion, the head design of titanium bicycle screws plays a significant role in their functionality, affecting everything from torque transmission to ease of maintenance and aesthetics. By understanding these differences, cyclists and bike mechanics can make informed decisions when selecting screws for various bicycle components, ultimately enhancing the performance, durability, and enjoyment of their rides.

For more information on titanium bicycle screws and custom solutions for your cycling needs, don't hesitate to reach out to our team of experts at sales@wisdomtitanium.com. We're here to help you find the perfect titanium screws for your bicycle, ensuring optimal performance and durability for your rides.
