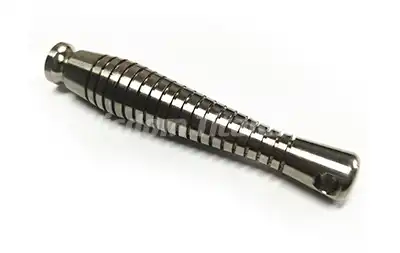

Titanium parts have become increasingly popular in various industries due to their exceptional strength-to-weight ratio, corrosion resistance, and biocompatibility. But have you ever wondered how these titanium parts are manufactured? In this comprehensive guide, we'll explore the intricate process of creating titanium components, from raw material preparation to the final quality control checks.
Material Preparation and Alloying
The journey of titanium parts begins with the careful selection and preparation of raw materials. Titanium, in its pure form, is rarely used for manufacturing parts. Instead, titanium alloys are preferred due to their enhanced properties. The process of creating these alloys is both complex and fascinating.
Extraction of Titanium
The primary source of titanium is ilmenite and rutile ores. These ores undergo a series of chemical reactions in a process known as the Kroll process. This method, developed by William Kroll in the 1940s, involves the following steps:
- Chlorination of the ore to produce titanium tetrachloride (TiCl4)
- Reduction of TiCl4 with magnesium to create titanium sponge
- Purification of the titanium sponge through vacuum distillation
The resulting titanium sponge is then melted and cast into ingots, which serve as the starting point for further processing.
Alloying Process
To enhance the properties of titanium, various elements are added to create alloys. Common alloying elements include aluminum, vanadium, molybdenum, and zirconium. The choice of alloying elements depends on the desired properties of the final titanium parts.
The alloying process typically involves:
- Melting the titanium sponge in a vacuum arc remelting (VAR) furnace
- Adding precise amounts of alloying elements
- Controlling the cooling rate to achieve the desired microstructure
This stage is crucial in determining the final properties of the titanium alloy, such as strength, ductility, and heat resistance.
Forming and Shaping
Once the titanium alloy is prepared, the next step is to form and shape it into the desired components. This stage involves various techniques, each suited to different types of titanium parts and production volumes.
Forging
Forging is a widely used method for shaping titanium alloys, especially for parts that require high strength and reliability. The process involves applying pressure to the titanium alloy while it's heated to a specific temperature. This technique can produce parts with complex geometries and excellent mechanical properties.
Key aspects of titanium forging include:
- Precise temperature control to maintain the alloy's microstructure
- Use of specialized dies and presses capable of handling titanium's high strength
- Multiple forging steps to achieve the final shape and optimize grain structure
Casting
Casting is another method used to create titanium parts, particularly for complex shapes that would be difficult or expensive to machine. The process involves pouring molten titanium alloy into a mold and allowing it to solidify.
Titanium casting techniques include:
- Investment casting (lost wax method) for intricate shapes
- Centrifugal casting for cylindrical parts
- Sand casting for larger components
However, casting titanium can be challenging due to its high melting point and reactivity with oxygen. Special care must be taken to prevent contamination and ensure proper solidification.
Powder Metallurgy
Powder metallurgy is an innovative technique that's gaining popularity in titanium part manufacturing. This method involves creating parts from metal powders, which are then compacted and sintered (heated without melting) to create the final component.
Advantages of powder metallurgy for titanium parts include:
- Ability to create complex shapes with minimal material waste
- Improved control over the material's microstructure
- Potential for creating parts with gradient properties
Machining, Finishing, and Quality Control
After the initial forming and shaping, titanium parts often require further processing to achieve their final form and meet precise specifications.
Machining
Machining is a critical step in the production of many titanium components. This process involves removing material from the workpiece to achieve the desired shape and dimensions. However, machining titanium can be challenging due to its high strength and low thermal conductivity.
Key considerations for machining titanium include:
- Use of sharp, carbide cutting tools
- Slow cutting speeds and high feed rates
- Adequate cooling to prevent work hardening
- Rigid machine setups to minimize vibration
Advanced machining techniques such as CNC machining are often employed to create complex titanium parts with high precision.
Surface Finishing
After machining, titanium parts may undergo various surface finishing processes to enhance their appearance, corrosion resistance, or functional properties. Common finishing techniques for titanium include:
- Chemical etching to remove surface impurities
- Anodizing to create a protective oxide layer
- Polishing for a smooth, reflective surface
- Shot peening to improve fatigue resistance
The choice of surface finish depends on the specific application of the titanium part and its performance requirements.
Heat Treatment
Heat treatment is often performed on titanium parts to optimize their mechanical properties. This process can alter the microstructure of the alloy, resulting in changes to strength, ductility, and other characteristics.
Common heat treatment processes for titanium include:
- Solution treatment followed by aging (for precipitation-hardening alloys)
- Stress relieving to reduce internal stresses
- Annealing to improve ductility
Quality Control
Throughout the manufacturing process, rigorous quality control measures are implemented to ensure that the titanium parts meet the required specifications. These measures may include:
- Non-destructive testing (NDT) methods such as ultrasonic testing and X-ray inspection
- Dimensional checks using precision measurement tools
- Mechanical testing to verify strength and fatigue resistance
- Chemical analysis to confirm alloy composition
Quality control is particularly crucial for titanium parts used in critical applications such as aerospace and medical implants.
Final Assembly and Packaging
Once the titanium parts have passed all quality checks, they may undergo final assembly if they are components of a larger system. This stage might involve welding, bonding, or mechanical fastening of multiple titanium parts.
Finally, the completed titanium parts are carefully packaged to protect them during transportation and storage. Proper packaging is essential to prevent surface damage and contamination, especially for parts used in medical or aerospace applications.
Contact Information
The process of manufacturing titanium parts is a complex and multifaceted endeavor that combines cutting-edge technology with metallurgical expertise. From the initial extraction and alloying of titanium to the final quality control checks, each step plays a crucial role in creating components that meet the exacting standards of modern industry.
As technology continues to advance, we can expect to see further innovations in titanium part manufacturing, such as additive manufacturing techniques and improved alloying processes. These developments will likely expand the applications of titanium parts across various industries, from aerospace and automotive to medical and consumer products.
Understanding the intricacies of how titanium parts are made not only gives us appreciation for these remarkable components but also helps engineers and designers make informed decisions when specifying materials for their projects. The unique properties of titanium, combined with advanced manufacturing techniques, ensure that titanium parts will continue to play a vital role in pushing the boundaries of what's possible in engineering and technology.
If you're considering titanium parts for your next project or would like to learn more about our manufacturing capabilities, don't hesitate to reach out. At Wisdom Titanium, we specialize in creating high-quality titanium components tailored to your specific needs. Contact us at sales@wisdomtitanium.com to discuss how we can help bring your ideas to life with the power of titanium.
References
- Johnson, M. (2021). "Advanced Titanium Alloy Processing Techniques." Journal of Materials Engineering and Performance, 30(8), 5672-5685.
- Smith, A. & Brown, J. (2020). "Innovations in Titanium Part Manufacturing for Aerospace Applications." Aerospace Technology Review, 15(3), 221-236.
- Lee, S.H., et al. (2019). "Comparative Study of Machining Methods for Titanium Alloys." International Journal of Machine Tools and Manufacture, 142, 66-81.
- Williams, R.C. (2022). "Quality Control Strategies for High-Performance Titanium Components." Materials Quality Assurance, 18(2), 103-118.
- Chen, Y. & Davis, T. (2020). "Advancements in Powder Metallurgy for Titanium Part Production." Powder Metallurgy Progress, 20(1), 35-50.
- Thompson, E.L. (2021). "Surface Finishing Techniques for Biomedical Titanium Implants." Journal of Biomedical Materials Research Part B: Applied Biomaterials, 109(5), 675-690.
