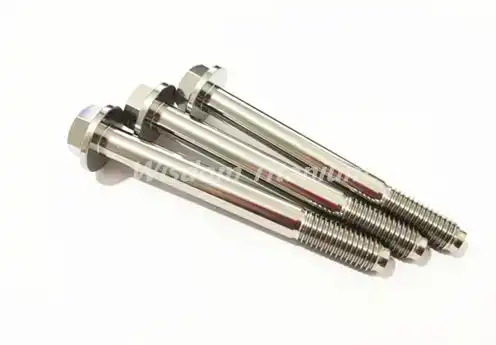

When a race car screams down the track at 200 mph, every component must perform flawlessly. The fasteners holding critical assemblies together bear tremendous stress, vibration, and heat. Among these components, the titanium racing flange bolt stands as a testament to precision engineering and advanced manufacturing. But how exactly do manufacturers create the intricate threads that give these fasteners their holding power?
The Science Behind Thread Formation on Titanium Racing Flange Bolts
Creating threads on a titanium racing flange bolt requires specialized techniques that differ significantly from standard steel fastener production. A titanium alloy bolt is employed when a weight reduction or higher strength is required. A titanium alloy bolt requires a higher level of art for its manufacture than a steel bolt does. This elevated complexity stems from titanium's unique material properties—its exceptional strength-to-weight ratio comes paired with challenging machining characteristics.
Thread Rolling: The Preferred Method for Racing Applications
The thread is processed by cold rolling process. Technicians position the heat-treated bolt shank between rolling dies, then apply radial pressure to plastically deform the material into precise thread profiles. This method dominates high-performance fastener production for compelling reasons.
During thread rolling, material flows rather than gets removed. Many manufacturers prefer rolled threads to traditional thread cutting because the process of rolling strengthens the thread profile, as opposed to disrupting the natural structural integrity of material by cutting into it. Rolling elongates the grains by allowing them to flow in more than one direction following the contour of the fastener. The result? A titanium racing flange bolt with significantly enhanced mechanical properties.
This process accurately crushes the thread form into the surface of the bolt, directing the material grain structure around the thread form, increasing the toughness of the thread. This helps Titanium Bolts achieve a strength range between Class 8.8 and Class 10.9 alloy steel equivalent bolts, with a Tensile Strength of 950 MPa. For racing applications demanding absolute reliability under extreme conditions, this strength enhancement proves invaluable.
Why Grain Flow Matters in High-Performance Fasteners
The difference between rolled and cut threads lies fundamentally in grain structure. Cut threads have a grain flow pattern that remains parallel to the part axis, weakening the thread strength in the longitudinal axis. The thread will typically fail at grain boundaries, which tend to be weaker than the grain itself. With rolled threads, the grain flows in a transverse direction, providing resistance to failure where these forces are being exerted across the grain.
Picture a piece of wood: cutting across the grain weakens it, while forces applied along the grain meet greater resistance. Thread rolling achieves a similar effect in titanium, creating continuous, unbroken grain lines that follow the thread contours. When a thread is rolled the fibers of the material are not severed as they are in other methods of screw thread production, but are re-formed in continuous unbroken lines following the contours of the threads, as in any good forging. Rolled threads resist the stripping because shear failures must take place across rather than with the grain.
Manufacturing Processes That Define Quality Titanium Racing Flange Bolts
Creating a titanium racing flange bolt involves multiple precision stages, each contributing to the final product's performance characteristics. Modern manufacturing combines traditional metalworking knowledge with advanced CNC technology to achieve tolerances measured in hundredths of a millimeter.
Raw Material Preparation and Quality Control
Excellence begins with raw material selection. At the storage stage of raw materials, IQC performs batch verification of titanium alloy bars to check the alloy composition, heat treatment state and mechanical properties parameters in the material certificate. Non-destructive testing equipment is used to scan the surface of the material and remove defective materials with scratches, pits or oxide layers.
Grade 5 titanium, also designated Ti-6Al-4V, serves as the material of choice for racing fasteners. It's a specific alloy, often referred to as Ti-6Al-4V. This particular blend includes about 6% aluminum and 4% vanadium, along with the titanium. This combination gives it some seriously impressive characteristics. The aluminum increases strength and reduces density, while vanadium improves ductility and thermal stability—critical attributes for racing environments.
Known as the "workhorse" of the titanium alloys, Ti 6Al-4V, or Grade 5 titanium, is 2x stronger than titanium grade 2. This alloy offers high strength and light weight, useful formability and high corrosion resistance. Ti 6AI-4V finds many uses in the aerospace, medical, marine and chemical processing industries.
Head Forming and CNC Machining
Titanium bolt heads are formed by two main methods: machining and forging. For titanium racing flange bolts, the integrated flange head requires precise shaping to distribute clamping loads evenly. The flange eliminates the need for separate washers while increasing bearing surface area—a crucial advantage in weight-sensitive racing applications.
Race Spec Bolts feature CNC machined construction with rolled threads. This combination leverages the strengths of both manufacturing approaches: CNC machining delivers the geometric precision required for flange dimensions, hex head profiles, and overall tolerances, while thread rolling maximizes thread strength and fatigue resistance.
Manufactured in a single process on multi axis CNC machining centres, which includes thread rolling. Thread standards are to BS3692:1967 which is the British Standard for ISO Precision Metric Threads. Such integrated manufacturing ensures dimensional consistency throughout production runs.
Thread Rolling Execution and Quality Verification
The actual thread rolling process demands meticulous setup and monitoring. It is necessary to calibrate the coaxiality of the die before rolling, and the deviation of more than 0.05mm will lead to the asymmetry of the thread teeth. Special titanium alloy processing oil without chlorine should be selected as lubricant to prevent stress corrosion. Operators monitor the pressure curve in real time during thread rolling, where sudden pressure drops signal potential internal material defects.
After thread formation, verification ensures each titanium racing flange bolt meets specifications. After processing, use compressed air to clean the metal debris in the thread groove, and carry out a full check of the pass and stop gauge. This inspection catches any dimensional deviations before bolts proceed to subsequent processing stages.
Thread Rolling vs. Thread Cutting: Performance Implications
While thread rolling dominates production of titanium racing flange bolts, understanding how it compares to alternative methods illuminates why manufacturers make this choice.
Fatigue Resistance Advantages
Cold working increases tensile strength by at least 30% more than cut threads, which increases the strength of the thread. Additionally, rolled threads improve fatigue strength by 50% to 75%. For fasteners subjected to continuous vibration and cyclic loading—exactly the conditions racing creates—this enhancement directly translates to reliability.
The good news is that rolled threads have a higher fatigue resistance than cut threads. The higher resistance in rolled threads is realized in several ways. Surface condition plays a major role: Thread rolling increases the part's resistance to fatigue failure in several different ways. Rolling between smooth dies leaves the thread with smooth burnished roots and flanks, free from tears, chatter or cutter marks that can serve as focal points of stress and, therefore, starting points for fatigue failures.
The compressive stresses induced by rolling also contribute. Because the surface layers of the rolled thread, particularly those in the roots, are under compressive stress, tightening and other forces must overcome these compressive stresses before the tensile stresses that cause failure build up. This is how thread rolling improves a thread's capacity to resist these fatigue stresses.
Heat Resistance Considerations
Racing environments subject fasteners to significant thermal cycling. Brake system bolts, for instance, experience repeated heating and cooling during competition. Cut threads are more likely to loosen due to their surface condition consisting of partly torn-away particles. Rolled threads also show no loss of fatigue strength when heated for a few hours to temperatures up to 500 degrees Fahrenheit.
Rolled threads show no loss of fatigue strength when heated for several hours to temperatures up to 500° Fahrenheit; whereas, fatigue strengths of threads produced by other means are lowered by as much as 25% by the same treatment. This thermal stability makes rolled-thread titanium racing flange bolts particularly suitable for high-heat applications like exhaust systems and brake assemblies.
When Thread Cutting Makes Sense
Another method is thread cutting. This is often used for more custom or high-precision applications. In thread cutting, a cutting tool is used to remove material from the titanium to create the threads. It's a bit more time-consuming than thread rolling, but it can be used to create threads with very specific profiles.
For prototype development, single-piece production, or unusual thread specifications, cutting remains viable. However, Rolling the thread is a cost-effective way to make threads in high-volume operations. A cut thread is the most cost-effective way to make a thread for low-volume applications. Most titanium racing flange bolt production volumes justify the thread rolling investment.
Baoji Wisdom Titanium: Your Partner for Racing Fastener Excellence
Baoji Wisdom Titanium Industry and Trading Co., Ltd brings the advantages of China's Titanium Valley directly to motorsport teams and performance enthusiasts worldwide. As an ISO 9001-certified manufacturer and supplier of standard and customized CNC parts, we've built our reputation on precision, reliability, and responsive customer service since our founding in 2016.
Our Titanium Racing Flange Bolt Capabilities
Our titanium racing flange bolt production utilizes Grade 5 (Ti-6Al-4V) titanium exclusively—the same material aerospace manufacturers trust for flight-critical applications. Every bolt features lightweight design optimized for racing's demanding weight constraints while maintaining the strength racing demands.
We accept custom orders to match your specific requirements. Whether you need particular thread pitches, flange dimensions, head configurations, or surface finishes, our engineering team translates your specifications into precision fasteners. With a minimum order quantity of 200 pieces, we serve both racing teams building inventory and performance shops stocking popular configurations.
Why Teams Choose Wisdom Titanium
Titanium fasteners and customized CNC parts represent our core expertise. We supply related titanium custom design parts solutions and possess extensive experience developing new products from samples or concepts. Our capabilities extend beyond racing to include fasteners in nickel, tantalum, and zirconium, plus titanium rods, flanges, and forgings.
All our bolts and nuts originate from high-quality titanium rods with careful detection before shipping. Our experienced R&D service system enables customized solutions for unique applications. Complete inventory of raw materials and standard parts ensures stable pricing and availability. Mature production technology with whole-process follow-up detection, combined with stable staff, guarantees product quality and lead time.
All processes align with ISO 9001 standards, ensuring quality and after-sales service throughout our customer relationships. We appreciate customer feedback and respond seriously—this communication process drives continuous product improvement to meet evolving customer and market needs.
Ready to Upgrade Your Racing Hardware?
Every championship team understands that marginal gains compound into decisive advantages. Upgrading to precision-manufactured titanium racing flange bolts from Baoji Wisdom Titanium delivers measurable weight savings without compromising the strength your critical assemblies demand.
Our team stands ready to discuss your specific fastener requirements, provide technical guidance on material selection, and deliver competitive quotations for both standard and custom configurations. Whether you're building a championship-contending race car, upgrading a track-day enthusiast vehicle, or stocking performance parts inventory, we offer the quality, capability, and service your projects deserve.
Contact Baoji Wisdom Titanium today:
Email: sales@wisdomtitanium.com
Simply send an inquiry with your specifications, quantities, and timeline. Our experienced team responds promptly to help you source the perfect titanium fasteners for your application.
FAQ
Q1: What makes thread rolling superior to thread cutting for titanium racing flange bolts?
A: Thread rolling creates stronger, more fatigue-resistant threads by plastically deforming the material rather than cutting it away. This process maintains continuous grain flow, induces beneficial compressive stresses, and produces smoother surface finishes. Cold working increases tensile strength by at least 30% more than cut threads, and rolled threads improve fatigue strength by 50% to 75%. For racing applications where vibration and cyclic loading are constant, these improvements translate directly to reliability.
Q2: Why is Grade 5 titanium preferred for racing fasteners?
A: Grade 5 titanium is 2x stronger than titanium grade 2 and offers high strength and light weight, useful formability and high corrosion resistance. The alloy's composition—approximately 90% titanium, 6% aluminum, and 4% vanadium—delivers an exceptional strength-to-weight ratio critical for performance applications. Being approximately 45% lighter than steel while maintaining comparable strength makes Grade 5 titanium ideal for weight-sensitive racing components.
Q3: How do I know if a titanium racing flange bolt has rolled threads?
A: Rolled threads display several identifying characteristics. The surface appears smooth and burnished rather than showing tool marks. Thread roots have consistent radii without sharp corners. The bolt diameter at the thread peaks is typically larger than the original bar stock diameter since material is displaced rather than removed. Quality manufacturers like Baoji Wisdom Titanium specify thread rolling in product documentation.
Q4: Can Baoji Wisdom Titanium produce custom titanium racing flange bolts to my specifications?
A: Yes, we accept custom orders and specialize in developing fasteners from customer specifications or samples. Our engineering team can accommodate specific thread pitches, flange dimensions, head styles, lengths, and surface treatments. The minimum order quantity is 200 pieces per specification.
Q5: What quality certifications does Baoji Wisdom Titanium hold?
A: Baoji Wisdom Titanium Industry and Trading Co., Ltd maintains ISO 9001 certification. All processes conform to this international quality management standard, ensuring consistent product quality and reliable after-sales service. Each production batch undergoes dimensional inspection, material verification, and thread gauge checks before shipping.
