How are socket head cap screws made?

Socket head cap screws are essential components in various industries, known for their strength and versatility. These screws, particularly titanium socket head screws, have gained popularity due to their exceptional strength-to-weight ratio and corrosion resistance. In this article, we'll dive into the fascinating process of how socket head cap screws are manufactured, focusing on three crucial stages: material selection and preparation, head forming, and thread forming.

Material Selection and Preparation

The journey of a socket head cap screw begins with careful material selection. For standard screws, materials like steel, stainless steel, or alloy steel are commonly used. However, when it comes to titanium socket head screws, the process becomes even more specialized.

Titanium alloys, such as Grade 5 (Ti-6Al-4V), are often chosen for their superior properties. This alloy combines titanium with small amounts of aluminum and vanadium, resulting in a material that's both lightweight and incredibly strong. The selection of titanium for socket head screws is particularly beneficial in applications where weight reduction is crucial, such as aerospace or high-performance automotive industries.

Once the material is selected, it undergoes a preparation process. For titanium socket head screws, this typically involves:

1. Sourcing high-quality titanium alloy in the form of long rods or wire coils
2. Inspecting the raw material for any defects or inconsistencies
3. Cleaning the titanium to remove any surface contaminants
4. Cutting the material into smaller sections, often called blanks, which will form individual screws

This meticulous preparation ensures that each titanium socket head screw starts with a solid foundation, setting the stage for the subsequent manufacturing steps.

Head Forming (Heading)

After the material is prepared, the next crucial step in manufacturing socket head cap screws is head forming, also known as heading. This process gives the screw its distinctive head shape, which is critical for its functionality.

For titanium socket head screws, the heading process requires specialized equipment due to titanium's unique properties. Here's how it typically unfolds:

1. Cold Forming: The titanium blank is inserted into a die that matches the desired head shape. A powerful press then applies immense pressure to the end of the blank, forcing the material to flow into the die cavity. This cold forming process is preferred for titanium as it helps maintain the material's strength properties.
2. Trimming: Any excess material (flash) that forms during the heading process is carefully trimmed away.
3. Socket Formation: The hexagonal socket in the head is typically formed through a process called broaching. A specially designed tool with cutting teeth progressively removes material to create the precise hexagonal shape.
4. Heat Treatment: Depending on the specific requirements, the screw might undergo heat treatment at this stage to optimize its mechanical properties.

The head forming process for titanium socket head screws requires precision and expertise. The unique properties of titanium, such as its high strength and low thermal conductivity, can make it challenging to work with. However, when done correctly, it results in a screw head that's not only strong but also perfectly shaped for its intended use.

Thread Forming

The final major step in manufacturing socket head cap screws is thread forming. This process creates the helical ridge that allows the screw to be driven into materials and secure components together. For titanium socket head screws, this step is particularly critical as it directly impacts the screw's performance and durability.

There are two main methods for forming threads on titanium socket head screws:

1. Thread Rolling: This is the most common method for mass production. In this process:
   • The screw blank is placed between two flat dies or three cylindrical dies with the thread pattern engraved on them.
   • As the dies move, they apply pressure to the blank, causing the metal to flow into the thread pattern.
   • This cold-forming process actually strengthens the material, making it ideal for titanium screws.
2. Thread Cutting: While less common for high-volume production, this method might be used for specialized or low-volume titanium screw production:
   • A cutting tool removes material from the screw blank to form the threads.
   • This process allows for more flexibility in thread design but doesn't provide the same strength benefits as thread rolling.

After thread formation, titanium socket head screws often undergo additional processes to enhance their properties or appearance:

• Surface Treatment: Titanium naturally forms a protective oxide layer, but additional treatments like anodizing can further improve corrosion resistance and allow for color coding.
• Quality Control: Each screw undergoes rigorous inspection to ensure it meets dimensional and performance specifications.
• Packaging: Finally, the screws are carefully packaged to protect them during shipping and storage.

The thread forming process for titanium socket head screws requires specialized equipment and expertise. The hardness and low thermal conductivity of titanium can make thread formation challenging, but when done correctly, it results in screws with exceptional strength and reliability.

In conclusion, the manufacture of titanium socket head screws is a complex process that combines advanced materials science with precision engineering. From the careful selection and preparation of titanium alloy to the intricate processes of head forming and thread creation, each step contributes to producing a fastener that offers unparalleled strength, lightness, and corrosion resistance.

These qualities make titanium socket head screws invaluable in industries where performance is critical, from aerospace and automotive to marine and medical applications. As manufacturing technologies continue to advance, we can expect even further improvements in the production and capabilities of these essential components.

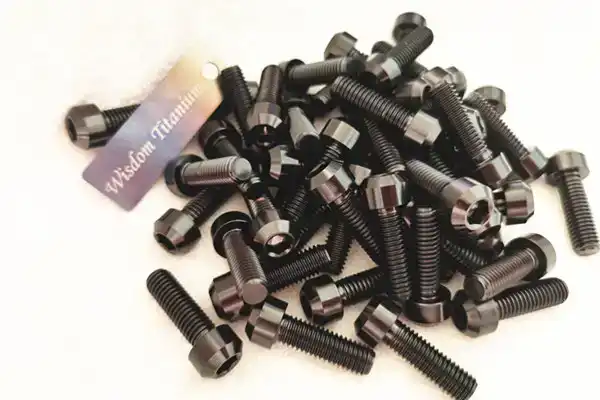

At Wisdom Titanium, we are your trusted partner in the non-ferrous metal industry. Our titanium parallel socket head screw DIN 912 titanium grade 5 is of top quality. We offer various sizes to meet different needs. And the colors are diverse, including Rainbow, blue, gold, black, purple, burnt, red, and green. If you're interested in our products and want to know more details or get a quote, please don't hesitate to contact us. Simply send an enquiry to sales@wisdomtitanium.com. Let's work together and explore the potential of titanium products!

References

Titanium: Physical Metallurgy, Processing, and Applications by F.H. Froes;

Manufacturing Processes for Engineering Materials by Serope Kalpakjian and Steven R. Schmid;

Titanium and Titanium Alloys: Fundamentals and Applications edited by Christoph Leyens and Manfred Peters
