Essential Tips for Operating Bicycle Titanium Bolts Like a Pro

This comprehensive guide reveals insider techniques for handling bicycle titanium bolts based on professional cycling team practices and manufacturing expertise from Baoji Wisdom Titanium. You'll discover lubrication strategies that prevent catastrophic galling damage, learn torque specifications that achieve secure mounting without component destruction, and master application matching that ensures optimal performance. Whether you're building a custom racing machine or maintaining your daily commuter, these proven methods will transform your relationship with titanium hardware.

Use Proper Lubrication or Anti-Seize

Titanium's reputation for galling sends shivers down experienced mechanics' spines. The phenomenon occurs when titanium's protective oxide layer breaks under installation pressure, exposing reactive base metal that cold-welds to similar materials. Within seconds, what started as smooth threading becomes rough scraping. Continue rotating and you'll rip threads from both the bolt and the parent material, destroying components worth hundreds of dollars.

Understanding the galling mechanism reveals why prevention matters so critically. Titanium immediately forms a thin oxide film when exposed to oxygen, typically just nanometers thick. This passive layer provides excellent corrosion resistance under normal conditions. However, the high contact pressures during bicycle titanium bolt installation shear through this protective coating. Fresh titanium surfaces then contact each other or aluminum components, creating conditions where atomic bonding occurs between the mating parts.

Temperature rise from friction accelerates the galling process during bicycle titanium bolt installation. As surfaces slide against each other, frictional energy converts to heat concentrated at microscopic contact points. This localized heating softens the titanium slightly while promoting diffusion bonding between surfaces. Slow installation speeds that allow heat buildup, combined with high torque application, create perfect conditions for galling initiation. Once started, the process feeds on itself—damaged surfaces create more friction, generating additional heat that worsens the adhesion.

Anti-seize compounds interrupt this destructive cycle by maintaining a sacrificial boundary layer between metal surfaces. Quality formulations contain solid lubricant particles suspended in carrier fluids that remain stable under pressure and temperature extremes. These particles shear under stress rather than allowing direct metal contact, effectively preventing the cold-welding that characterizes galling. The compound must coat both male and female threads completely to provide comprehensive protection throughout the engagement length.

Follow the Correct Torque

Torque Wrench Selection and Calibration Requirements

Bicycle applications span torque ranges from delicate 2-3 Newton-meter derailleur limit screws to powerful 40-50 Newton-meter bottom bracket installations. No single torque wrench covers this spectrum with acceptable accuracy across the full range. Professional mechanics maintain multiple tools—typically a precision low-range wrench covering 2-20 Newton-meters for most fastener work, plus a higher-capacity wrench for cranks, cassettes, and bearing preload adjustments. This dual-wrench approach ensures accuracy within ±4% tolerance required for reliable assembly.

Application-Specific Torque Guidelines

Most current bicycles need 5 to 6 Newton-meters for M5 diameter and 8 to 10 Newton-meters for M6 sizes to hold the handlebars to the steerer tubes. These low values show that you need to be careful not to crush carbon fiber steerer tubes or bend aluminum while keeping them securely attached. Four-bolt stem designs spread the clamping force over several fasteners, which lowers the stress on each bolt compared to two-bolt designs. Instead of fully tightening one bolt before touching others, tighten in crossing patterns with opposing bolts, gradually increasing the torque by 2–3 Newton-meters at a time. This order stops deformation that could shatter carbon or make the clamps unequal.

Seatpost binder mechanisms using bicycle titanium bolts demand careful torque control to prevent frame damage while securing posts adequately. Single-bolt binders on carbon frames typically specify 4-5 Newton-meters, sometimes as low as 3 Newton-meters for thin-wall construction. Two-bolt designs distribute force more evenly, often allowing 5-6 Newton-meters per fastener. Carbon assembly paste applied to post interfaces enhances grip through friction rather than pure compression, allowing reduced torque while maintaining position under rider weight and pedaling forces. This friction-enhancing approach proves especially valuable for carbon posts in carbon frames where over-tightening risks expensive damage.

Bottle cage mounting represents seemingly trivial applications that suffer frequent problems from improper torque. M5 bicycle titanium bolts threading into carbon frame bosses typically specify 3-4 Newton-meters. The narrow acceptable range reflects the conflict between securing cages firmly enough to retain bottles during rough terrain and avoiding the thread stripping or boss cracking that over-tightening causes in lightweight frames. Under-torqued installations allow cage flex that ejects bottles during bumpy descents, while excessive torque cracks thin-wall bosses or strips threads in aluminum or brass inserts. The modest values demand actual torque wrench use rather than guesswork.

Match the Bolt to the Correct Application

Length selection requires accounting for total stack height including washers, frame thickness, and minimum thread engagement. Too-short bicycle titanium bolts fail to achieve adequate engagement, risking thread stripping under load. Excessive length causes bottoming in blind holes before proper tightening, creating false tight conditions. Measure through-holes or probe blind hole depth, calculate required engagement as 1.5 times diameter, then add these values to determine minimum bolt length. The customized length options from Baoji Wisdom Titanium accommodate precise fitting requirements without the compromises forced by limited standard sizes.

Head style selection determines tool access, aesthetic appearance, and bearing surface area. Button head bolts provide low-profile solutions where protruding fasteners might interfere with cables, rider contact, or create ungainly appearance. Socket cap screws offer deeper hex sockets that resist cam-out during high-torque applications. Countersunk heads sit flush with surfaces on brake calipers or chainring bolts where protrusions might contact chains or wheels. Each configuration suits specific installations—selecting appropriate styles ensures both functional performance and visual consistency across complete builds.

Diameter sizing must match existing threads or provide adequate strength for applied loads. M5 fasteners suit light-duty applications like bottle cages, fender mounts, or accessory brackets. M6 bolts handle moderate loads on stem caps, seatpost binders, and derailleur hangers. M8 sizes serve higher-stress applications including crank arm attachment and some brake mounts. The available M5, M6, and M8 options from Baoji Wisdom Titanium cover essentially all bicycle fastener requirements. Using undersized bolts in high-stress locations risks failure, while oversized fasteners add unnecessary weight and might not fit existing mounting points.

Surface finish affects both appearance and functional performance beyond simple aesthetics. Anodized finishes on bicycle titanium bolts create hard oxide layers that increase surface hardness while introducing color options for coordination with frame schemes or component groups. The anodizing process enhances corrosion resistance and provides electrical insulation that reduces galvanic corrosion potential. PVD (Physical Vapor Deposition) coatings offer even harder surfaces with exceptional wear resistance and striking metallic appearances in gold, bronze, or rainbow finishes popular on show bikes and custom builds. These advanced finishes from Baoji Wisdom Titanium serve both functional and aesthetic purposes.

Transform Your Bicycle Build With Premium Titanium Fasteners

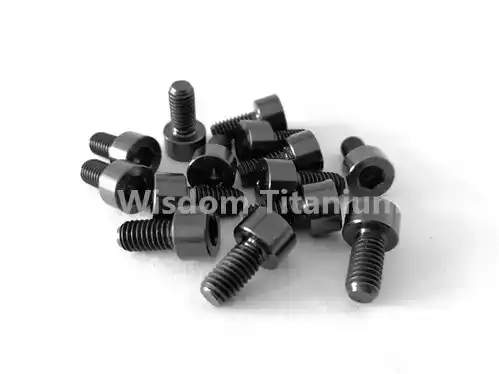

Professional bicycle assembly demands fasteners matching the precision and performance of modern components. Bicycle titanium bolts from Baoji Wisdom Titanium deliver the quality required for competitive racing, custom builds, and premium restorations. Our ISO 9001-certified manufacturing ensures dimensional consistency and material verification supporting applications from casual riding through professional competition. The available M5, M6, and M8 diameters with customized lengths accommodate virtually any bicycle fastener requirement.

The Baoji Titanium Valley Advantage

Geographic concentration in Baoji Titanium Valley creates supply chain advantages unavailable to isolated manufacturers. Shaanxi Province hosts China's largest titanium industry cluster with complete vertical integration from raw material production through precision component manufacturing. This ecosystem includes titanium sponge reduction facilities, ingot melting operations, bar and plate rolling mills, and specialized machining enterprises. The proximity allows rapid sourcing of raw materials, shortened lead times, and collaborative problem-solving when technical challenges arise.

Research institutes and national laboratories within the cluster provide technical resources supporting continuous improvement in manufacturing processes and product development. These institutions collaborate with commercial enterprises like Baoji Wisdom Titanium on alloy optimization, surface treatment development, and application engineering. The innovation capacity enables development of new bicycle titanium bolt configurations addressing emerging market requirements without the delays typical of businesses lacking in-house research infrastructure. Academic partnerships ensure manufacturing practices evolve alongside advancing materials science and global best practices.

International recognition grows as Baoji enterprises expand exports globally. Quality certifications including ISO 9001 demonstrate compliance with international standards expected by customers in Europe, North America, and developed Asian markets. Participation in global titanium conferences and trade exhibitions exposes local manufacturers to worldwide customer requirements and competitive offerings. This international engagement drives quality improvements and capability expansion that benefit all customers regardless of location. Today, Baoji represents a major force in the global titanium industry, recognized for consistent quality and competitive pricing that challenges established Western suppliers.

For detailed specifications, application guidance, or quotations on bicycle titanium bolts and related fastener products, contact Baoji Wisdom Titanium today. Our team stands ready to discuss your requirements and provide solutions backed by manufacturing expertise and quality commitment. Send your inquiry to sales@wisdomtitanium.com and experience professional support from titanium specialists who understand that proper fastener selection and installation techniques separate exceptional builds from problematic ones. Let us help you achieve the performance, durability, and aesthetics your bicycle deserves.

FAQs

Q1: Can I use titanium bolts with carbon fiber frames?

A: Yes, titanium is an excellent choice for carbon fiber frames. Unlike steel, titanium is non-magnetic and highly resistant to galvanic corrosion, which can occur when dissimilar metals touch in the presence of an electrolyte (like water). However, you must always follow the carbon frame manufacturer's torque limits to avoid crushing the composite material.

Q2: How do I remove a seized titanium bolt?

A: If a titanium bolt has seized, do not force it with a standard wrench, as you may snap the bolt. Applying heat to the surrounding metal part (not the bolt itself) can help expand the joint. Using a penetrating oil specifically designed for titanium can also help. If it remains stuck, professional extraction tools may be required.

Q3: What is the length range of your standard bicycle bolts?

A: We manufacture a wide variety of lengths to suit different applications. Our standard bolt length range is 10mm to 100mm. Whether you need a short bolt for a disc brake rotor or a longer bolt for a seat clamp, we can provide the precise dimension required for your assembly.

References

1. Schraner, P. (2014). The Bicycling Guide to Complete Bicycle Maintenance & Repair. New York: Rodale Books.
2. Donachie, M.J. (2000). Titanium: A Technical Guide (2nd Edition). Materials Park, OH: ASM International.
3. Bickford, J.H. (2008). Introduction to the Design and Behavior of Bolted Joints (4th Edition). Boca Raton, FL: CRC Press.
4. Park Tool Company. (2021). "Torque Specifications and Concepts." Park Tool Technical Resources. St. Paul, MN: Park Tool Co.
5. ASM International. (2015). ASM Handbook Volume 2: Properties and Selection—Nonferrous Alloys and Special-Purpose Materials. Materials Park, OH: ASM International.
