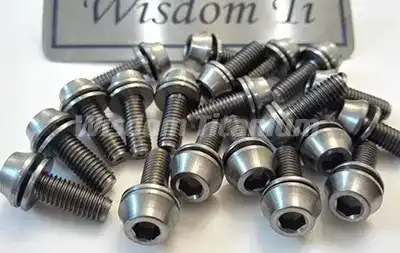

Do you manufacture titanium bottle cage bolts?

At Wisdom Titanium, we manufacture precision titanium bottle cage bolts, including bottle cage bolts designed for road bikes, mountain bikes, and high-end custom builds. Our bolts are machined from Grade 5 Ti-6Al-4V titanium, available in sizes M3 through M10, across multiple drive styles such as DIN 912, DIN 7991, DIN 6921, and ISO 7380. We support anodizing and PVD coating, with an MOQ of 200 pcs per specification. Whether you need standard specs or fully custom designs with laser-engraved logos, we have the capability to deliver.

Titanium Bottle Cage Bolts Advantages

Why Weight Matters in Bicycle Fasteners

When you're racing, every gram counts. A set of steel M5 bottle cage bolts weighs about 8–10g, but a set of Grade 5 titanium bolts weighs about 4–5g, which is the same amount of weight but 40–45% lighter. For brands that list the weight of the whole bike, that difference is real and can be measured. It's seen by riders, and your marketing team can spread the word.

Titanium vs. Steel, Aluminum, and Carbon Hardware

Steel is strong, but it's heavy, and it rusts when it gets wet. Aluminum is light but soft, so taking it off over and over again wears out the threads quickly. If you put shear loads on carbon hardware, it breaks easily. The tensile strength of Grade 5 titanium (Ti-6Al-4V) is ≥950 MPa, and its density is only 4.43 g/cm³. This means that titanium is stronger than steel and lighter than aluminum, making it ideal for riding. Its naturally occurring TiO2 oxide layer also doesn't let salt, sweat, or road grime damage the surface.

Corrosion Resistance in Real Riding Conditions

Bottle cage mounts are always getting wet with water bottles, sweat, and road spray. Even in places with a lot of salt, stainless steel can still rust. Titanium doesn't have that. Titanium is better at resisting crevice corrosion than even Super Duplex steel in naval and chemical processing settings (ASTM G48 tests). It is recommended that cyclists who ride all year or near the coast use titanium bottle cage bolts because they last much longer and look better.

Manufacturing Titanium Bottle Cage Bolts—Processes and Quality Standards

CNC Precision Machining from Verified Bar Stock

Every bolt at Wisdom Titanium starts out as an approved titanium bottle cage bolts. Before we start machining, we use Optical Emission Spectrometry (OES) to check the chemical composition. Our CNC milling and turning tools have thread limits that meet DIN 912 and ISO standards. This means that M3–M10 threads keep their precise pitch shape even after many assembly cycles. Dimensional accuracy is checked for each batch, and the weight of each bolt can be tracked to within 0.1g. This is a specification that procurement managers who are putting out claims about the weight of the whole bike need to know about.

Surface Treatment: Anodizing and PVD Coating

Anodizing creates colors by controlling the thickness of the oxide layer. Colors can be black, blue, rainbow, gold, red, or custom shades. Standardized process parameters ensure that each batch of colors is the same. Physical Vapor Deposition (PVD) coatings make finishes that are harder, last longer, and stick better. Both methods are in line with EU REACH and RoHS rules, which is a must for our European brand buyers. If you ask, you can get color consistency paperwork for each batch.

Quality Certifications and Documentation

Wisdom Titanium is ISO 9001 certified and provides full material tracking for every sale. Material Test Reports (MTR), chemical makeup certificates, dimensional inspection reports, and REACH/RoHS compliance statements are some of the documents that can be found. We are in Baoji Titanium Valley, Shaanxi Province, which is China's oldest titanium production cluster. This gives us direct access to reliable raw material sources and a full, integrated supply chain that goes from the sponge to the finished part.

How to Choose the Right Titanium Fasteners for Your B2B Bicycle Procurement Needs

Match Bolt Style to Application

Not all bottle cage mounts use the same driver or head shape. Here are the standard styles we make and what they're usually used for:

•  DIN 912 (Socket Head Cap Screw): This is the most popular style for fitting a bottle cage. It has a clean hex socket, a high clamping load, and works well for carbon fiber frames where torque control is important.
•  DIN 7991 (Countersunk Flat Head): Flush-mount applications where the bolt heads need to be below the surface. This is common in frame integration designs.
•  DIN 6921 (Hex Flange Bolt): A wider bearing surface means you don't need a separate washer, which is helpful for composite surfaces that aren't very hard.
•  ISO 7380 (Button Head): A low-profile finish that looks good; popular with small brands that care about clean lines.
•  Custom Design: We can make prototypes from CAD files and have a response time of 3–4 weeks for 50–100 pieces.

Each style changes how the clamping works, how much force is needed, and how it looks. Picking the correct head type ahead of time saves time and effort during the product development phase.

Grade 2 vs. Grade 5: Which to Specify

Grade 2 commercially pure titanium is the most resistant to corrosion, but it is also the weakest (about 345 MPa tensile). The right standard for bottle cage nuts that carry light loads is Grade 5 Ti-6Al-4V. It has a tensile strength of 950 MPa, meets most structural fastener needs for bicycle OEM applications, and is the grade we normally keep in stock.

Small-Batch Sampling for New Product Development

For developing new products, we can take sample orders of 50 to 100 pieces. For full production, the MOQ starts at 200 pieces per SKU. Many people have trouble with the high cost of samples during the R&D phase, and this structure directly fixes that problem. Full dimension reports and weight data are sent with samples so that your engineering team can check the specs before committing to mass production.

Maintenance and Usage Tips for Titanium Bicycle Fasteners

Correct Torque Settings Prevent Galling

Because titanium fasteners for bicycles have a higher friction coefficient than steel, they are more likely to gall, which is when threads seize under pressure due to cold welding. That's the most common startup mistake. A little anti-seize paste (molybdenum disulfide) should always be put on titanium threads before they are installed. The torque that should be used for M5 titanium bottle cage bolts is usually between 3 and 4 Nm. Always use a calibrated torque wrench and never apply more force than what the maker says is safe.

Inspection Schedule and Replacement Indicators

Every three to six months or after any crash, check the titanium bottle cage nuts. Look for warped threads, worn head sockets, or surface scoring. Titanium doesn't rust, so rusting that you can see isn't usually a problem. Over time, the main way things break is when the threads wear down. If the threads feel loose or the socket rounds out, you should change the bolt before it breaks on the road.

Compatibility with Carbon Fiber Frames and Aluminum Bosses

Because titanium is more noble than aluminum, there is a chance of galvanic corrosion when threading titanium bolts into aluminum inserts, which is common on carbon frames. If there is water around, this can weaken the metal thread boss over time. Use anti-seize or an insulating substance, and don't tighten too much. Contact between titanium and carbon doesn't pose a galvanic risk and is safe even without extra treatment.

Where and How to Buy Titanium Bottle Cage Bolts for B2B Procurement

Sourcing Channels for OEM and Brand Buyers

Most of the time, Taipei Cycle Show, Eurobike, Google searches, and Alibaba International are where B2B buyers find titanium fastener providers for bicycles. Each channel has pros and cons. There is only so much time at trade shows for in-person technical conversations. Online platforms have a lot of users, but suppliers need to be carefully checked out. Contacting the maker directly, like by going to wisdomtitanium.com to talk to Wisdom Titanium, cuts down on the time it takes to get information and gives procurement managers direct access to tech support and documents.

Evaluating a Titanium Fasteners Supplier

Before making an order for a sample of any titanium fasteners for bicycle manufacturers, they should ask for these four things: an ISO 9001 certification, a Material Test Report for the specific grade, and documented thread gauge inspection results. Any provider who can't give these within a fair amount of time should be looked at again. All four of them are normal for us.

Pricing Structure and Lead Times

The price we charge for titanium bottle cage bolt orders depends on the grade, how the surface is treated, and the size of the batch. A little more money is spent on anodized treatments than on bare titanium. It costs more to apply PVD coating than anodizing, but the surface is harder. After the sample is approved, the standard lead time for production orders of 200 to 500 pieces is 3 to 4 weeks. Based on current capability, rush output can be worked out. Before we confirm an order, we write down the lead time.

Conclusion

Titanium bottle cage bolts are a good idea for any brand that wants to compete on weight and longevity. Because Grade 5 Ti-6Al-4V is strong, doesn't rust, and can be treated in a number of different ways on the outside, it is the perfect material for use on roads, dirt, and mountain bikes. Every order at Wisdom Titanium comes with material paperwork, ISO certification, and technical support, whether it's for a prototype of 50 pieces or a full-scale production run once a year.

FAQ

1. What sizes are your titanium bottle cage bolts available in?

Titanium bottle cage nuts in sizes M3, M4, M5, M6, M8, and M10 are made by us. Most standard bottle cage mounts are made in the M5 size. With CAD models, you can get lengths and thread pitches that are just right for you.

2. What is the MOQ for titanium bicycle bolts?

To place a manufacturing order, our MOQ is 200 pieces per standard. For developing new products, we can take prototype samples of 50 to 100 pieces with full documentation of their size and weight.

3. Can you anodize to a custom color?

Yes. We can anodize in red, black, blue, gold, rainbow, and any other color you want. Standardized process controls help us make sure that each batch of colors is consistent, and you can ask for color sample cards.

4. Do your bolts comply with EU REACH and RoHS?

Yes. Any surface treatment, like anodizing and PVD finishing, is fully in line with REACH and RoHS rules. With every shipment of an order, we include a written compliance statement.

5. Can you laser-engrave a brand logo on the bolt head?

Yes. We can laser-engrave names, part numbers, or unique text on the heads of bolts. Send your art file along with your sample request for a review of its viability.

Get a Custom Quote from Wisdom Titanium Today

Bicycle brands in the US, Europe, Japan, and Taiwan buy precision titanium bottle cage bolts from Wisdom Titanium. We are an ISO 9001-certified titanium fasteners manufacturer for bicycles based in Baoji Titanium Valley. We offer M3–M10 sizes, DIN/ISO standard styles, anodizing and PVD finishing, and trial samples starting at 50 pieces. To get a price, email your CAD files or specs to sales@wisdomtitanium.com.

References

1. ASM International. Titanium: A Technical Guide. ASM International, 2000.

2. ASTM International. ASTM F136: Standard Specification for Wrought Titanium-6Aluminum-4Vanadium ELI Alloy for Surgical Implant Applications. ASTM International, 2013.

3. Donachie, M. J. Titanium: A Technical Guide, 2nd Edition. ASM International, 2000.

4. European Chemicals Agency (ECHA). REACH Regulation (EC) No 1907/2006: Guidance for Downstream Users. ECHA, 2022.

5. International Organization for Standardization. ISO 4762: Hexagon Socket Head Cap Screws. ISO, 2004.

6. Peters, M., Kumpfert, J., Ward, C. H., & Leyens, C. "Titanium Alloys for Aerospace Applications." Advanced Engineering Materials, 2003.
