DIN 912 Bolt Dimensions

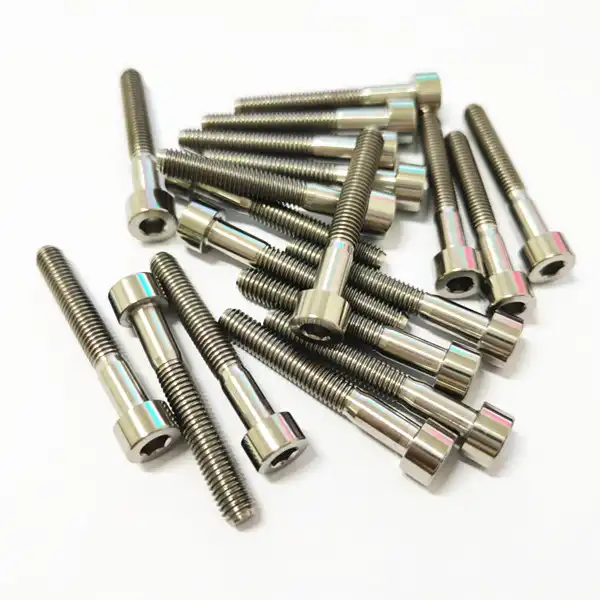

The DIN 912 bolt dimensions list the exact sizes of hex socket head cap bolts made to the German DIN 912 standard, which is the same as ISO 4762 around the world. These measurements include standard thread diameters from M1.6 to M24, specific head heights and diameters, and socket sizes that make sure force is transferred consistently. When made from titanium alloys, especially Grade 2 (commercially pure) and Grade 5 (Ti-6Al-4V), DIN 912 titanium bolts have great strength-to-weight ratios and excellent corrosion resistance. This makes them essential in aerospace, automotive, marine, and medical applications where safety and operational efficiency depend on accurate measurements and material performance.

DIN 912 Bolt Dimensions

The DIN 912 standard sets exact geometry rules that apply to the design of all hex socket head cap bolts. The most basic dimension is the thread width, which ranges from M1.6 (good for delicate medical tools) to M24 (good for heavy industrial and automotive gear). Each thread size is matched to a standard coarse pitch. For example, M14 bolts use a 2.0mm pitch, while M20 versions use a 2.5mm pitch. This makes sure that the threads connect properly and that the load is spread evenly.

Critical Dimensional Parameters

The bolt's torque capacity and the amount of room it needs in an assembly are directly affected by the size of its head. This is an M10 DIN 912 bolt. The head is 16 mm in diameter and 10 mm high, and it has an 8 mm hexagon hole. The width of the material is just right to keep it from coming apart when high installation torques are applied, and the shape is pretty low compared to regular hex head bolts. The hole depth needs to be big enough for standard hex keys with the right contact length, which is usually 4-5 mm for smaller bolts and 10-12 mm for M20 and bigger ones.

The DIN 912 standard says that the length is measured from right under the head to the bolt's end point. Lengths range from 6 mm to 250 mm, so they can be used for a wide range of joint designs, from thin sheet metal assemblies to thick structural links. To choose the right length, you have to carefully weigh the grip length (the part of the base that isn't threaded) against the threaded contact. Not enough thread contact weakens the joint, and too much length adds weight that isn't needed and could cause problems with nearby parts.

Tolerances and Quality Grades

The DIN 912 standard sets manufacturing tolerances that make sure dimensions stay the same, which is very important in high-volume production settings. Tolerances for threads are set by ISO 965-1 standards, and are usually 6g for external threads. This gives enough room for assembly while still leaving enough contact area for load transfer. Head sizes have tighter tolerances—usually ±0.2mm for widths less than 12mm—to make sure they fit properly and look the same in uses that people can see.

When comparing titanium nuts to steel ones, there are more dimensions to think about. Because titanium has a smaller modulus of elasticity than steel (about 114 GPa for Grade 5 vs. 210 GPa for steel), DIN 912 titanium bolts deform more when the loads are the same. Because of this property, engineers have to take into account the fact that bolts will stretch more when they calculate joint loading and choose the right lengths. Titanium's thermal expansion coefficient (8.6 × 10⁻⁶/°C) is between that of steel and aluminum. This makes it useful in situations where different materials need to be joined together and thermal cycling could otherwise cause too much stress.

Material approvals that come with titanium bolts list exact readings of the bolts' dimensions and their mechanical properties. These papers show that the product meets certain standards and can be tracked back to the lots of raw materials that went into it. This is important paperwork for medical and aircraft uses that are regulated by the government. For important sales, especially when getting custom lengths or thread sizes that aren't standard, procurement teams should ask for measurement inspection reports.

Comparing DIN 912 Titanium Bolts with Other Bolt Types and Materials

When choosing a material for important fastening jobs, it's important to look at its technical qualities, how well it works with other materials, and how much it costs over its entire life. Grades 304 and 316 of stainless steel are often used as comparisons for titanium bolts because they offer middling corrosion protection at lower starting costs. A straight comparison shows the flaws of stainless steel: 316 stainless steel has tensile strengths of 515–620 MPa (Grade A4–70), while Grade 5 titanium has 895+ MPa and weighs almost twice as much. When mass has a direct effect on performance, the strength-to-weight edge is very important.

Material Performance Comparison

The trade-off for aluminum metals is the opposite: they are lighter than titanium but not nearly as strong. Tensile strengths of 7075-T6 aluminum, which is one of the strongest aluminum alloys, are about 570 MPa, which is 35% less than Grade 5 titanium. Galvanic corrosion can happen when aluminum is mixed with carbon fiber composites or metals that are not the same, which limits its use in aircraft and high-end automobile parts. DIN 912 titanium bolts are the usual way to attach composite parts in airplanes, high-performance bikes, and race car frames because titanium doesn't react negatively with carbon fiber.

When steel bolts meet the requirements for property class 10.9, they have tensile strengths of at least 1040 MPa, which is about 15% higher than Grade 5 titanium. This strength benefit comes at a high cost in weight and rust resistance. The procurement teams need to decide if the small increase in strength is worth the doubled weight and lower longevity in harsh environments. We've seen that high-strength steel works best for heavy industrial tools and structural links that need the most strength in the least amount of room. Titanium, on the other hand, is better for uses that need to be light and resistant to corrosion.

Bolt Type Comparison and Application Suitability

In some situations, the DIN 912 hex hole shape is better than other types of bolts. Socket head cap bolts are easier to install than DIN 933 hex head nuts because they have a lower profile. This is especially important in places that aren't very deep or where clearance makes it hard to use an external tool. When installing something with a lot of torque, the internal hex drive spreads the torque out more evenly than external hex designs. This makes corner rounding less likely. Titanium cap bolts with a Torx drive improve this benefit by letting 10-15% more power be transmitted before the driver cams out.

Button head socket bolts (ISO 7380) are a more attractive option with a head height that is even lower. They give up some tensile strength in exchange for a nice look and less exposure. These types work well for motorbike bodywork, bicycle parts, and car interior sections where the visible fasteners need to fit in with the surfaces around them. The lower head height limits the maximum torque that can be applied. An M8 button head bolt can only handle about 20% less torque than a DIN 912 equal before the head starts to bend.

The design of the threads affects how the joint works and how it needs to be installed. Fully threaded titanium bolts let you change the grip length, but the threads may be in the main shear plane, which makes the joint weaker by 20–25% compared to shanks that aren't threaded in shear. For precise parts where the position of the bolts can be controlled during assembly, partially threaded bolts with an appropriate unthreaded shank length provide the best shear strength. When you choose a length, the thread runout should be at least one thread width beyond the shear line.

Why Choose Wisdom Titanium for DIN 912 Titanium Bolts?

Choosing a trustworthy titanium fastener maker has a direct effect on the quality of the product, the reliability of delivery, and the total cost of purchase. Since our company started in 2016, Wisdom Titanium has gained specific skills by working with clients in the automobile, aerospace, marine, and medical fields. Our ISO 9001-certified manufacturing methods make sure that all of our production lots have the same dimensions and material qualities. This is very important for customers who need to use interchangeable parts in large assemblies.

Our position in Baoji Titanium Valley gives us a competitive edge that helps our customers by lowering prices and making the supply chain more reliable. The region's combined industrial environment includes the whole process of making titanium, from making sponges and ingots to processing high-performance alloys. This regional concentration lowers the cost of transporting raw materials and makes it easy to quickly find unique alloys that are needed for specific projects. We keep a large stock of Grade 2 and Grade 5 titanium rod stock in sizes that can handle thread diameters from M1.6 to M24. This lets us respond quickly to both trial and production orders.

Our service is unique because it can be customized. Our in-house CNC machining centers can make parts with non-standard lengths, custom head configurations, and specialized drive types, such as different types of Torx, without having to wait for delays in outsourcing. Engineering support helps customers find the best fastener specs for their needs. For example, we've worked with shops that modify cars to make lightweight brake caliper bolt sets and with race teams to make custom suspension hardware that meets the rules of motorsport. Every sale comes with full material traceability and approval paperwork, which meets the strict quality standards of companies that make medical devices and aircraft.

For quality control, we use precise measuring tools to check the sizes of important features, check the finish on the surface, and test the mechanical properties of samples from each production lot that are meant to be representative. These steps make sure that the product meets the standards of DIN 912 and any other customer-specific needs. We listen to what our customers say and use methods for continuous growth that help us fix problems quickly and keep them from happening again. Because we are dedicated to quality and quick responses, we have built long-term relationships with companies that make fine machinery and fix up industrial equipment. These companies count on our parts to work properly.

Our prices reflect the fact that we are straight manufacturers, so there are no markups for distributors. Customers who buy a lot of things can benefit from tiered prices, which rewards loyalty while still allowing for different order sizes. We work with procurement teams to set up outline deals that ensure price stability and capacity sharing over the course of a contract. This is especially helpful because the titanium market is always changing. Customers can check that materials are available before placing an order, and there are no shocks that could throw off production plans.

To talk about your DIN 912 titanium bolts needs, email our expert sales team at sales@wisdomtitanium.com. Our expert staff is available to help with creating specifications, getting quotes, production, and shipping, whether you need to find standard catalog sizes or make custom solutions. As a reliable titanium socket cap bolt provider, we're dedicated to meeting the exact measurements, high-quality materials, and on-time shipping needs of your most important applications.

Conclusion

The DIN 912 titanium bolts are designed fastening solutions that meet specific performance needs that aren't possible with regular materials. Procurement and engineering teams can make the most of titanium's benefits by understanding its size requirements, material properties, and the best way to put it for each purpose. Combining low weight, excellent corrosion resistance, and a high strength-to-weight ratio supports higher prices in situations where these features provide measured value through better performance, longer service life, or less upkeep.

Successful titanium fastener procurement requires partnership with manufacturers that have technical know-how, quality management systems, and advantages in the supply chain. Suppliers that can meet a wide range of customer needs, from concept development to high-volume production, stand out by being close to the infrastructure needed to make titanium, keeping large stocks of raw materials, and being able to make changes to existing designs. Thoroughly evaluating suppliers based on their certifications, manufacturing skills, and customer references lowers buying risks and builds the basis for dependable long-term supply relationships.

FAQs

How can I verify authentic titanium material versus counterfeit fasteners?

Genuine titanium fasteners are ~45% lighter than same-sized steel; weight comparison works. Check material test records (MTRs) with spectroscopic data, or use XRF testing to verify titanium content. Titanium is non‑magnetic—real parts show no magnetic response, while counterfeit steel ones do.

What typical lead times should I expect for bulk titanium bolt orders?

Stock standard M6–M12 sizes ship in 2–3 weeks. Custom lengths/non‑standard threads for orders under 5,000 pieces take 6–8 weeks. Special finishes add 1–2 weeks; orders of 10,000+ may add 2–3 weeks. Order 8–10 weeks in advance to cover supply chain variations.

Are Grade 5 titanium bolts suitable for aerospace structural applications?

Grade 5 (Ti‑6Al‑4V) with proper certification meets AMS 4928 and AMS 4967 for aerospace. Production must follow AS9100 with full material and property traceability. Rolled threads improve fatigue resistance for cyclic loads. Additional qualifications or approved supplier lists may be required; always confirm customer specifications first.

References

1. German Institute for Standardization (2010). DIN 912: Hexagon Socket Head Cap Screws. Beuth Verlag GmbH, Berlin.
2. Donachie, M.J. (2000). Titanium: A Technical Guide, 2nd Edition. ASM International, Materials Park, Ohio.
3. International Organization for Standardization (2004). ISO 4762: Hexagon Socket Head Cap Screws. ISO Standards Catalogue.
4. Boyer, R., Welsch, G., and Collings, E.W. (1994). Materials Properties Handbook: Titanium Alloys. ASM International.
5. Budinski, K.G. (1996). "Tribological Properties of Titanium Alloys," Wear, Vol. 151, pp. 203-217.
6. American Society for Testing and Materials (2021). ASTM B348: Standard Specification for Titanium and Titanium Alloy Bars and Billets. ASTM International, West Conshohocken, Pennsylvania.
