Porsche titanium lug bolts may usually be reused if they pass a comprehensive visual and dimensional check between removals. Some European platforms use single-use bolt stretch bolts (steel). Ti-6Al-4V wheel bolts do not yield under typical torque cycles. Made of titanium alloys, they are resistant to the fatigue cracking and corrosion that normally lead to early retirement of steel fasteners. That said, reuse is conditional – thread quality, seating surface integrity, and torque history are all important. This article covers what to inspect, when to change out, and how to maximize the service life of your titanium wheel hardware.
Understanding Porsche Titanium Lug Bolts
What They Are and Why They Exist

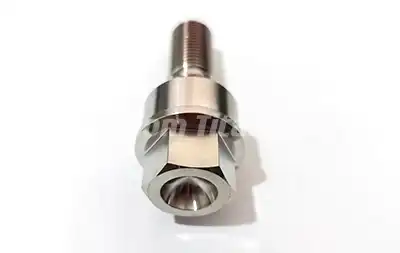

Porsche wheel bolts screw into the hub carrier instead of a separate stud. It’s a design option Porsche has made on the 911, Cayenne, Macan, and Boxster. Replacing the factory steel bolts with Ti-6Al-4V (Grade 5) ones reduces the unsprung rotational mass while providing the clamping force the hub joint requires.
Material Properties That Matter
Grade 5 titanium has a tensile strength of 900–1,050 MPa (130,000–152,000 psi) and a density of 4.43 g/cm³ (0.16 lb/in³), or roughly 43% less dense than steel of the same strength. Titanium wheel bolts won’t rust even after years of exposure to road salt because of the alloy’s inherent oxide coating that makes it exceptionally resistant to oxidation.
How They Compare to Steel and Aluminum
Cheap and robust, but they corrode and make things heavier. Steel Class 10.9 bolts. Aluminum bolts are lower weight; however, they do not have the strength required for safety-important wheel fixes. Ti-6Al-4V is in the middle. It has the light weight of aluminum and the compressive strength of, or better than, a class 10.9 steel. This makes it the ideal solution for high-performance Porsche applications.
Can Porsche Titanium Lug Bolts Be Reused?
The Short Answer and Why It Differs from Steel
Most factory Porsche steel lug bolts are not torque-to-yield fasteners, but as a safety measure, some OEM versions are changed. When torqued to 160 Nm (118 ft-lb for most modern Porsche chassis), Ti-6Al-4V bolts don't yield, so they can be used again as long as they haven't been over-torqued, cross-threaded, or damaged in any way that can be seen.
What to Inspect Before Reusing
Before putting any porsche titanium lug bolts back on, do these things:
- Thread condition: Roll a bolt along its whole threaded length between your fingers. Any bumpy area, smoothed peak, or galled part is not allowed. If you are in charge of a fleet or a shop that does a lot of work, use a Go/No-Go gauge for M14×1.5 to make sure the pitch is correct.
- Floating collar function: On an OEM-style Porsche pin, the collar must be able to turn easily. When the collar seizes up, the friction torque is transferred to the wheel seat. This means that even though the torque number is set, less gripping force is actually produced.
- Fit of the shank and head: Use good lighting or a 10x loupe to look for tiny cracks where the head meets the shank. When loads are pushed hard around corners, this zone gets the most bending stress.
These three checks take less than two minutes each and give you a lot of confidence in your choice to reuse.
When Replacement Is the Right Call
If you see galling on the threads, a broken or seized collar, any crack (even a small one) at the head, or if the bolt was installed without anti-seize and shows signs of adhesive wear, you should replace it right away. Always use a little copper-based anti-seize because titanium can gall against steel hub threads when it is installed without any oil. If you place a bolt dry and then take it off, it might look fine at first glance, but it may have small cracks that shorten its wear life.
Installation, Maintenance, and Troubleshooting
Correct Installation Procedure
Tighten each bolt by hand until it fits securely, then use a measured torque wrench to get all the way up to 160 Nm in a star shape. Please do not use an impact gun, as it may cause the moving collar device to break or over-torque it. A 19 mm hex socket can fit most titanium lug bolts made for Porsche cars because they have a standard hex size.
Routine Maintenance for Long Service Life
After every season, use a brass wire brush to clean the threads. Before putting the hub back on, check the thread bores for rust or other dirt. Every time, put on a new light coat of anti-seize. Polished porsche titanium lug bolts, which are standard on our M14×1.5 line, are easy to clean and show wear more quickly than covered bolts, which is helpful when inspecting.
Troubleshooting Common Problems
While installing something quickly, cross-threading is most often to blame for stripped hub threads. Bolt failure is not. If a bolt feels stiff before it's fully in place, take it all the way out and look at the hub hole. It's more likely that hub thread damage needs a thread insert repair than a stronger bolt if the bolt feels loose at the right torque.
Comparison and Procurement Insights
Titanium vs. Steel vs. Aluminum: A Direct Look
Here are the key trade-offs that you’ll face while picking Porsche wheel bolts:
- Ti-6Al-4V: 900 to 1,050 MPa tensile strength, 4.43 g/cm³ density, high corrosion resistance, reusable after inspection.
- Steel Class 10.9 ~ 1,040 MPa, 7.85 g/cm³. Will rust in saline environments. Can be reused again and again. Tends to seize up.
- Aluminum (7075): The tensile strength of aluminum (7075) is around 570 MPa, and the density is 2.81 g/cm³. This implies it is not robust enough for safety-critical binding loads on production Porsches.
For aftermarket companies that wish to develop an SKU matrix for the 911, Cayenne, Macan, and Boxster, we offer bolts with an M14×1.5 thread that come in 29 mm, 36 mm, and 43 mm lengths. These lengths include the most common combinations of wheel spacers and OEM offsets.
OEM vs. Aftermarket: What Procurement Teams Should Know
OEM Porsche bolts meet standards for shape and strength, but they are much more expensive and can't be rebranded. It is the same for aftermarket Ti-6Al-4V bolts that come from a source that is ISO 9001-certified and has material test certificates (MTC) and Go/No-Go thread reports. Before committing to a supplier, buyers should ask for ASTM B348 chemical analysis reports and proof-load test data to make sure they are in line with the standard.
Sourcing Best Practices for B2B Buyers
Not only a general material certificate, but also batch-level MTC records should be asked for. Make sure the threads are rolled and not cut. Threads that are rolled have better wear resistance because they work-harden the surface instead of leaving a stress riser. For named SKUs, make sure the seller will sign an NDA and allow laser-engraved logos without charging extra for small quantities.
Lifespan and Long-Term Value
Expected Service Life Based on Real-World Data
Ti-6Al-4V fasteners for aviation purposes normally can withstand tens of thousands of load cycles without fatigue. On vehicle wheels, which are usually only removed once to four times a year and are loaded and unloaded less often, a titanium lug bolt may last five to ten years with good care. This is far longer than the two to three years that steel bolts can withstand in saline settings.
Cost-Benefit Analysis for Procurement Managers
Titanium wheel bolts are three to five times more expensive than steel ones. Normally, the steel bolt will require two to three complete replacement sets over a five-year period due to it being removed and replaced once per year. This is due to corrosion and thread wear. The titanium bolt doesn't require any, if you take care of it. That cuts up a good amount of the price difference, and also protects the aftermarket manufacturers from warranty claims for rusted bolts or broken wheel seats.
Strategic Value for Aftermarket Brands
Customers see titanium wheel bolts as a safety enhancement for the premium segment and not simply another product, which is beneficial for manufacturers wanting to establish SKU lines with high margins. Hard facts about the material make the narrative of reusability a real selling feature that steel competitors can’t match.
Conclusion
Porsche titanium lug bolts from Porsche may be reused if inspected and maintained correctly. Made from Ti-6Al-4V, they’re corrosion-- and wear-resistant, two characteristics that often limit the life of steel bolts. The thread must be inspected each time it is used, the collar examined for performance, and anti-seize applied. Any bolt with galling, cracks, or neck damage must be replaced. Titanium wheel fasteners combine proven mechanical performance, extended service intervals and significant profit potential for procurement teams and aftermarket brands, provided the supply matches defined specifications for material and thread quality.
FAQ
1. Are titanium lug bolts safe for track use?
Yes, if they are made from approved Ti-6Al-4V and are forged and thread-rolled. Their yield strength is about the same as Class 10.9 steel, and their fatigue life is better because titanium has a lower modulus of elasticity, which makes it better at absorbing cyclic stress.
2. What torque spec should I use?
Follow the torque setting that came from Porsche. For most current platforms, this is 160 Nm (118 ft-lb). Don't use an impact gun; instead, use a calibrated torque wrench. Before you torque, make sure the threads are clean and lightly oiled with anti-seize.
3. Will titanium bolts gall in a steel hub?
They can if they are put in dry. Putting a little copper-based anti-seize on the threads before installing stops cold welding and makes sure that the torque reading shows binding force instead of thread friction.
4. How many times can I reuse them?
No set number of times it can be used. The choice is based on an inspection. If the thread gage, collar rotation, and visual crack checks all go well, the bolt can be used again. If it fails any test, it should be changed, no matter how old it is.
5. What certifications should I ask for?
You should ask the manufacturer for ISO 9001 certification, an ASTM B348 chemical analysis, Go/No-Go thread gage reports for M14×1.5, and batch-level material test certificates. For the European market to be compliant, REACH/RoHS paperwork is normal.
Source Titanium Wheel Bolts from Wisdom Titanium
Wisdom Titanium sells Porsche titanium lug bolts that are ISO 9001-certified and come in lengths of 29 mm, 36 mm, and 43 mm. They have a smooth finish and a tensile strength of 900 to 1,050 MPa. We are a top company in Baoji Titanium Valley, Shaanxi Province, that makes titanium lug bolts. We offer private-label branding, batch MTC reports, and a minimum order quantity of 200 pieces. To get a price, email our engineering team at sales@wisdomtitanium.com.
References
1. ASM International. ASM Handbook, Volume 2: Properties and Selection — Nonferrous Alloys and Special-Purpose Materials. ASM International, 1990.
2. ASTM International. ASTM B348: Standard Specification for Titanium and Titanium Alloy Bars and Billets. ASTM International, 2021.
3. Donachie, Matthew J. Titanium: A Technical Guide. 2nd ed. ASM International, 2000.
4. Bickford, John H. An Introduction to the Design and Behavior of Bolted Joints. 4th ed. CRC Press, 2008.
5. German Institute for Standardization (DIN). DIN 74361: Wheel Bolts for Passenger Cars — Dimensions and Technical Requirements. DIN, 2017.
6. Society of Automotive Engineers. SAE J429: Mechanical and Material Requirements for Externally Threaded Fasteners. SAE International, 2014.
