Can Porsche titanium lug bolts be customized for wheel spacers?

Porsche titanium lug bolts can be adjusted for wheel spacers. And frequently it’s not even a matter of choice. When a wheel spacer is inserted, the wheel is now farther away from the hub; thus, the regular-length bolts no longer contact the hub enough. You may also change the bolt length (29mm to 36mm or 43mm) to guarantee you have the correct amount of clamping power so that the wheel stays on tight. And with the appropriate manufacturer, you can make Ti-6Al-4V (Gr5) titanium lug bolts to spec to meet different spacer thicknesses without sacrificing strength or fit.

Understanding Porsche Titanium Lug Bolts and Their Specifications

It is helpful to know why these fasteners are useful in the first place before you start customizing them.

Material Composition and Strength

The titanium wheel bolts are made from high-performance titanium, sometimes known as titanium Gr5 or Ti-6Al-4V. It is about 43% lighter than Class 10.9 steel fasteners with a tensile strength of 900-1050 MPa or around 130,000-152,000 psi. The lower density of titanium (7.8 g/cm^3 for steel vs 4.43 g/cm^3) immediately reduces unsprung rotational mass. This means cars such as the 911, Macan, and Cayenne are more sensitive to the road and better at stopping.

Standard Porsche Bolt Specifications

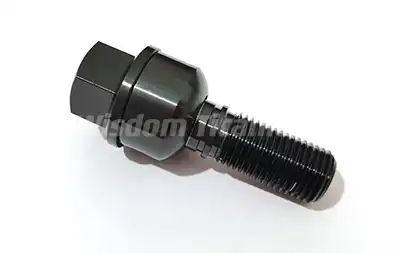

OEM Porsche lug bolts are shaped a special way. They feature an M14 x 1.5 thread pitch, a 19mm hex size, and a floating ball seat ( R14 ) that isolates the spinning force from the binding force to preserve the seats of the metal wheels. Available in 29mm, 36mm, and 43mm lengths to suit various hub depths and spacer combinations. The standard is polished, with black or gold PVD coatings becoming popular later for branding.

Why Titanium Outperforms Steel and Aluminum Here

Salt eats away at steel nuts, such that they corrode and frequently seize in the hub, making it hard to get them off without doing damage. Aluminum fasteners don’t have the tensile strength for safety-critical usage. Titanium is self-protecting because it creates an oxide layer that lasts a very long time and prevents corrosion from the air and road salt. That makes it the finest material for both track-day construction and all-weather Porsche ownership.

Challenges and Considerations When Customizing Titanium Lug Bolts for Wheel Spacers

It may seem easy to customize, but when it comes to a safety-critical fastener, the engineering details matter a lot.

Thread Engagement and Length Calculation

Every millimeter of spacer thickness added requires an equal increase in bolt length to maintain the minimum acceptable thread engagement. This is generally at least 1.5 times the bolt diameter; therefore, for an M14 bolt, this is at least 21mm . The bolt does not seat correctly with a regular 29mm bolt and 10mm spacer. Changing to the 43mm version restores the thread depth, and stress is uniformly distributed on the hub threads.

Machinability and Structural Integrity

Ti-6Al-4V is known to be infamously difficult to machine compared to steel. It will create micro-stress spots, reducing the wear life if cutting speeds and equipment are incorrect. So, for the porsche titanium lug bolts, thread rolling is the standard rather than thread cutting. When you roll threads, the grains flow smoothly, and therefore they are more fatigue resistant. But when you cut threads, the stresses become higher, and they are more likely to fail under cyclic loads.

Quality Verification Requirements

Procurement people should require material test certificates (MTC) showing the composition is Ti-6Al-4V per ASTM B348. Go/No-Go gage readings indicate M14 X 1.5 threads are accurate. This is what QC teams require. Records of salt spray test and torque test for each batch. Without these documents, you have no way of knowing whether a "titanium" bolt is really Gr5 and not Gr1 or Gr2 commercial pure titanium.

How to Customize Porsche Titanium Lug Bolts for Wheel Spacers – Step-by-Step Guide

For procurement teams and product engineers who are making a custom SKU for Porsche applications with spacers, here is a useful way to do it.

Step 1 — Measure Spacer Thickness and Confirm Hub Specs

Start by taking exact measurements of the hub's thread depth, the thickness of the spacer, and the length of the current bolts. To find the minimum custom length, add the thickness of the spacer to the length of the standard bolt. Check against data for specific Porsche models (911, Macan, Boxster, and Cayenne) to make sure you meet the M14 x 1.5 thread pitch and ball seat shape needs.

Step 2 — Submit Engineering Drawings and Request Samples

Give the company that makes titanium lug bolts a picture with measurements that shows the thread shape, head geometry, seat type, surface finish, and any brand engraving needs. Ask for actual samples within 7–15 days to make sure they fit and test the force. At Wisdom Titanium, samples are usually turned around in this time frame, and engineers respond within 24 hours.

Step 3 — Test, Verify, and Place a Trial Order

When the samples arrive, use a torque wrench that has been calibrated to meet Porsche's factory requirements, which are about 160 Nm (118 ft-lbs). Check the thread contact visually to make sure there was no galling. It is common practice to put a small amount of copper-based anti-seize on threads before torquing. This keeps the titanium and steel hubs from cold welding together. Once the fit and torque have been checked, a trial batch of 200 pieces is the best way to start validating the SKU.

Comparing Titanium Lug Bolt Options for Porsche With and Without Customization

Procurement managers who understand the benefits and downsides of conventional and unique solutions may make quicker, wiser decisions.

Stock configuration: You can use OEM-length porsche titanium lug bolts (29mm), and they work perfectly on Porsches and are by far the quickest method to acquire them. But standard lengths just aren’t long enough when you have wheel spacers, which is prevalent in the aftermarket performance world.” Custom lengths of 36mm and 43mm are not uncommon requests and are a logical expansion of an existing product line, and a skillful manufacturer may produce them from the same Gr5 Porsche titanium lug bolt material without costing a lot more.

Here's a spacer setting comparison of the 3 primary fastener materials:

• Titanium Gr5 (Ti-6Al-4V) – Tensile strength 900-1050 MPa – Density 4.43g/cm³ – Excellent corrosion resistance – Custom lengths and finishes; MOQ is 200 PCS; mixed-length batch is available. Great for distinct SKUs seeking performance branding.
• Class 10.9 steel. 43% heavier. Prone to corrosion. Same tensile strength. Less expensive per unit but must be changed out in salt conditions. No visual or weight distinction to indicate premium branding.
• Aluminum Alloy: Lightweight but often less than 500 MPa tensile strength, not appropriate for safety-essential wheel fasteners for on-road or track applications.

Due to these variances, titanium is the only material that can match the criteria for weight reduction, corrosion protection, and load-bearing simultaneously in a single bolt. That’s precisely why aftermarket companies utilize it to keep their product lines together.

Case Studies and Industry Observations on Custom Titanium Lug Bolts for Wheel Spacers

Porsche 911 Track Build with 15mm Spacers

For a 911 GT3-spec, a European business that develops racing components required 43mm M14 x 1.5 titanium lug bolts to suit 15mm hub-centric spacers. Using the usual 29mm nuts left less than 14mm of thread contact. We tested the system using handcrafted 43mm bolts from certified Ti-6Al-4V with rolled threads and a polished finish, and it passed the pressure verification. It has been utilized for multiple track seasons without difficulties.

Macan SKU Matrix Expansion

The Macan lineup had to have spacers made in three different sizes by an aftermarket brand from the US: 5 mm, 10 mm, and 15 mm. Consistent batch coloring and MTC documentation, together with bespoke bolts in 29mm, 36 mm, and 43mm lengths, allowed them to streamline their procurement to 200+ pieces per SKU, on a quarterly order, from one supplier. This allowed for quality control at the brand level and reduced supplier complexity.

Industry Consensus on Material Certification

Reading the comments from seasoned Porsche techs on Rennlist and 6speedonline, it’s obvious that material certification trumps pricing. And as good as they seem, professional installers don't normally utilize bolts that don't have spectroscopic test findings or thread gage reports.

Conclusions

Technically sound and financially viable if done well, custom Porsche titanium lug bolts for wheel spacers. "Key factors such as bolt length, thread engagement, material grade, and surface polish are all controllable with a manufacturer who supplies comprehensive documentation and real Ti-6Al-4V material. The method has a certain technical logic to it, whether you are generating a three-length SKU matrix for the Macan or checking a single 43mm bolt for a track-day 911 build. Take the dimensions correctly, insist on approved material, and deal with a supplier that can reply to your designs in technical language.

FAQ

1. Is it safe to use custom-length titanium lug bolts with wheel spacers?

Yes, provided the custom bolt restores the minimum required thread engagement (at least 1.5× bolt diameter). A 43mm bolt used with a 15mm spacer on a standard Porsche hub achieves the same engagement depth as the original 29mm bolt on a stock configuration. Use certified Ti-6Al-4V material and torque to Porsche's factory specification of approximately 160 Nm.

2. What bolt length do I need for a 10mm wheel spacer?

For a 10mm spacer, move from the standard 29mm bolt to a 36mm variant. This restores the original thread engagement depth within the hub. Confirm with a thread engagement calculation specific to your Porsche model before ordering.

3. Do titanium bolts require different torque settings than steel?

No. Torque to the Porsche factory setting — typically 160 Nm (118 ft-lbs) for most modern models. Use a calibrated torque wrench, not an impact gun. Apply copper-based anti-seize to threads to prevent galling between titanium and the steel hub.

4. What is the minimum order quantity for custom lengths?

At Wisdom Titanium, the MOQ is 200 pieces per specification. Mixed-length batches (e.g., 29mm, 36mm, and 43mm) can be discussed to accommodate full SKU matrix orders from a single production run.

5. How do I verify that bolts are genuine Ti-6Al-4V?

Request a material test certificate (MTC) showing spectrometer analysis confirming the Ti-6Al-4V composition per ASTM B348. Reject any supplier who cannot provide this documentation at the batch level.

Get a Quote from Wisdom Titanium — Porsche Titanium Lug Bolt Manufacturer

As long as the porsche titanium lug bolts meet the minimum thread engagement requirement (at least 1.5 bolt diameter). When a 15mm spacer is used with a 43mm bolt on a normal Porsche hub, the contact depth is the same as with the original 29mm bolt. Use approved Ti-6Al-4V material and power that meets Porsche's factory requirements, which are about 160 Nm. Email our sales team at sales@wisdomtitanium.com to get samples or a quote for a large order.

References

1. ASTM International. ASTM B348: Standard Specification for Titanium and Titanium Alloy Bars and Billets. ASTM International, 2021.

2. Boyer, R., Welsch, G., & Collings, E. W. Materials Properties Handbook: Titanium Alloys. ASM International, 1994.

3. Lütjering, G., & Williams, J. C. Titanium (2nd ed.). Springer, 2007.

4. ISO. ISO 898-1: Mechanical Properties of Fasteners Made of Carbon Steel and Alloy Steel. International Organization for Standardization, 2013.

5. Society of Automotive Engineers. SAE J429: Mechanical and Material Requirements for Externally Threaded Fasteners. SAE International, 2014.

6. Donachie, M. J. Titanium: A Technical Guide (2nd ed.). ASM International, 2000.
