Are titanium wheel studs suitable for high-performance driving?

Titanium wheel studs are absolutely suitable for high-performance driving, offering measurable advantages for racing teams, performance vehicle manufacturers, and modification shops. When executing a titanium wheel stud conversion, you replace traditional steel fasteners with Grade 5 titanium alloy components that deliver a strength-to-weight ratio superior to any conventional material. These aerospace-grade fasteners reduce unsprung weight by approximately 40–60% compared to steel equivalents while maintaining tensile strength exceeding 950 MPa. This combination directly improves suspension responsiveness, steering precision, and braking performance—critical factors when vehicles operate under extreme thermal cycles and vibrational loads on track or during competitive motorsport applications.

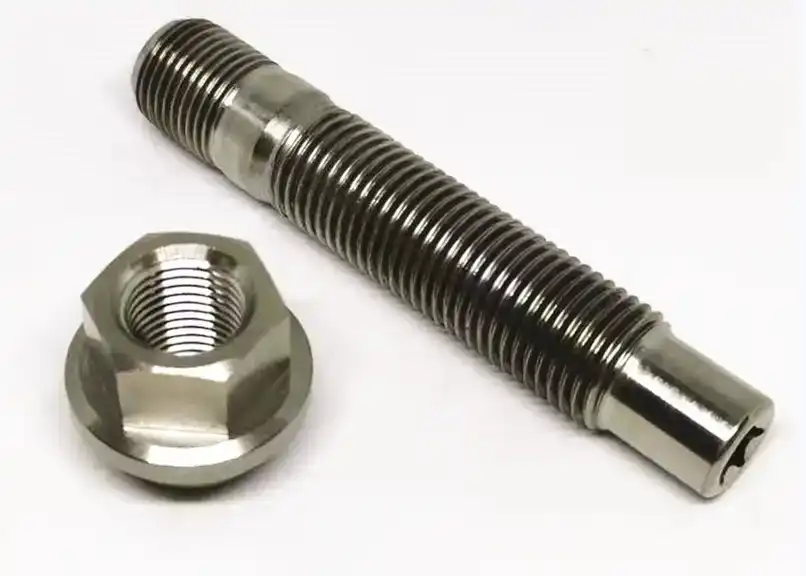

Understanding Titanium Wheel Studs and Their Role in High-Performance Driving

Titanium alloys used to make aerospace-grade fasteners, mostly Grade 5 (Ti-6Al-4V), which has 6% aluminium and 4% vanadium, are used to make titanium wheel studs. This particular mix makes a material that is very strong for its weight, doesn't rust, and doesn't wear down easily when loaded and unloaded many times.

Material Properties and Manufacturing Standards

Grade 5 titanium alloy has a tensile strength of 950–1,000 MPa and a density of only 4.43 g/cm³, which is about 45% less than steel but keeps the same level of structural integrity. Hot forging is used instead of machining in the manufacturing process to make sure that the grain flow lines follow the shape of the stud head and shank. This grain structure makes it harder for cracks to spread when the stress is high. Instead of cutting, thread rolling makes the surface even harder and gets rid of stress points that can cause failure.

Mechanical Advantages in High-Performance Applications

Lessening the rotational mass at the wheel unit makes the car move more smoothly. When titanium studs are used instead of steel ones, the lower unsprung weight makes it possible for suspension parts to respond more quickly to changes in the road surface. This responsiveness improves the regularity of the tire contact patch, which makes it easier to turn and cuts down on lap times in competition settings. Titanium's lower thermal expansion rate keeps its dimensions from changing too much during thermal cycle, which happens a lot when you brake hard over and over again. This keeps power loss and stud elongation to a minimum.

Stress Distribution and Load Management

The value of elasticity of titanium is about 110 GPa, which is lower than that of steel, which is 200 GPa. This means that titanium slightly stretches more when it is loaded. This feature spreads the gripping forces more evenly across the wheel mounting surface. This lowers the amount of stress that builds up in one area, which can break aluminium wheels or steel hubs due to wear. This even load distribution helps racing teams whose vehicles have to handle sustained high-G cornering forces. It also makes parts last longer, even in rough track conditions.

Titanium Wheel Stud Conversion: Process, Benefits, and Performance Evaluation

When you switch from steel to titanium wheel studs, you need to pay close attention to how they work with each other, how to install them, and how to keep them in good shape. Procurement managers and tech teams can figure out if this upgrade meets practical needs by learning about the titanium wheel stud conversion process.

Compatibility Assessment and Installation Best Practices

Checking that the thread pitch, shank diameter, and overall length of the titanium wheel stud can be used with existing wheel hubs is the first step in the titanium wheel stud conversion process. M12×1.5, M14×1.5, and 1/2-inch UNF threads with lengths ranging from 25mm to 50mm based on wheel offset and spacer needs are common specifications. To make sure the clamping force is spread out evenly, torque values stated by the maker must be followed. For passenger cars, these values are usually 80–120 Nm, and for racing, they are 100–140 Nm. The torque should be applied in a star pattern.

Titanium bolts have anti-seize coatings that keep galling from happening between stud threads and aluminium wheel bores. Standard anti-seize pastes made from copper can lead to galvanic rusting. Instead, lubricants made from nickel or ceramic are suggested. To keep the threads from stripping under practical loads, they must meet basic standards for engagement, which usually means that at least six full threads must be set within the hub.

Performance Benefits Backed by Real-World Data

Titanium wheel stud conversions improve efficiency in more ways than just lowering weight. Teams in long races say their pit stops are much more efficient because titanium studs don't cause thread galling, even after hundreds of wheel changes in a short amount of time. People who run commercial fleets of cars near the coast say that their service times are longer because titanium doesn't corrode like steel studs do when they're exposed to salt.

Motorsport engineering firms have done tests that show titanium studs keep their preload torque values more consistently than steel alternatives in temperatures ranging from -40°C to 150°C. This stability lowers the chance that the wheels will come off because of differences in how they expand and contract when heated or cooled. Grade 5 titanium studs have a failure life of more than 10 million cycles at 70% of their ultimate tensile strength. This is a lot longer than Grade 8.8 steel bolts, which usually break after 3–5 million cycles under the same stress conditions.

Case Study Evidence from Professional Racing

Professional touring car teams in series like IMSA and Pirelli World Challenge have seen measurable improvements after switching to titanium wheel stud conversions. One GT3-class team said they were able to improve their time by 0.3 seconds per lap at a fast track after upgrading their fasteners to titanium ones. This was because the upgrades cut the unsprung weight by 1.2 kg per corner. Endurance racing groups that use cars for 12–24-hour events say that titanium studs stop mid-race breakdowns caused by thermal fatigue. This is a problem that often happens with steel fasteners that are hit with heavy brakes many times at high speeds.

Commercial fleet managers who are in charge of high-end shuttle services in coastal vacation areas say that switching to titanium wheel stud conversions cut upkeep costs by more than 30% per year. In the first year of operation, the higher original investment is justified by the lower cost of labour needed to replace rusted studs.

Cost-Benefit Analysis and Procurement Considerations for B2B Clients

High-performance titanium wheel studs are a strategic purchase that needs to be carefully weighed against the costs that come up front and the benefits that come up in the long run. Instead of just looking at differences in unit prices, procurement managers need to look at the total cost of ownership.

Investment Analysis and Return on Investment

The first cost of converting to titanium wheel studs is usually between $200 and $600 per car, but it depends on the configuration and number of vehicles bought. On average, steel stud sets cost $30 to $80, which makes the price difference seem like it's 500% to 750%. How we see things changes a lot when we look at lifecycle economics. Titanium studs that are properly put can last as long as the car does, which in industrial settings is often more than 200,000 miles. Steel fasteners, on the other hand, need to be replaced every 30,000 to 50,000 miles in corrosive environments because they seize up from rust.

When you reduce the weight of your vehicle's unsprung components, it uses less gas and saves money over its lifetime. According to engineering estimates, removing 5 kg of unsprung weight from a passenger car increases fuel economy by about 0.5% and in commercial trucks by about 0.3%. For fleet owners who are in charge of hundreds of cars, this increase in efficiency saves them a lot of money every year, and within 24 to 36 months, it pays for itself in part.

Procurement Criteria and Vendor Selection

To find dependable sources for titanium wheel stud conversion parts, you need to look at their quality certifications and production skills. Documented quality management systems are required for ISO 9001 certification, and advanced process controls for safety-critical fasteners are required for AS9100 certification in the aerospace industry. Positive Material Identification (PMI) testing confirms the chemical composition of Grade 5 titanium, which sets premium alloys apart from inferior Grade 2 pure titanium that isn't strong enough for wheel mounting applications.

The Baoji Wisdom Titanium Industry and Trading Co., Ltd is in the Baoji Titanium Valley in Shaanxi Province, which is home to China's largest titanium industry cluster. It is an ISO 9001-certified manufacturer that can do everything from sourcing raw materials to making finished parts. This vertical merger keeps the supply chain stable and makes sure that each batch is the same, which is important for OEM partnerships and fleet conversions with a lot of vehicles. The company was founded in 2016 and keeps an extensive stock of raw materials and standard operating procedures for manufacturing. This ensures the quality of the products and on-time delivery for orders ranging from a minimum of 100 pieces to production runs of several thousand pieces.

Customization Capabilities and Bulk Order Advantages

Titanium wheel studs can be perfectly matched to specific car platforms and performance needs thanks to choices for custom manufacturing. CNC machines can handle thread pitches that aren't standard, longer shank lengths for wheel spacer uses, and unique head shapes for installs with limited clearance. For orders over 500 sets, bulk buying deals usually lower unit costs by 15–25%. This makes conversion affordable for fleet operators and aftermarket dealers who serve a wide range of customers.

Premium suppliers are different from commodity suppliers because they offer warranties and technical support after the sale. Comprehensive warranties that cover material defects and manufacturing flaws for longer than 36 months show that the supplier is confident in the durability of the product. Technical support services, such as installation instructions, torque specification documents, and troubleshooting help, lower the risks of implementation for procurement teams that don't know much about how titanium fasteners are used.

Conclusion

Titanium wheel studs offer real performance benefits for high-performance driving uses by reducing unsprung weight by a large amount, having better strength-to-weight ratios, and being very resistant to corrosion. To get the benefits of the titanium wheel stud conversion process, you need to pay close attention to making sure it works with the new system, installing it correctly, and keeping up with the maintenance schedule. Lifecycle cost analysis shows that race teams, owners of speed vehicles, and fleet users in corrosive conditions can save money over time, even though the original investment is higher than with regular steel fasteners. To make sure effective long-term performance, procurement choices should put supplier quality certifications, manufacturing process verification, and expert support skills at the top of the list. When properly chosen and installed, titanium wheel studs improve the way a vehicle moves, lower the amount of maintenance that needs to be done, and provide higher levels of safety in a wide range of operational situations.

FAQ

Can titanium wheel studs fit all vehicle types?

Titanium wheel studs are made with standard thread pitches, such as M12×1.5, M14×1.5, M14×2.0, and 1/2-inch UNF. These thread pitches work with most passenger cars, performance cars, and light trucks. To be compatible, you must match the thread size, shank thickness, and length to the way your hub is set up. Custom manufacturing can handle non-standard uses like old cars, race bases, and speciality builds that need specific measurements.

Do titanium wheel studs affect vehicle warranty coverage?

Most of the time, installing titanium wheel studs aftermarket does not void a vehicle's warranty, unless the maker can prove that the change directly caused a failure. Warranty issues are less likely to happen if you use studs that meet or exceed OEM strength standards and place them the right way. OEM makers are asking for titanium screws to be used on more and more high-performance models. This sets a safe example for how they can be used on all types of vehicles.

How long do titanium wheel studs last compared to steel alternatives?

When used in non-corrosive environments and with regular torque checks, Grade 5 titanium wheel studs that are put correctly can last the life of the car, which is often more than 200,000 miles. Because rust causes them to seize up, steel screws in coastal or winter areas usually need to be replaced every 30,000 to 50,000 miles. Extreme thermal cycling may mean that titanium studs need to be inspected more often in racing uses, but steel screws only last 3–5 million cycles, while titanium studs last over 10 million.

Partner with Wisdom Titanium for Your High-Performance Fastener Needs

Wisdom Titanium is an expert at making high-quality Grade 5 titanium wheel studs that are designed for high-performance drives. We are an ISO 9001-certified seller of titanium wheel stud conversions based in Baoji Titanium Valley, which is the world's largest titanium production cluster. We offer certified quality and full supply chain integration, from buying raw materials to precision CNC finishing. Our experienced research and development (R&D) team can make custom configurations that meet the specific needs of OEMs and fleets. You can place an order as little as 100 sets, and you can save money by buying in bulk. A full stock of raw materials and standardised production methods ensure consistent quality and on-time deliveries. Get in touch with our expert team at sales@wisdomtitanium.com to talk about your unique needs and get personalised advice on how to get the best performance and value from your titanium wheel stud conversion project.

References

1. Boyer, R., Welsch, G., & Collings, E.W. (1994). Materials Properties Handbook: Titanium Alloys. ASM International, Materials Park, Ohio.
2. Donachie, M.J. (2000). Titanium: A Technical Guide, 2nd Edition. ASM International, Materials Park, Ohio.
3. Society of Automotive Engineers (2019). SAE J1199: Mechanical and Material Requirements for Externally Threaded Fasteners. SAE International Standards, Warrendale, Pennsylvania.
4. Lutjering, G. & Williams, J.C. (2007). Titanium, 2nd Edition. Springer-Verlag, Berlin, Germany.
5. International Organization for Standardization (2017). ISO 898-1: Mechanical Properties of Fasteners Made of Carbon Steel and Alloy Steel. ISO Standards, Geneva, Switzerland.
6. Campbell, F.C. (2008). Elements of Metallurgy and Engineering Alloys. ASM International, Materials Park, Ohio.
