Are titanium washers lightweight?

Titanium washers are remarkably lightweight compared to traditional fastener materials. A titanium countersunk washer weighs approximately 45% less than its stainless steel equivalent while maintaining superior mechanical strength. This dramatic weight reduction stems from titanium's low density of 4.43 g/cm³, which makes it an excellent choice for industries where every gram matters— aerospace assemblies, motorsport brake systems, and high-performance bicycle components. The conical design of countersunk washers allows for flush mounting without adding unnecessary mass, delivering both functional efficiency and structural integrity.

Understanding Titanium Washers and Their Weight Characteristics

Titanium washers are a unique type of fixing component that is constructed to work exceptionally well in tough situations. Instead of regular flat washers, these precision-machined parts use titanium's special properties to solve important engineering problems in the marine, aerospace, and automotive industries.

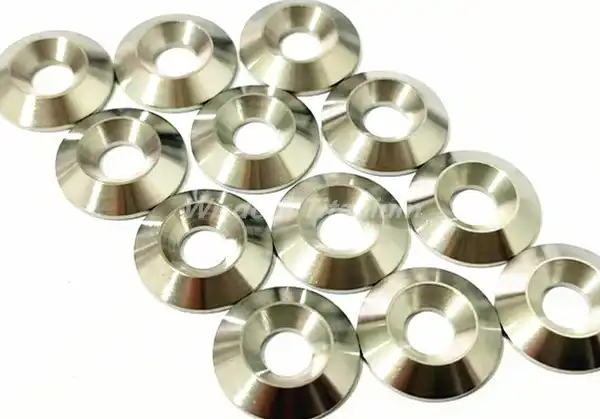

What Makes Titanium Countersunk Washers Distinct

A titanium countersunk washer has a conical bearing surface that is exactly angled to 90° or 100° military standards so that it can fit snugly with screws or bolts that are countersunk. This shape gets rid of any surface bumps that might get in the way of air flow, moving parts, or aesthetic needs. We mostly make these washers out of Grade 5 titanium (Ti-6Al-4V), which is an alloy made up of 6% aluminum and 4% vanadium and has a tensile strength of 895 to 1000 MPa. This specification is the same as or better than many hardened steel alloys, and it still has the important 45% weight advantage.

High-quality titanium bars are the first part of the manufacturing process. They are carefully checked before they are CNC machined. Following ISO 7090 or DIN 6319 standards, each washer is held to very close tolerances. This makes sure that the bolt heads are perfectly centered and prevents side-loading, which is a frequent place for failure in high-vibration environments like race suspensions or motorbike brake systems.

How Density Affects Weight Performance

The weight of a component is directly related to its mass. Titanium is much less dense than stainless steel 316, which is 8.2 g/cm³, and even aluminum alloys, which are only 2.7 g/cm³. Aluminum may look lighter, but because it isn't as strong as steel, it needs bigger parts to hold the same amount of weight, which often cancels out the density advantage. In real life, a Grade 5 titanium washer can be smaller but harder, which means it can save 40–50% of the weight of steel and 15–20% of the weight of aluminum when installed.

These numbers mean gains in performance that can be seen and measured. When racing teams replace steel bolts in brake caliper units with titanium ones, they get faster acceleration times. Aerospace manufacturers can get better fuel economy by specifying titanium washers for installations of fuselage panels that have thousands of fasteners that add up to a lot of mass.

Dimensional Impact on Overall Weight

The washer's weight is related to its size, especially its thickness and width. Our normal product range includes sizes M3, M4, M5, M6, M7, M8, M10, M12, and M14. Depending on the load, widths range from 0.5mm to 2.5mm. An M6 titanium countersunk washer with a 12mm outer diameter and a 1.0mm thickness weighs about 0.15 grams, while the stainless steel equivalent weighs 0.28 grams. This is a 46% weight loss.

Customization options let you precisely optimize weight. Modification shops for cars often ask for particular thickness reductions for wheel hub parts, where unsprung weight has a direct effect on how the car handles. We help our clients figure out the minimum safe thickness based on the bolt torque requirements and the material of the substrate. Then, we make washers that get rid of every extra milligram without lowering the safety margins.

Comparing Titanium Washers to Other Materials: Which Is Lighter

The choice of material has a big effect on the weight of a system, its resistance to rust, and its long-term dependability. When purchasing professionals know how titanium countersunk washers compare to other options, they can make smart choices that balance the initial costs with the long-term value.

Titanium Versus Stainless Steel: The Weight Difference

Stainless steel 316 is still a popular material for fasteners because it doesn't rust and is easy to find. The mass comparison, on the other hand, makes titanium's edge clear. If you use stainless steel washers, a full set of brake caliper bolts could weigh 240 grams. If you use titanium washers instead, the weight drops to 132 grams, saving you 108 grams per corner. That's 432 grams less spinning mass across a four-wheeled car, which makes the brakes work better and lowers the energy needed to speed up and slow down.

Besides being lighter, titanium is also better at resisting crack rust in chemical and still seawater conditions where stainless steel pits. This feature is especially useful for marine applications, since rust weeping from steel bolts stains and weakens boat decks and submersible housings in an unsightly way.

Aluminum: Lighter But Weaker

At 2.7 g/cm³, the density of aluminum alloys like 6061-T6 is very good, which means that individual washers are lighter than titanium equivalents. But because aluminum has a tensile strength of about 310 MPa, it needs bigger cross-sections to have the same load-bearing capacity. Engineers often find that aluminum washers are heavier than titanium washers in sizes larger than M6 when they figure out the required thickness for the same clamping force and fatigue resistance.

Another important problem is galvanic rusting. When aluminum washers come into close contact with carbon fiber walls, they set off electrochemical processes that speed up the breakdown of the materials. Titanium is the usual fastener for high-end bicycle frames, auto body panels, and airplane interior parts made of composite materials because it is electrochemically compatible with them.

Brass and Bronze: Legacy Materials

Because of the way things were made in the past, brass and bronze washers can be found in old equipment and marine hardware. With values between 8.4 and 8.7 g/cm³, these copper metals are heavier than steel but not as strong. Titanium parts are replacing brass parts more and more in modern sourcing because they are lighter (by more than 50%) and have better mechanical qualities and resistance to corrosion.

Because it is cheaper, brass is better for low-stress jobs where weight doesn't matter. However, industries that focus on improving performance, like motorsport, aerospace, and making high-end bicycles, have largely accepted titanium as the material of choice, even though it costs more per unit.

Procurement Insights: How to Buy Titanium Countersunk Washers

To find high-quality titanium fasteners, you need to know about the different types of material, the approval standards, and the supplier's abilities. Technical requirements, supply times, and price limits must all be balanced in order for the procurement of each titanium countersunk washer to work well.

Selecting Qualified Suppliers and Certifications

If a company has ISO 9001 approval, it means they have well-thought-out quality control systems with clear rules for tracking products. At Wisdom Titanium, we have this certification along with material test results that show that each production batch has the right chemical make-up and mechanical qualities. We are in the Baoji Titanium Valley in Shaanxi Province, which is China's biggest titanium industry cluster. Our integrated supply lines make sure that our prices are fair and that our materials are always the same.

For aerospace and medical uses, you may need extra certifications like AS9100 or FDA registration. When looking for washers for regulated industries, make sure the suppliers can give you a certificate of conformance (C of C) that connects finished parts to test reports for raw materials by lot number.

Understanding Pricing Structures and MOQ Requirements

Titanium's raw material costs change based on how much is made in sponges and alloys around the world. Due to the addition of alloying elements and the need for more complex processing, grade 5 titanium usually costs more than commercially pure grades. By making production more efficient, bulk orders get better unit prices. Our minimum order numbers start at 100 to 200 pieces per size, which balances setup costs against inventory freedom.

Custom sizes or surface treatments like anodizing or PVD coating cost more, but they make the product work better. Anodizing adds colored oxide layers that make the assembly easier to find and make the surface harder. PVD coatings lower friction coefficients to keep the parts from galling during installation.

Customization Capabilities for Specific Applications

Standard washer sizes work for a lot of uses, but special specs make them work better for specific needs. Shops that make modifications to cars often ask for washers with different inner diameters to fit bolt heads that are too big or with specific outer diameters that match the dimensions of composite panel pockets. We have CNC machines here in the office that can make custom profiles from technical sketches or real samples.

You can choose from polished, anodized (Type II or III), and PVD-coated finishes for the surface. Polished finishes are good for places that people can see them, while hard-coat anodizing makes the surface harder to stop fretting wear in places with a lot of shaking. The best way to choose specifications is to talk about application needs with technical experts.

Lead Times and Logistics Considerations

Titanium washers of standard sizes usually ship from our Baoji facility within 7 to 10 business days, as long as we have enough in stock. For custom orders, CNC programming, machining, surface treatment, and quality control take three to four weeks. International shipments to the US and Europe usually get there in 10–15 days by air freight or 4–6 weeks by ocean container, but this depends on how quickly the order is placed and how many containers are being sent.

When you plan your buying schedules around your production schedules, you can avoid expensive rush shipping fees and delays in assembly. We suggest keeping a smart stock of widely used sizes and buying custom parts before project deadlines.

Conclusion

Titanium countersunk washers are a lot lighter than stainless steel ones—usually 45% lighter—but they don't lose any mechanical power or longevity. Because they don't rust, don't change much at room temperature, and are very strong for their weight, these materials are perfect for tough jobs in performance upgrades for cars, aerospace assemblies, marine gear, and the production of high-end bicycles. The initial costs are higher than with traditional materials, but the longer service life and better performance make up for it in the long run.

When purchasing these specialized parts, procurement workers should look for ISO-certified makers who can track materials and make changes as needed. Knowing about grade specifications, surface treatment options, and dimensional tolerances helps you choose the right part for the job.

FAQ

1. Are titanium washers consistently lighter than stainless steel equivalents?

Yes, a titanium countersunk washer weighs about 45% less than stainless steel 316 parts of the same size. This is because titanium has a density of 4.43 g/cm³, while steel has a density of 8.0 g/cm³. This weight benefit stays the same for all washer sizes, and titanium's tensile strength stays the same or even goes up.

2. Which industries benefit most from titanium countersunk washers?

They are used by aerospace companies to keep the aerodynamic profile of aircraft panel sections in good shape. To lower unsprung mass, auto race teams use them in brake calipers and suspension parts. Marine uses benefit from better resistance to corrosion in saltwater. High-end bicycle makers put them in carbon fiber frame assemblies where they won't break down because of galvanic compatibility.

3. How does corrosion resistance translate into lower maintenance costs?

Titanium's passive oxide layer stops rust weeping, pitting, and crevice corrosion, which are all problems that happen when fasteners are used in hard conditions and need to be replaced often. Marine and chemical processing uses report service intervals of 10 years or more, compared to stainless steel's annual replacement cycles. This means that rusted gear is no longer a source of contamination and labor costs are greatly reduced.

Ready to Upgrade Your Assemblies with Premium Titanium Countersunk Washers

When it comes to sizes M3 through M14, Wisdom Titanium makes precision-engineered titanium countersunk washers in Grade 5 material. The surfaces can be polished, anodized, or coated with PVD. Our Baoji Titanium Valley facility is ISO 9001-certified and keeps a full inventory of raw materials. It also has mature CNC production capabilities that ensure consistent quality and reliable lead times. Our experienced engineering team works closely with clients to come up with the best fastener solutions, whether they need standard sizes that can be sent right away or custom specifications for unique uses. As a reliable titanium countersunk washer seller to the aerospace, marine, automobile, and bicycle industries around the world, we ask procurement pros to email us at sales@wisdomtitanium.com for full product details, price quotes, and technical advice.

References

1. Boyer, R., Welsch, G., & Collings, E.W. (1994). Materials Properties Handbook: Titanium Alloys. ASM International.

2. Donachie, M.J. (2000). Titanium: A Technical Guide, 2nd Edition. ASM International.

3. Schutz, R.W., & Watkins, H.B. (1998). "Recent developments in titanium alloy application in the energy industry." Materials Science and Engineering: A, 243(1-2), 305-315.

4. Peters, M., Kumpfert, J., Ward, C.H., & Leyens, C. (2003). "Titanium alloys for aerospace applications." Advanced Engineering Materials, 5(6), 419-427.

5. Lutjering, G., & Williams, J.C. (2007). Titanium, 2nd Edition. Springer-Verlag Berlin Heidelberg.

6. Veiga, C., Davim, J.P., & Loureiro, A.J.R. (2012). "Properties and applications of titanium alloys: A brief review." Reviews on Advanced Materials Science, 32(2), 133-148.
