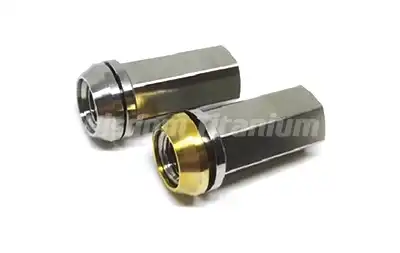

Whether you’re asking yourself whether titanium wheel lug nuts are a good idea for daily usage, the quick answer is yes – with the correct expectations. Grade 5 titanium lug nuts ( Ti-6Al-4V ) are around 45 % lighter than equivalent steel hardware. They have a tensile strength of 950-1050 MPa ( similar to Class 10.9 steel ) . For everyday drivers, this implies lower unsprung wheel mass, almost zero danger of corrosion from road salt, and fasteners that remain torque-stable after years of heat cycling. They are not simply ornamental upgrades, but also investments in performance and durability.
Understanding Titanium Wheel Lug Nuts: Features and Benefits
If you’re considering stocking or ordering titanium wheel fasteners, it’s good to know what makes them different from steel or chrome counterparts.
What Are Titanium Lug Nuts Made From?
The performance-grade titanium lug nuts are the industry standard, known as Grade 5 titanium or Ti-6Al-4V. This alpha-beta metal is less than 57% of the density of steel (7.85 g/cm^3), at 4.43 g/cm^3. It contains 6% aluminum and 4% vanadium. The ultimate result is a lower-weight fastener that nevertheless holds its weight.
Strength and Durability Specs That Matter
Tensile strength for Grade 5 titanium is in the range of 950-1050 MPa, and the yield strength is around 880 MPa. Between 30 and 36 HRC, most things are difficult. These figures are greater than or equal to those for Class 10.9 steel gear. So titanium lug nuts can take the torque loads and vibration cycles that occur with everyday driving without breaking or wearing out too fast.
Corrosion Resistance in Real Conditions
When titanium is exposed to air, a stable oxide layer forms. This coating protects titanium against corrosion, road salt, and acidic wheel cleaners. Steel lug nuts typically develop and crack in northern areas that utilize a lot of road salt from October to March. Titanium studs and nuts come out cleanly every time the tires are rotated, a helpful characteristic fleet operators and individual owners discover after the first winter.
Titanium vs. Traditional Lug Nuts: Making the Right Choice for Daily Drivers
When deciding between titanium and other lug nut materials, you need to factor in how much they will cost you upfront and how well they will perform in the long term. So for most crucial items for everyday usage, here’s how the alternatives stack up.
Weight Reduction and Unsprung Mass
Average steel titanium wheel lug nuts for a passenger automobile weigh between 20 and 35 grams apiece. A comparable size Grade 5 titanium nut will weigh 10 to 18 grams. 20 lug nuts are removed, and the quantity of spinning and unsprung mass is reduced. This decreases the rotational inertia at each corner, which makes the steering reaction crisper and the feel of the brakes a little better. Both track day drivers and enthusiastic street drivers can see all the improvements.
Fatigue Life vs. Aluminum Alternatives
Aluminum lug nuts are light, but they may not last as long if you keep using them over and over again with a lot of torque. Grade 5 titanium has a fatigue strength nearly three times that of 7075 aluminum alloy at the same weight objectives. For procurement teams buying parts for large fleets of cars, this difference immediately reduces the frequency of wheel-fastener replacements and the associated labor expenses.
Cost-Effectiveness Over a Full Service Life
Titanium lug nuts cost more per unit than steel lug nuts. But if you look at the entire ownership cost over five to eight years, titanium generally wins out. It doesn’t need to be changed as frequently because of corrosion, it needs less anti-seize, and it takes less effort in the workshop. Business-to-business customers that purchase 100 or more items from factory-direct suppliers receive unit costs that make this math work at the product line level.
Installation and Maintenance of Titanium Lug Nuts for Daily Use
The titanium screws are not a do-it-and-forget-it solution. You have to put them in well and check on them often.
Torque Specifications and Tools
Use the original torque standards for the vehicle, which for passenger automobiles are typically between 80 and 110 ft-lbs. Titanium has less flexibility than steel, and it is advisable not to use impact guns while installing titanium. Use hand tools instead of a torque wrench. If you over-torque anything with an impact driver, you may stretch the threads over their breaking point. A torque wrench totally takes care of this issue that may be prevented.
Anti-Seize and Galling Prevention
Titanium will cold-weld to other metals when the contact region is under very high pressure. This is known as galling. Before installing the titanium nuts and steel studs, apply a thin coating of copper- or nickel-based anti-seize compound to the threads. Many of the high-end Grade 5 lug nuts also have a PVD coating that helps to reduce friction and galling on the surface.
Re-Torque Protocol and Inspection Schedule
Re-torque wheel nuts after 50-100 miles after fitting. After the break-in stage, check the torque values each time you spin the tires. Titanium fasteners should be cleaned with simply water and mild soap. Avoid chlorine-based wheel cleaners; they may harm certain surface coatings over time but not the titanium itself.
Buying Guide: Procuring Titanium Lug Nuts for B2B Clients
When buying managers and brand founders are making a line of performance fasteners, qualifying suppliers is just as important as the hardware specs.
Verifying Material Authenticity
When buying titanium wheel lug nuts, the most frequent risk is getting Grade 2 commercially pure titanium that is sold as Grade 5. Grade 2 is only about 345 MPa strong when pulled apart, which is less than a third of Grade 5. Asking for a Material Test Report (MTR) or using an XRF tester to do a Positive Material Identification (PMI) test are the only safe ways to check. Any trustworthy titanium lug nut provider should be able to give you batch-level MTRs right away.
Surface Finish Standards and Consistency
Two of the most popular surface treatments in the speed aftermarket are burned blue anodized finishes and PVD black coats. Burned blue is a coloration of titanium oxide caused by heat. The exact color depends on how well the temperature is controlled during processing. For color consistency from batch to batch, the process needs to be carefully controlled. Before placing a large order with a seller, ask for samples from two or three different production runs and put them next to each other to see how they compare.
Thread Precision and Certification
TiN wheel nuts of the highest quality should meet the standards for DIN 934 or a similar thread class 6g. A thread that is too tight or too loose can cause galling, and a thread that is too tight can cause vibration loosening. Ask providers to show you records of their Go/No-Go gage inspections. Having ISO 9001 approval at the factory is a good start for quality control, but it doesn't replace inspection data at the part level.
Real-World Applications and Case Studies
Titanium wheel fasteners have proved valuable for many different sorts of cars and in many various situations.
Professional racing teams that undertake lengthy races utilize only Grade 5 titanium lug nuts because they can withstand temperatures as high as 400°C (750°F). During lengthy races, when the brake temperatures are high, the steel nuts might expand thermally and seize briefly. Titanium, however, retains the same size all the way through.
For supercar and premium car owners like Porsche, Ferrari, and McLaren platform cars, titanium lug nuts solve the issue of rusted OEM steel bolts staining pricey metal rims. This resistance to rust is quite important for beach locations with a lot of dampness.
Another usage is for overlanding and off-road projects. Cars driving through rivers and mud fields leave corrosive material trapped around the bolts. Titanium is chemically inert; thus, lug nuts come away easily while changing a tire on the side of the road even after months of exposure to dirt, salt water, and acidic soil. This is a safety feature, since jammed hardware may be a genuine concern in isolated regions .
Conclusion
Grade 5 titanium wheel lug nuts provide actual, tangible advantages to the average driver: reduced unsprung mass, better corrosion resistance, and a lifespan that often outlasts the vehicle’s first major service interval. They are a unique SKU that enables a higher selling price for B2B purchasers who are putting together lines of performance aftermarket items. Important elements are the inspection of materials, the consistent surface treatment, and the sourcing from an ISO-certified facility that can execute small-batch customisation and explicit quality documentation at the lot level.
FAQ
1. Do titanium lug nuts gall against steel studs?
Titanium can cold-weld against steel under high contact pressure. Apply a copper or nickel anti-seize compound to the threads, or specify lug nuts with a PVD coating. Either approach creates a friction barrier that prevents galling and allows smooth removal.
2. Can I use an impact gun to install titanium lug nuts?
It is not recommended. Titanium's lower modulus of elasticity makes it more susceptible to thread damage from the rapid, uncontrolled torque of an impact gun. Use a calibrated torque wrench and follow your vehicle's factory specification.
3. How do I confirm the material is genuine Grade 5?
Request a Material Test Report (MTR) from the supplier and verify it shows Ti-6Al-4V composition. A PMI test using an XRF analyzer provides definitive on-site confirmation. Grade 2 titanium deforms far more easily under load and lacks the aluminum-vanadium alloying that gives Grade 5 its strength.
4. What is the expected lifespan compared to steel lug nuts?
With correct installation and periodic inspection, Grade 5 titanium lug nuts typically outlast steel equivalents by a significant margin — corrosion being the primary failure mode for steel that titanium simply does not share.
5. What is the minimum order for B2B procurement?
At Wisdom Titanium, the minimum order quantity starts at 100 pieces per SKU, with flexible multi-SKU mixed batching available to support new product launches.
Request Samples or a Custom Quote from Wisdom Titanium
We at Wisdom Titanium sell Grade 5 titanium wheel lug nuts that are approved by ISO 9001, straight from our factory in Baoji Titanium Valley, Shaanxi Province, which is China's biggest integrated titanium production base. Our titanium wheel lug nuts come in three finishes: PVD, burned blue, and anodized. The minimum order quantity (MOQ) is 100 pieces, and you can ask for a unique logo or packaging choice. You can email our team at sales@wisdomtitanium.com to ask for samples, look at MTR paperwork, or talk about a bulk purchasing program that is made just for your product line.
References
1. ASM International. Titanium: A Technical Guide. ASM International, 2000.
2. SAE International. Fastener Standards and Torque Specifications for Automotive Applications. SAE International, 2018.
3. DIN Deutsches Institut für Normung. DIN 934: Hexagon Nuts — Product Grades A and B. DIN, 2012.
4. Boyer, R., Welsch, G., and Collings, E.W. Materials Properties Handbook: Titanium Alloys. ASM International, 1994.
5. Automotive Engineering International. "Weight Reduction Strategies in Passenger Vehicle Fastener Systems." SAE Media, 2021.
6. Journal of Materials Engineering and Performance. "Corrosion Behavior of Ti-6Al-4V Alloy in Simulated Road Salt Environments." Springer, 2019.
